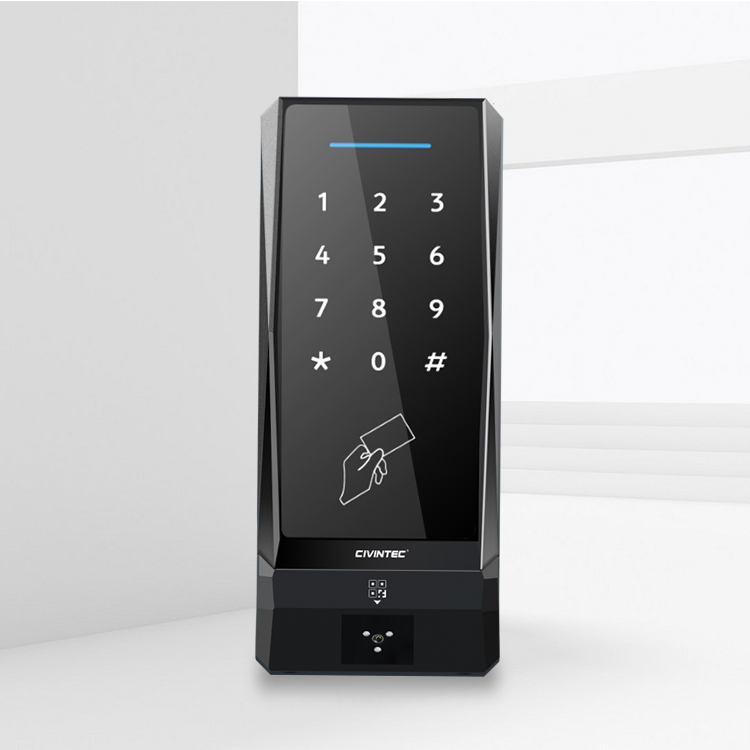

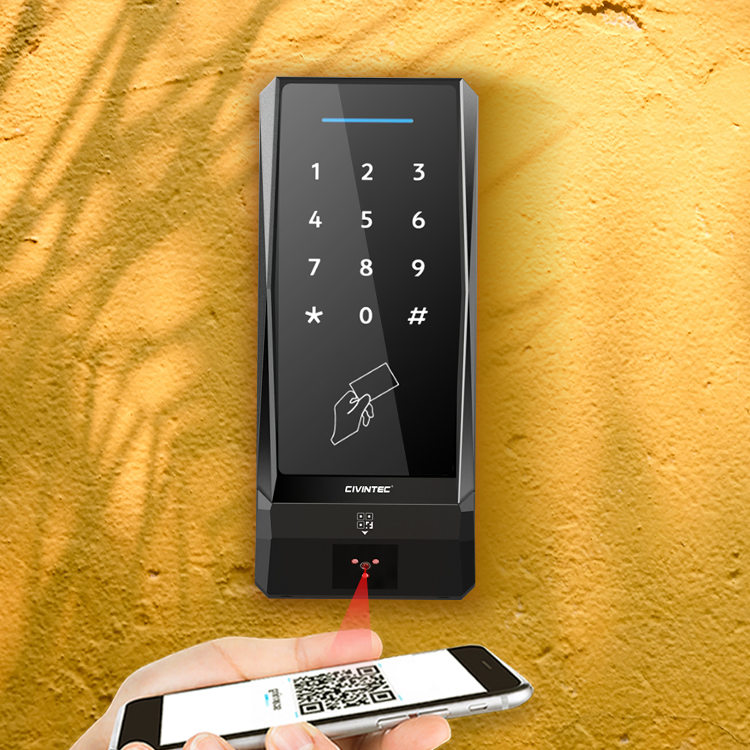

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal featuring wireless WiFi, 4G, and TCP/IP Ethernet. It is designed for seamless communication with both LAN and Internet cloud server software, with an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including a touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
HTTP Server Centralized Access Control & IOT System
Touch Keypad Reader with Embedded LINUX OS & SDK + WiFi/4G/TCP/IP support for LAN & Internet Server Software. Includes Embedded Relay Control for Lock & Facility Management.
| Category | CT9 E Specifications |
|---|---|
| IDENTIFICATION TECHNOLOGIES | |
| RFID Contactless Cards | 125KHz PROx/EM; 13.56MHz Mifare Classic, Ultralight, Plus, DESFire EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |

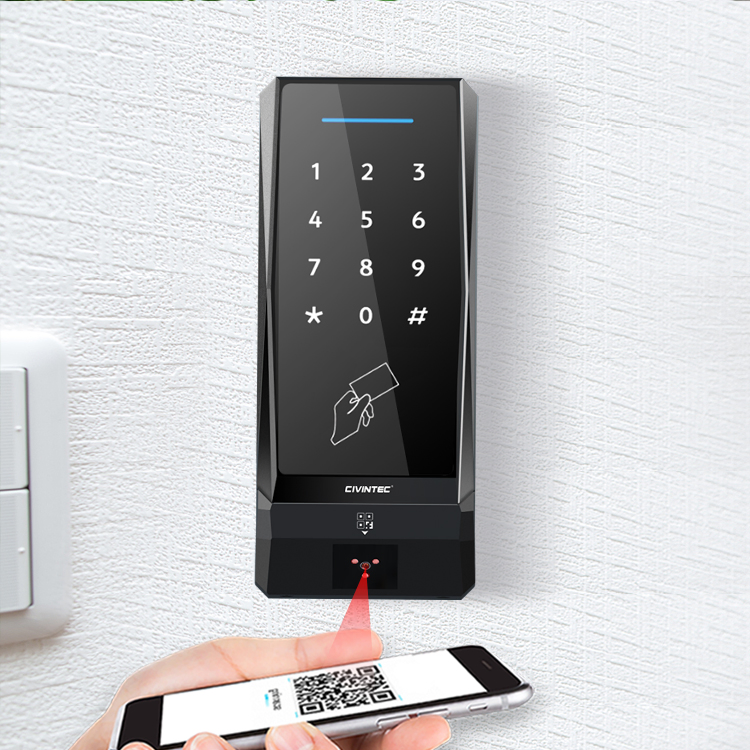

| Barcode / QR scanner | 1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39 |
| INTERFACE | |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand input |

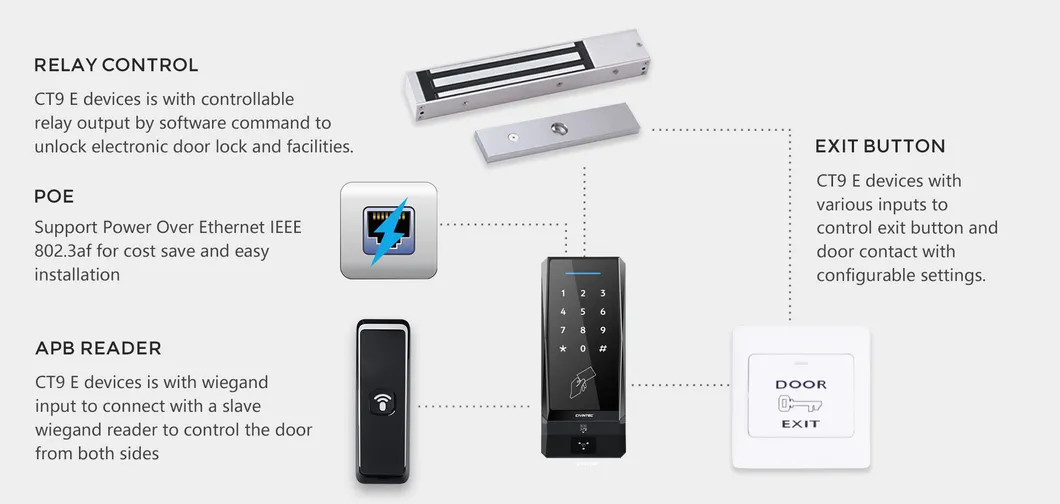

| I/O Port | Door contact, Exit button, Fire alarm, Tamper switch, 1~2 relay outputs |
| GENERAL | |
| Operating System | LINUX |

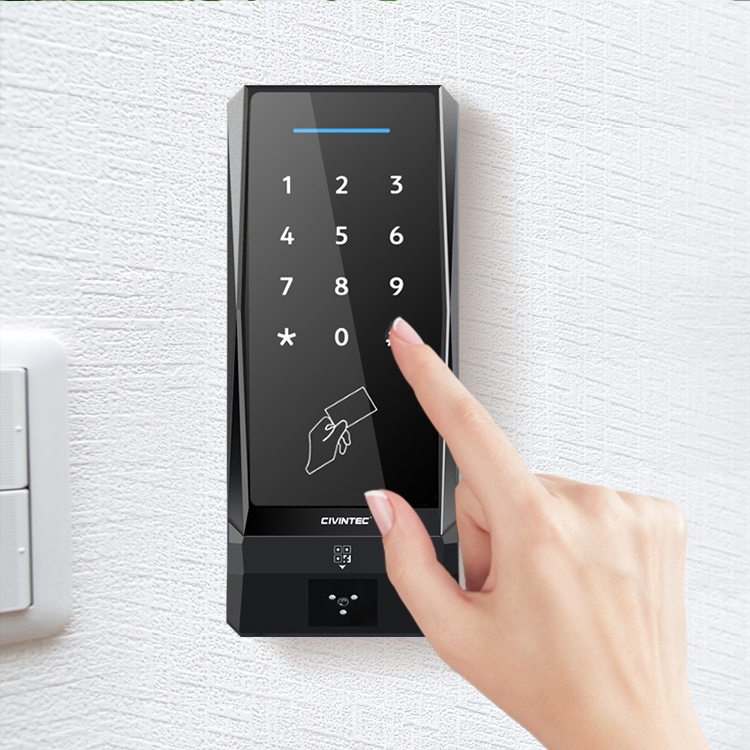

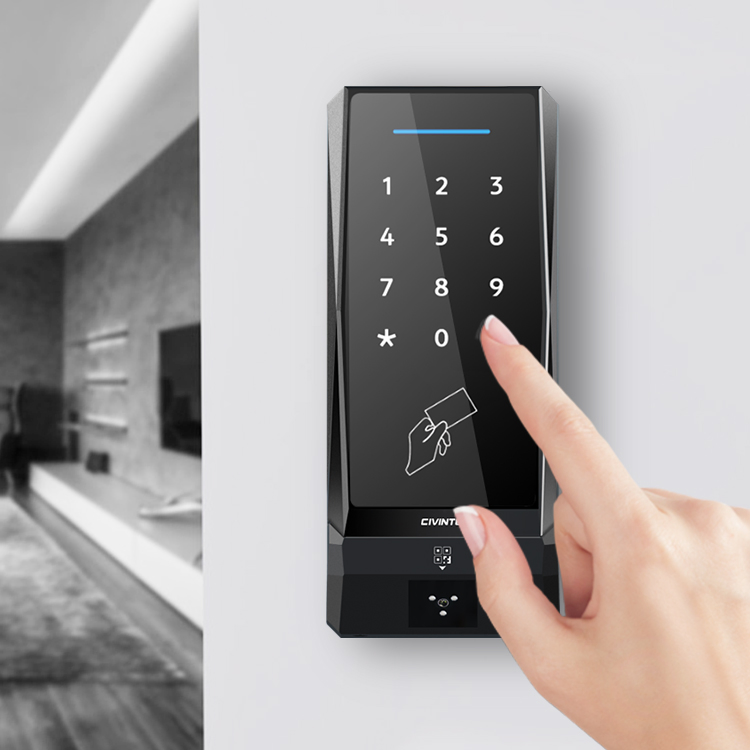

| Keypad | 12-digit Touch keypad with backlit |
| Capacity | Unlimited Online Users / 10,000 Offline Users |
| Power Supply | 12~24V DC or PoE (IEEE 802.3af) |
| Protection | IP65 electric epoxy potted, UV resistant |

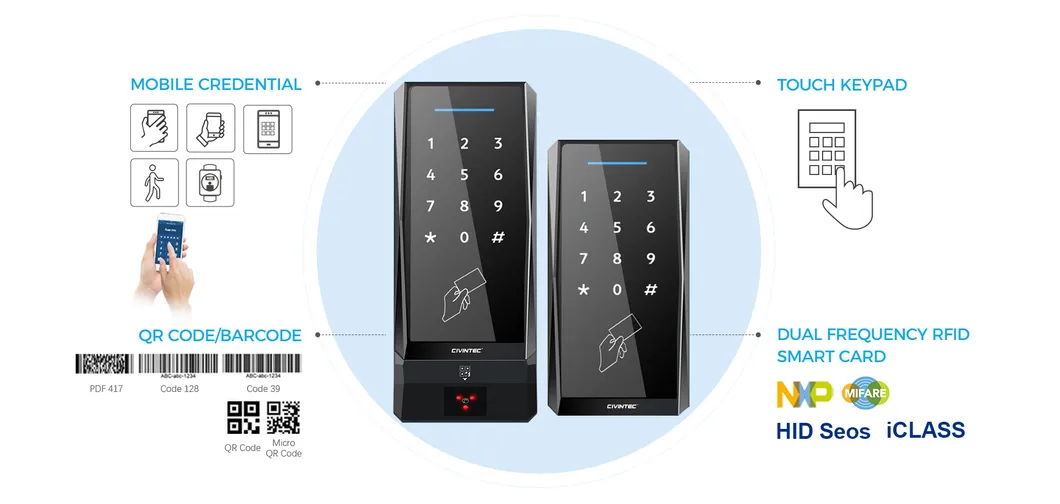

Multiple Access Credentials: 5-in-1 technology including RFID, PIN, BLE, NFC, and QR Code.

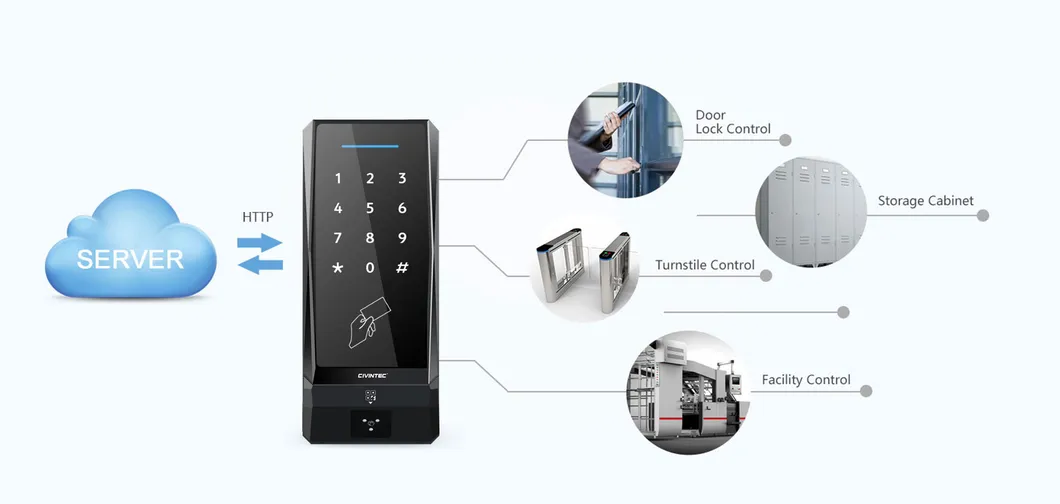

Cloud Remote Control: Bio-direction communication via standard HTTP/HTTPs for remote facility management.
Application Solutions: Ideal for access control or IoT solutions with real-time encrypted communication.
Weather-Resistant: IP65 rated for rain, dust, and sunlight, suitable for outdoor and rugged environments.
We offer comprehensive customization on hardware, housing, firmware, and software design. Users can program and display their own LOGO on the 3.5" touch screen. We also offer logo printing on the reader body.
