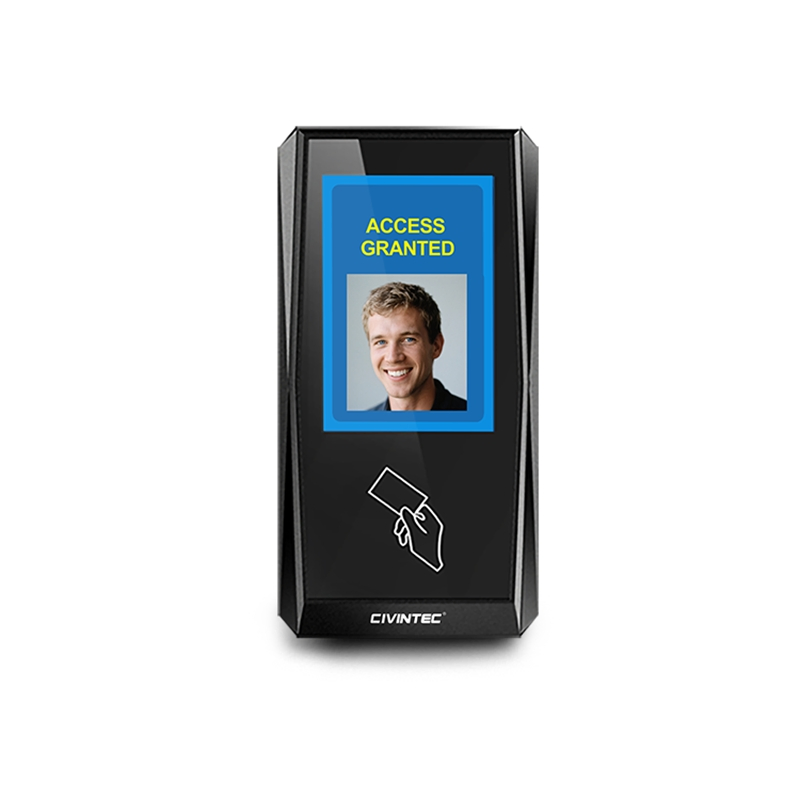

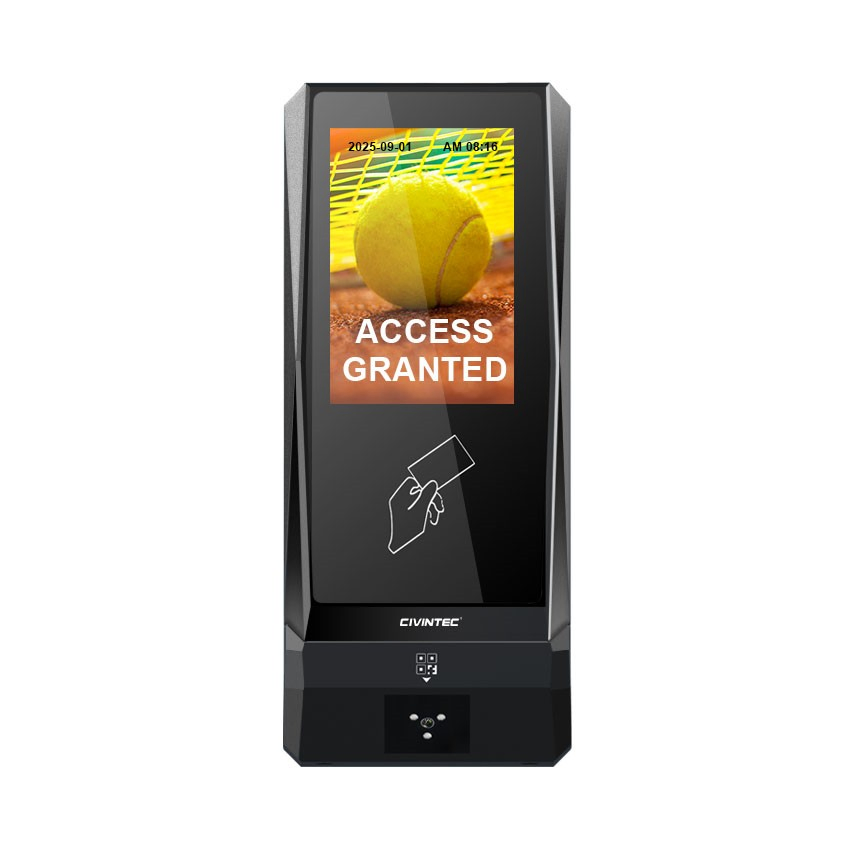

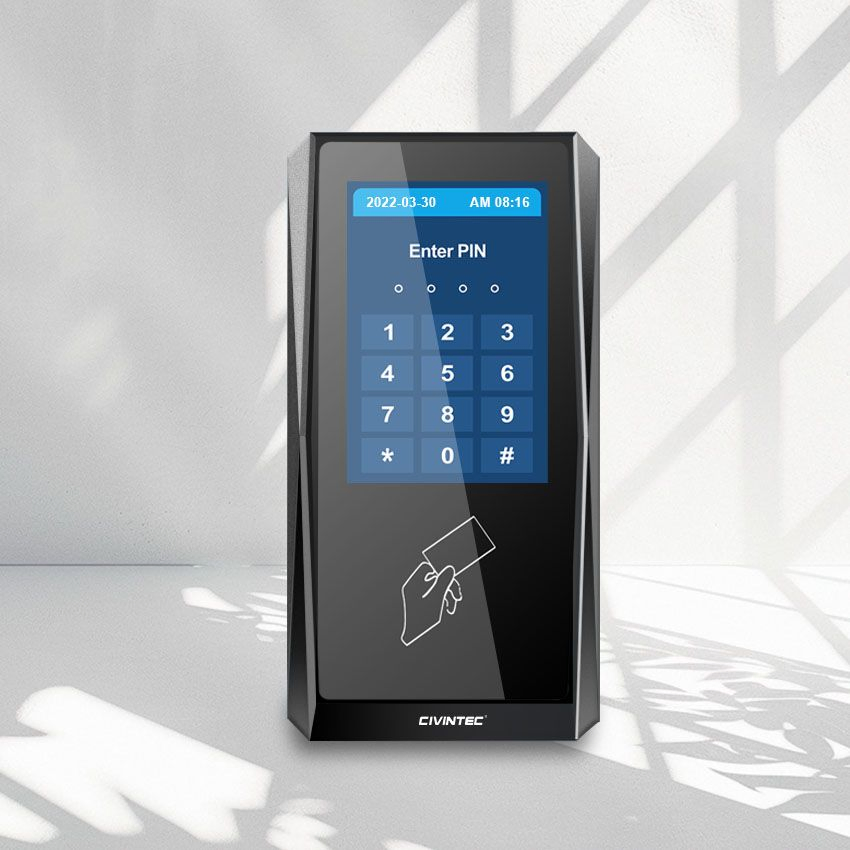

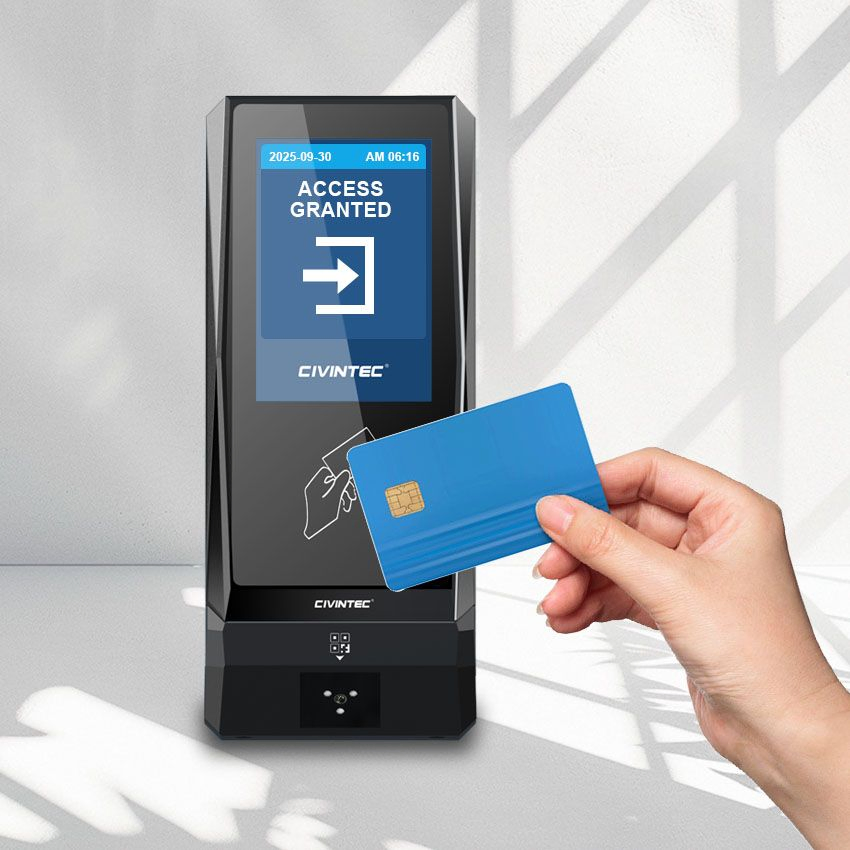

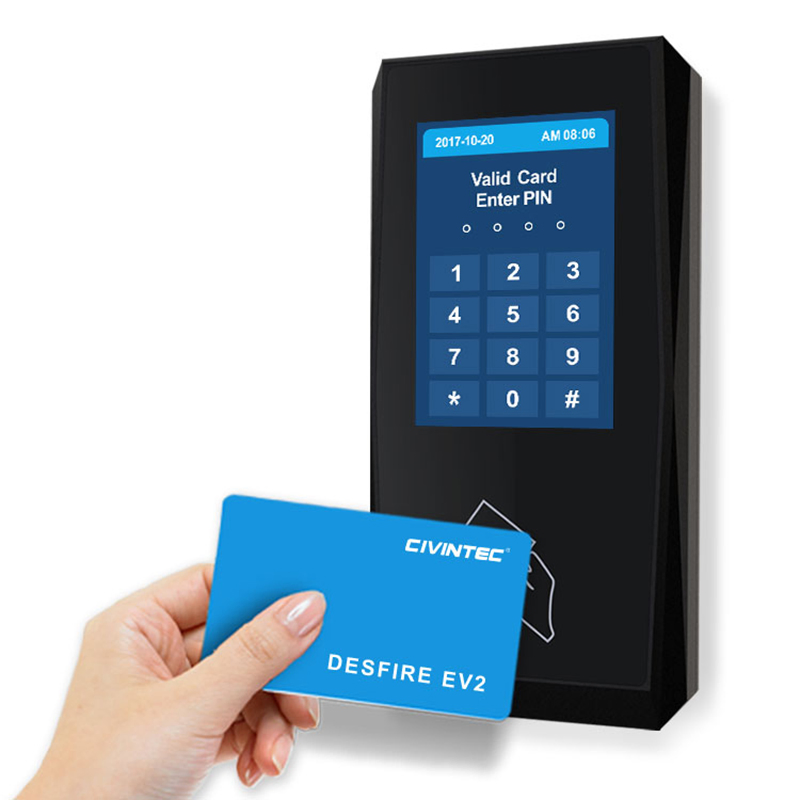

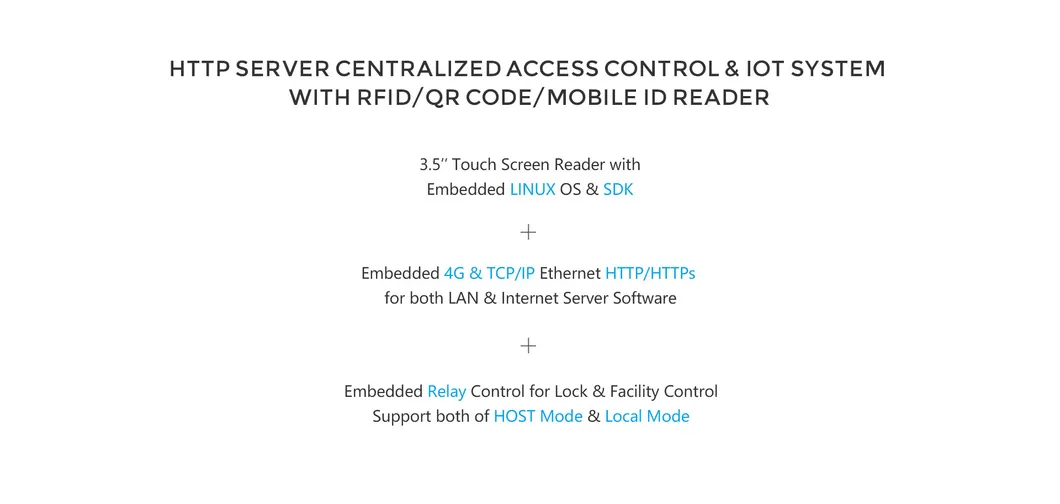

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags (T2T, T4T), ISO14443B; HID Prox and iCLASS®, iCLASS SE/SR® iCLASS Seos® smart cards |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs Tamper alarm switch, door contact, door exit |
| Capacity | 10,000 users / 50,000 logs |
| IP protection | IP65 outdoor/indoor use, UV-resistance |

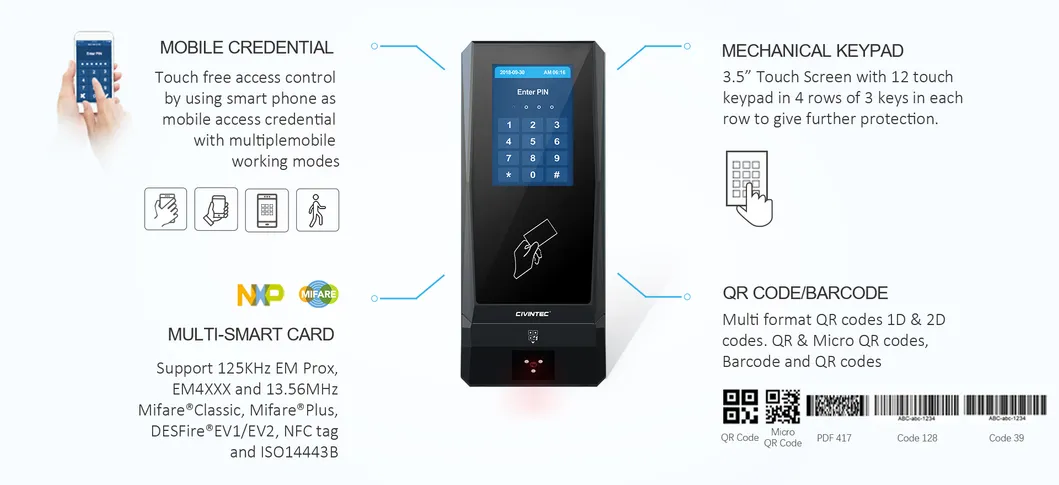

Multiple Access Credential
CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

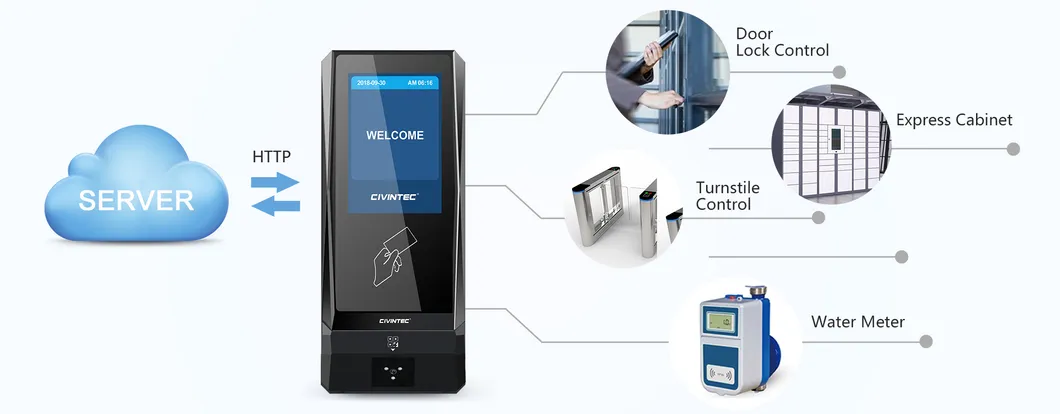

Cloud Server Remote Control
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.
Weather-Resistant Protection
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments.
3

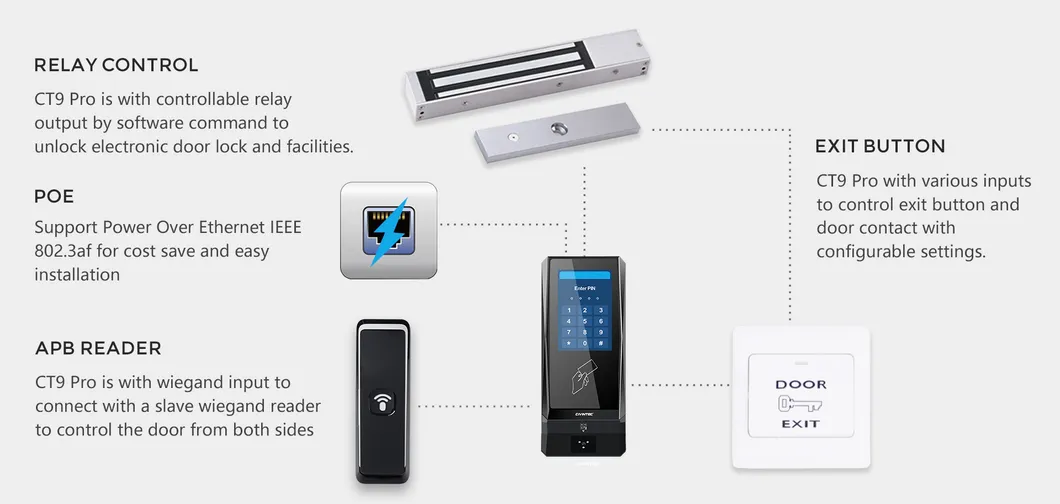

System Configuration & Services

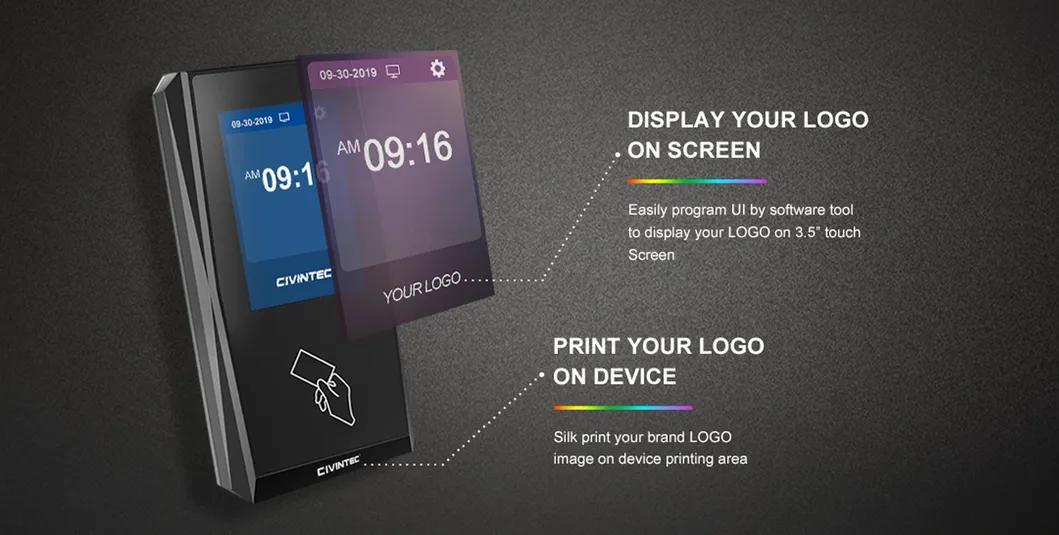

We offer customization on both hardware, reader housing, firmware and software design service. Users can program and display their own LOGO on the 3.5" touch screen.
?
Frequently Asked Questions
What types of access credentials does the CT9 Pro support?
The CT9 Pro supports 5-in-1 multiple technologies including touch keypad (PIN), RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR code/barcode scanning.
Is the CT9 Pro suitable for outdoor installation?
Yes, it features an IP65 rating, making it weather-resistant against rain, dust, and strong sunlight, ideal for both indoor and outdoor environments.
How does the device communicate with a server?
It uses encrypted HTTP or HTTPS protocols for bio-direction communication with centralized cloud servers via wireless 4G or TCP/IP Ethernet.
What is the user and log capacity of the terminal?
The standard configuration supports up to 10,000 card users and 50,000 event logs, with options to increase this on request.
Does the terminal support Power over Ethernet (PoE)?
Yes, the device supports PoE IEEE 802.3af, allowing it to receive power and data through a single Ethernet cable.
Can the display interface be customized?
Yes, users can program the 3.5" touch screen to display their own custom logos and branding.
