| Basic Specification | |
|---|---|
| Model NO. | ECX168 |
| Operating Voltage | 12V |
| Power Supply Current | 2A |
| Operating Systems | Android Operating System |
| Display | 5-Inch Screen |
| ESD Rating | Contact Discharge +4kv, Air Discharge +8kv |
| HS Code | 8543709990 |
| Dimensions | 116x110.5x39.5mm |

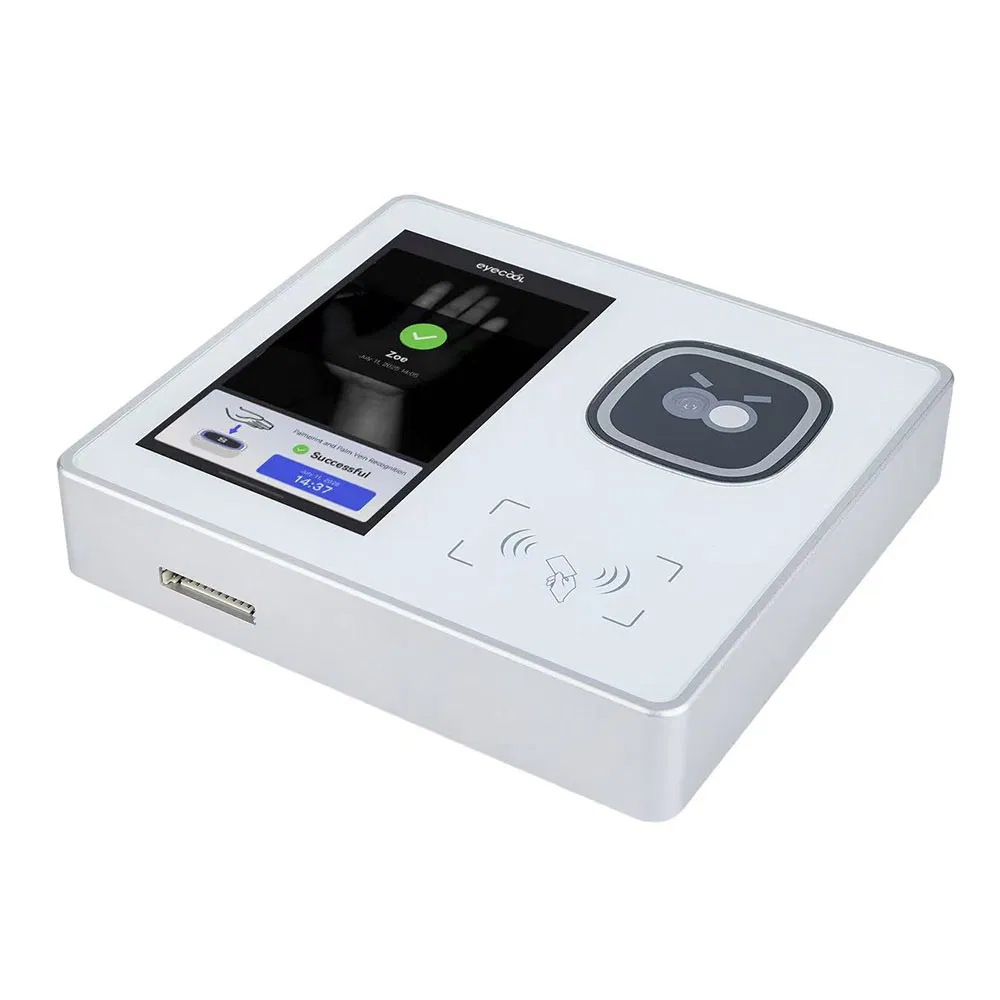

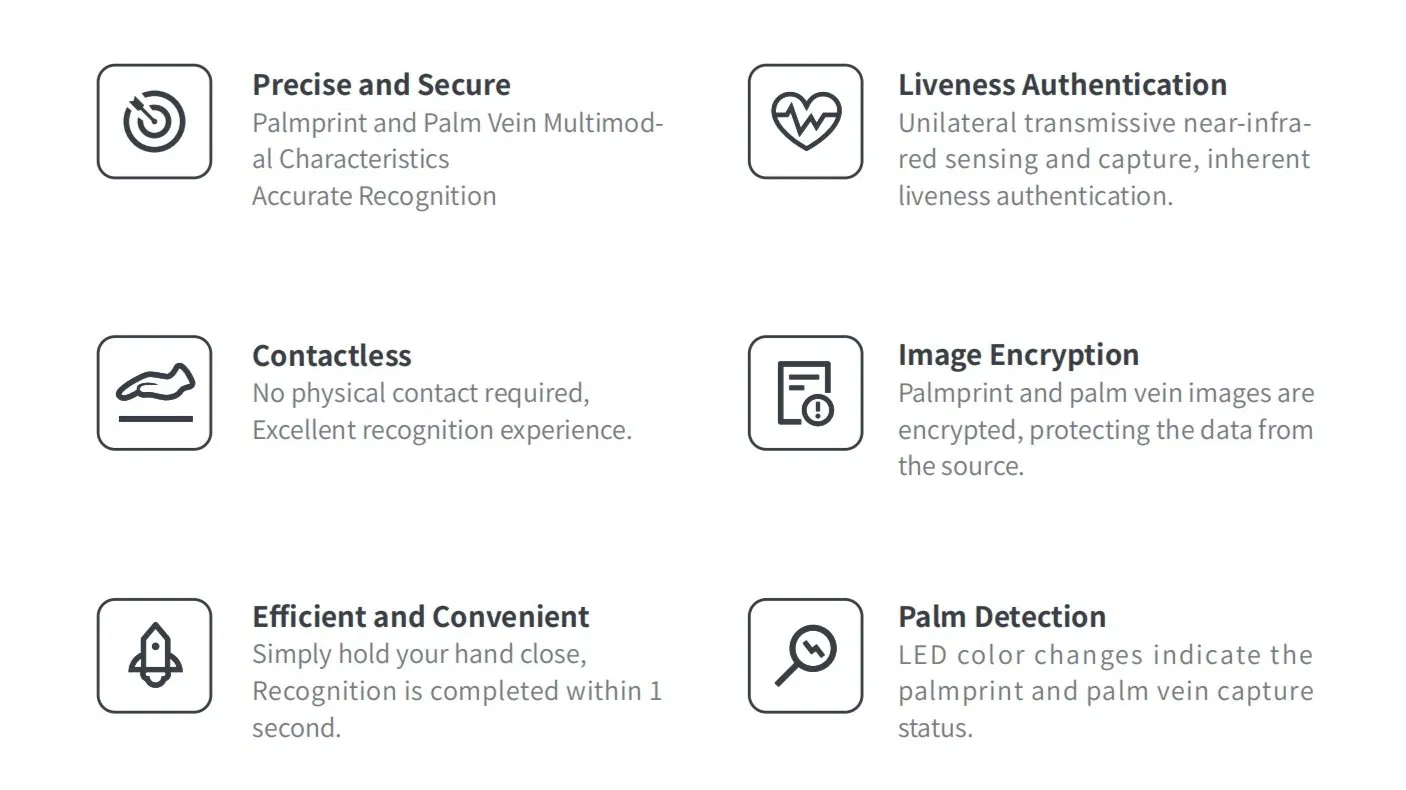

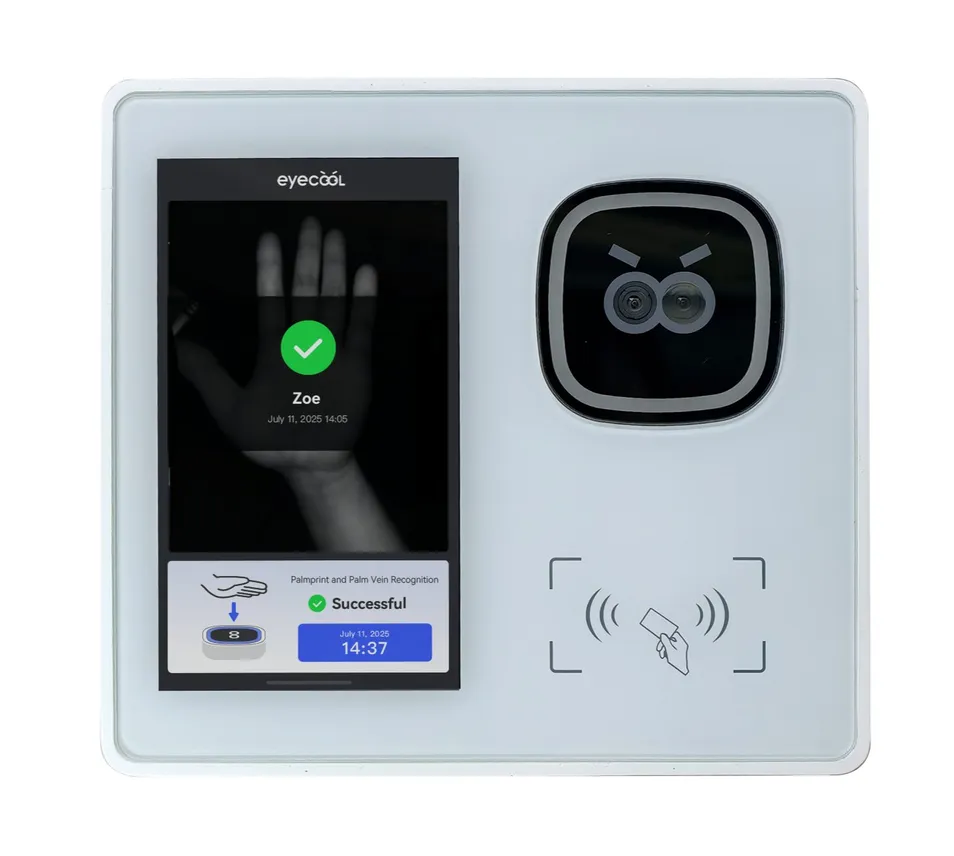

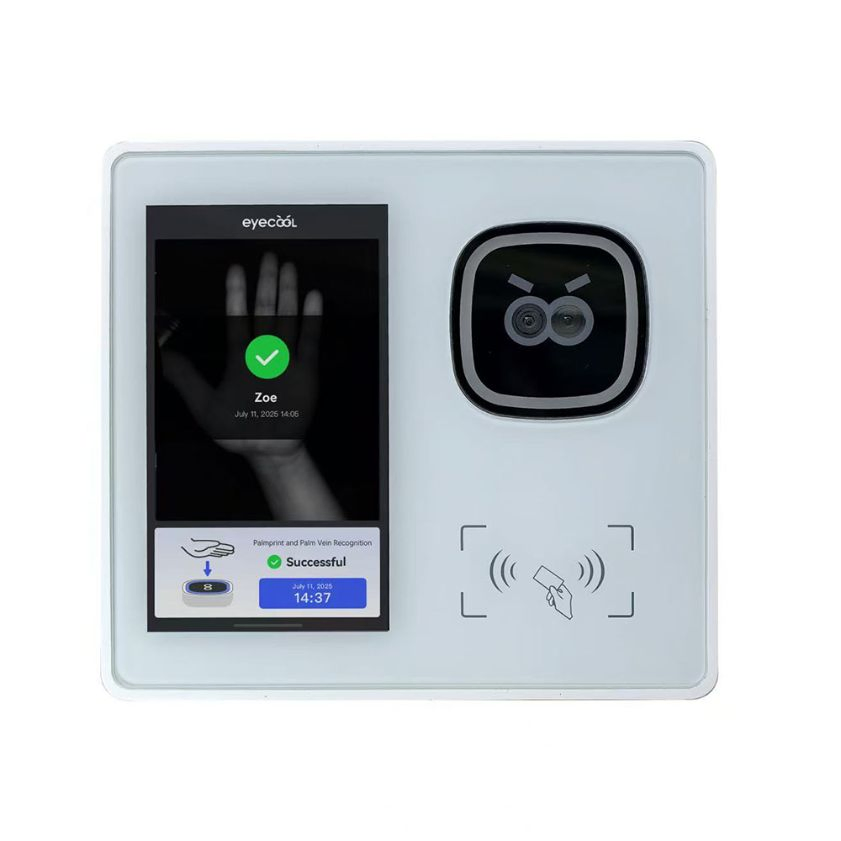

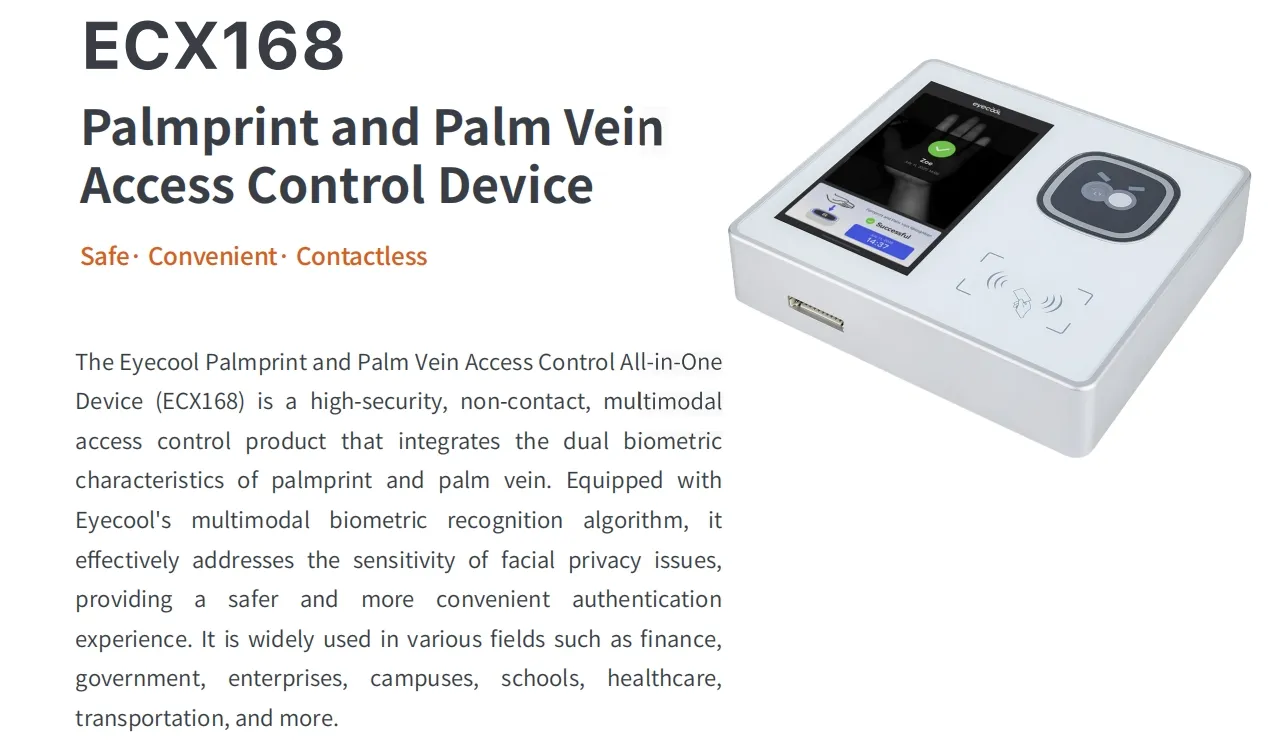

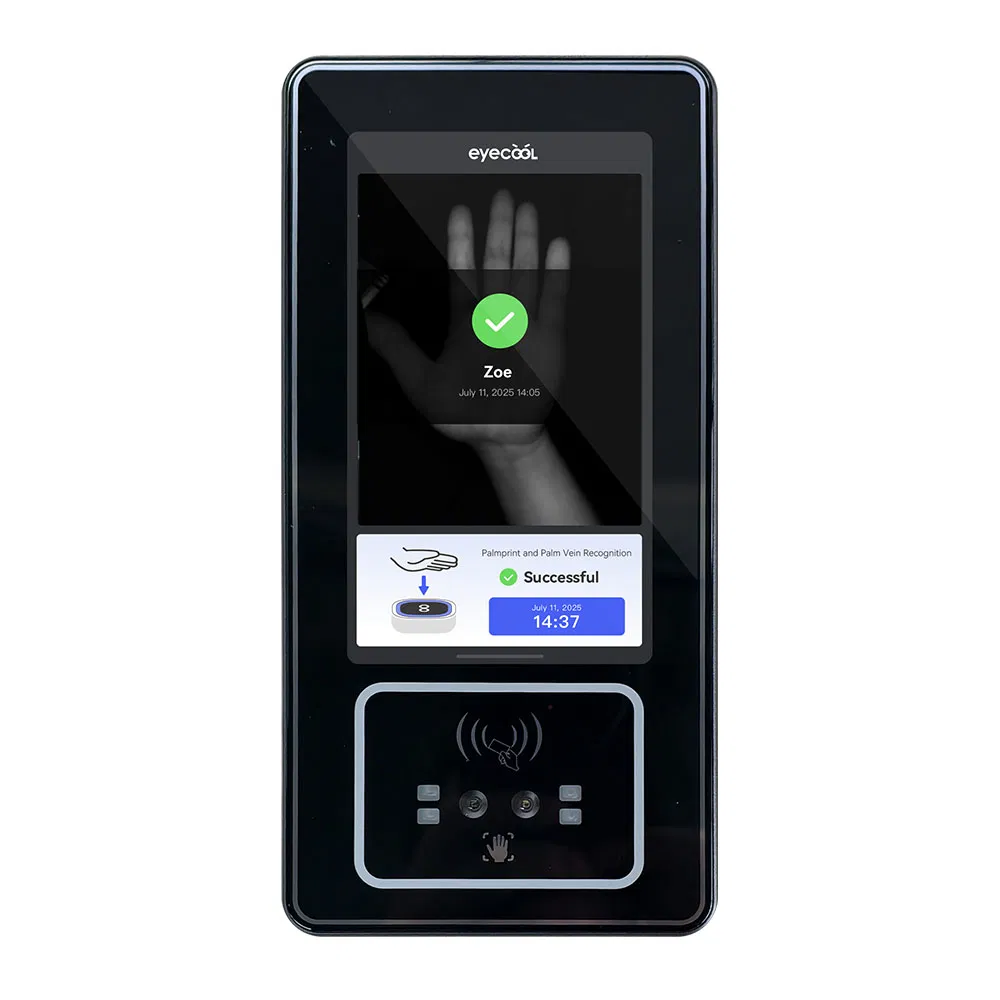

This Android-based terminal integrates proprietary algorithms to analyze surface palmprint textures and subsurface vein patterns via infrared scanning. Through image capture, feature extraction, pattern matching, and liveness detection, the device delivers enhanced security, contactless operation, and robust anti-spoofing capabilities.
The system supports networked operations, enabling centralized user management, attendance tracking, and multi-device synchronization through its administrative interface.
| Capture & Matching Performance | |
| Capture Time | <500ms |
| Local Storage/Matching | 50,000 (Larger memory optional) |
| Online Matching | 1,000,000 |
| Resolution/Frame Rate | RGB/IR : 720*1024 / 25fps |
| Environment Adaptability | |
| Operating Temperature | -10℃ to 55℃ |
| Operating Illuminance | 0-50,000 lux |
| Communication | RJ45, WiFi |
