Hotel Card Door Lock System with Smart Key Card Door Lock System

Still deciding? Get samples of $ !
Request Sample

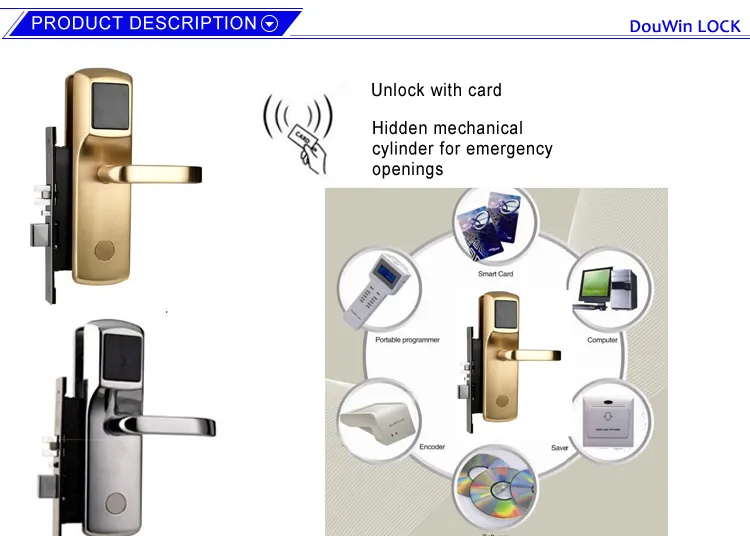

Product Description

📋
Basic Specifications
Model NO.
586MFGB
Surface Treatment
Brushed
Style
Modern
Power Type
DC
Certification
CE, FCC, FCC&CE
Color
Silver
Usage
Hotel, Household, Commercial
Suitable for
Home Door
Door Thickness
30-55mm
Card Type
Smart Card Type
Battery
4 Pieces of AA Batteries
HS Code
83014000
🛠️

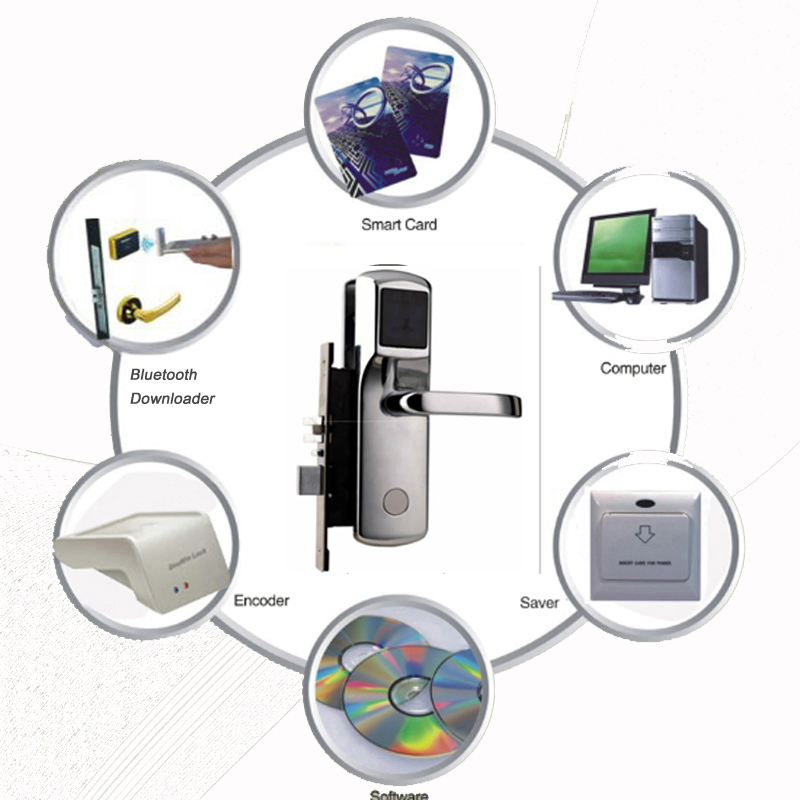

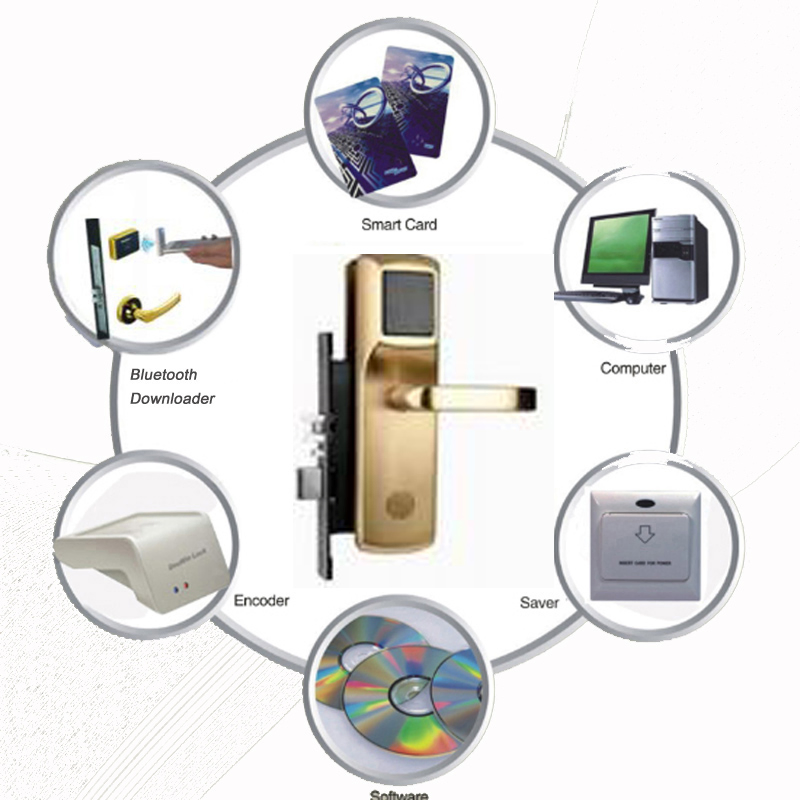

System Configuration
Component Function Description
LockFor guest room entrance
EncoderFor authorizing cards and software management
Energy saver switchOptional software-managed power control for rooms
CardUsed to open doors
Data gatherTo collect entrance access information
SoftwarePermanent management software packed with Encoder
Extended Functions
Access controlFor common areas or main doors; uses same software and card
Elevator controllerFor elevator access; uses same software and card
Room statusFor guest room status, integrated with door bell
Technical Features
Applicable cardID, TEMIC, MIFARE®: 100,000 times life
MaterialZinc Alloy with chrome plated: moisture proof, fire retardant
Panel surface finishingPVD-durable for at least 15 years
Power supply4 pcs AA alkaline batteries
Battery life8-12 months in normal state
Low voltage warningWarning when voltage < 4.5V; supports 50 more unlocks
Static/Dynamic consumption< 30 uA / 220mA
Working temperature-25C ~ 55C
Auto-lock timeLocks automatically 7 seconds after unlocking

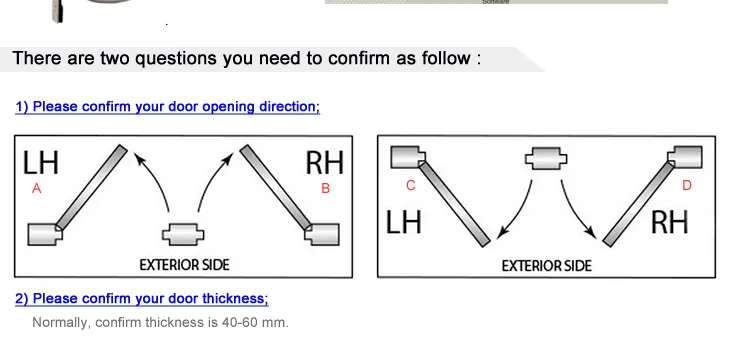

Door thicknessStandard 32-60mm (Customizable)
🖼️

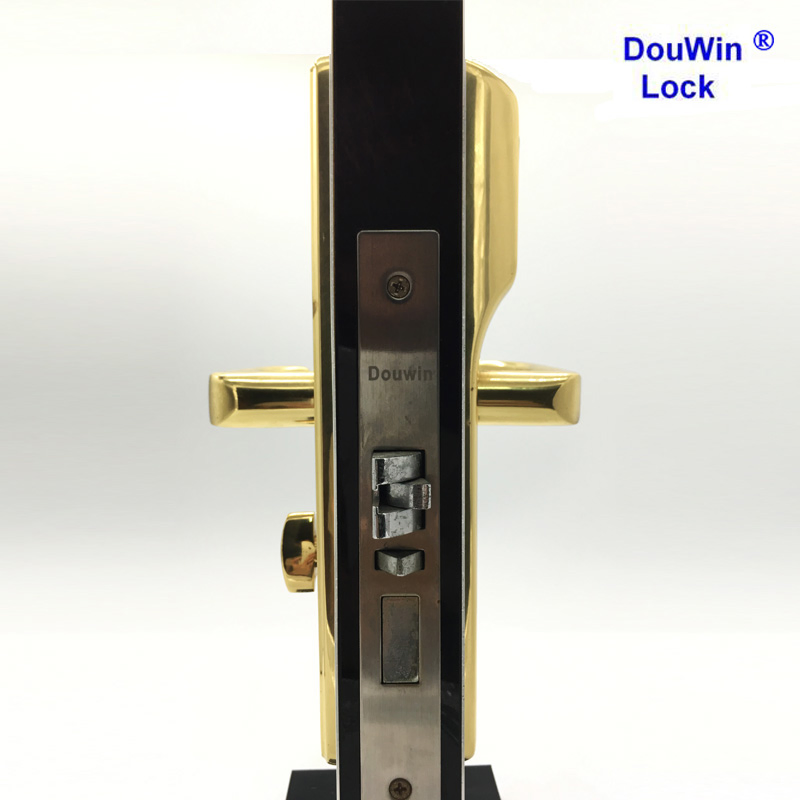

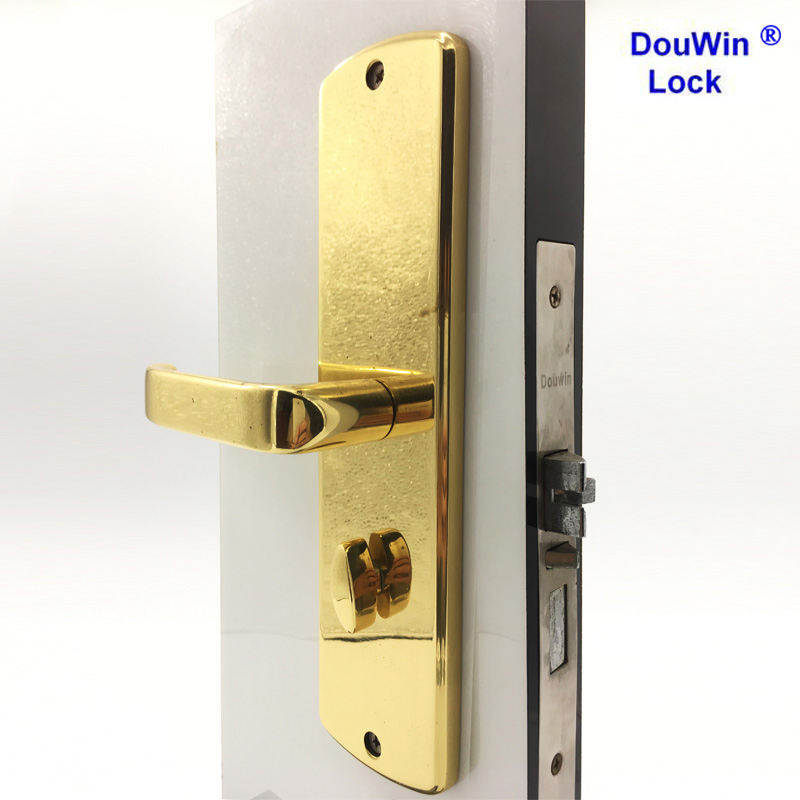

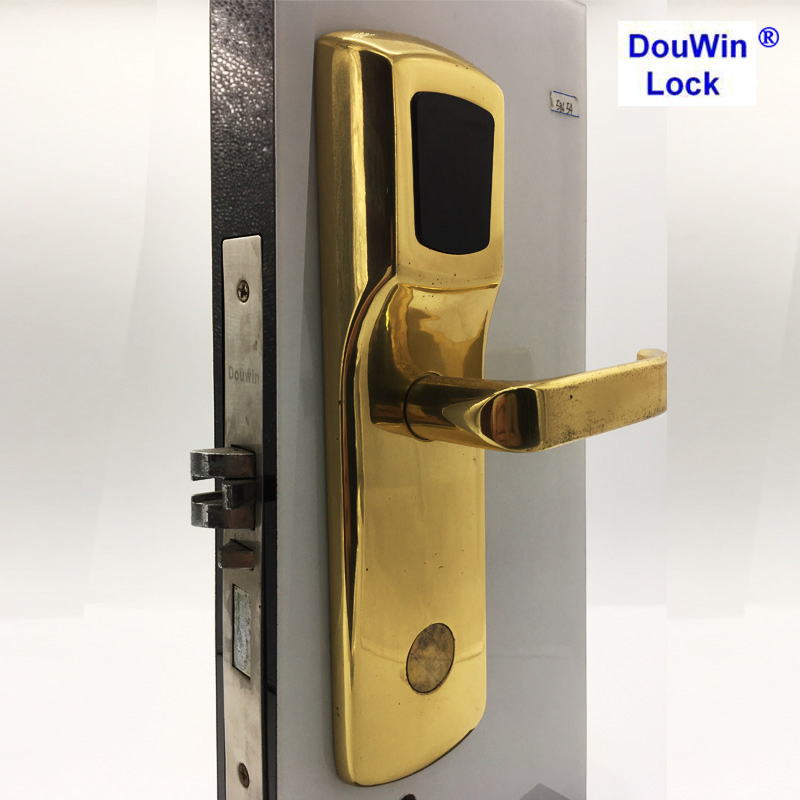

Product Showcase

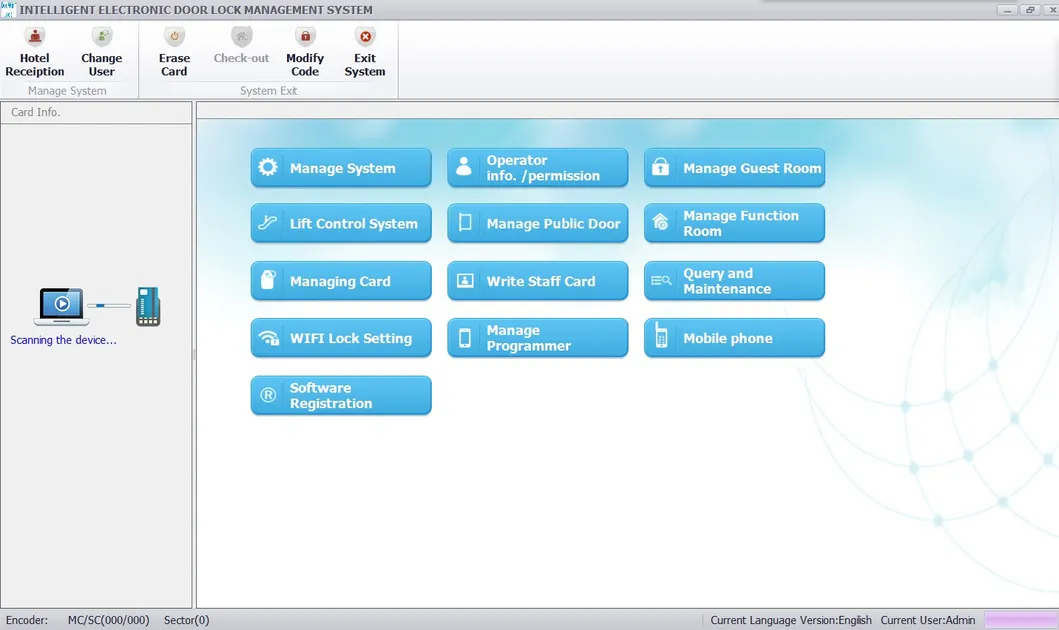

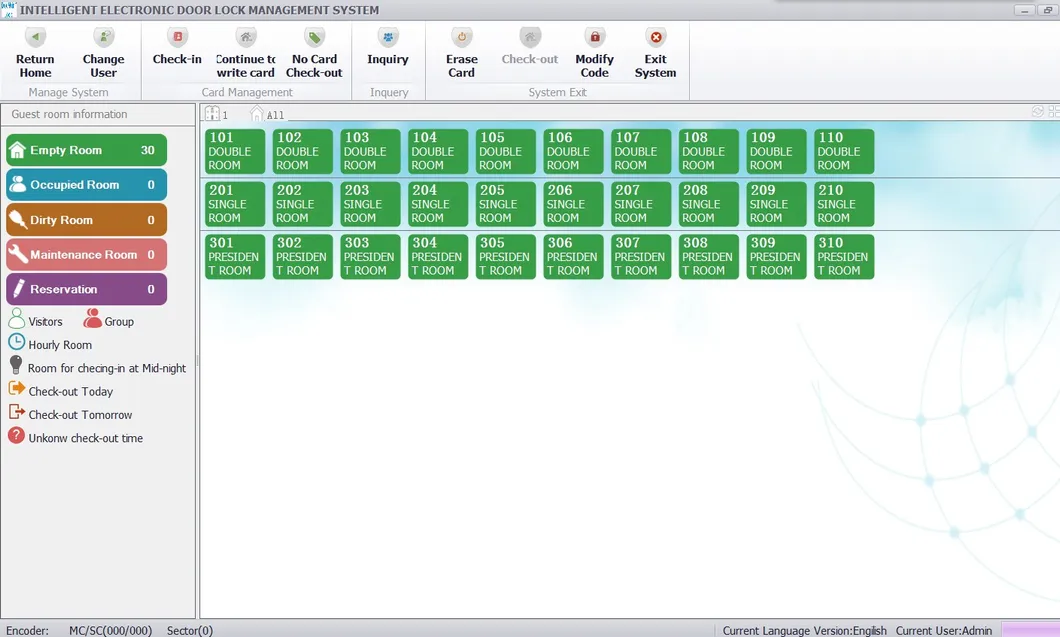

Software Management Interface

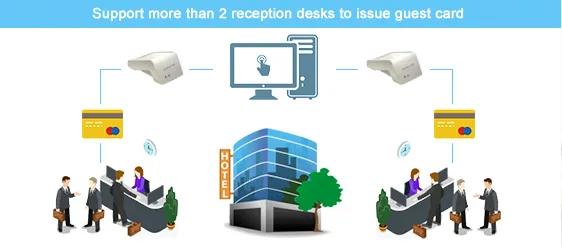

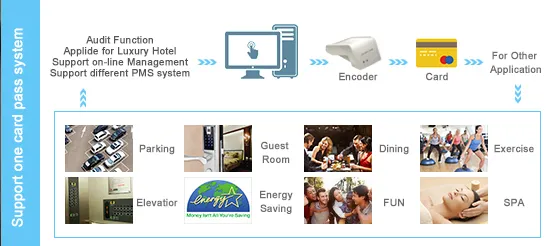

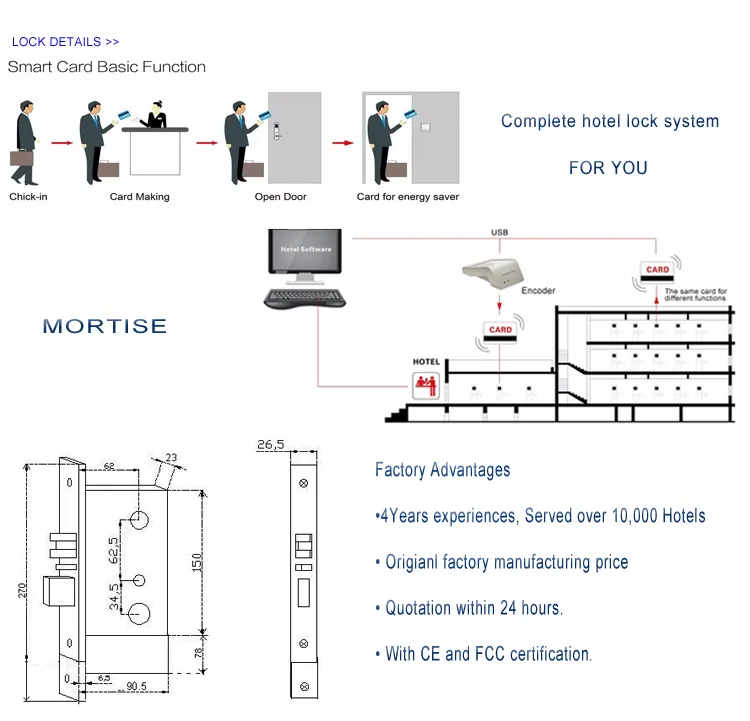

Integration & Networking
Packaging & Advantages
Frequently Asked Questions
Q1: What types of smart cards are compatible with this system?
The system supports ID, TEMIC, and MIFARE® cards, offering a high durability of up to 100,000 uses.
Q2: How does the low voltage warning feature work?
When the battery voltage drops below 4.5V, a warning will trigger during unlocking. Even after the warning, the lock can still be opened approximately 50 times before the batteries are fully exhausted.
Q3: Can the lock management software be integrated with hotel PMS?
Yes, the software is powerful and can be integrated with various Hotel Management Systems (PMS) using the provided SDK (DLL).
Q4: Is the management software free to use?
The management software is provided free of charge, it is permanent, and comes packed with the Encoder hardware.
Q5: What is the typical battery life for the 586MFGB model?
Under normal usage conditions, the 4 AA alkaline batteries will last between 8 to 12 months.
Q6: What materials are used for the lock's construction?
The lock is made of high-quality Zinc Alloy with chrome plating, ensuring it is moisture-proof and fire-retardant. The PVD surface finishing is designed to last at least 15 years.
