📋 Product Overview

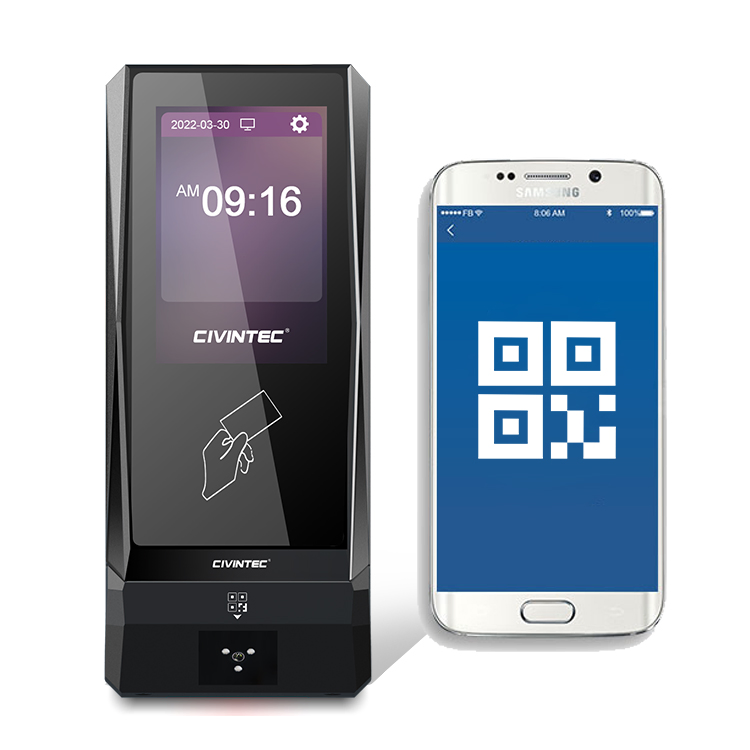

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Plus, DESFire EV1, EV2, NFC tags, ISO14443B |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| IP protection | IP65 outdoor/indoor use |
✨ Product Features

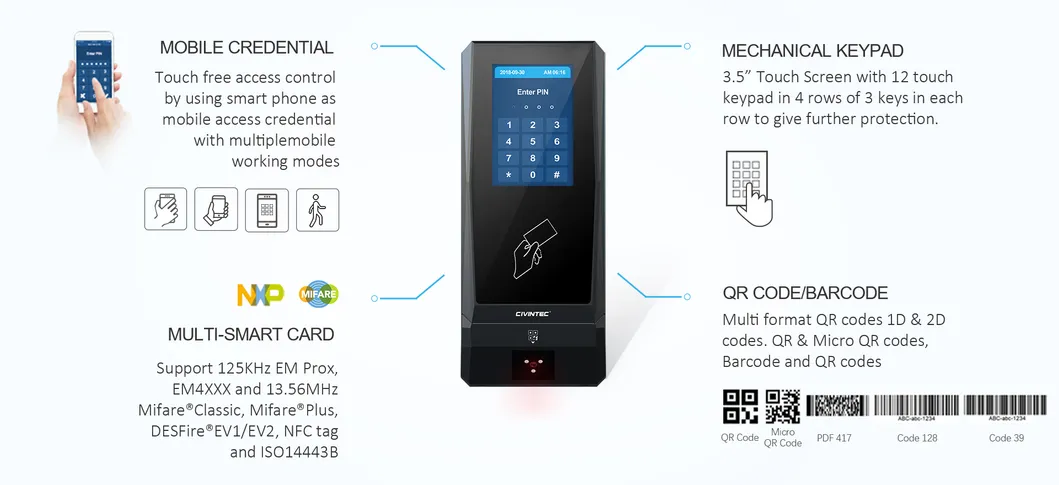

Multiple Access Credential

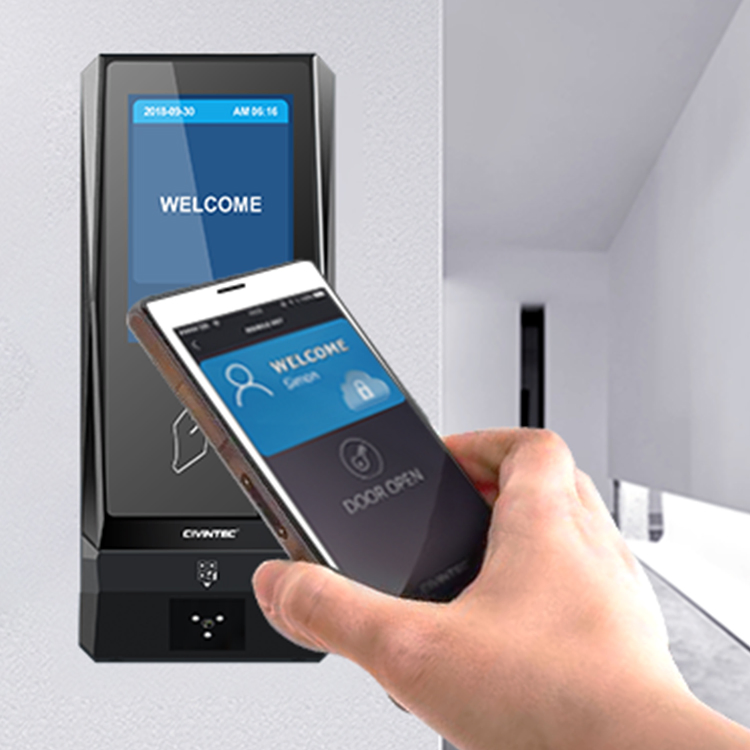

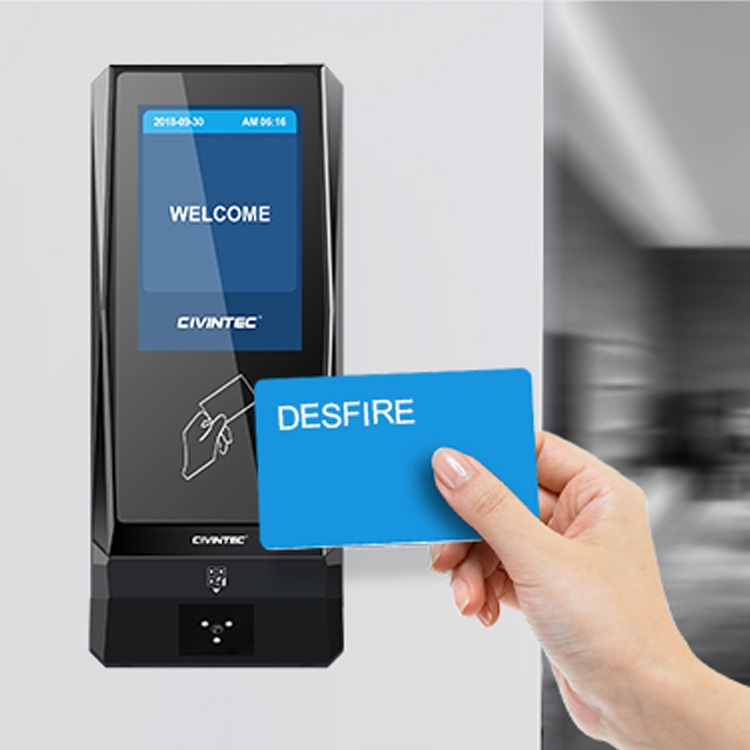

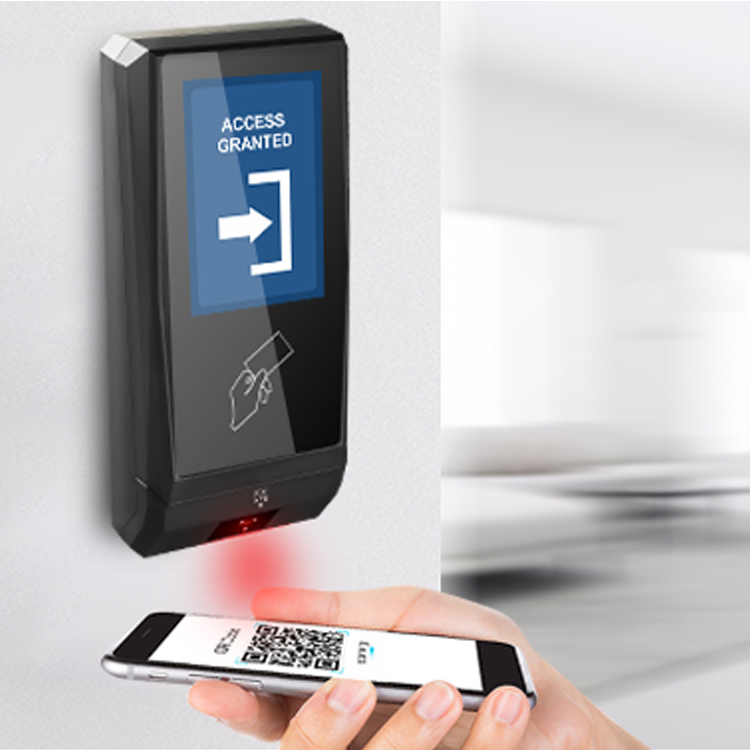

CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.
Cloud Server Remote Control
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.
Multiple Application Solutions

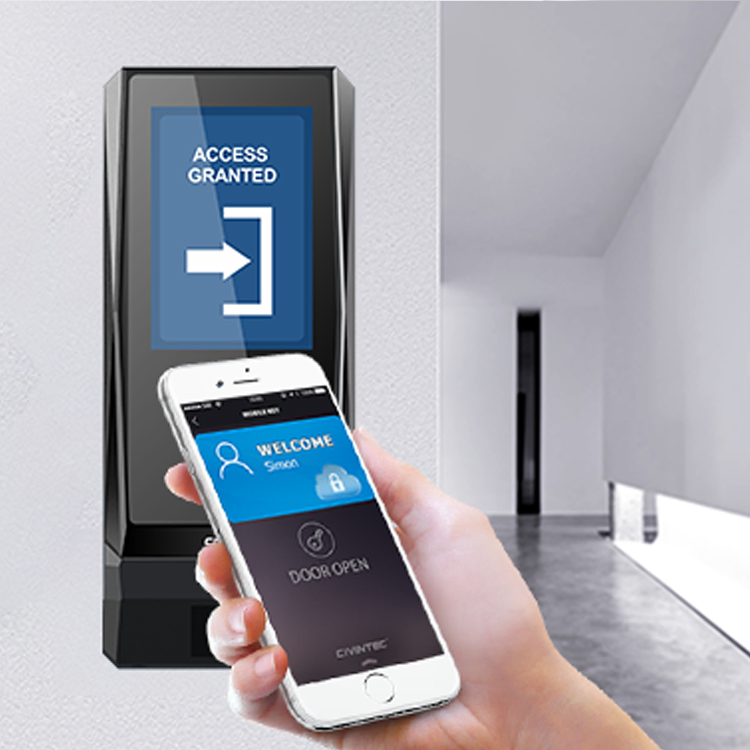

Crystal Touch CT9 is IP access control door reader remotely controlled by cloud web based software in real time. It is with embedded relay output to control door lock as ACCESS DENIED or ACCESS GRANTED.
💼 Our Service
We offer ODM customization on both hardware, reader housing, firmware and software design service. User can free program and display own LOGO on 3.5" touch screen.
Frequently Asked Questions
What types of access credentials does CT9 Pro support?
CT9 Pro supports 5-in-1 technologies: Touch Pincode, RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR Code/Barcode scanning.
Is the terminal suitable for outdoor installation?
Yes, the device features IP65 protection, making it waterproof and suitable for both outdoor and indoor environments.
How does the device communicate with the server?
It uses Linux-based HTTP/HTTPs protocols for centralized communication via 4G wireless or TCP/IP Ethernet.
Does the CT9 Pro support Power over Ethernet (PoE)?
Yes, it is compatible with PoE IEEE 802.3af, as well as a 12-30V DC power supply.
Can I customize the display interface?
Absolutely. The 3.5" touch screen allows users to program and display their own logos and interface elements.
What is the user capacity of the terminal?
The standard configuration supports up to 10,000 card users and 50,000 event logs, with more available upon request.
