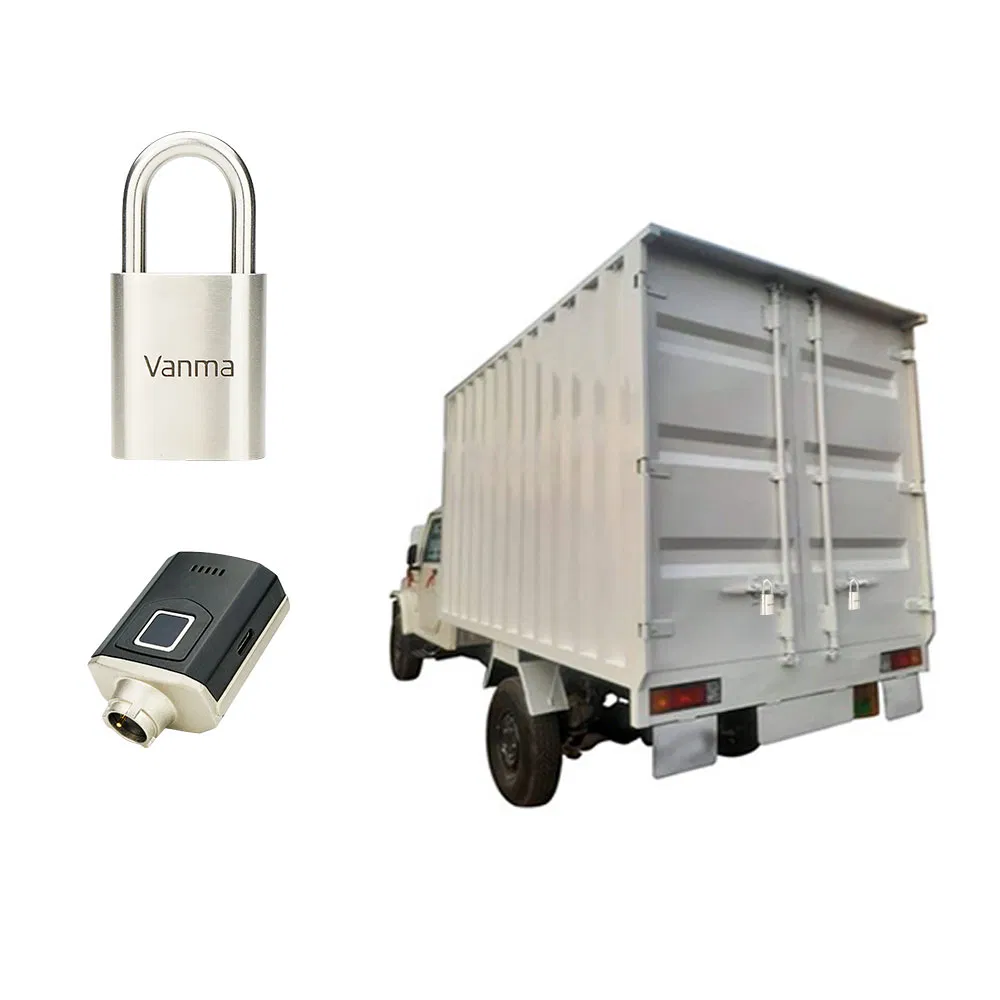

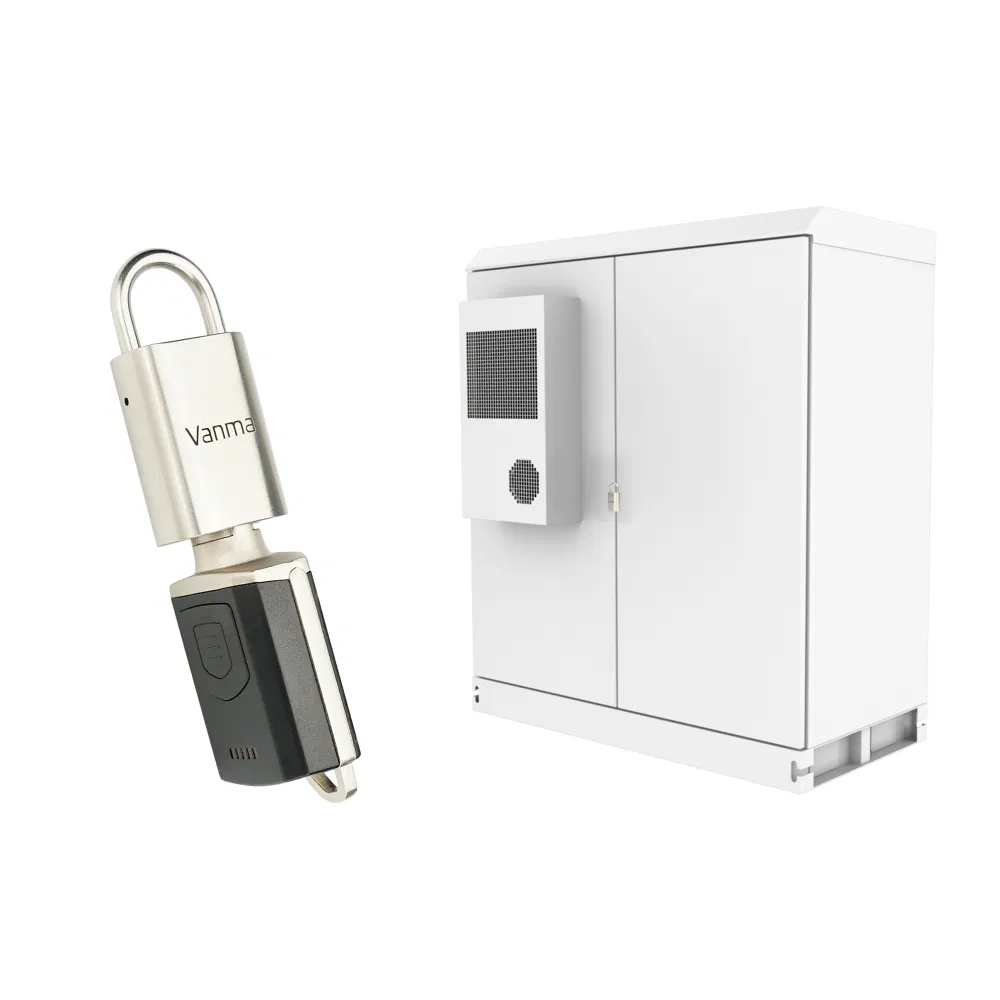

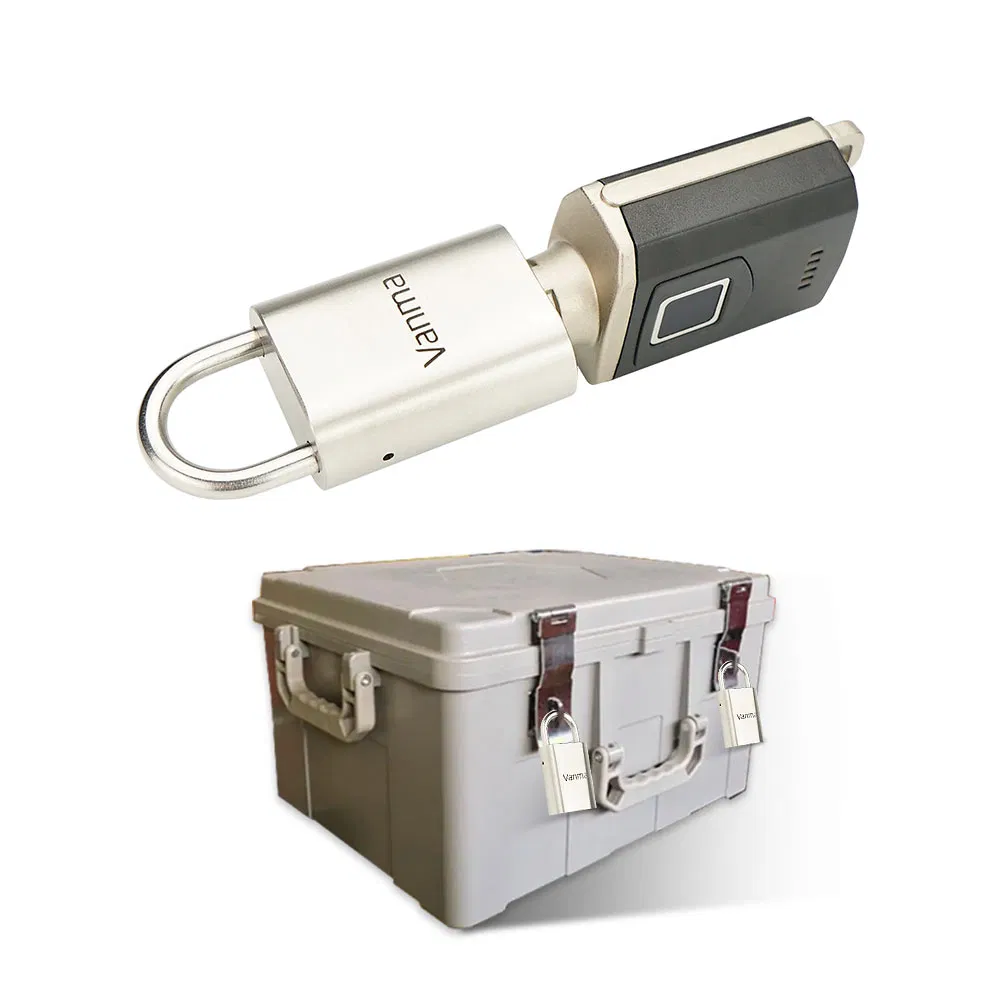

Vanma IP68 Security Electronic Padlock Stainless Steel Rugged Smart Lock and Keys System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
WM-2000C-L35, L40, L50, L50H, 60
Customized
Customized
Certification
RoHS, FCC, CE
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community
Working Principle
Electronically Controlled Magnetic
Type
Mechatronic Lock
Lock Body Material
Stainless Steel
Transport Package
Carton
HS Code
830140000
Capacity
100,000 piece/Month

Product Description

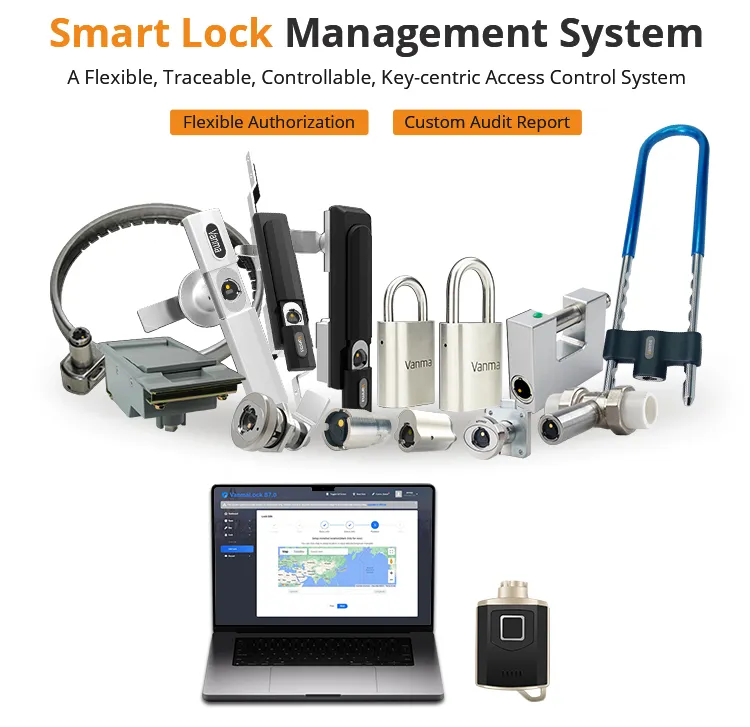

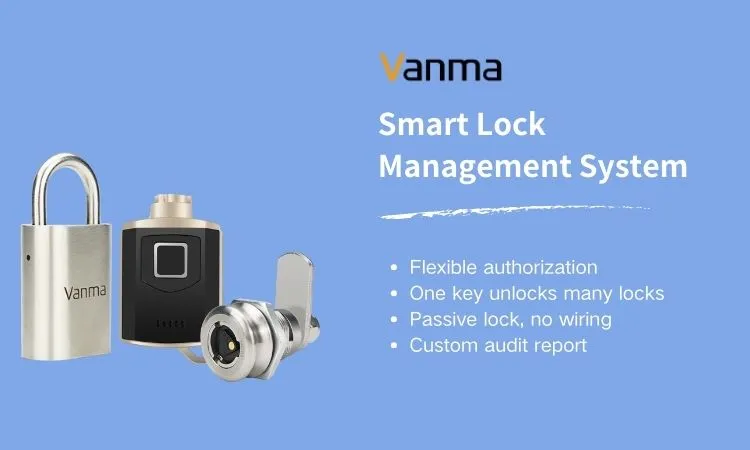

Smart Electronic Key Passive Lock System
Security Electronic Padlock Details Stainless Steel Rugged Smart Lock Smart Lock and Keys System

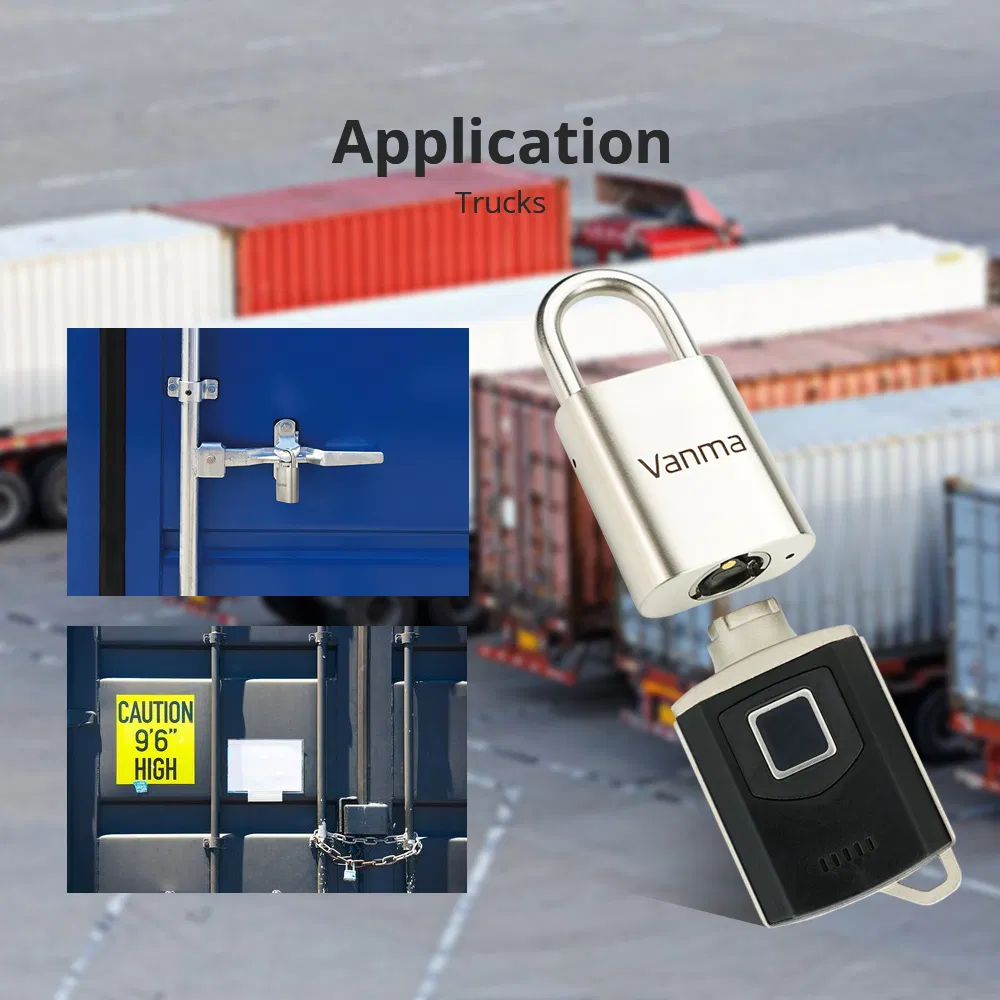

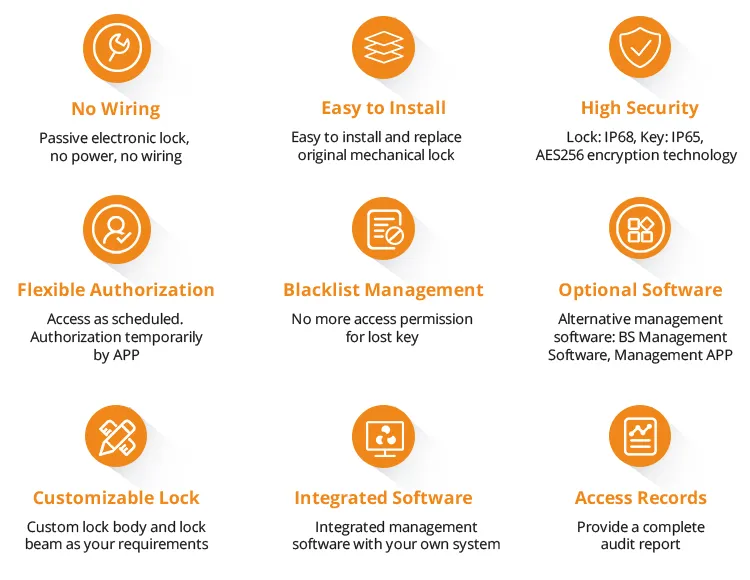

Lock Dimension and Specs Electronic Key Application

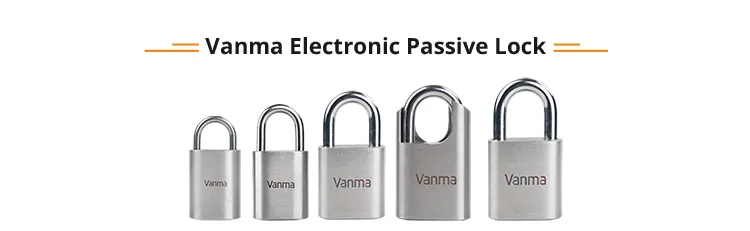

Technical Specifications Header
Lock Body Specifications
Lock body materialSUS304 stainless steel
Surface treatmentBrushed stainless steel
Static electricity protection15KV non-contact / 8KV contact
Over voltage protection5.5V
Unlock records68 pieces
Operating environmentTemperature (-40°C to 70°C), Humidity (20% to 97%)
Service life10 years
Protection levelIP68

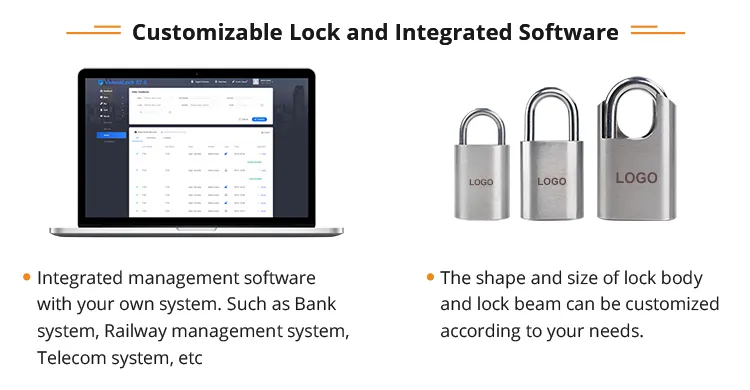

Customizable itemsSize and shape of lock body, Lock beam length and thickness

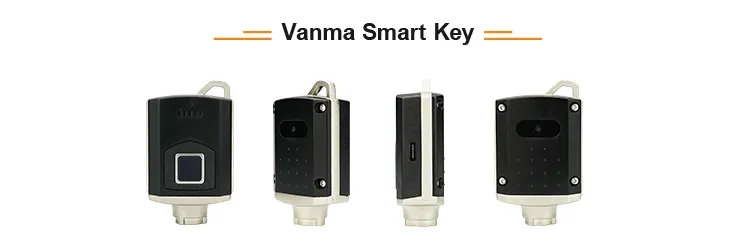

Key Technical Data
Smart Key Specifications
Key modelWM-2000C-K01, WM-2000C-BK01, WM-2000C-FK02, WM-2000C-FBK02
FunctionData Transfer(Basic), Remote Authorization, Fingerprint Identification
Working statusVoice, three-color RGB light prompt
Storage capacity60,000 pieces
Battery capacity600mAh (One charge for 1000 unlocks)
Charging time2 hours
Communication interfaceStandard Type-C
Electrostatic protection8KV contact / 15KV non-contact
Operating EnvironmentTemperature (-20°C to 70°C), Humidity (20% to 97%)
Protection levelIP65
Management Software Interface System Operation Flow

Frequently Asked Questions

What is the waterproof rating of this electronic padlock?
The lock body features an IP68 protection level, making it highly resistant to water and dust, suitable for harsh outdoor environments.
How long does the battery last on a single charge?
The smart key has a 600mAh battery capacity, which allows for approximately 1,000 unlocking operations on a single 2-hour charge.

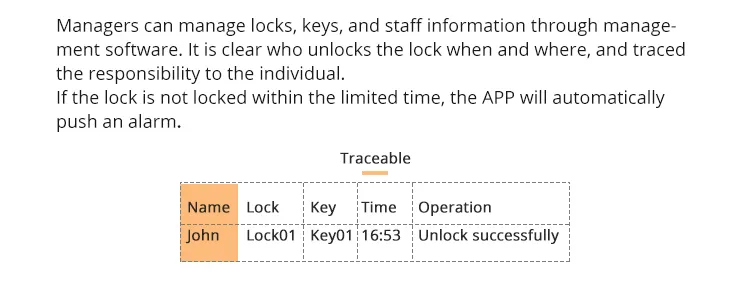

Can I track who opened the lock and when?
Yes, the system stores unlock records. The lock body can store 68 pieces of data, while the smart key can store up to 60,000 pieces of information.
What material is used for the lock construction?
The lock body is made of high-quality SUS304 stainless steel with a brushed finish for superior durability and corrosion resistance.
Does the system support remote authorization?

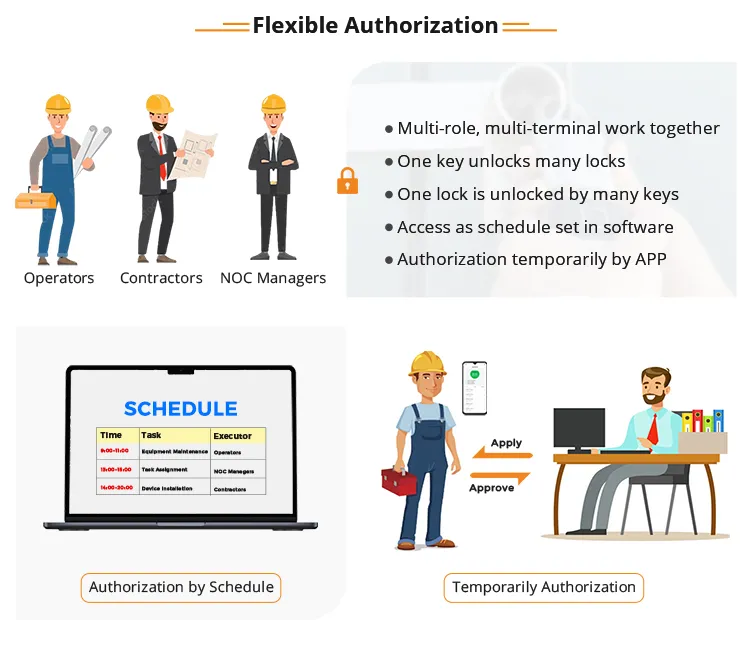

Yes, the smart key functions include remote authorization, allowing managers to grant access permissions through the management system.
What is the operating temperature range for these locks?
The locks are designed to work in extreme conditions, with an operating temperature range from -40°C to 70°C.
