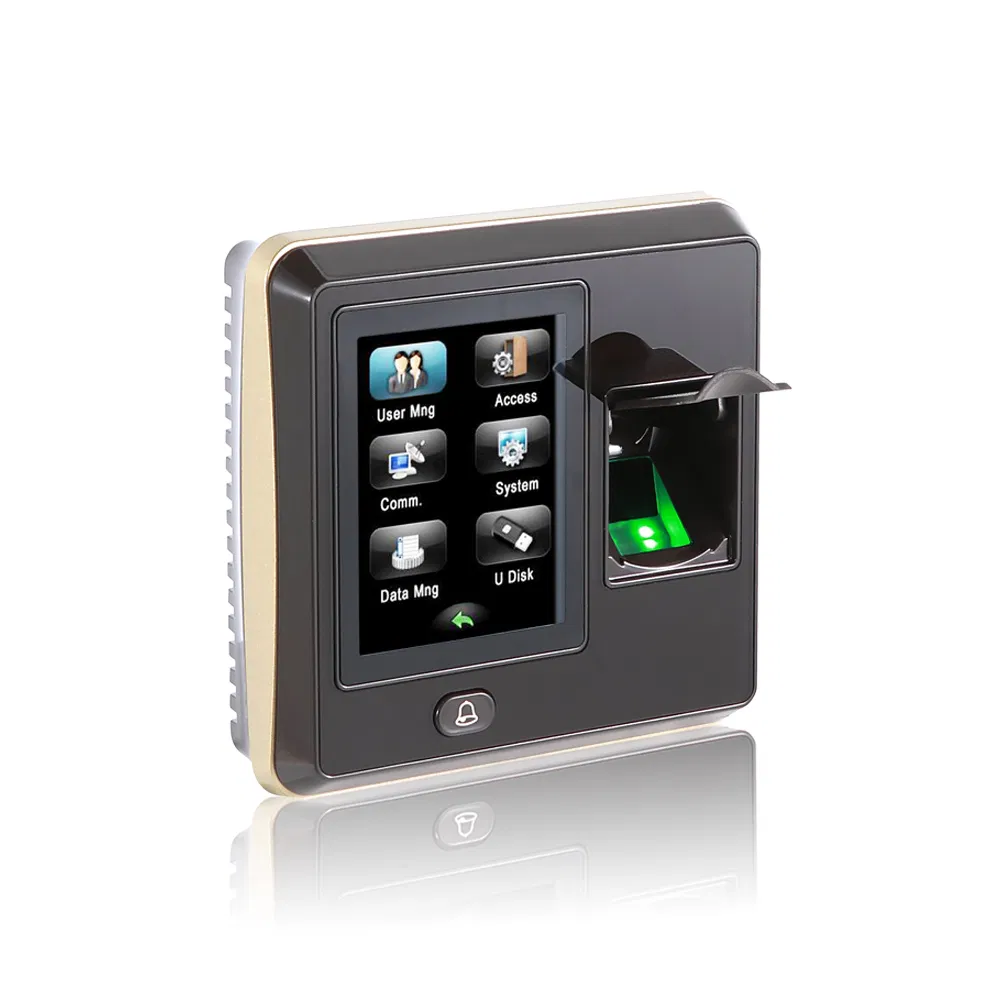

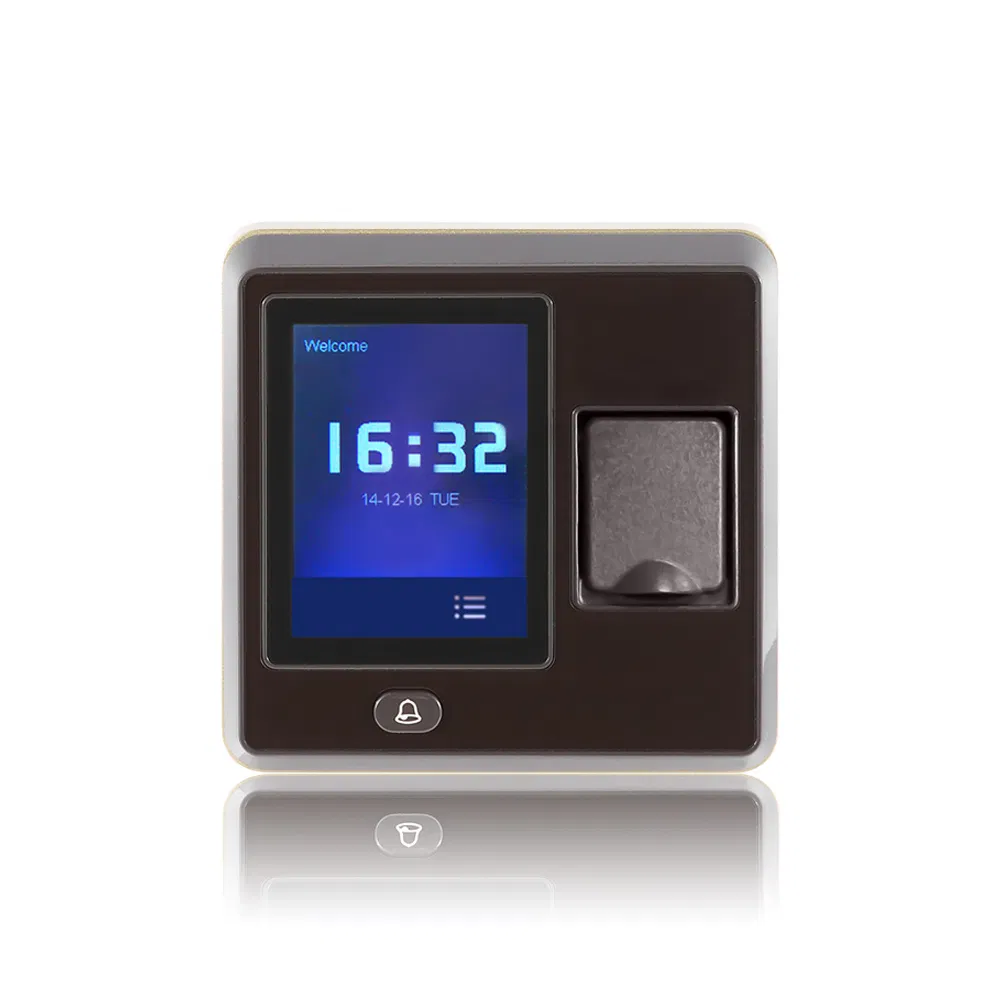

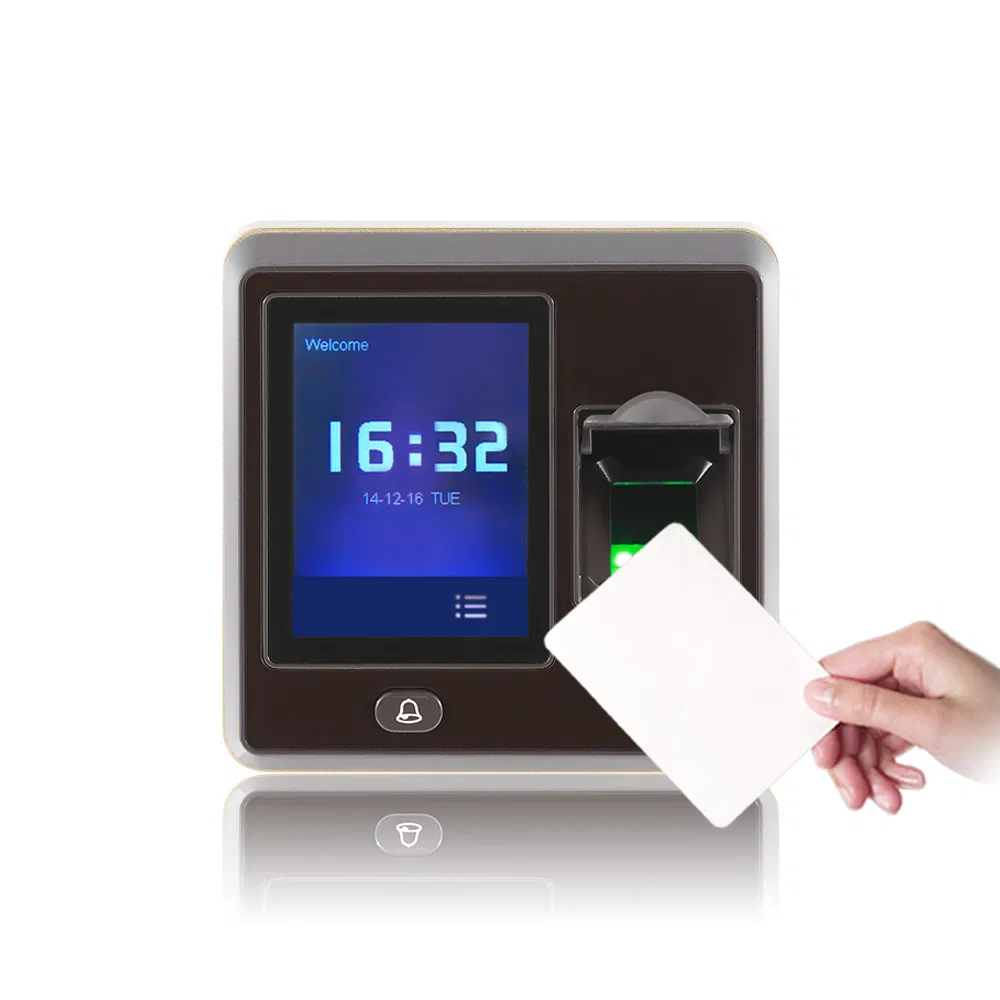

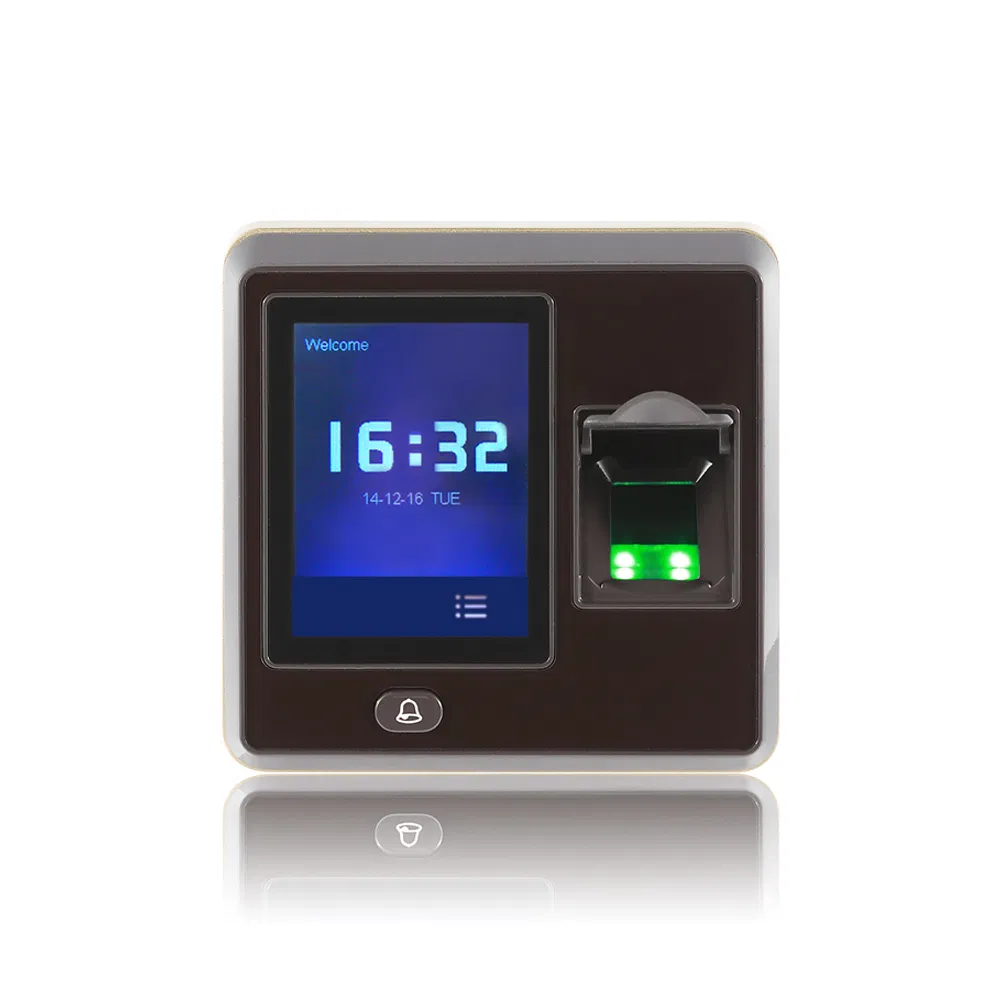

Web based software Touch screen RFID card reader and biometric fingerprint door access control device.
Model: F04

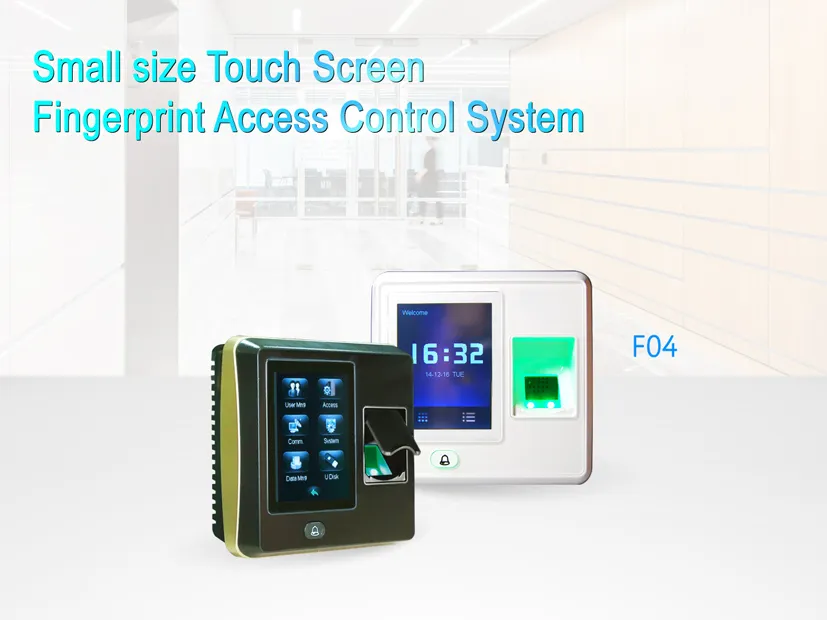

The F04 is an IP based fingerprint terminal works both in network and standalone modes. In network mode, it can connect with software for access control and time attendance management. Wiegand output makes F04 flexible to connect with any 3rd party controllers as a slave reader, additionally wiegand input allows two units of F04 to configure with each other and utilize Master & Slave solution.
| LCD Display | 2.8-inch touch Screen |
| Fingerprint Sensor | Optical Sensor (500DPI) |
| Algorithm Version | Finger VX10.0 |
| Communication | TCP/IP, RS485, USB Host |
| Capacity | Fingerprint: 1,500, Card: 5,000, Logs: 80,000 |

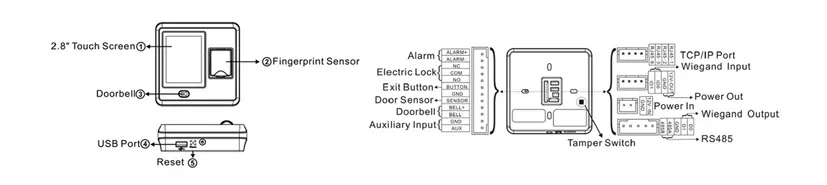

| Access Control Interface | Electric lock, Door sensor, Alarm, Exit button, Door bell |
| Wiegand Signal | Wiegand input & output |
| Power Supply | DC12V/3A |
| Environment | 0-45ºC, Humidity 20%-80% |
| Functions Support | Built-in relay, 50 timezones, 10 combination, 99 groups, auto state, Holiday control |

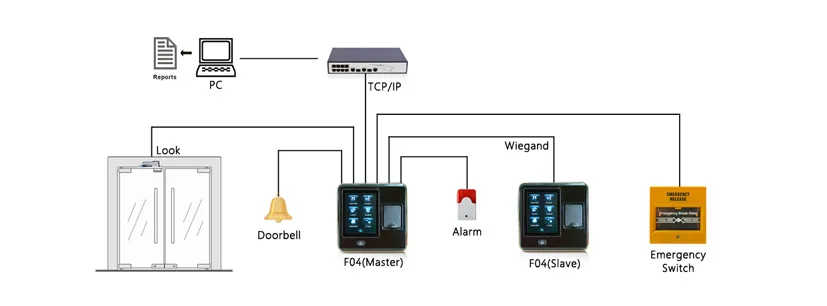

Communication Diagram:

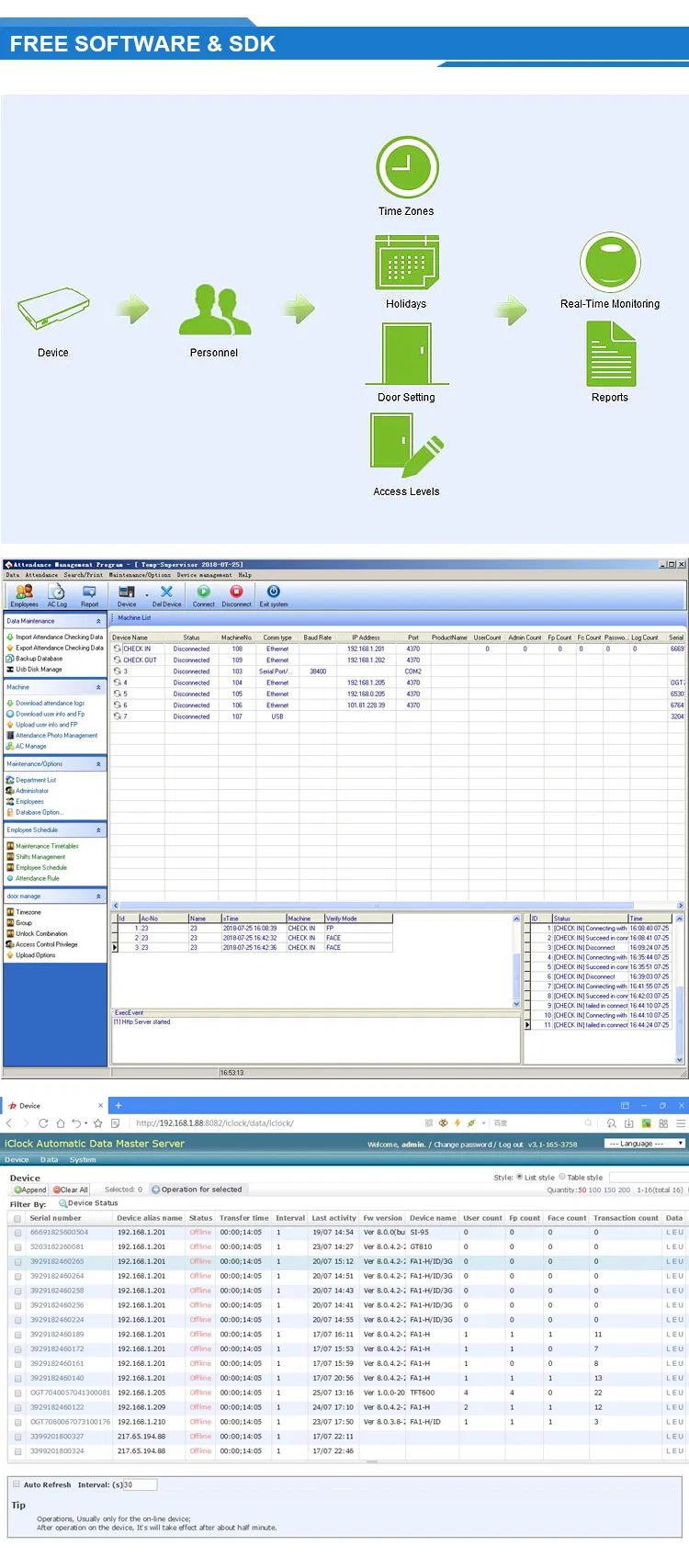

Standalone and Web based Software:
