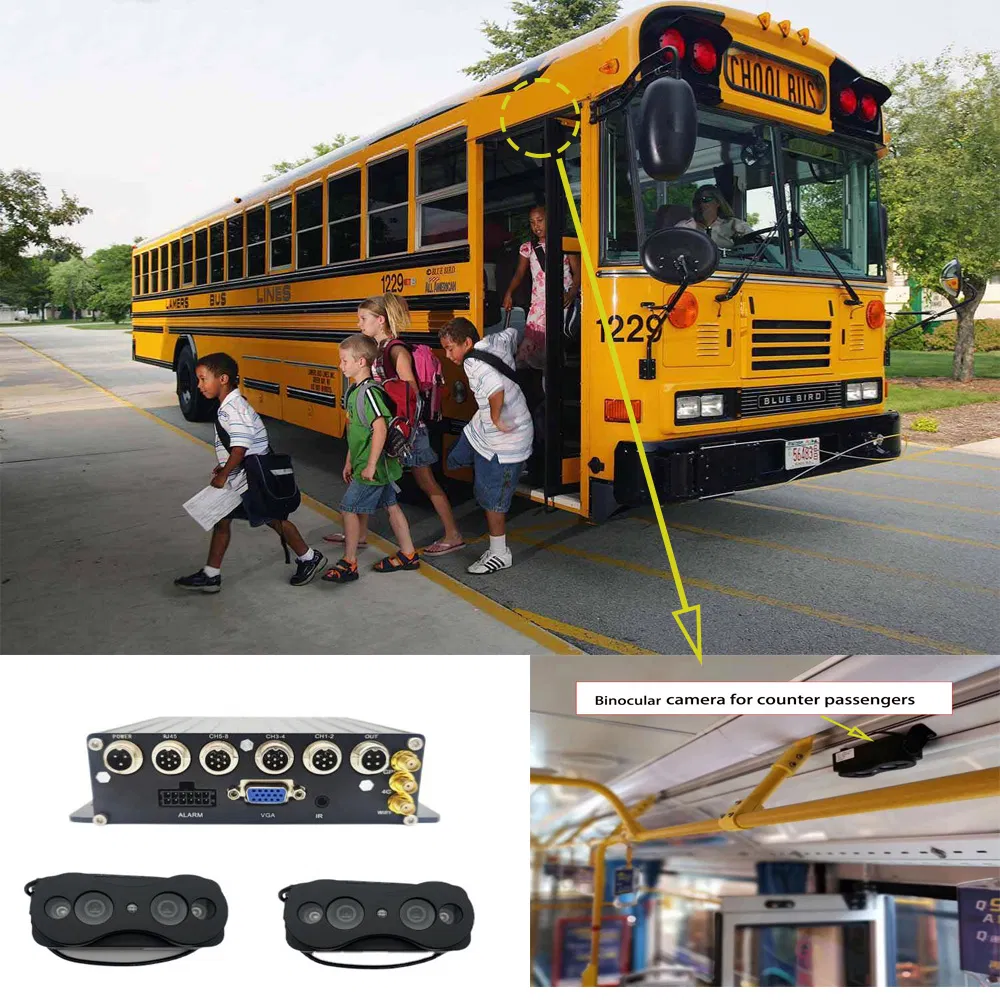

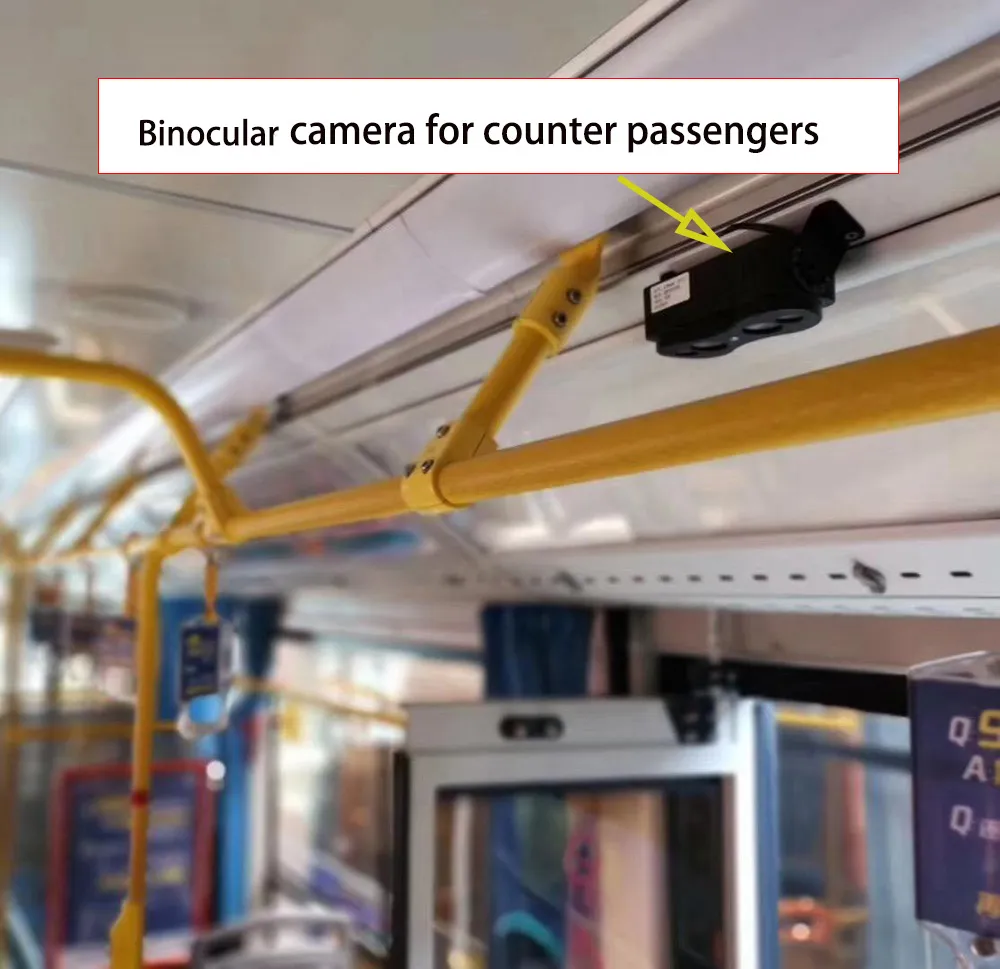

1. Statistics of passengers on board: Mastering real-time flow of personnel and vehicles through monitoring entrances and exits.
2. Station-specific counting: Recording the number of passengers getting on and off at every individual station with report analysis.

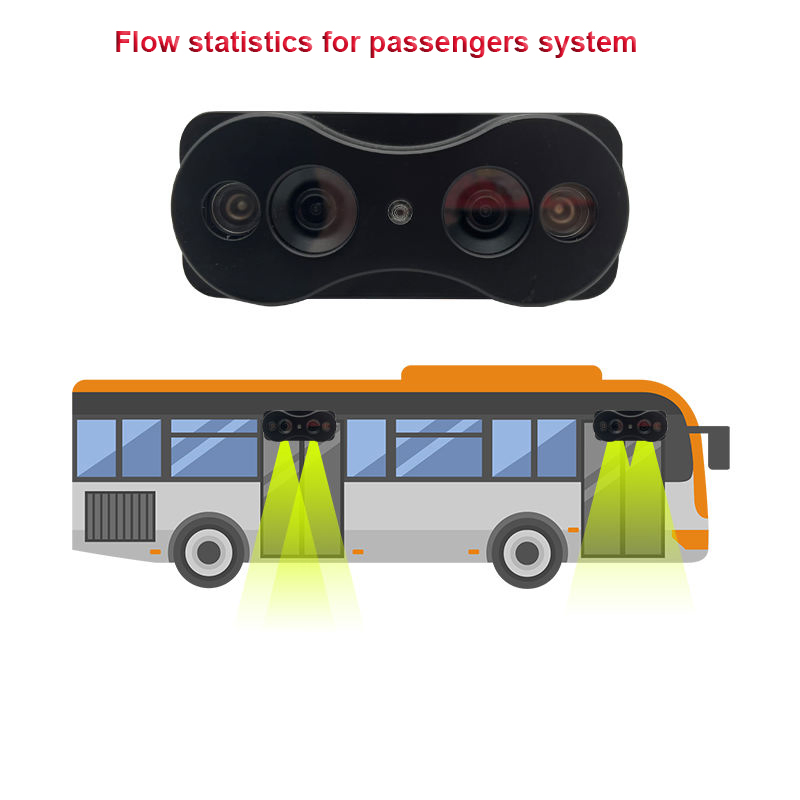

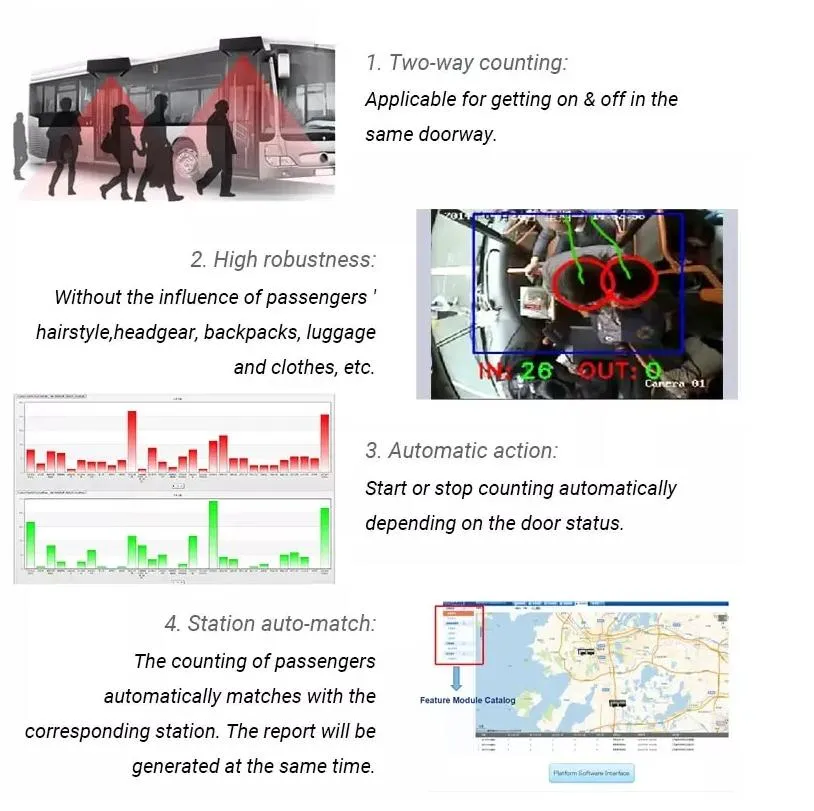

3. Multi-person tracking: Accurately counting multiple people passing through channels simultaneously, including direction and speed detection.

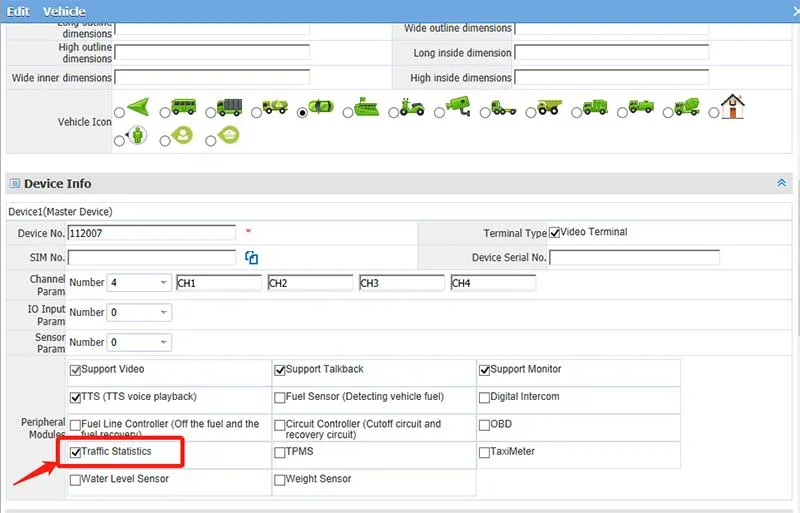

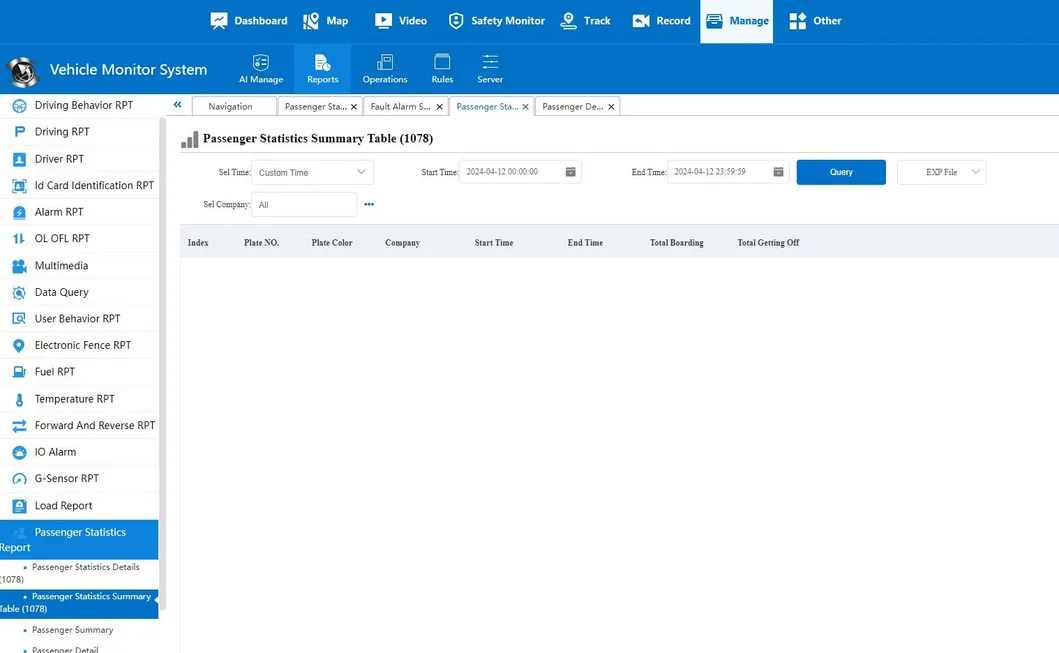

4. Automated Reports: Generating statistical data through 3G/GPRS networks for scientific analysis of peak flows and vehicle capacity.
5. Intelligent Entry/Exit Analysis: Distinguishing crowd movements in complex environments to maintain accurate data synchronization.

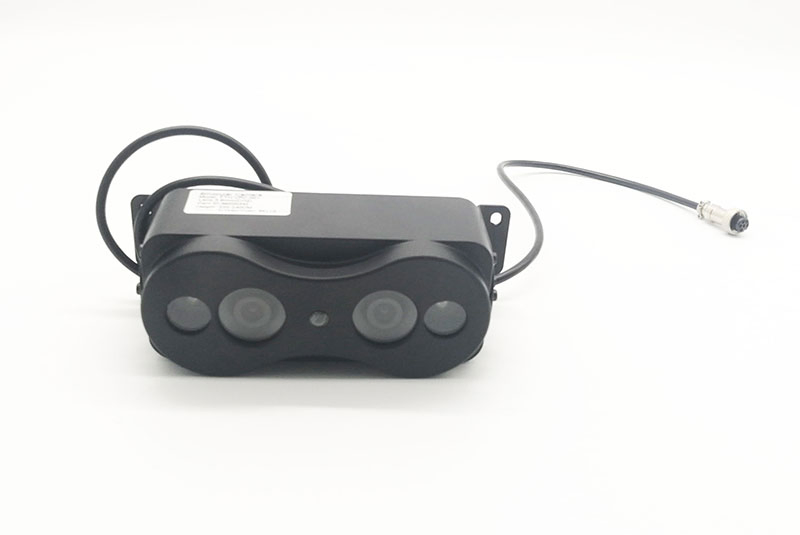

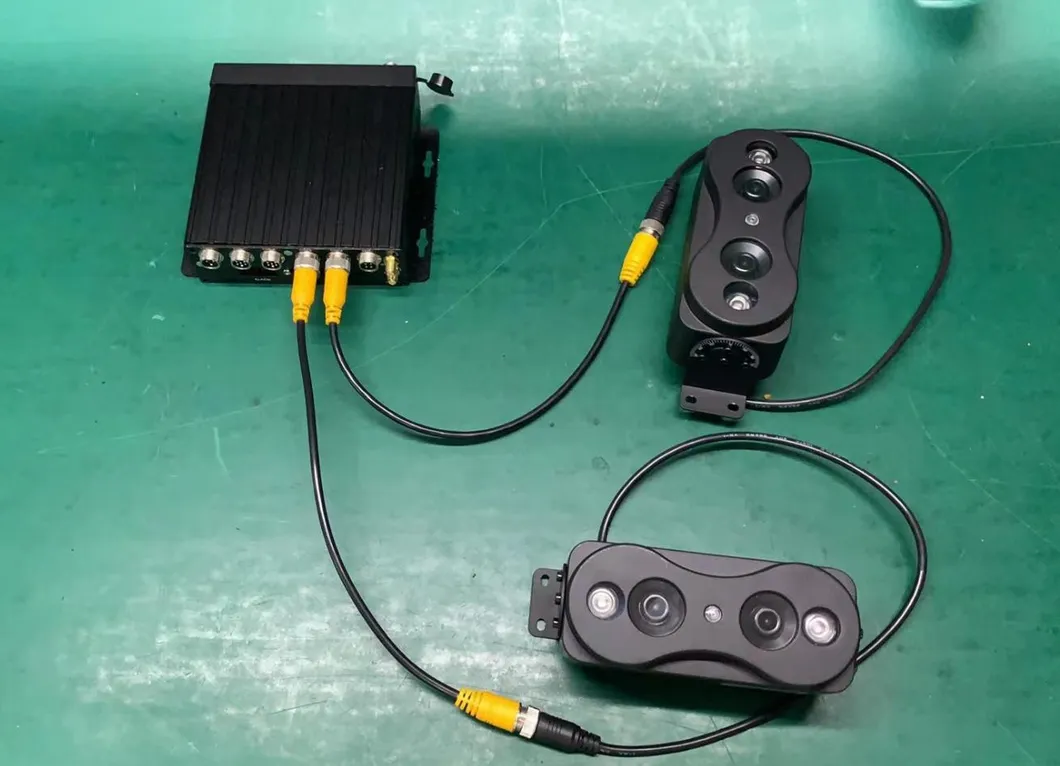

| Specification | Parameters |
|---|---|
| Image sensor | 1/3 CCD |
| Video format | PAL/NTSC (optional) |
| Horizontal resolution | 700 TV Lines |
| Lens parameters | 960*576 pixels (2.8mm/3.6mm/4mm/6mm optional) |
| Frame rate | 25 frames/second |
| Video output | Composite video, 75Ω 1Vp-p BNC |
| SNR | > 48db |
| Power supply | 10-36V voltage input |
| Operating temp | -20~+70 ºC |
| Size | 133(W)mm x 50(H)mm x 59.65(L)mm |
Warranty Policy: We provide comprehensive warranty for CCTV Cameras and DVRs. Any product proving defective under normal usage will be repaired or replaced free of charge.
Technical Support: Our professional team is available to support customers regarding product technology and feedback. We aim to respond to all technical inquiries immediately.
