CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | 1D & 2D Codes: QR Code, Micro QR, PDF417, Code 128, etc. |
| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID Smart Card | 125KHz & 13.56MHz (Mifare Classic, DESFire EV1/2/3, iCLASS Seos) |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit |
| IP protection | IP65 outdoor/indoor use, UV-resistance |

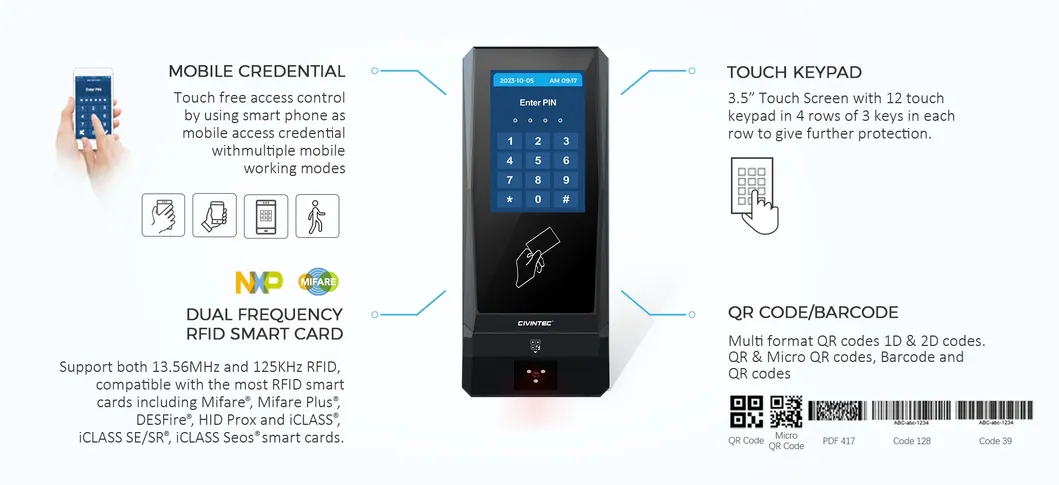

CT9 Pro incorporates 5-in-1 technologies: touch keypad, RFID dual-frequency smart cards, BLE & NFC mobile access, and QR CODE/barcode for versatile visitor management.

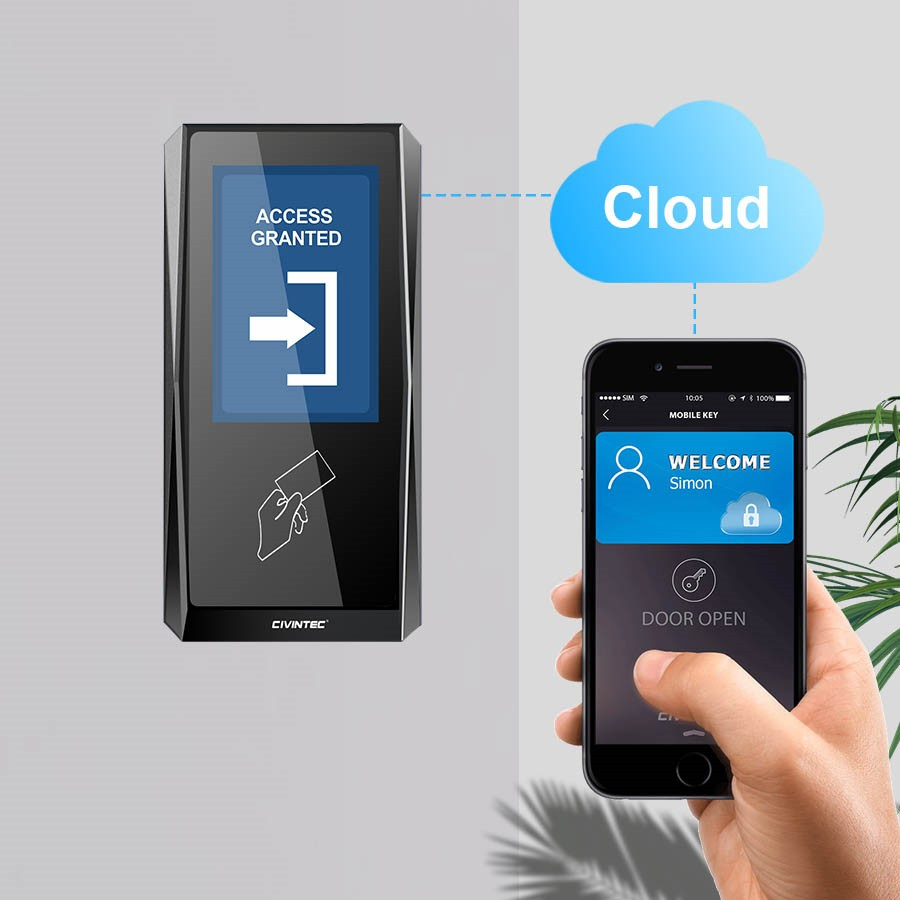

Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door locks and IoT facility management.

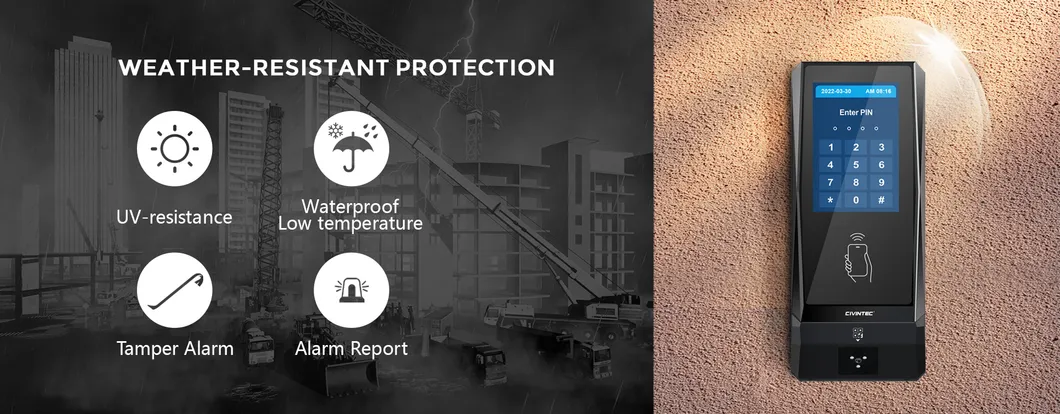

With IP65 ratings, CT9 PRO is weather resistant to rain, dust, and strong sunlight, ideal for outdoor use and various rugged environments.
We offer ODM customization on hardware, housing, firmware, and software design. Users can program and display their own LOGO on the 3.5" touch screen.
