CT9 Family is a Linux-based HTTP/HTTPS server centralized terminal with wireless WiFi, 4G, and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, dual RFID (125KHz & 13.56MHz), HID Prox and iCLASS®, iCLASS SE/SR®, iCLASS Seos® smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phones.
RFID / QR CODE / BLE Mobile ID Reader
3.5" Touch Screen or Keypad Reader with Embedded LINUX OS & SDK
Embedded WIFI, 4G & TCP/IP Ethernet HTTP/HTTPS for both LAN & Internet Server Software

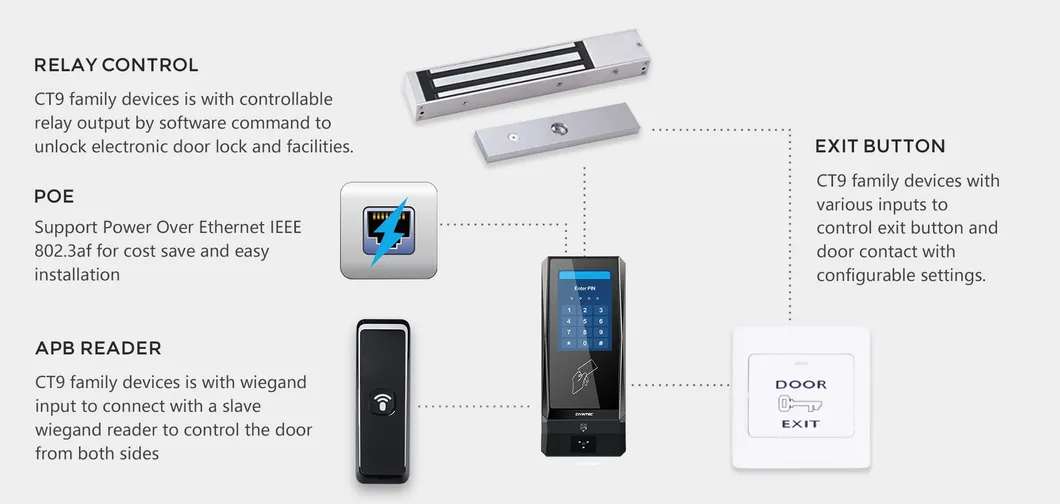

Embedded Relay Control for Lock & Facility Control
Supports both HOST Mode & Local Mode
| FEATURE | CT9 E | CT9 PRO |
|---|---|---|
| Identification Technologies | RFID, Mobile Credentials, Barcode/QR Code | |
| RFID Support | 125KHz Prox/EM, 13.56MHz Mifare, DESFire EV1/EV2/EV3, NFC, HID iCLASS/Seos | |
| Mobile Access | BLE (2.4Ghz), NFC | |
| Scanning | 1D & 2D QR Code, Micro QR, PDF417, Code 128, etc. | |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand | |
| Display | None | 3.5" Touch Screen |

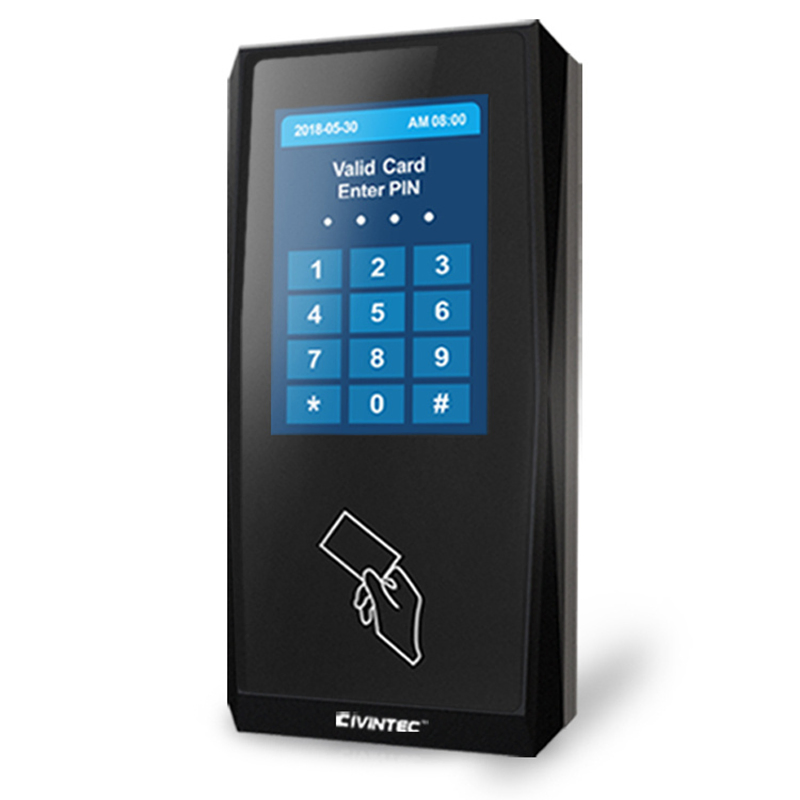

| Keypad | 12-digit Touch Keypad | Touch Screen Keypad |
| Capacity | 10,000 users / 50,000 logs (Standalone mode) | |
| Protection | IP65 Waterproof & UV Resistant | |

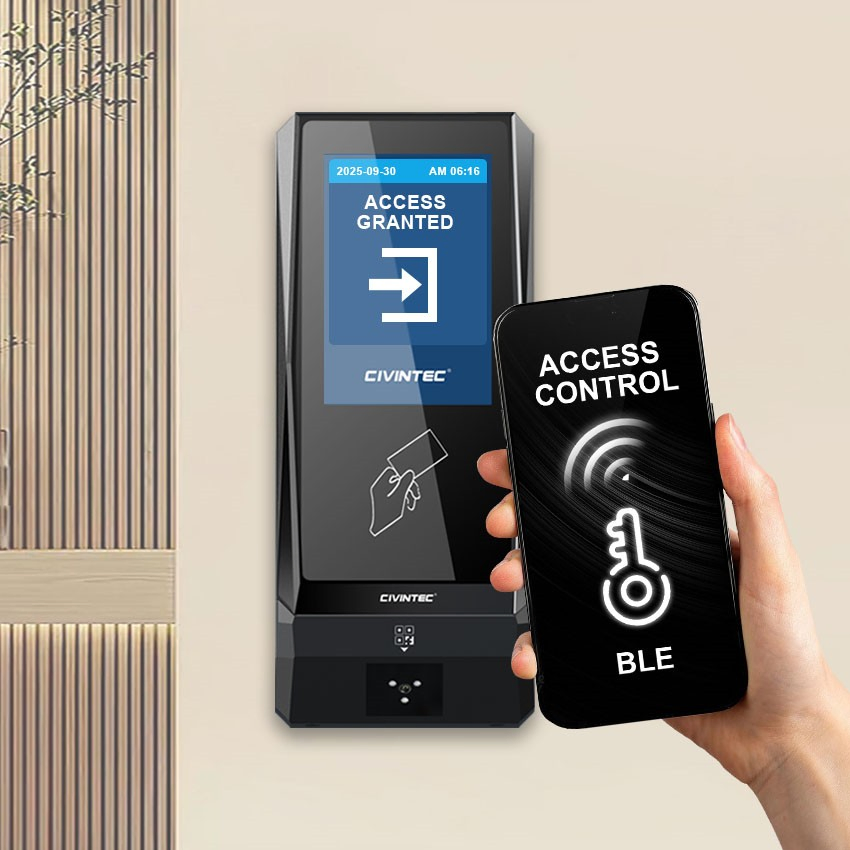

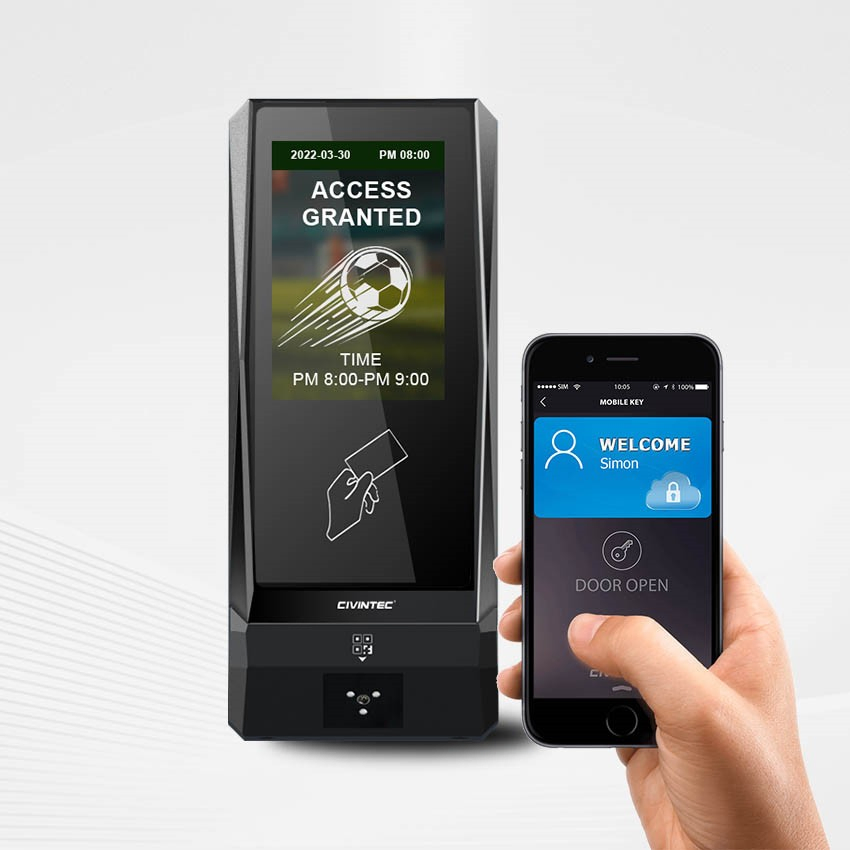

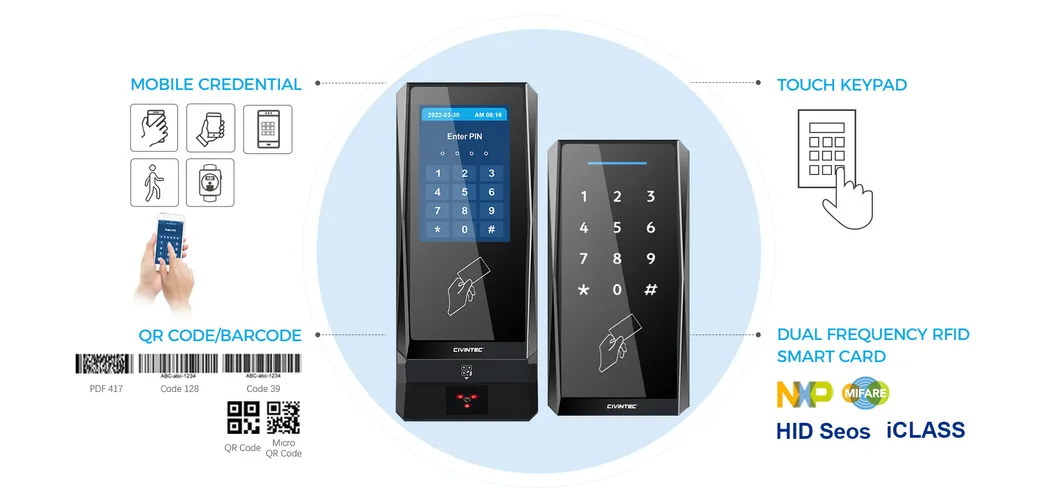

CT9 Family incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode for visitors.

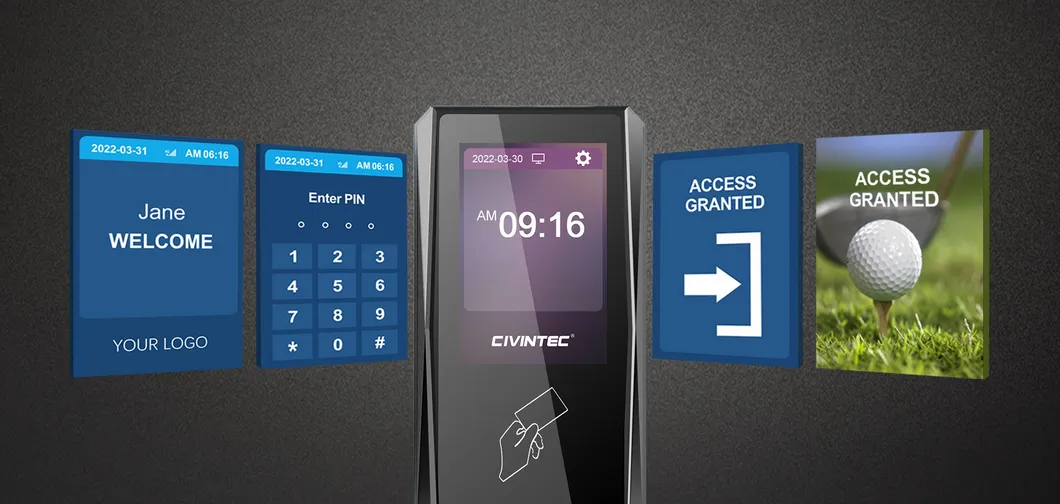

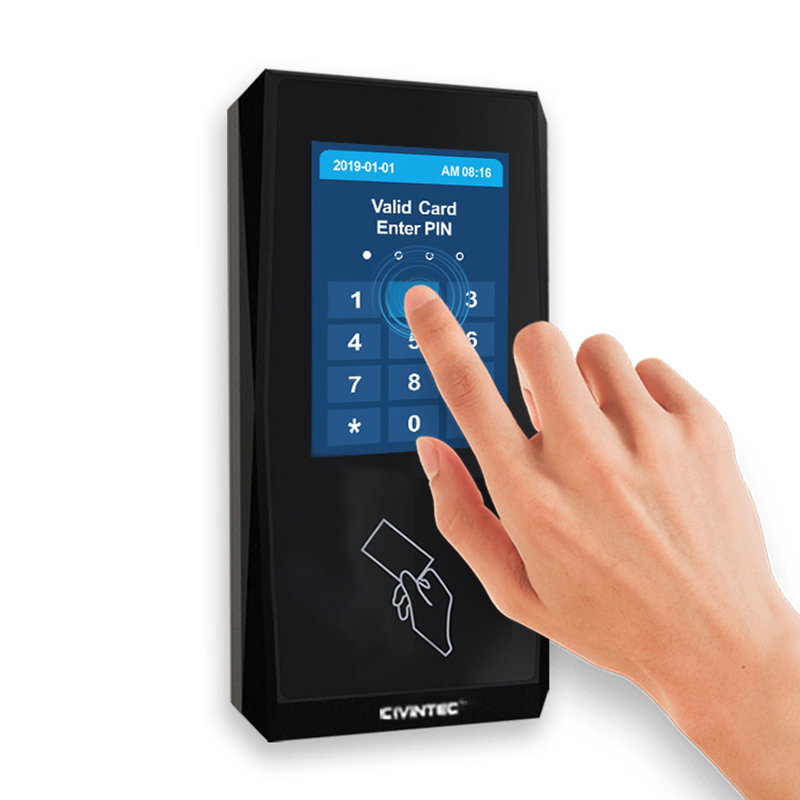

The stylish Linux 3.5" colorful touch screen provides intuitive feedback. Users can easily program the UI to display customized pictures, text, and logos via software tools and HTTP commands.

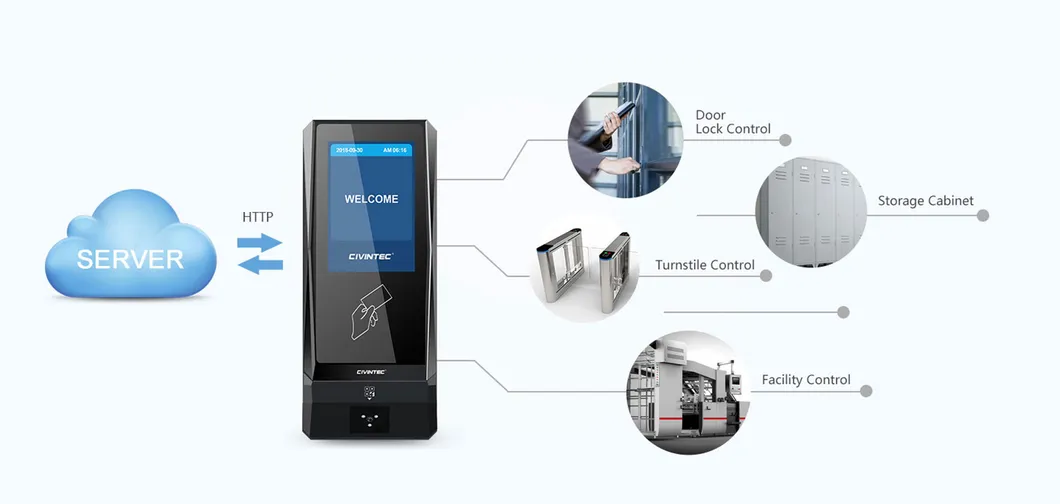

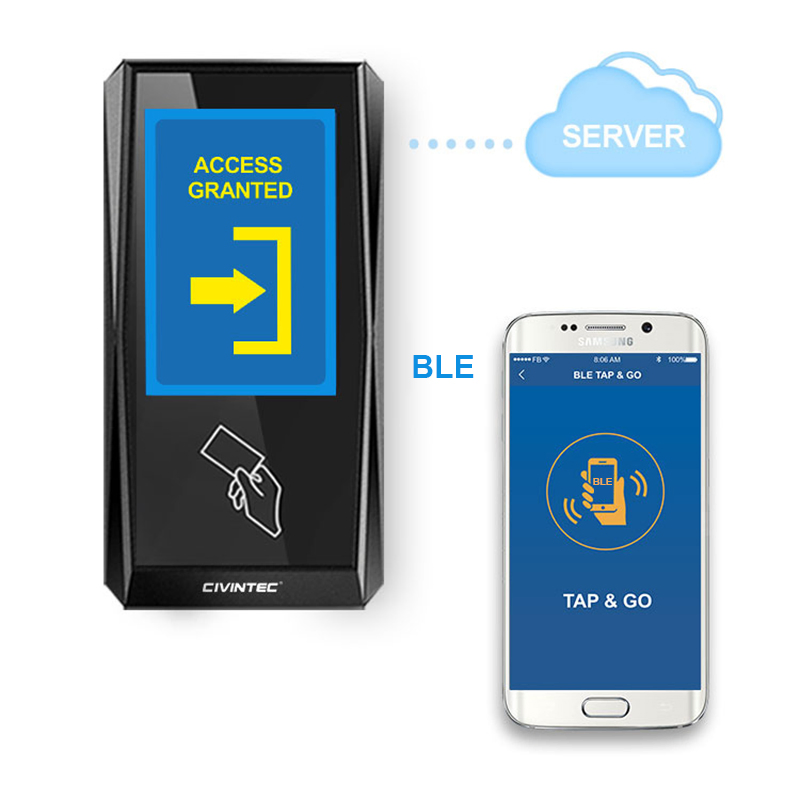

Bi-directional communication via standard HTTP & HTTPS between the CT9 Family and the server allows for remote control of door locks and various IoT facility management systems.

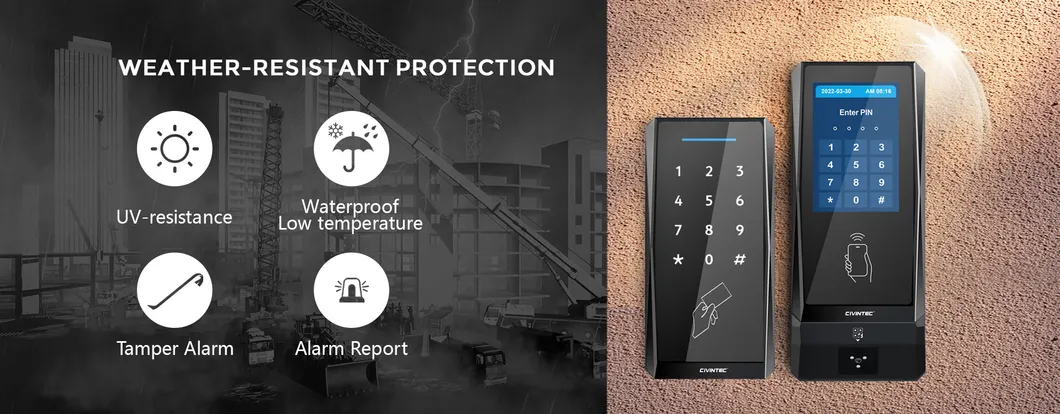

With an IP65 rating, the CT9 Family is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and various rugged environments.
We are a leading designer and manufacturer of access control devices, offering ODM customization on hardware, reader housing, firmware, and software design services.
