Model NO.
92703+92223E-2-1
Screen
7 Inch AHD Screen (1024x600)
Camera
2.0MP, 150 Degree Wide Angle
Installation
Surface-Mounted
Certification
RoHS, FCC, CE, Red
Case Material
Metal Case (Vandal Proof)
Power Supply
DC15V / AC100-240V Optional
Max Monitors
Up to 6 Indoor Units
Line Length
Up to 150 Meters
Protection
IP65 Waterproof
Frequently Asked Questions
How many mobile devices can connect to the system?

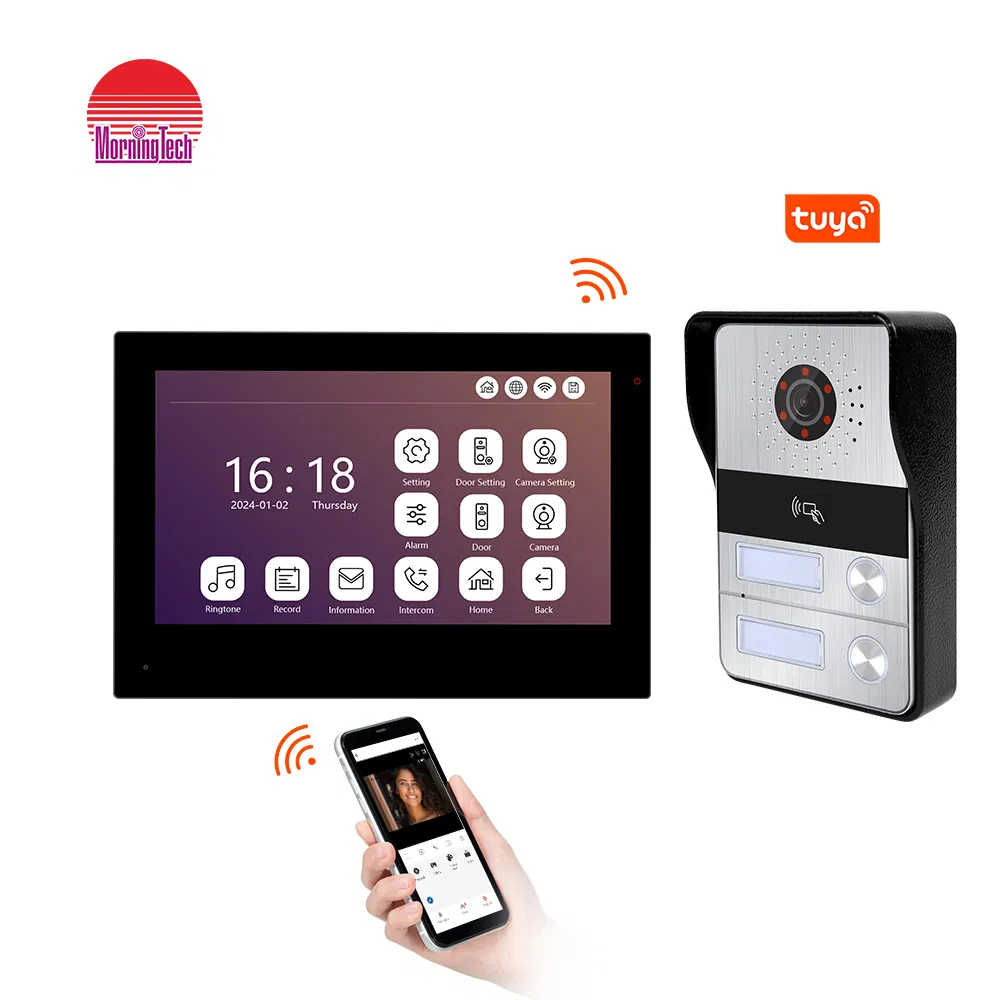

The system utilizes the Tuya App, allowing multiple family members to receive calls and control the locks from their Android or iOS smartphones simultaneously.
What is the maximum distance for the 2-wire connection?

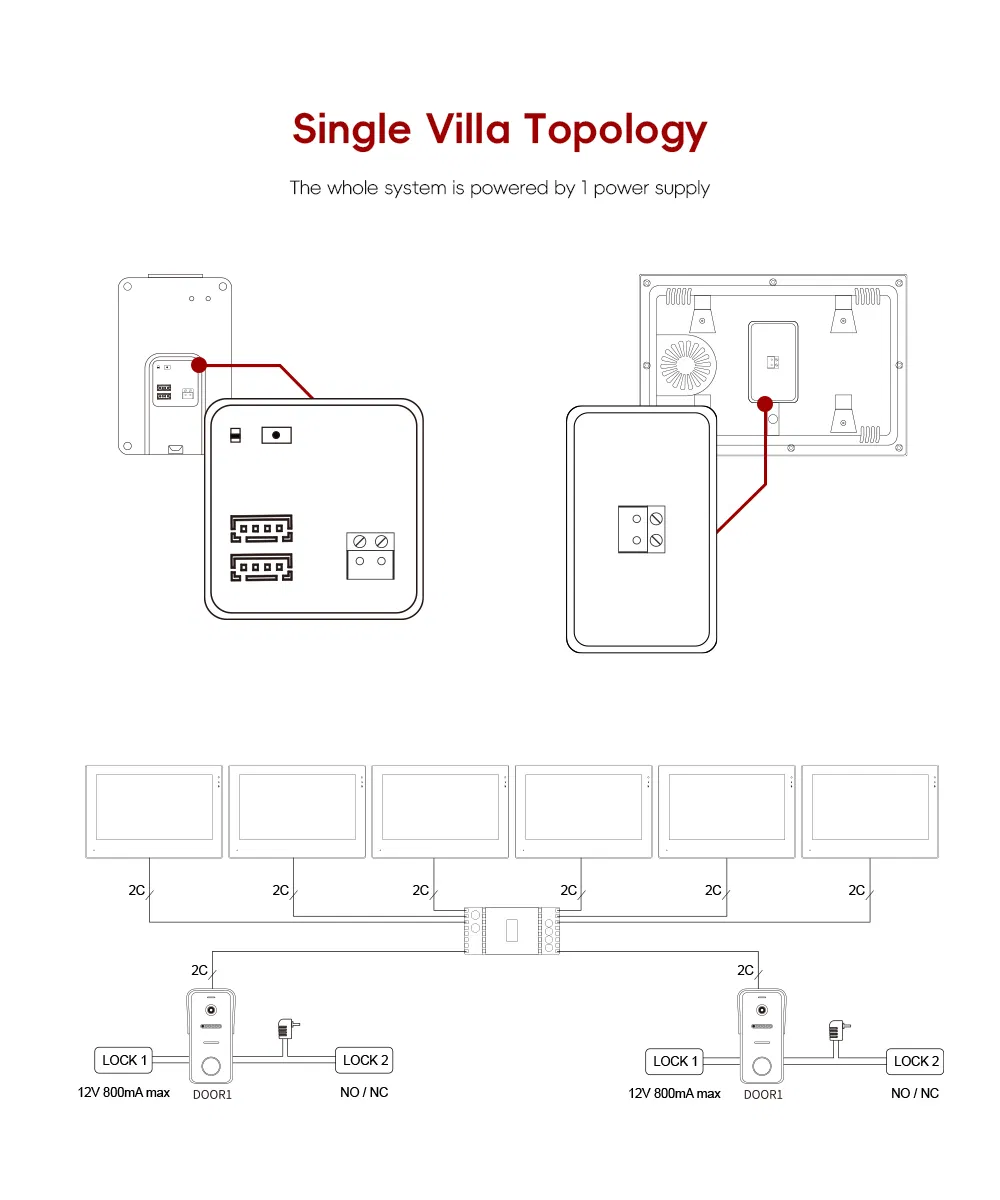

The system supports a maximum cable length of up to 150 meters from the outdoor panel to the furthest indoor monitor, ensuring reliable signal transmission for large properties.
Does the outdoor camera work in extreme weather?
Yes, the outdoor panel is IP65 waterproof rated and built with a zinc alloy housing. It is designed to operate in temperatures ranging from -40ºC to +50ºC.
Can I record video of visitors?
Absolutely. The system supports video and audio recording via a Micro SD card and features a simple DVR function with motion detection to capture any activity at your door.
Is it possible to expand the system with more monitors?

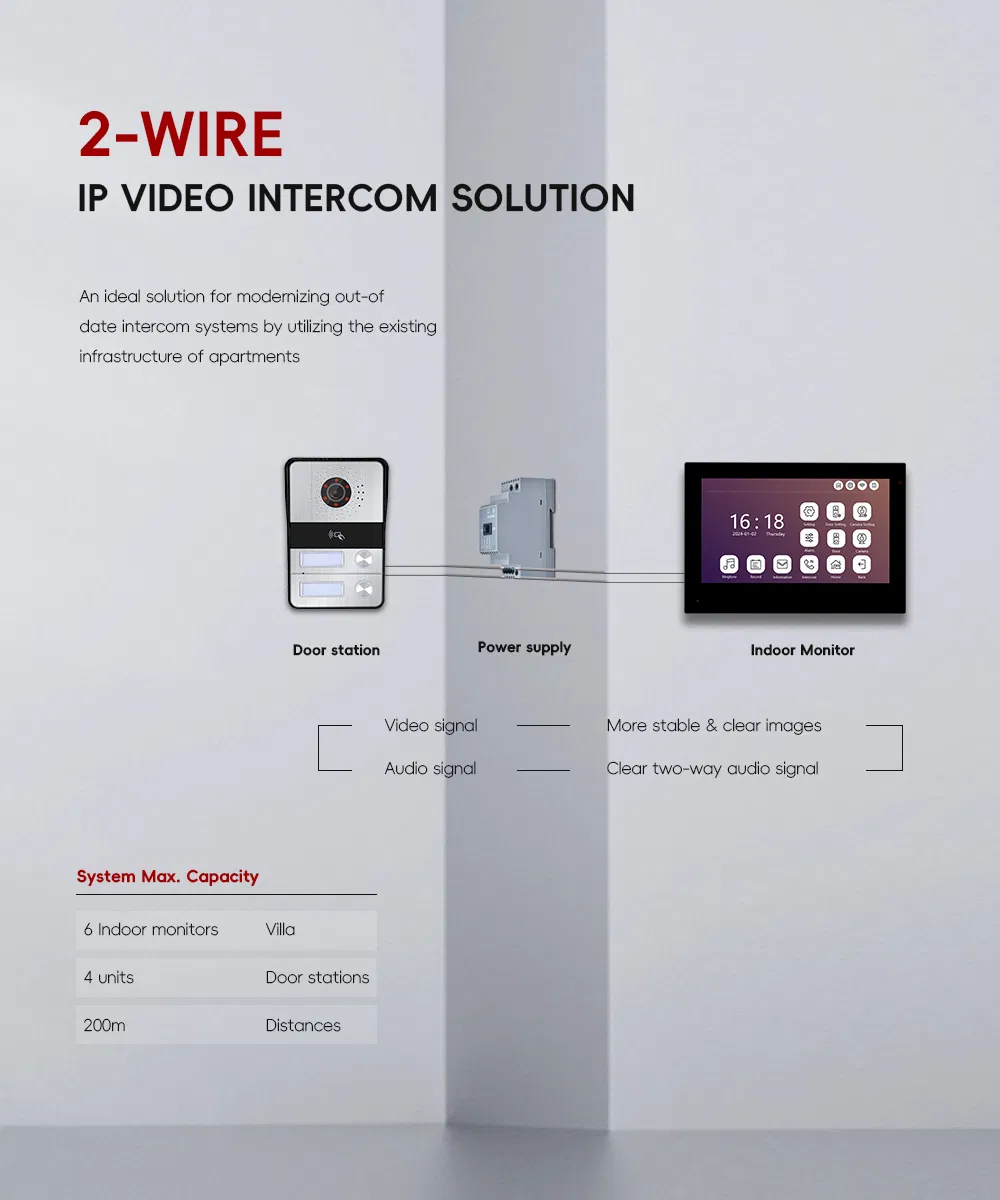

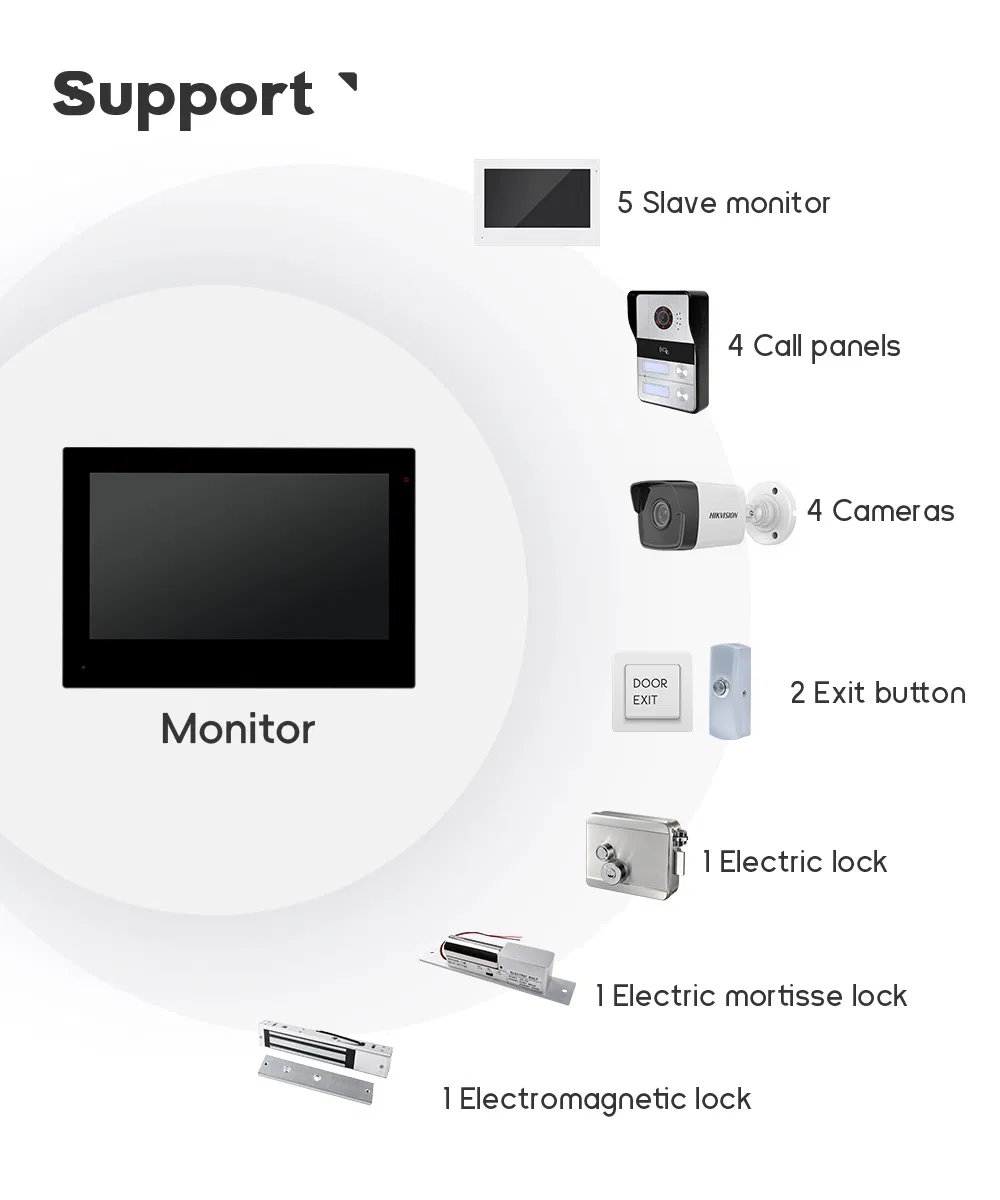

Yes, the system is highly expandable. It can support up to 4 outdoor call panels and 6 indoor monitors, along with multiple electric door and gate locks.
How does the WiFi connection work?
The indoor monitor can connect to your home WiFi with a simple one-click setup. Once connected, you can manage the entire system remotely through the Tuya App within 1.5 minutes of configuration.
