| Model NO. | 518TW |
|---|---|
| Structure | RFID Tag |
| Driving Type | Electric / DC |
| Power Voltage | AC/DC 12~30V |
| Connection Mode | Wi-Fi, Bluetooth |
| Function | Authorized Access Freely |
| Material | Plastic / Modern Style |

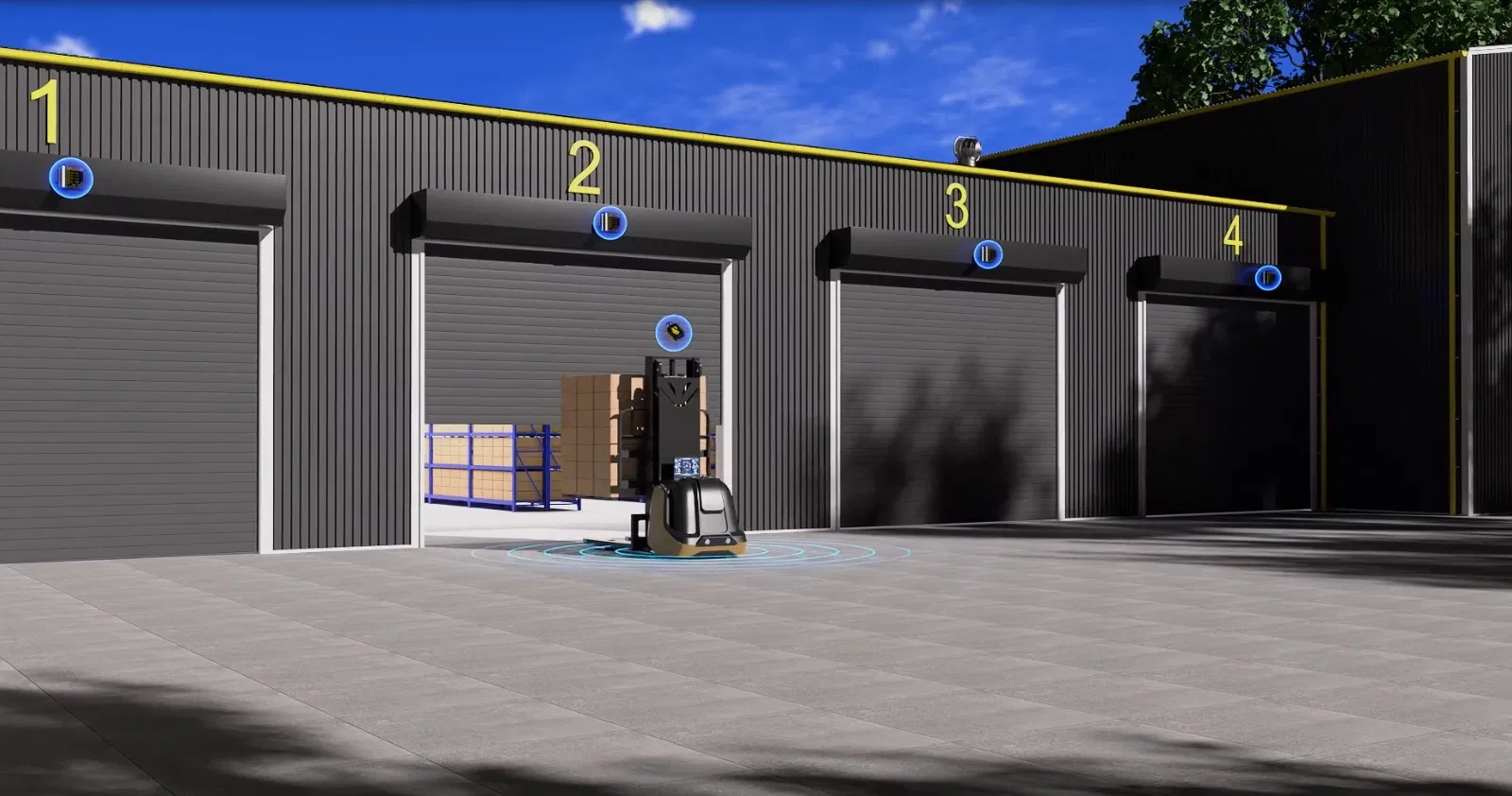

| Application | Garage Door, Industrial, Commercial Doors |
| Specification | 2pcs smart tag + 1 controller |

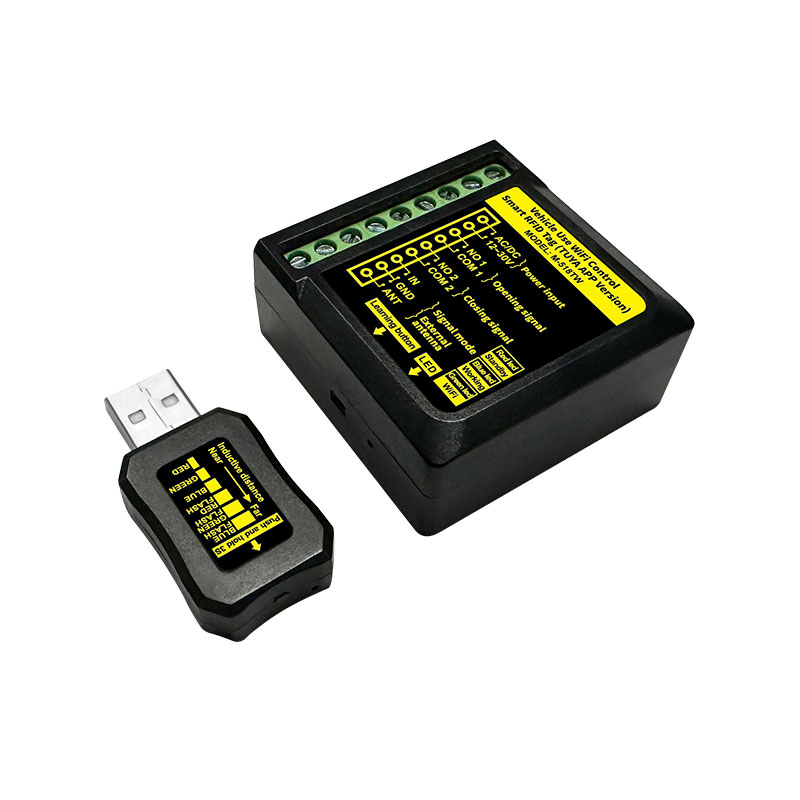

Automatic Door Hand-free Access RFID Electronic Tag

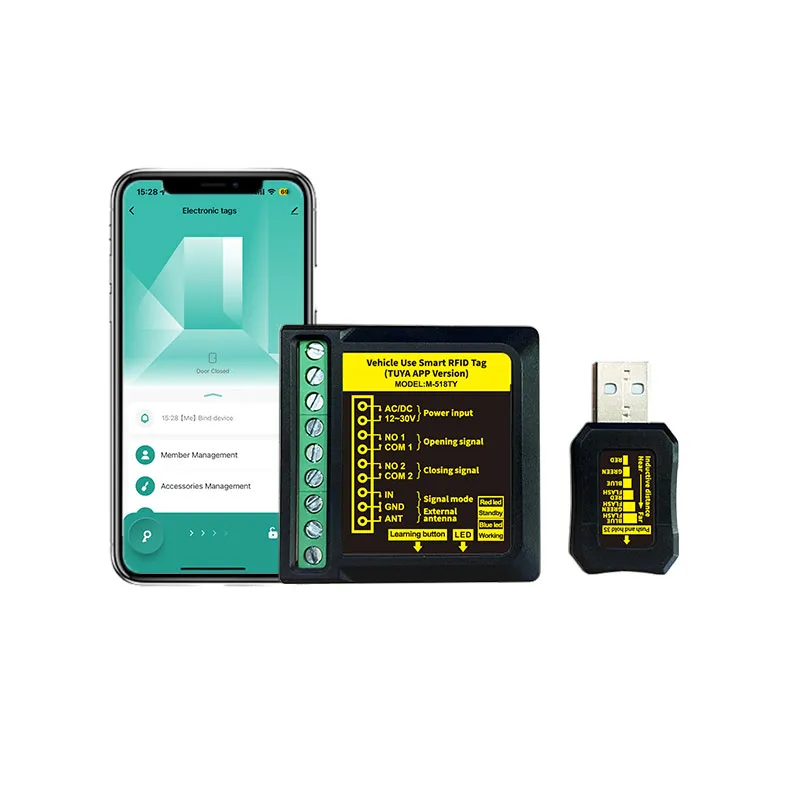

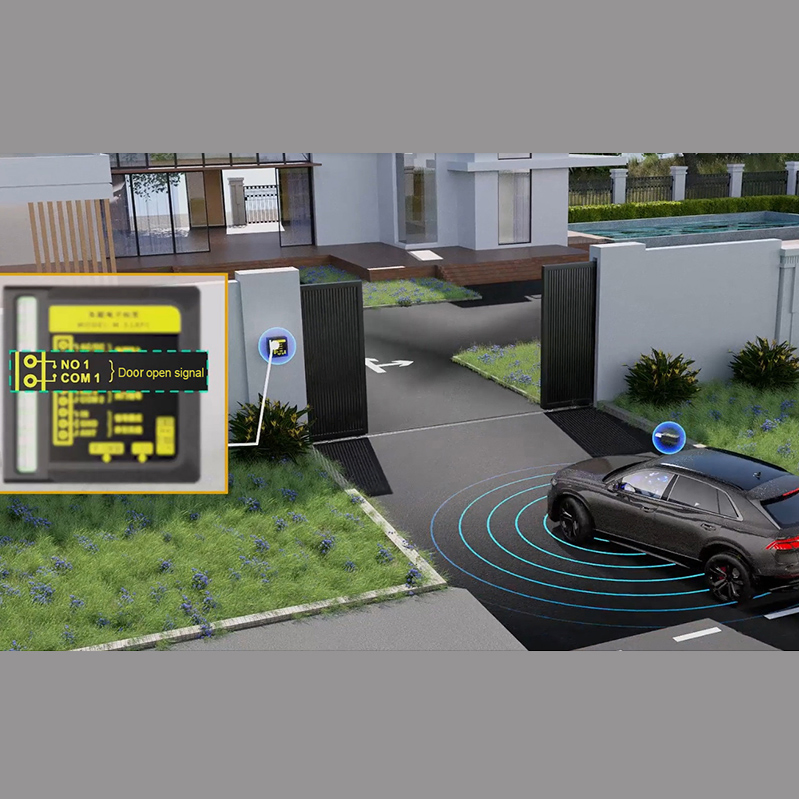

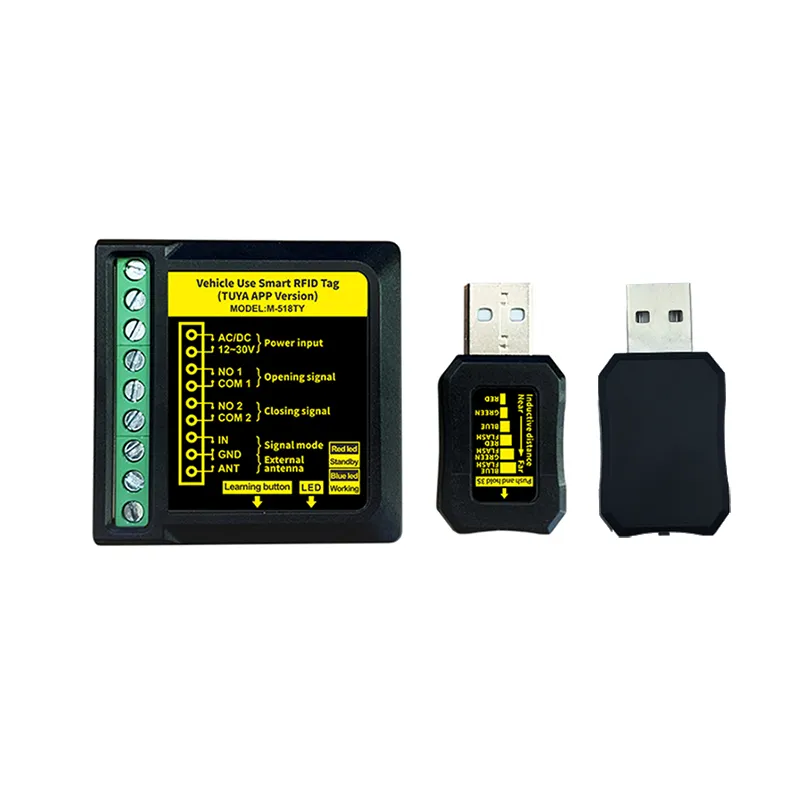

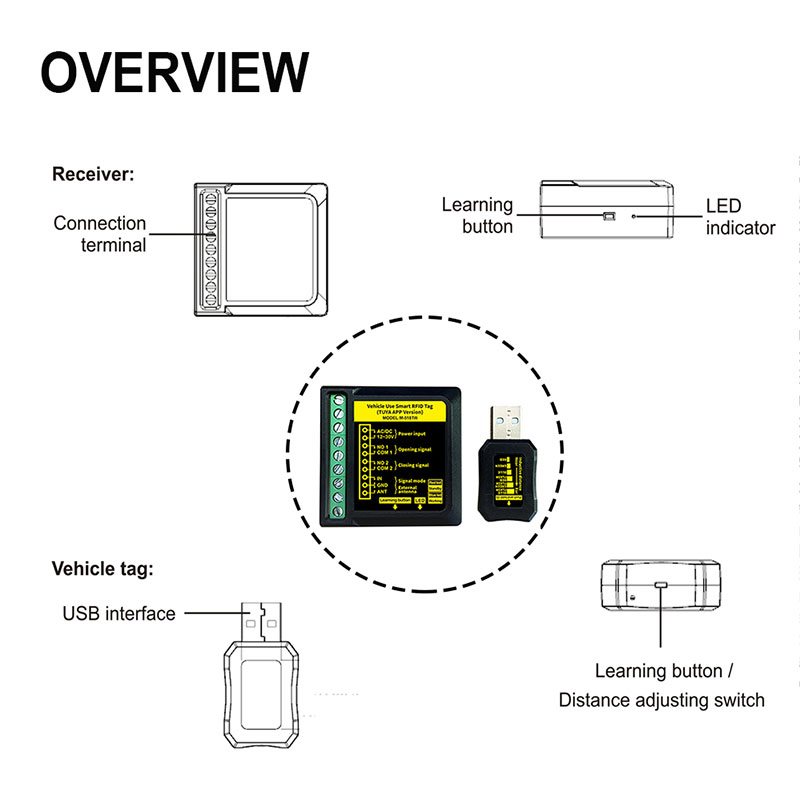

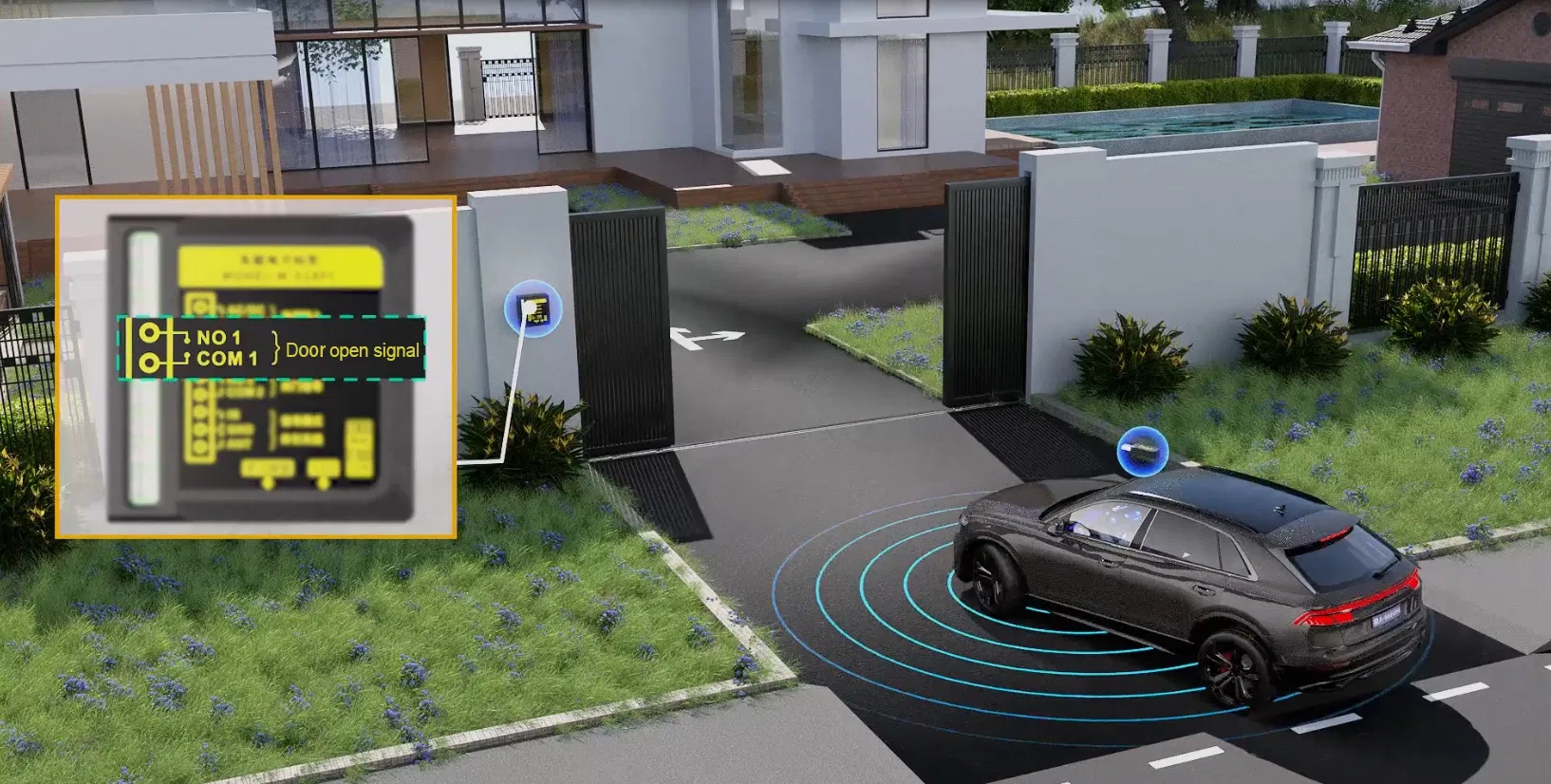

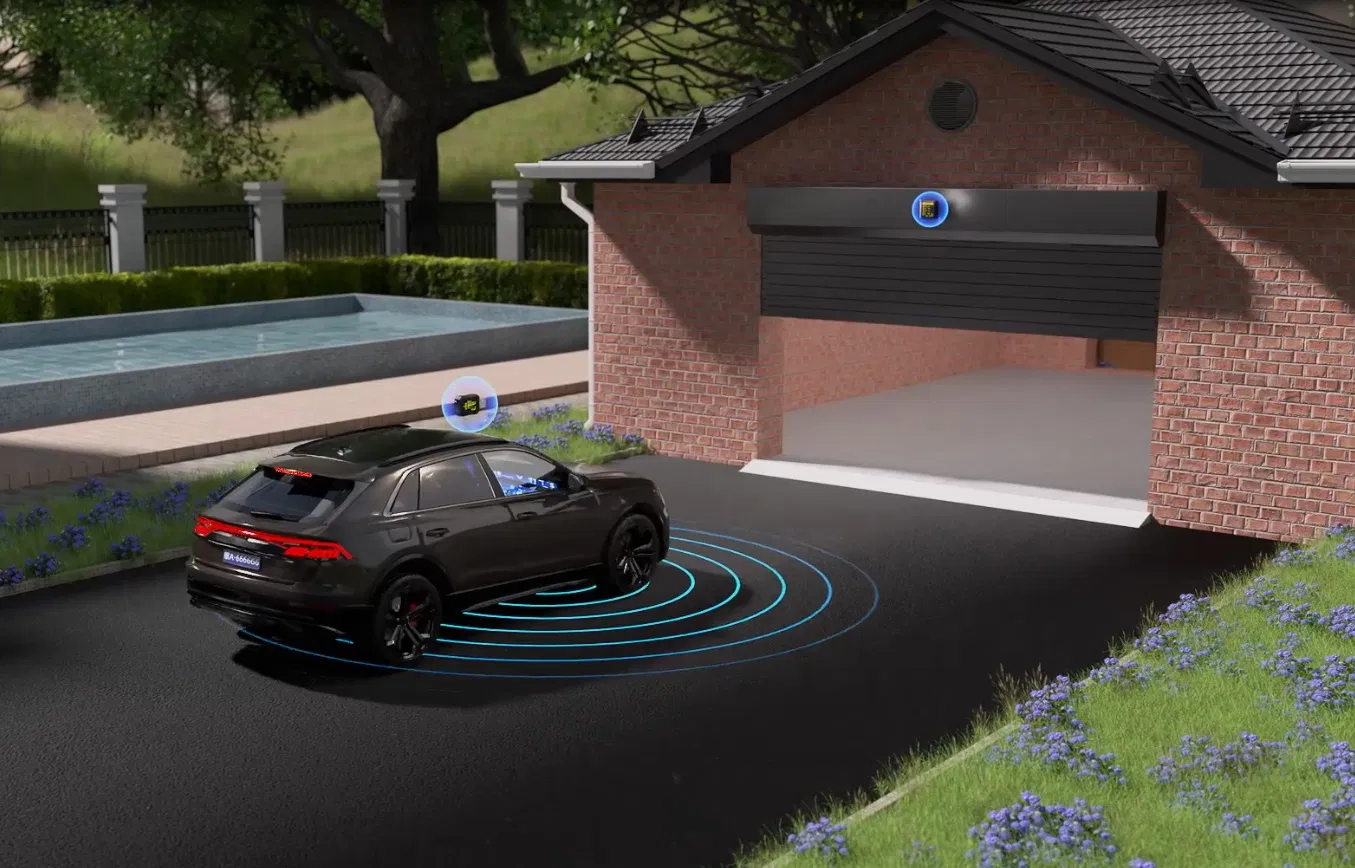

The M-518 Series is an advanced Smart RFID Tag system designed to provide authorized vehicles with completely automatic, hands-free entry through automatic doors and gates. By pairing a compact receiver installed on your door controller with a USB-powered tag placed in the vehicle, the system enables a smooth, stop-free access experience within a robust 30-meter sensing distance.

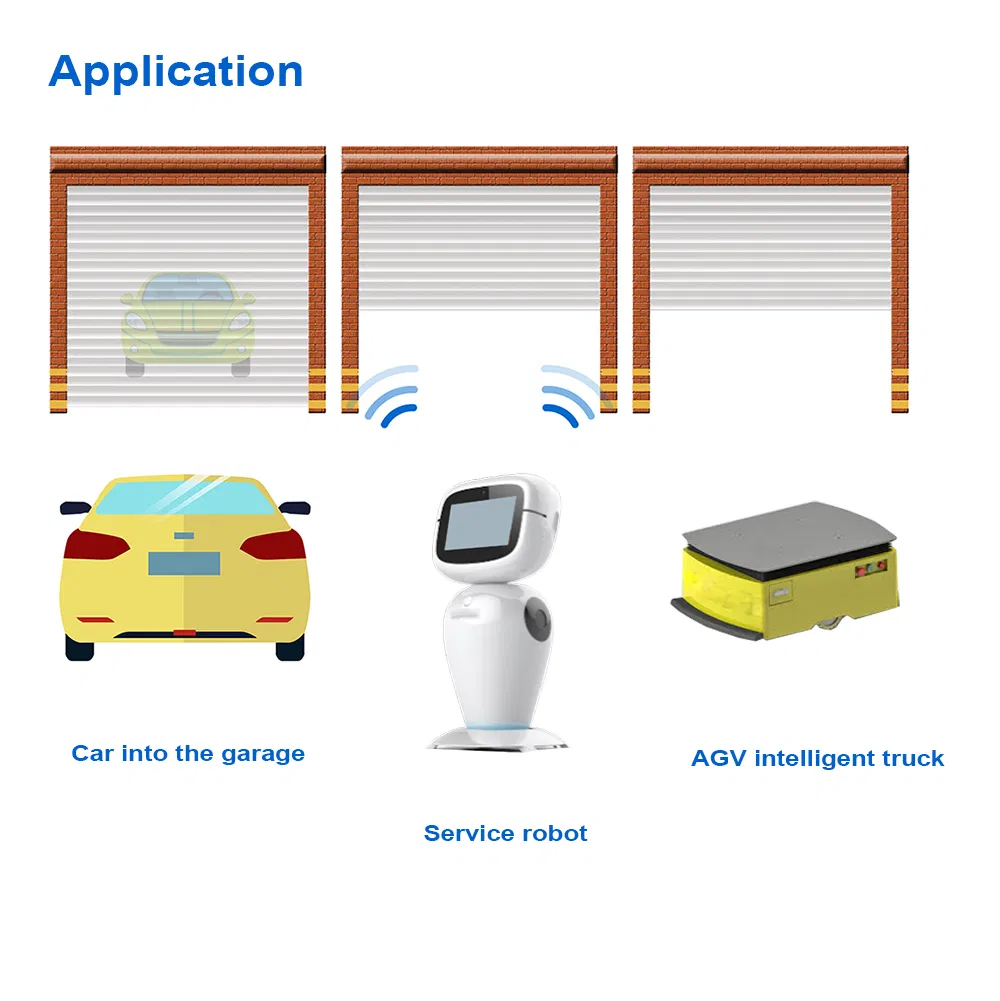

Ideal Applications:
| Receiver Specifications | |
| Power Input | AC/DC 12~30V |
|---|---|
| Static Current | 31mA (DC 12V) |
| Action Current | 107mA (DC 12V) |
| Dimension | 51.95(L) x 52(W) x 22.5(H)mm |
| Electronic Tag Specifications | |
| Power Supply | DC 5V (USB port) |

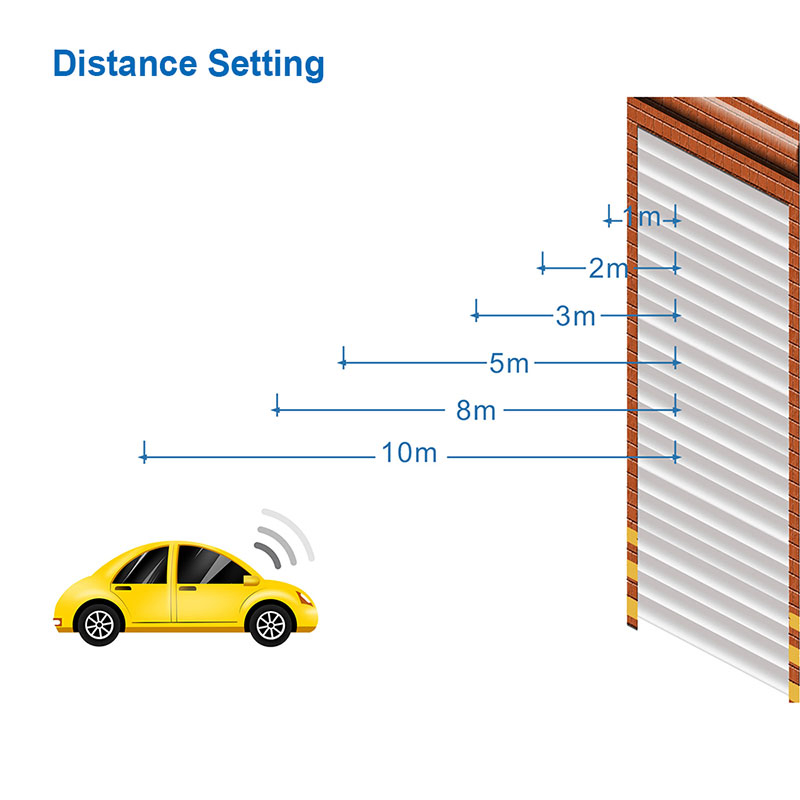

| Sensing Distance | 30 Meters (Max) |
| Dimension | 45(L) x 23(W) x 9.6(H)mm |

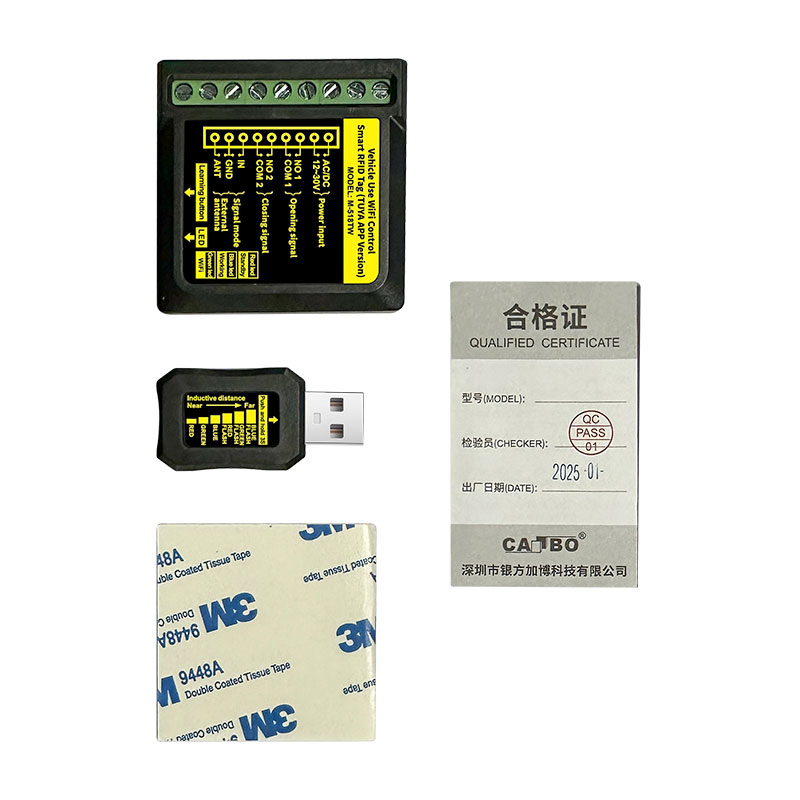

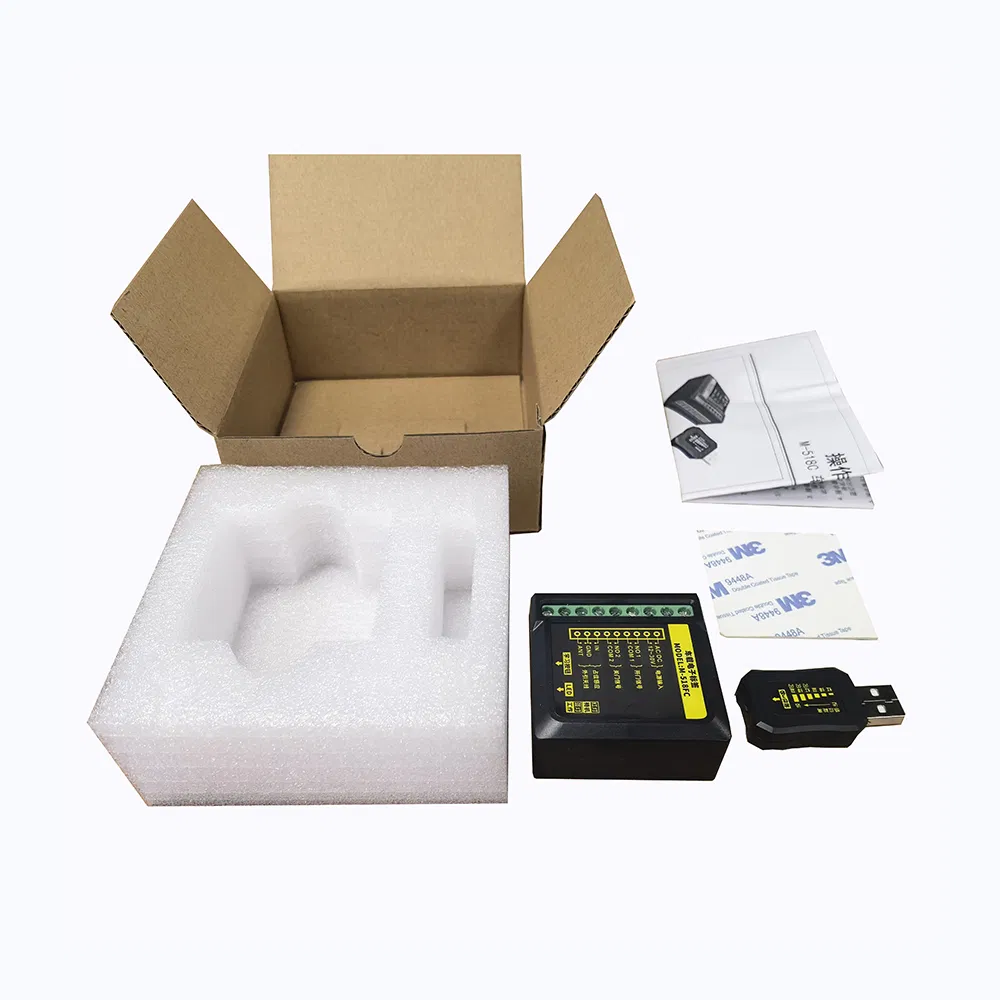

| Packing List | Tag, Receiver, 3M tape, Instructions |
Specializing in the R&D and manufacturing of automatic door control systems since 2006. Our technical team integrates software, hardware, and IoT technology, focusing on AI image sensors and laser radar technology. We maintain large-scale standard production lines and have passed Quality Management System Certifications. Most products are CE, FCC, and ROHS certified.
