■ Basic Specifications
Certification
CE, ISO, RoHS, GS
Selling Units
Single Item
Feature
Supports "Modular" Expansion
Environments
40C TO 55C / High Humidity / Salt Spray / Marine
Accessories
Optional Customers' requirements
Material
High-Quality Galvanized Steel
Size
6058mm*3000mm*2591mm
Cabinet Standard
International Standard
Application
Temporary Data Processing Center / Edge Data Center
Transport Package
Container

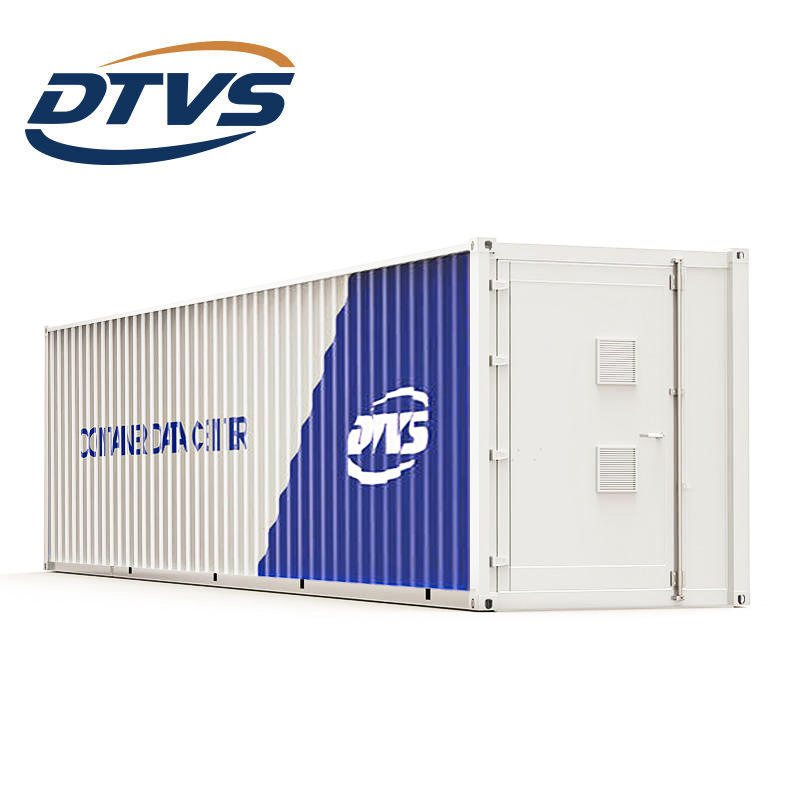

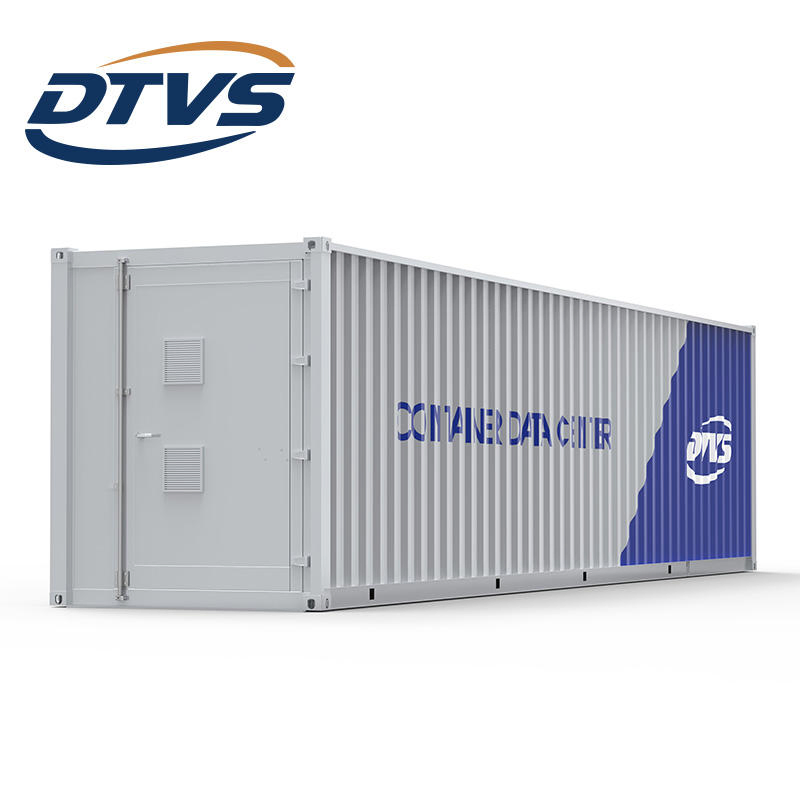

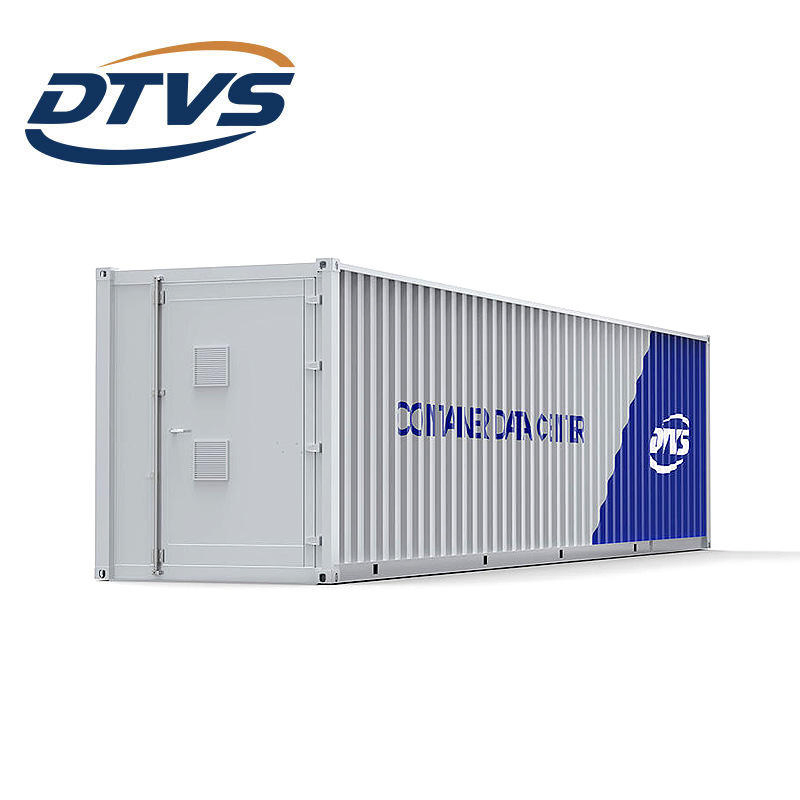

■ Product Overview
A containerized data center is a modular data center solution that uses standard containers (e.g., 20-foot and 40-foot international standard containers) as its carrier. Through factory prefabrication, it integrates IT equipment (servers, storage, and network devices), power systems, cooling systems, security systems, and other components into a single unit. It breaks the limitations of traditional data centers—such as on-site construction, long cycles, and poor flexibility—and boasts core advantages of high standardization, mobility, and rapid deployment. It serves as an efficient IT infrastructure for addressing temporary computing needs, edge scenarios, and special environments.

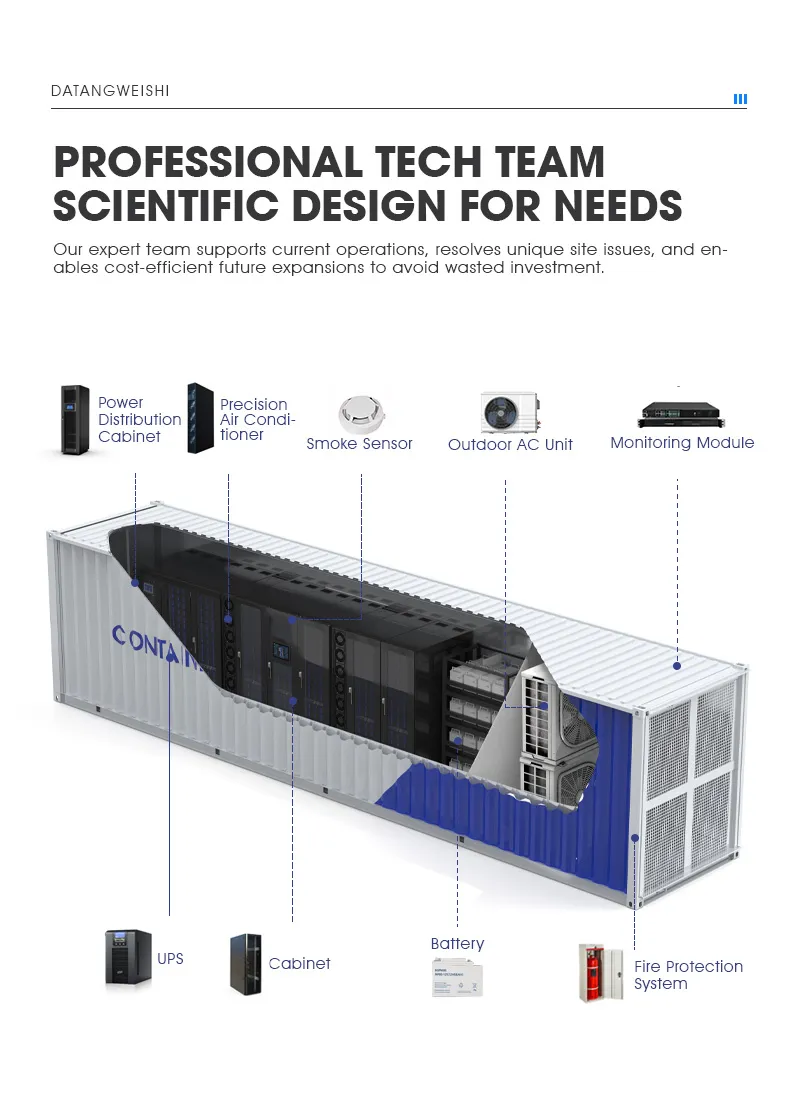

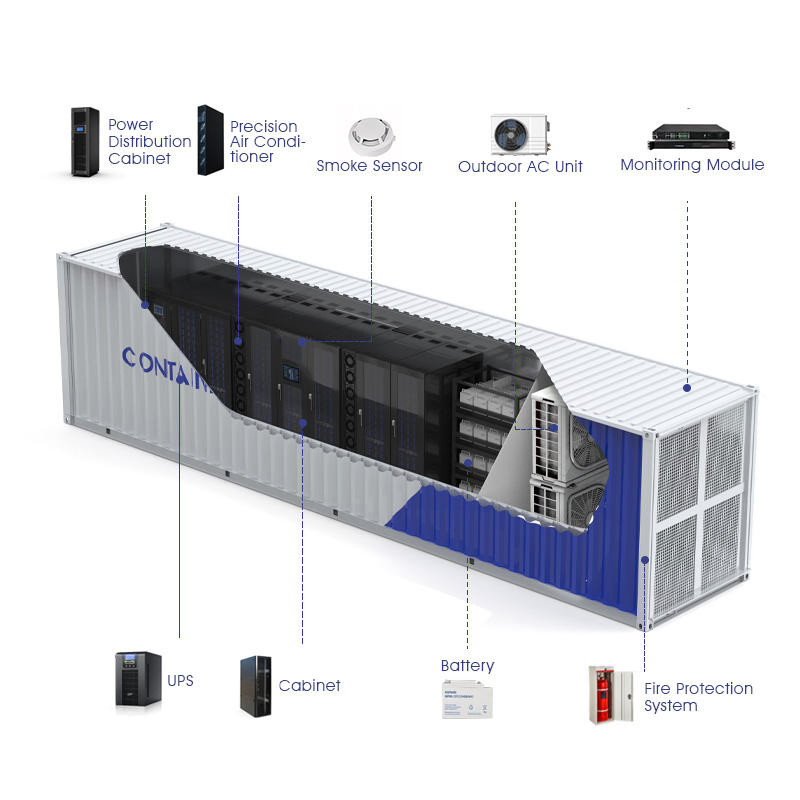

| Module Category |
Core Equipment |
Function |
| IT Equipment Module |
Servers, storage arrays, switches, firewalls |
Undertakes data computing, storage, network transmission, and security protection |
| Power Support Module |
UPS (Uninterruptible Power Supply), battery banks, diesel generators (optional) |
Ensures uninterrupted operation of IT equipment during power outages and adapts to different power supply environments |
| Cooling and Heat Dissipation Module |
Power distribution systems / precision air conditioners (air-cooled / water-cooled), ventilation systems, hot aisle containment (optional) |
Controls the temperature (usually 18~27°C) and humidity (40%~60%) inside the data center to prevent equipment overheating |
| Environment and Security Module |
Temperature and humidity sensors, smoke detectors, access control systems, video surveillance, fire protection systems (e.g., gas fire suppression) |
Monitors the data center environment in real time and prevents risks such as theft and fire |
| Structure and Protection Module |
Galvanized steel container body, thermal insulation layer, dustproof and waterproof shutters, grounding system |
Provides physical protection, isolates from harsh external environments, and ensures equipment safety |
■ Visual Display
■ Frequently Asked Questions
What are the primary benefits of using a containerized data center?
Containerized data centers offer rapid deployment, high mobility, and cost-effectiveness compared to traditional brick-and-mortar facilities. They are factory-prefabricated, ensuring high standardization and reliability.
How does the cooling system work in such a compact space?
Each unit is equipped with precision air conditioners (air-cooled or water-cooled) and advanced ventilation systems designed to maintain optimal temperature and humidity levels for IT hardware, even in extreme external conditions.

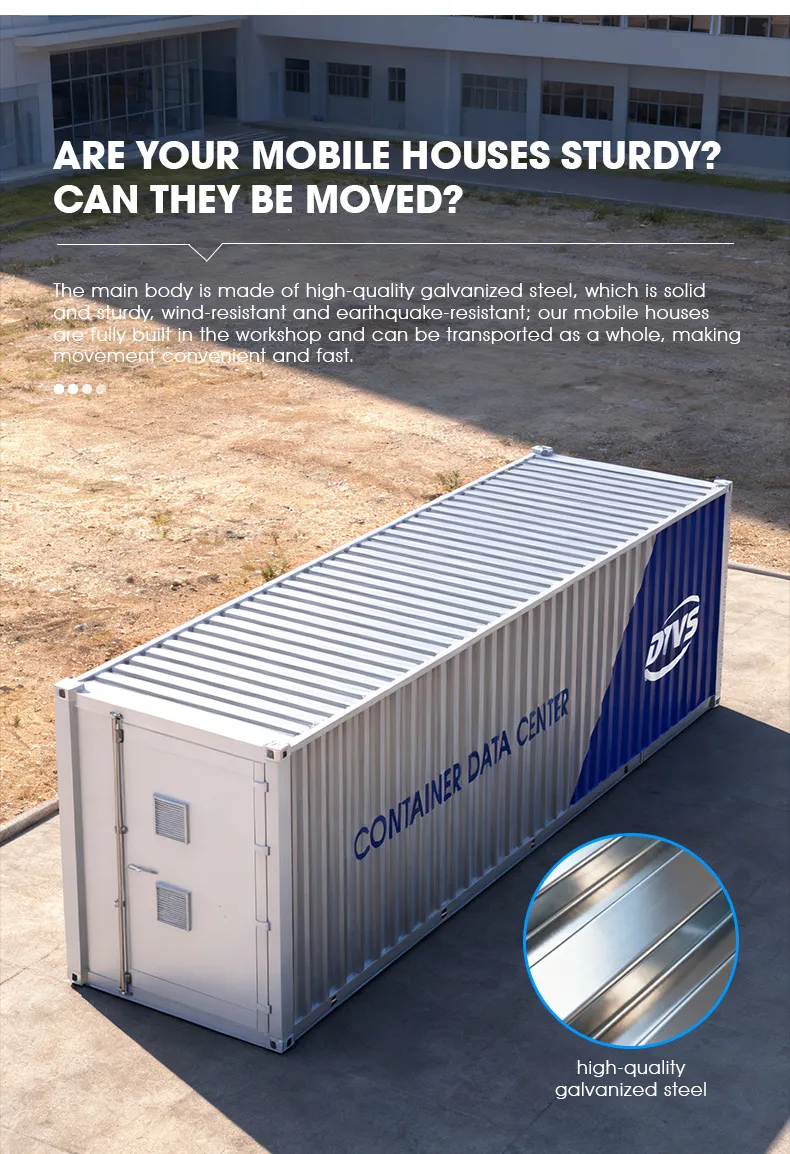

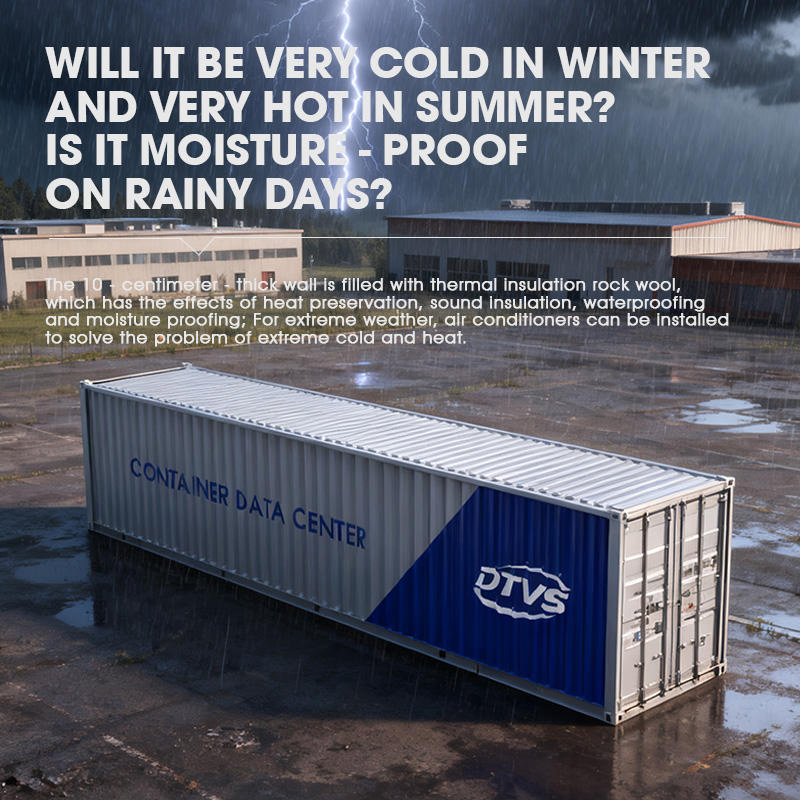

Can these containers withstand harsh outdoor environments?
Yes, the containers are constructed from high-quality galvanized steel with an IP55 protection level, providing excellent resistance against dust, water, salt spray, and extreme temperatures ranging from -40°C to 55°C.
Is the internal configuration customizable?
Absolutely. While we offer standard 20FT and 40FT solutions, the internal IT racks, power distribution, and cooling capacities can be tailored to meet specific project requirements and equipment loads.
How is the security of the data center managed?
The solution includes an integrated Environment and Security Module featuring smoke detectors, access control, video surveillance, and gas-based fire suppression systems to ensure 24/7 physical and operational safety.
Are these units easy to transport and relocate?
Since they are built within standard international shipping container dimensions, they can be easily transported via sea, rail, or truck, making them ideal for edge computing and temporary data processing needs.
