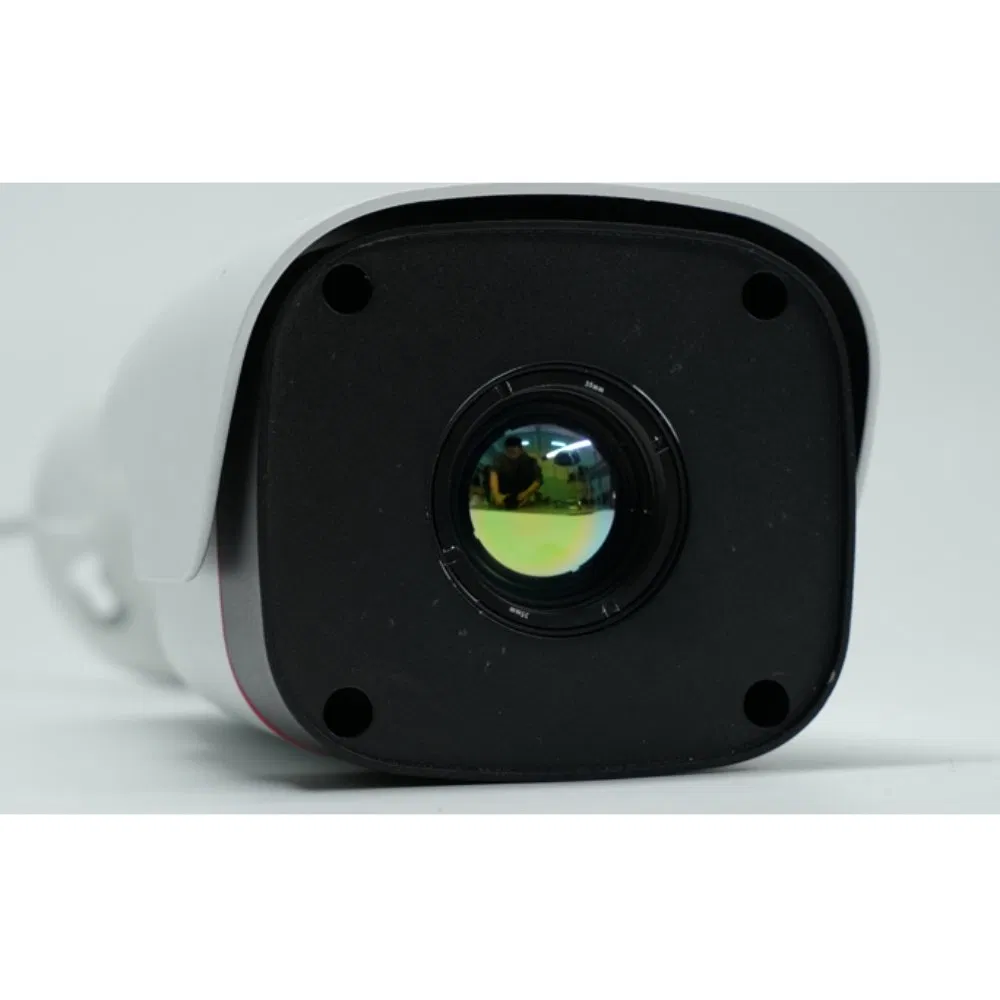

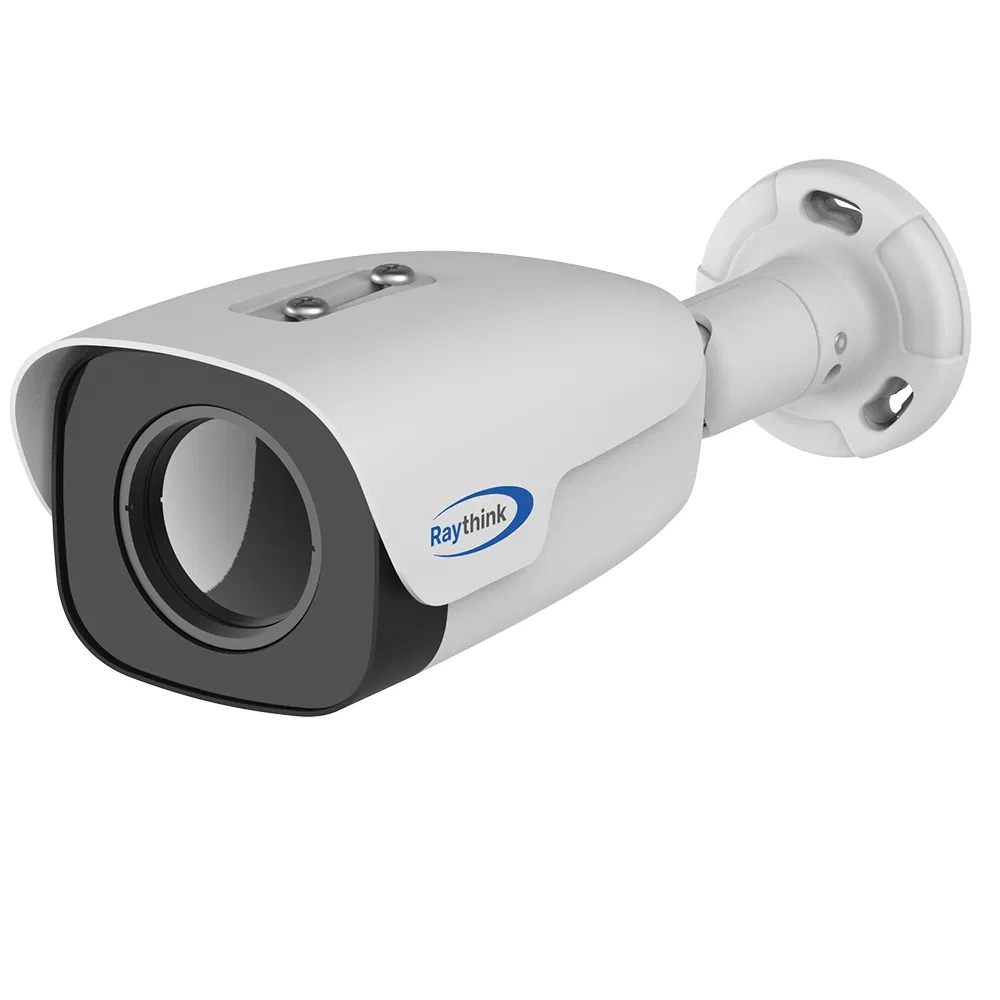

FC4A thermal bullet camera equipped a 640×512, 12μm pixel pitch thermal detector with a focal length up to 35mm/55mm. It supports tripwire/intrusion detection. It can be used for perimeter protection in critical facilities.
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Supports 33mm/55mm fixed-focus infrared lenses to meet long-range detection needs.
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
Support ONVIF, provide SDK & demo for development; provide NVR and VMS software for application.
| Technical Specifications | FC460A |
|---|---|
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detector |
| Spectral Range | 8~14μm |
| NETD | ≤40mK(@25°C,F#1.0,25Hz) |
| Resolution | 640*512 |
| Pixel Pitch | 12μm |
| Focal Length | 33/55mm |
| Smart Function | |
| Fire Detection | Support |
| VCA | Support Line crossing & Intrusion detection |
| 2-Way Audio | Support |
| Linkage Action | Video/ Snapshot/Email/Alarm output |
| System Interface | |
| Power | DC 12V±25% / POE(802.3af) |
| Network | 1×RJ45 10M/100M self-adaptive interface |
| Storage Interface | Micro SD card (up to 256G) |
| General | |
| Work Environment | -40ºC~+60ºC; <95%RH |
| Protection | IP66 |
| Dimensions (mm) | 334.7*121.5*101.4 |
| Weight | ≤1.5kg |
Perimeter Surveillance
Urban High-Altitude Surveillance

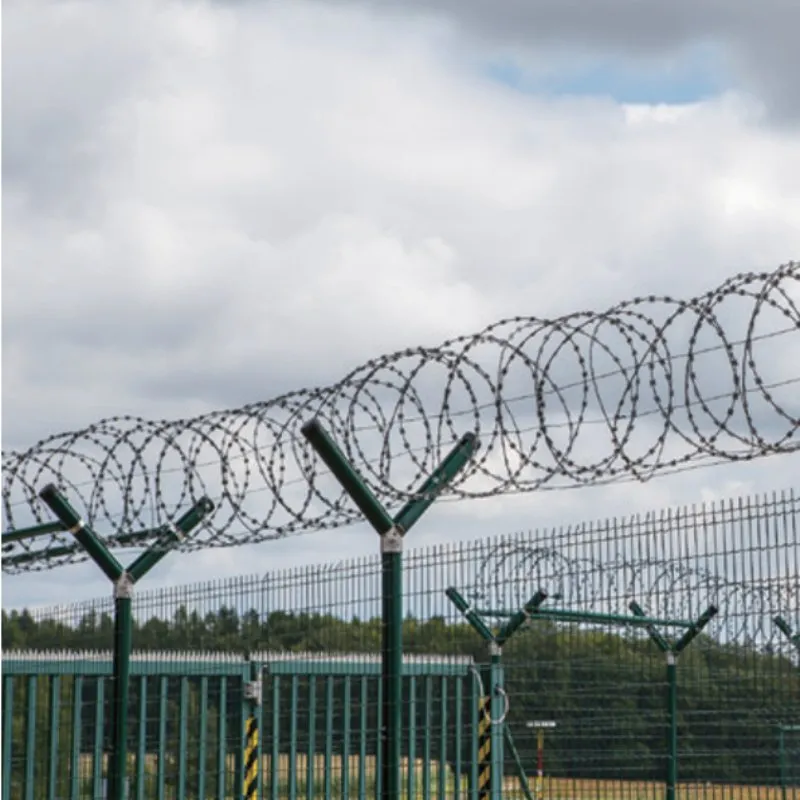

Critical Infrastructure Protection
River Monitoring
