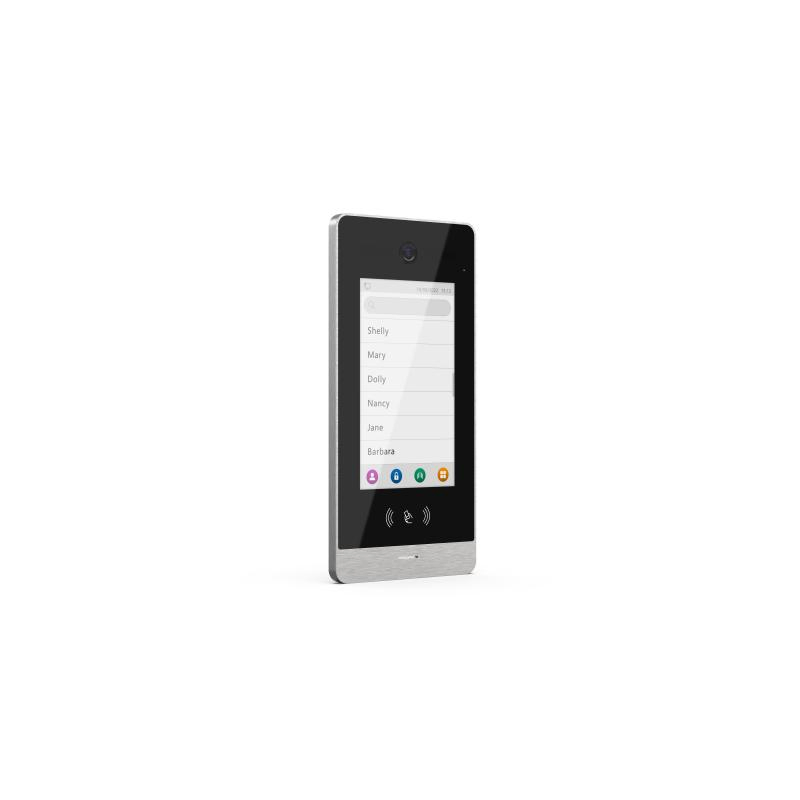

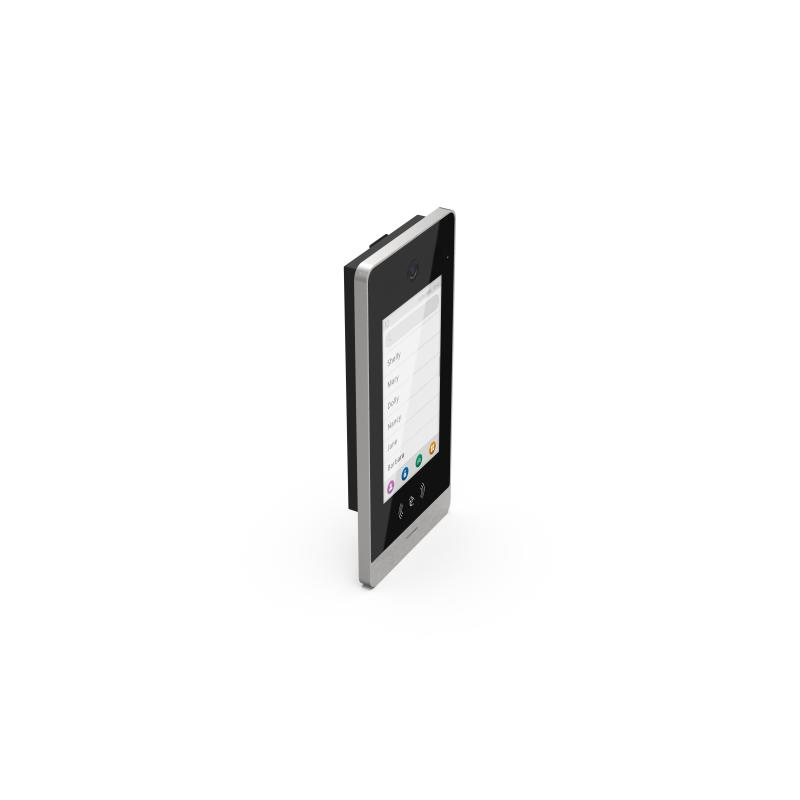

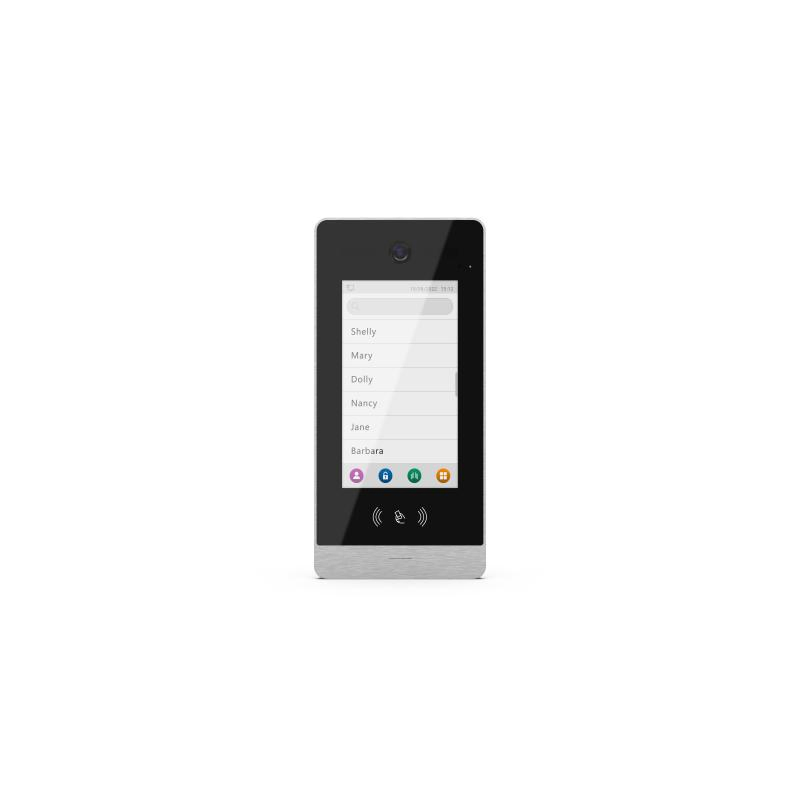

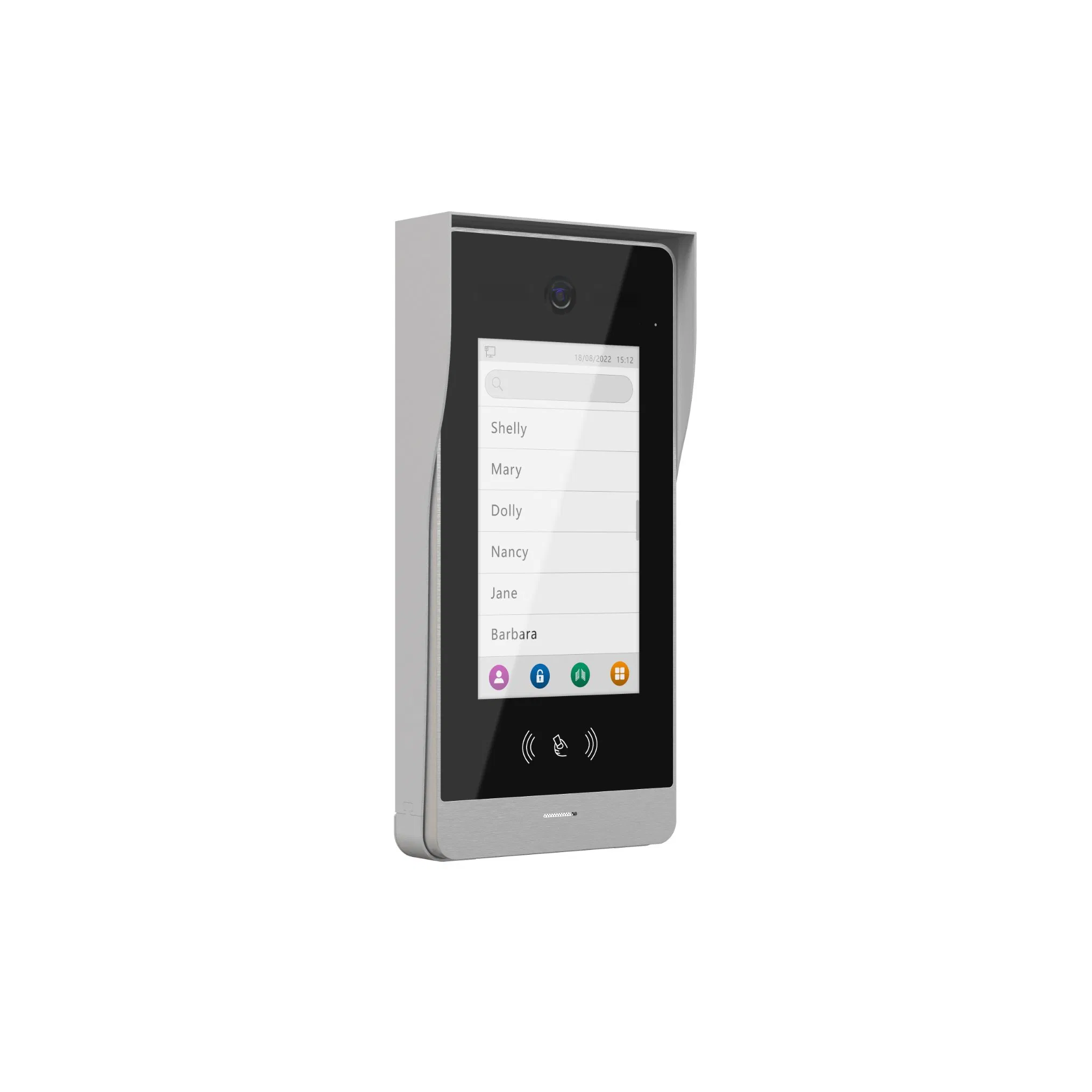

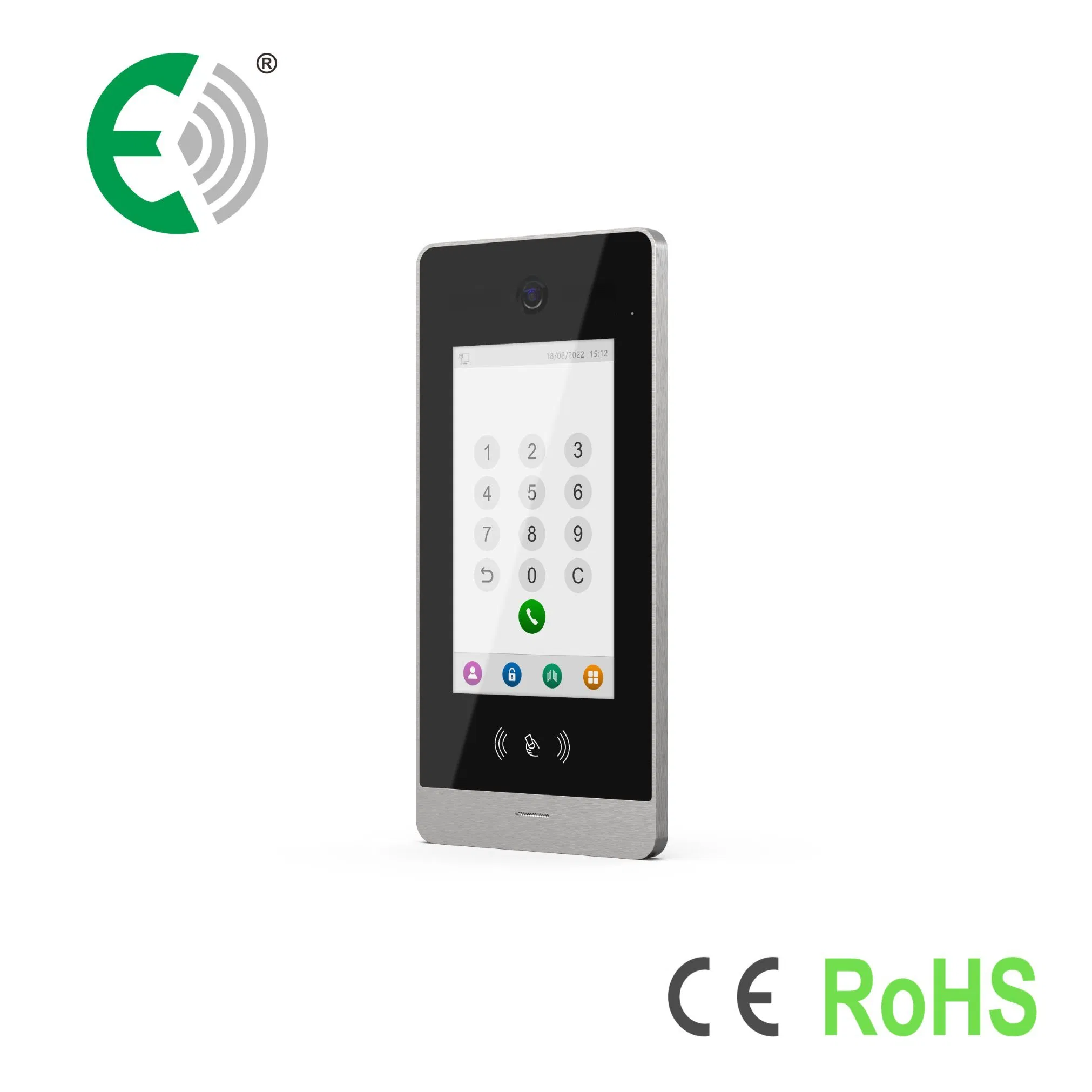

Multi Apartment Building Video Intercom System SIP Video Doorphone System

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
ED006BIC
Color
Silver+Black
Voice Service
With Voice Service
Installation
Flush Mounted
Certification
RoHS, CCC, FCC, CE, SGS
Resolution
7”IPS1024*600
Night Vision Type
IR
Quality
Metal Case
Protection
Ik07
RFID Unlock
Supports
Power Supply
Poe IEEE 802.3af ; DC12-15V, 8W
View Angle
125 Degree
Waterproof
IP65
Package Gross Weight
1.500kg

Product Description

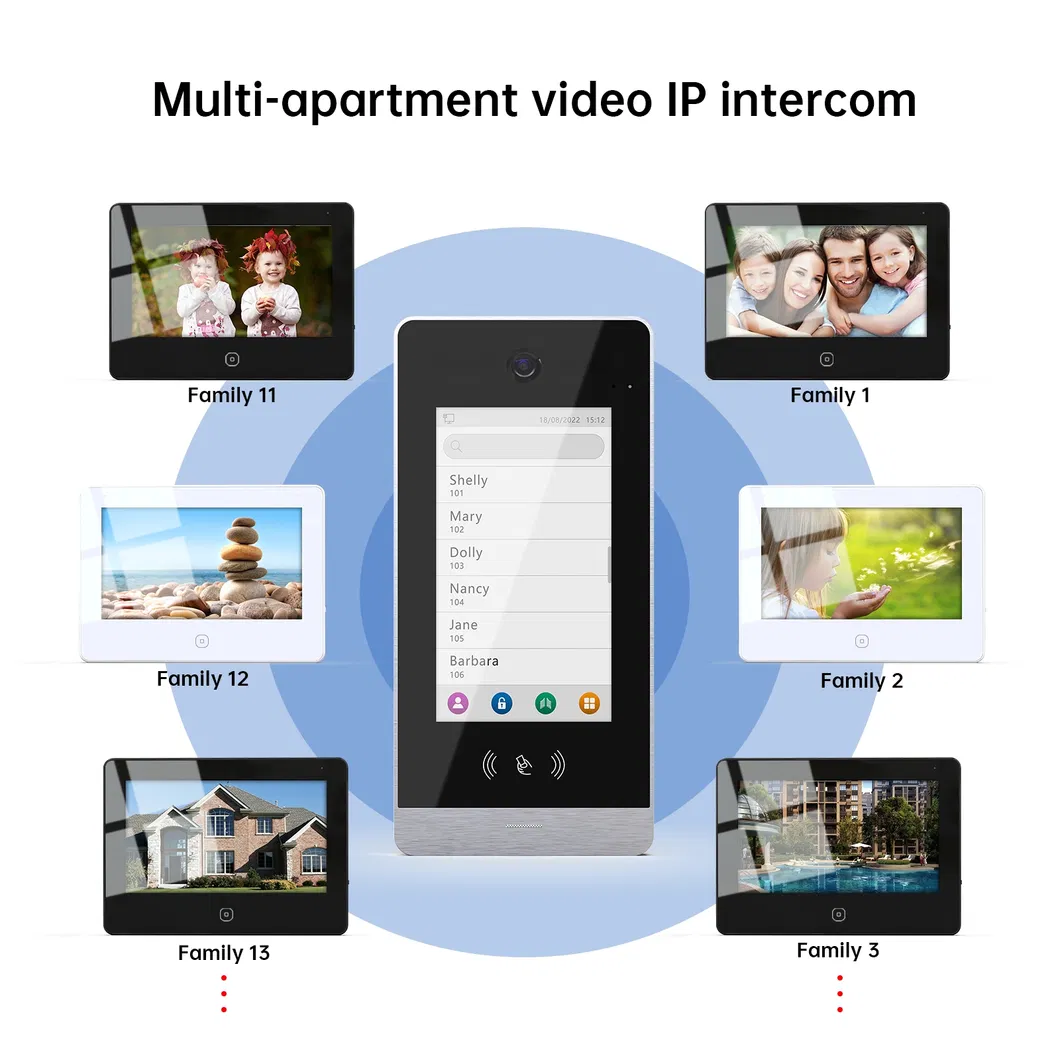

Video Intercom System
Video Intercom System

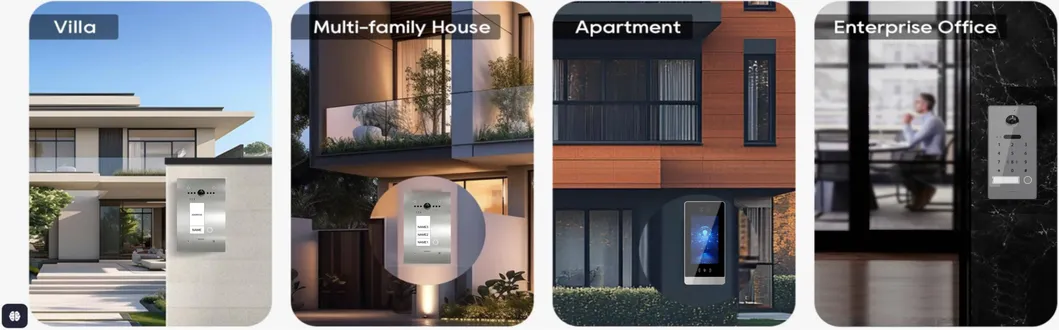

Intercom Display
System Interface

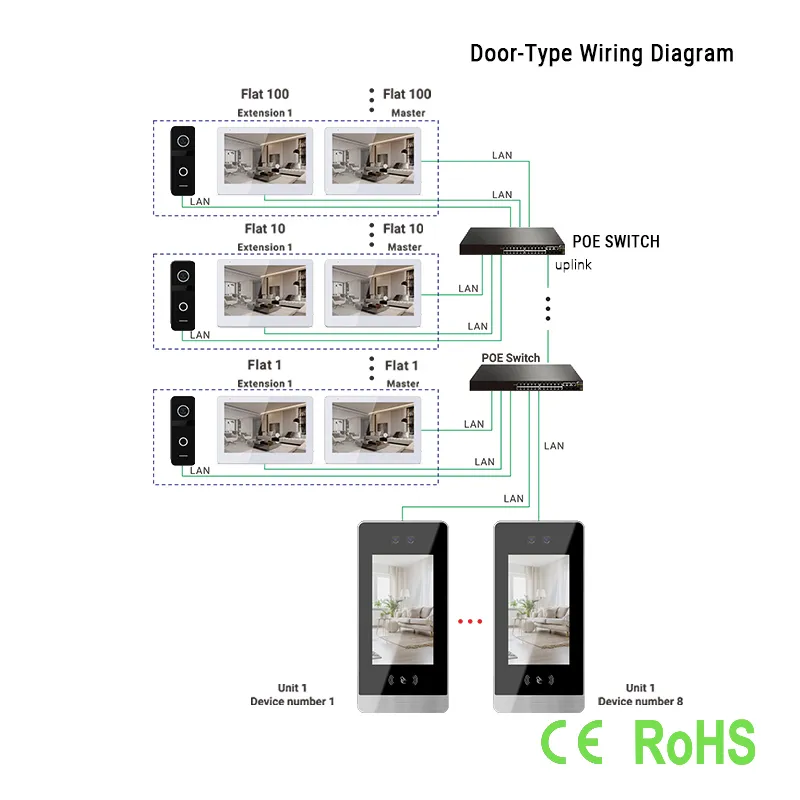

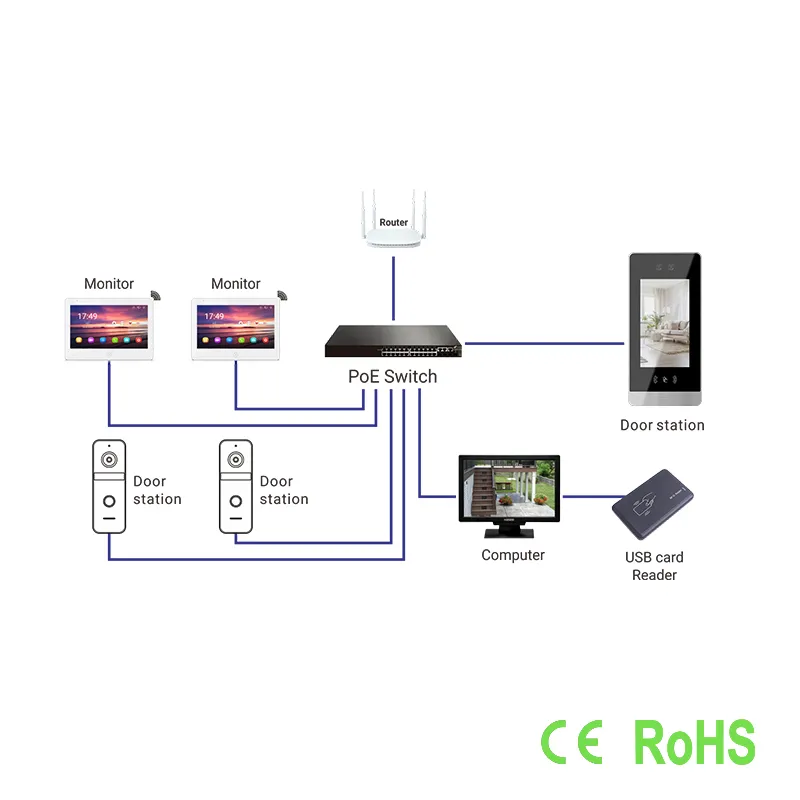

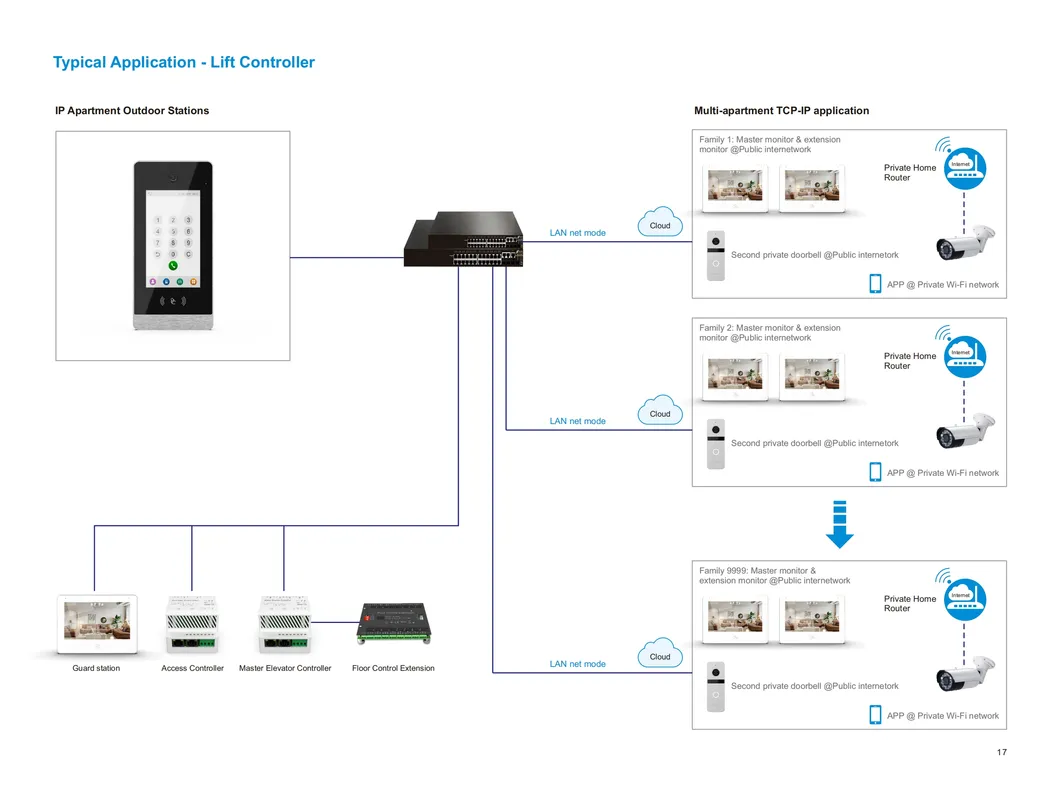

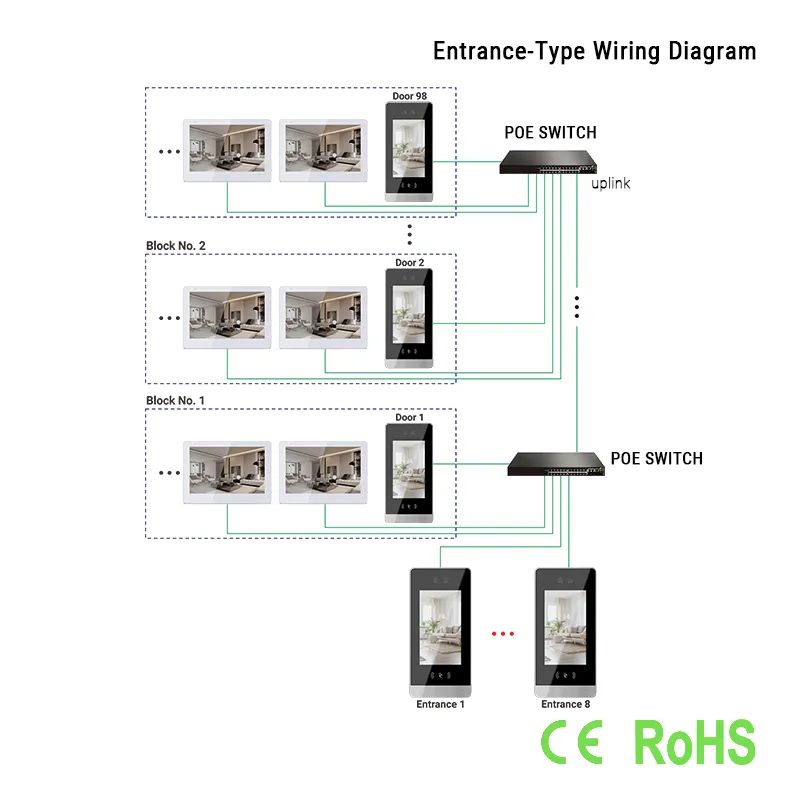

Connection Diagram
Key Features:
  • 7" IPS HD touch screen 1024*600
  • 2MP HD smart IR camera with 125° Wide view angle
  • Support H265 & H264 compression
  • Full duplex communication & SIP 2.0 integration

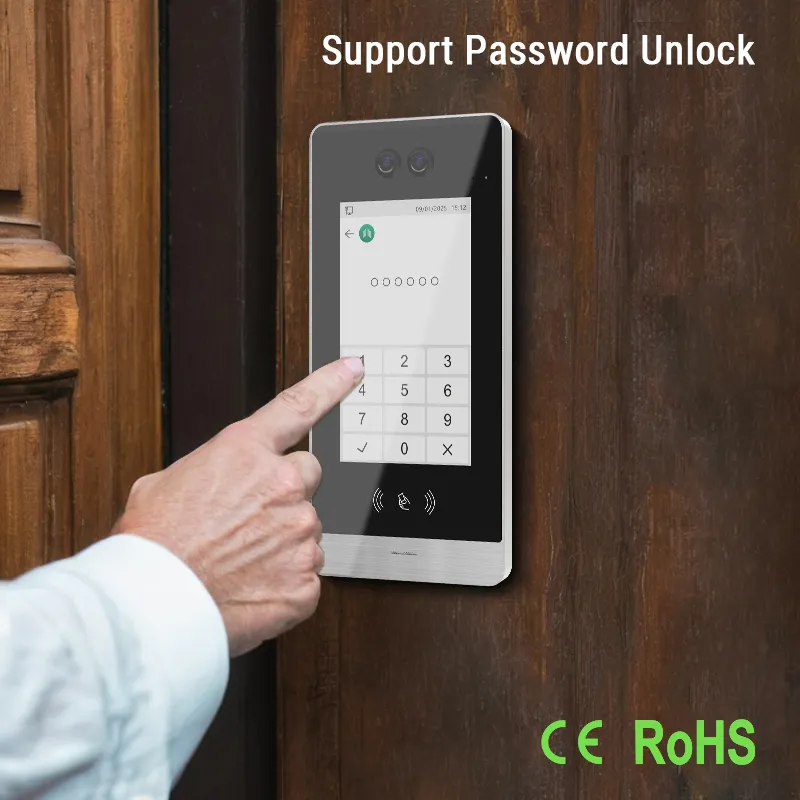

  • Supports keypad, RFID (Mifare 13.56MHZ), and EXIT button unlock
  • Metal body with tempered glass, IP65 & IK07 protection

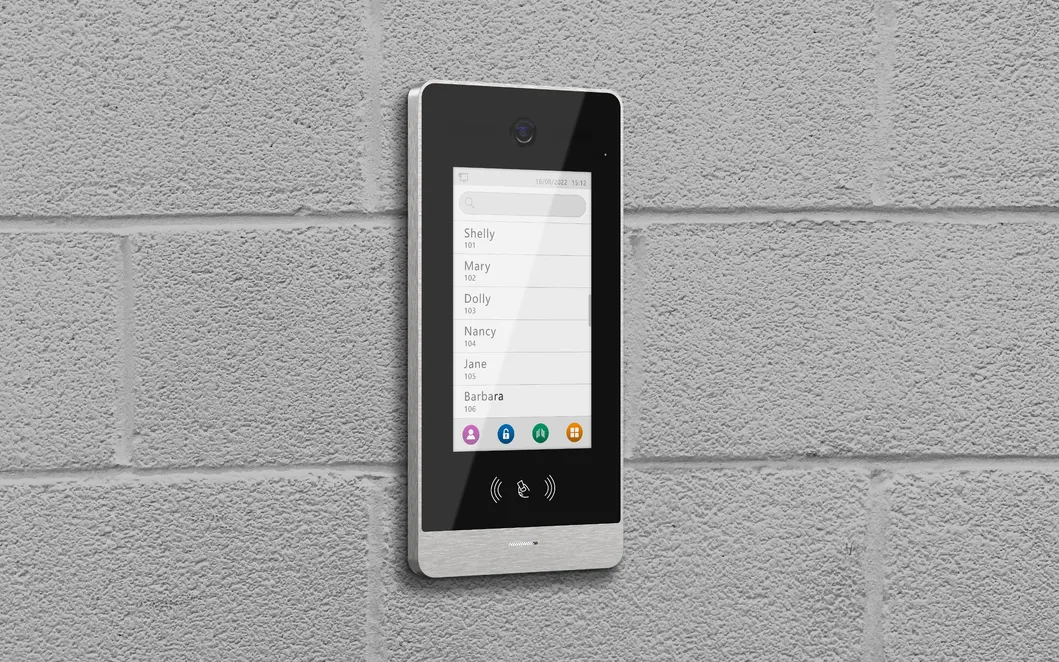

Intercom Features
Night Vision
📷

Detailed Photos

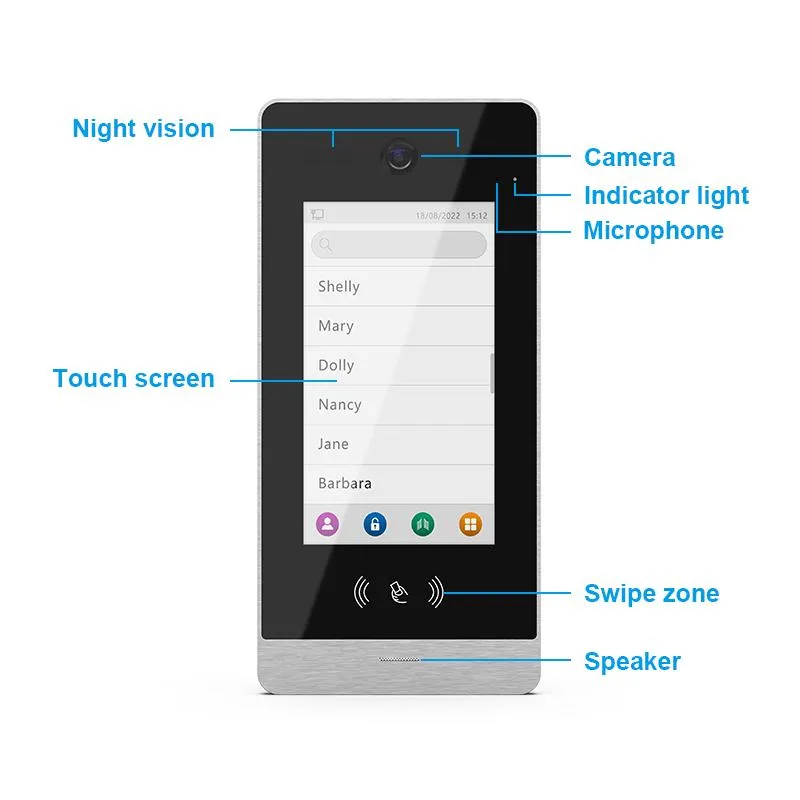

Front View

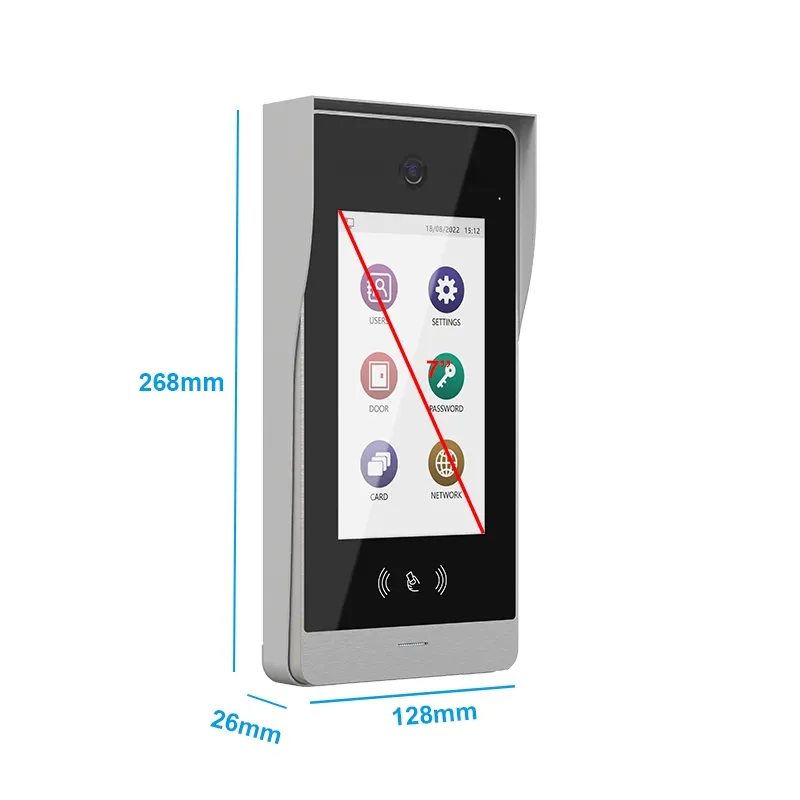

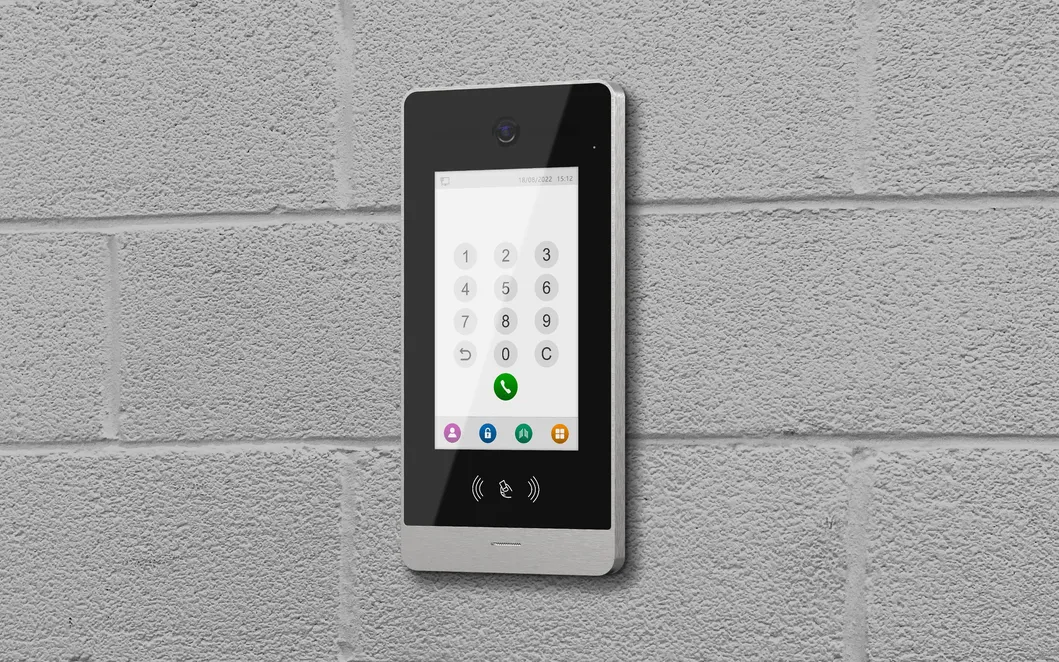

Angle View
Mounting Detail
Close Up
Port Details
Back View

Product Parameters

  • System
  • Apartments9999
    Camera Resolution2MP CMOS
    Angle of View125°
    Supplement LightSmart IR
    Screen7" IPS 1024*600
    RFIDEm marine/Mifare
    Linux
    Video CompressionH.265 (default), H.264
    ProtectionIP65, IK07
    MaterialsStainless Steel
    Dimensions268x128x26mm
    🛠

    Installation Instructions

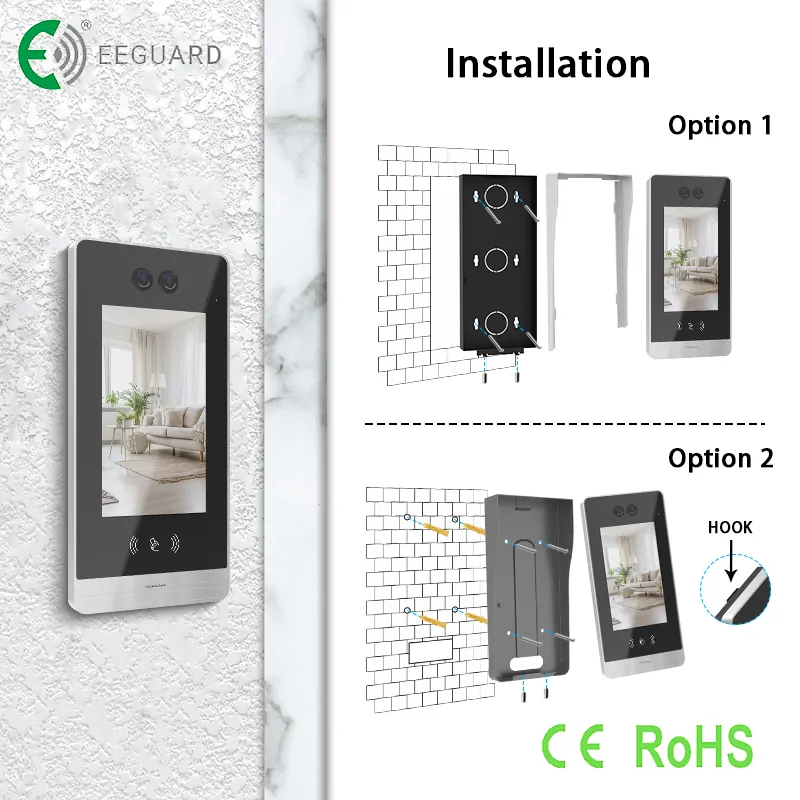

    Installation Guide

    Certifications

    Certificate 1
    Certificate 2

    All our models are in compliance with CE, RoHS, REACH. Quality testing with samples is welcomed.

    🏢

    Factory Overview

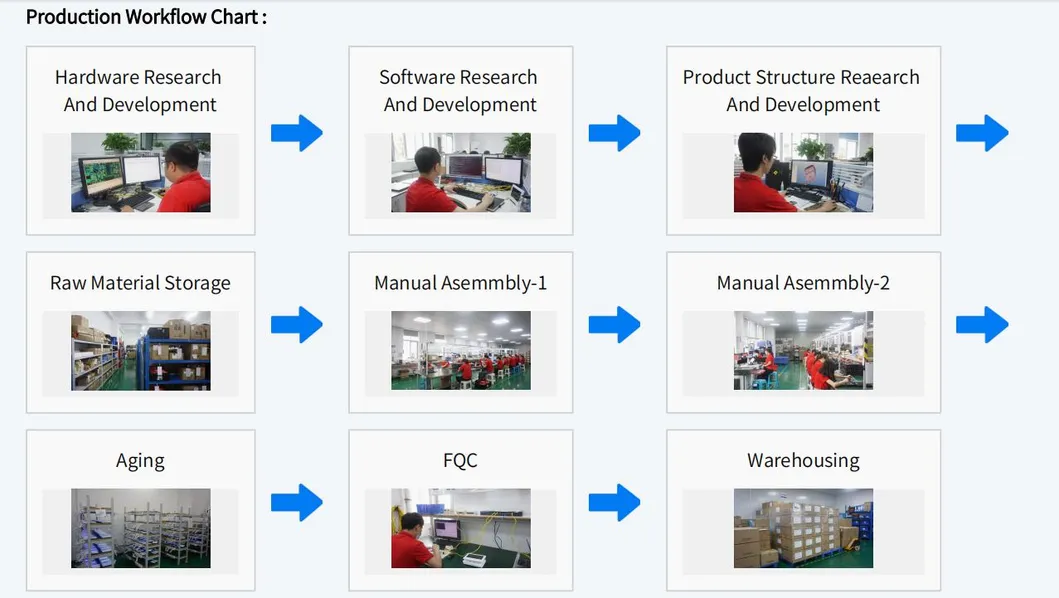

    Factory Facility
    Production Line
    ?

    Frequently Asked Questions

    Q: Can I get a sample to test first?

    A: Yes, you are welcome to take samples to test our quality at any time.

    Q: Can you provide OEM / ODM services?

    A: Yes, we provide full OEM & ODM services, including logo printing and giftbox design customizations.

    Q: What is your Minimum Order Quantity (MOQ)?

    A: There is no MOQ for neutral models. For custom logos and giftboxes, the MOQ is 300PCS per model.

    Q: What is the lead-time for orders?

    A: Samples take 2-5 days. Bulk orders typically take about 25 working days after the deposit is received.

    Q: What is the warranty period for your products?

    A: We offer a 2-year warranty starting from the date of shipment.
