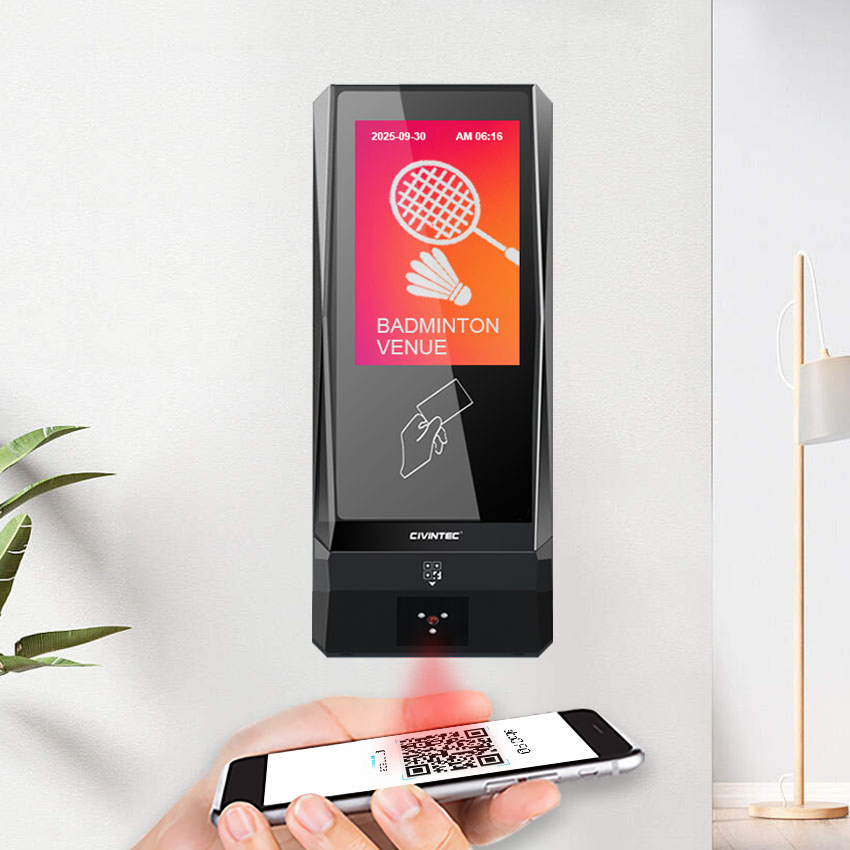

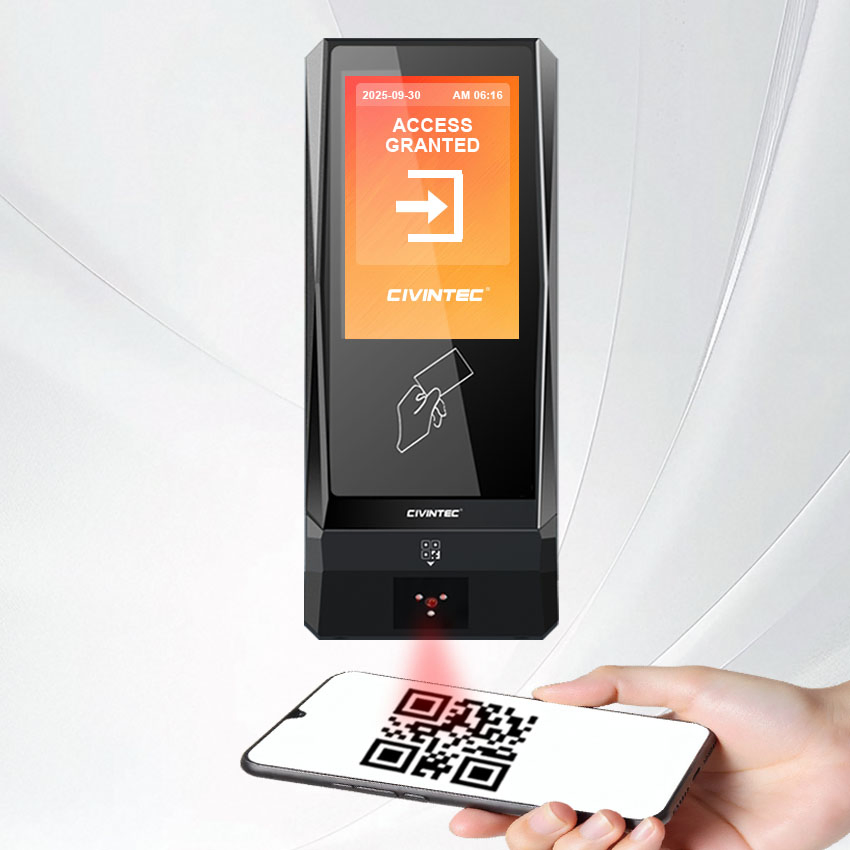

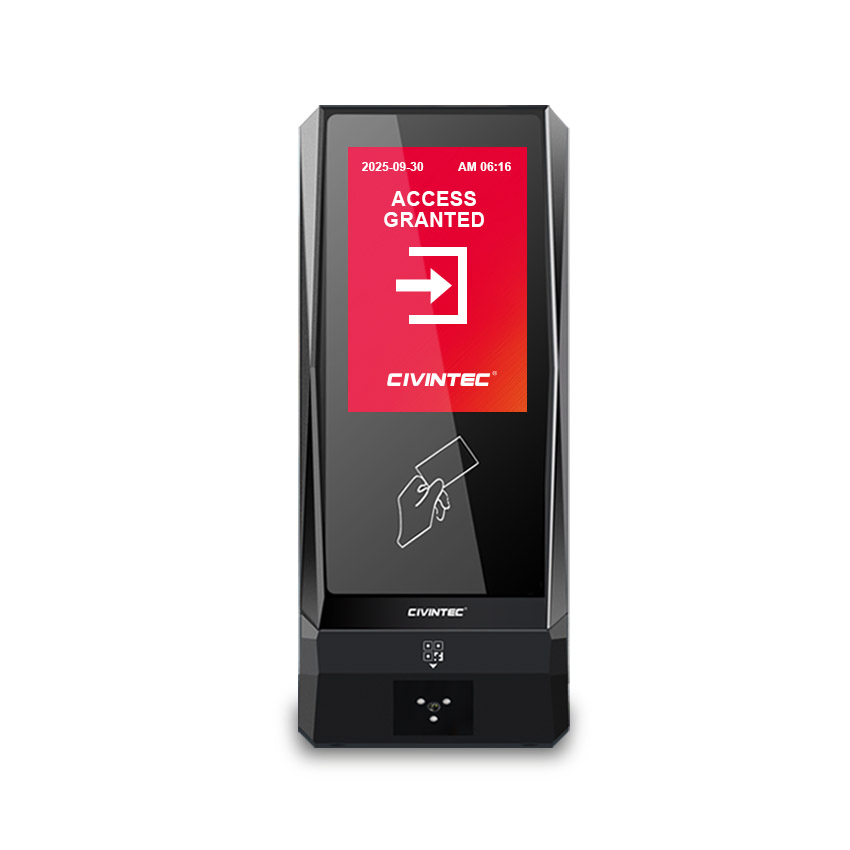

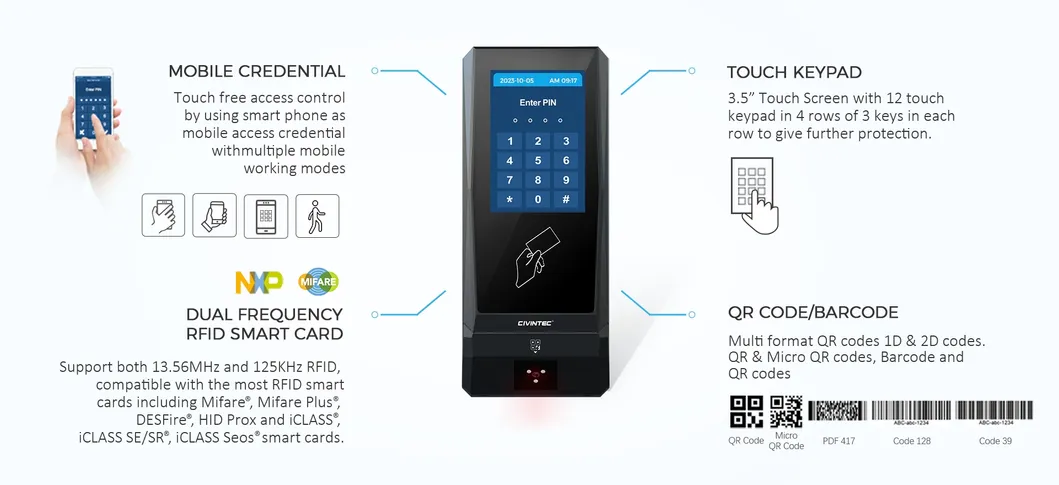

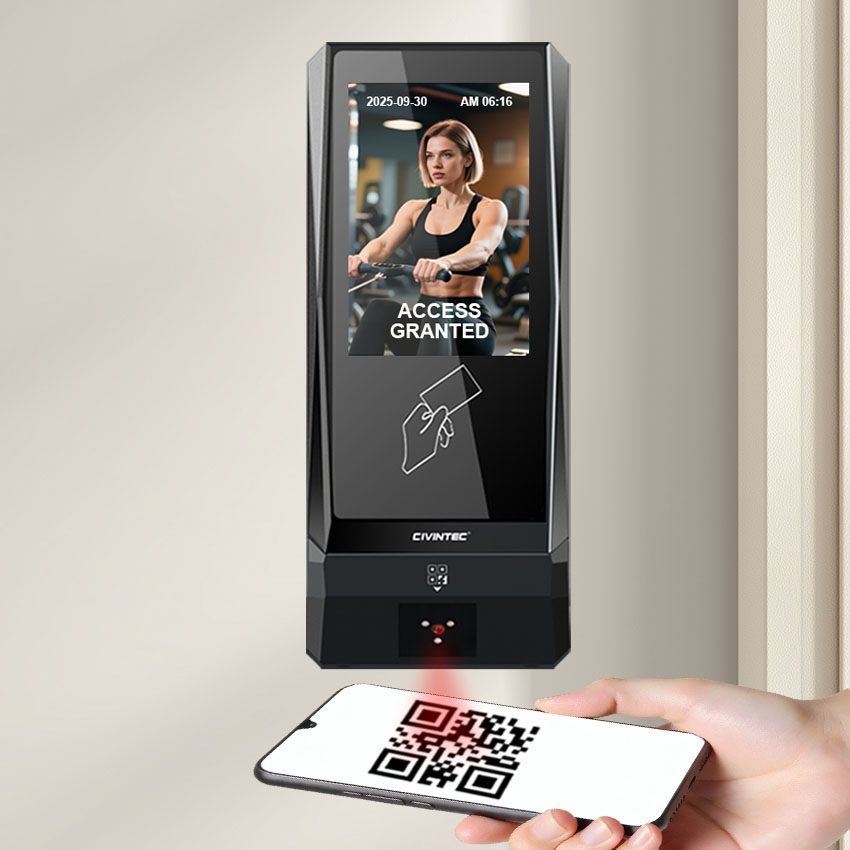

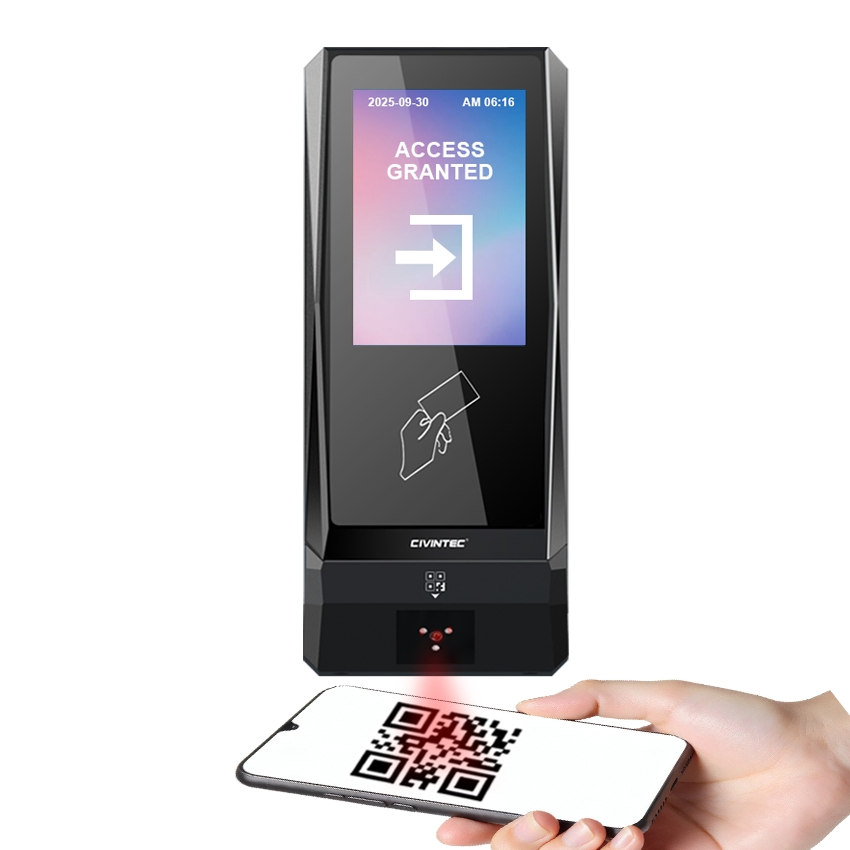

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, RFID dual-frequency smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR Code | Multiple formats: QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID Smart Card | EM 125KHz, 13.56MHz Mifare® Classic, Plus, DESFire® EV1/EV2/EV3, ISO14443A/B |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, exit button |

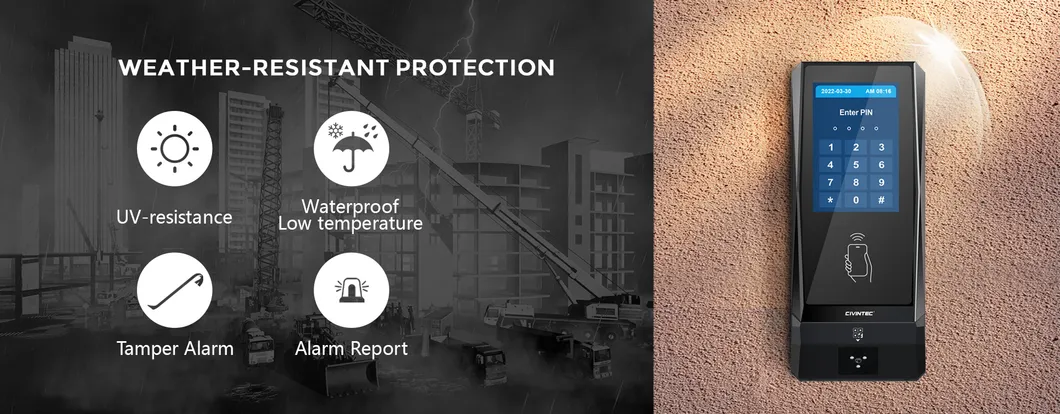

| IP Protection | IP65 outdoor/indoor use, UV-resistance |
We provide ODM customization on hardware, reader housing, firmware, and software design. Users can program and display their own logo on the 3.5" touch screen. OEM logo printing on the reader body is also available.
