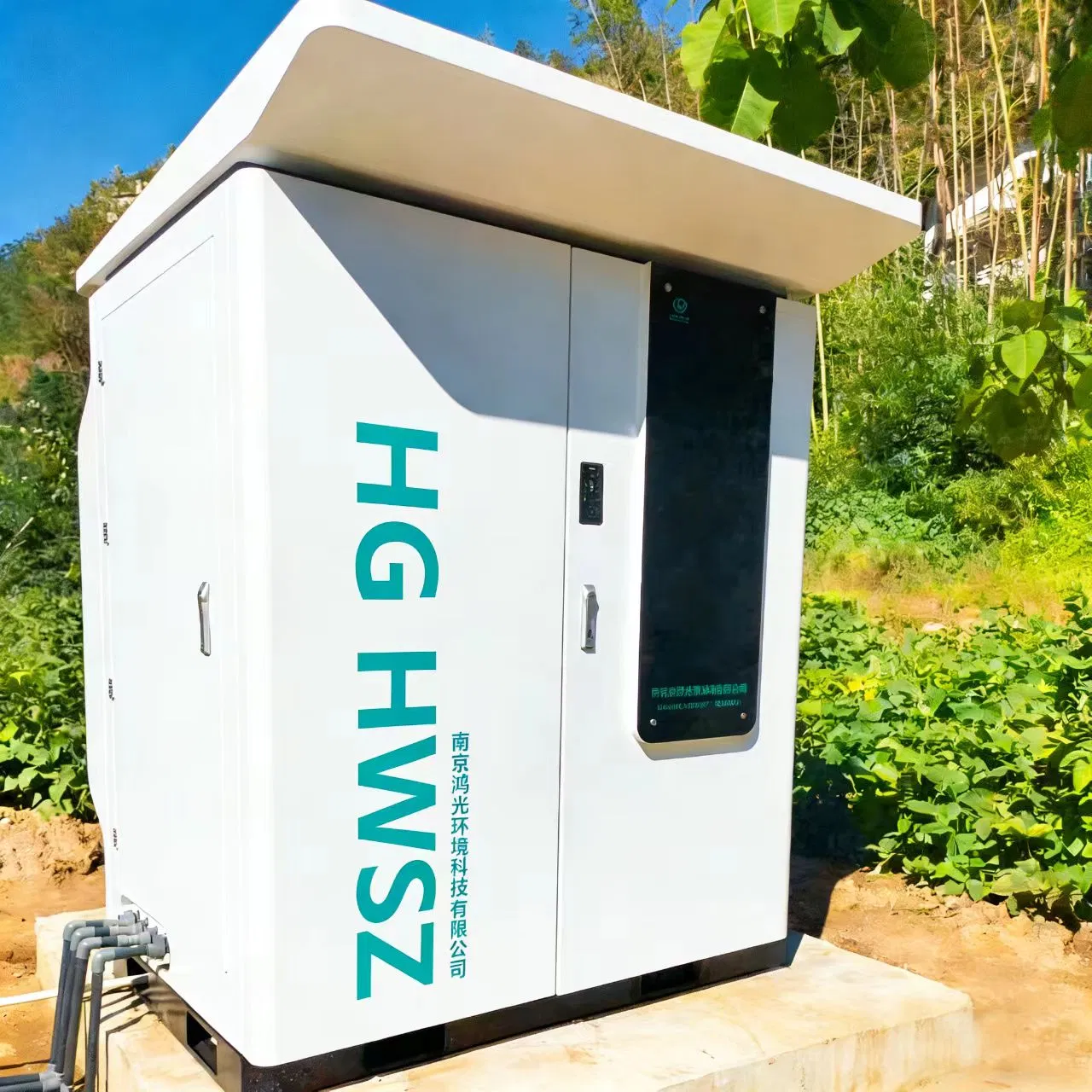

Fully automatic water quality monitoring system -Small-scale outdoor integrated design -Total phosphorus, total nitrogen and ammonia nitrogen monitoring station

Customization:	Available
After-sales Service:	24-Hour Customer Service
Warranty:	1 Year

Product Overview

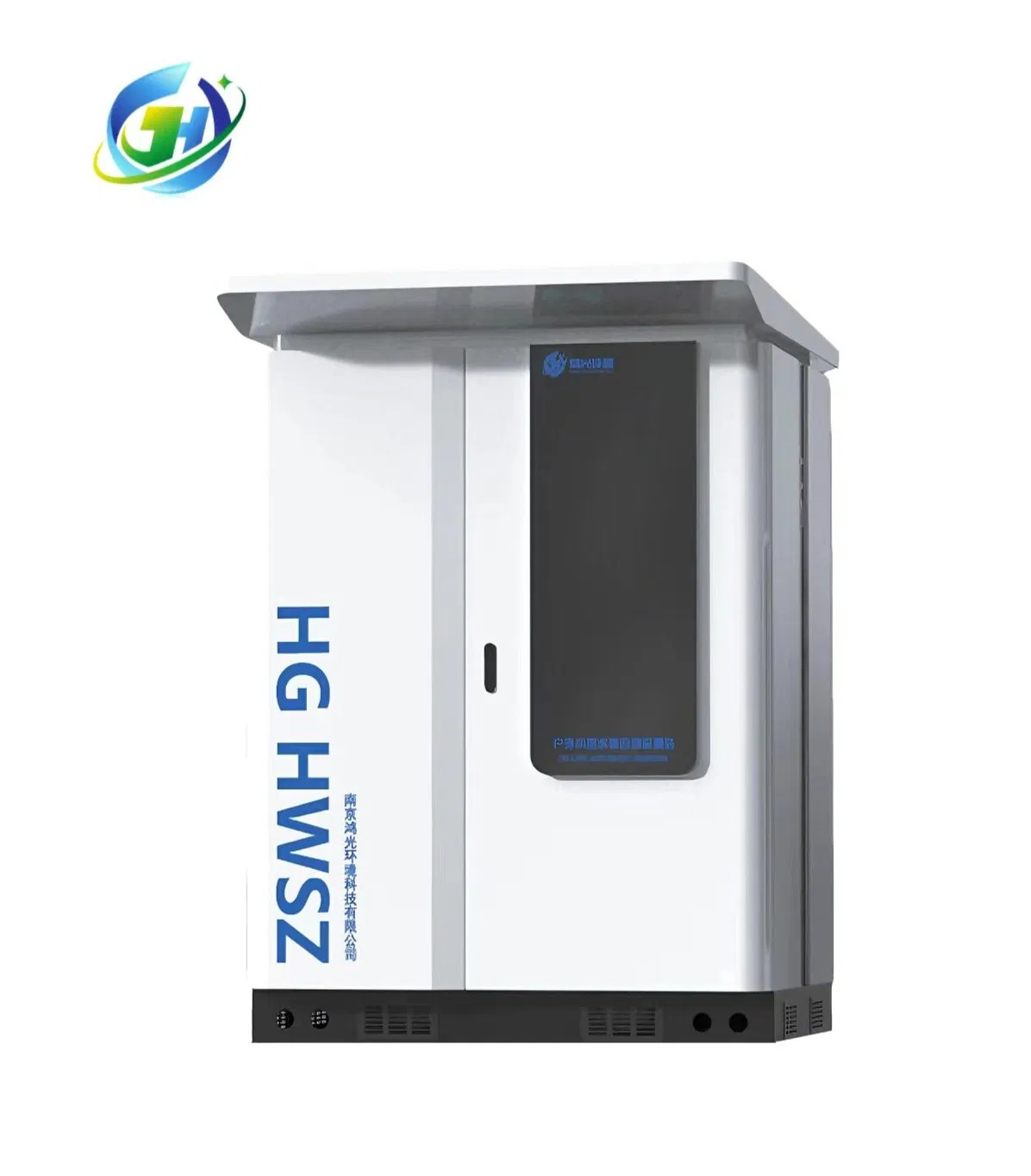

Model: HG HWSZ S100

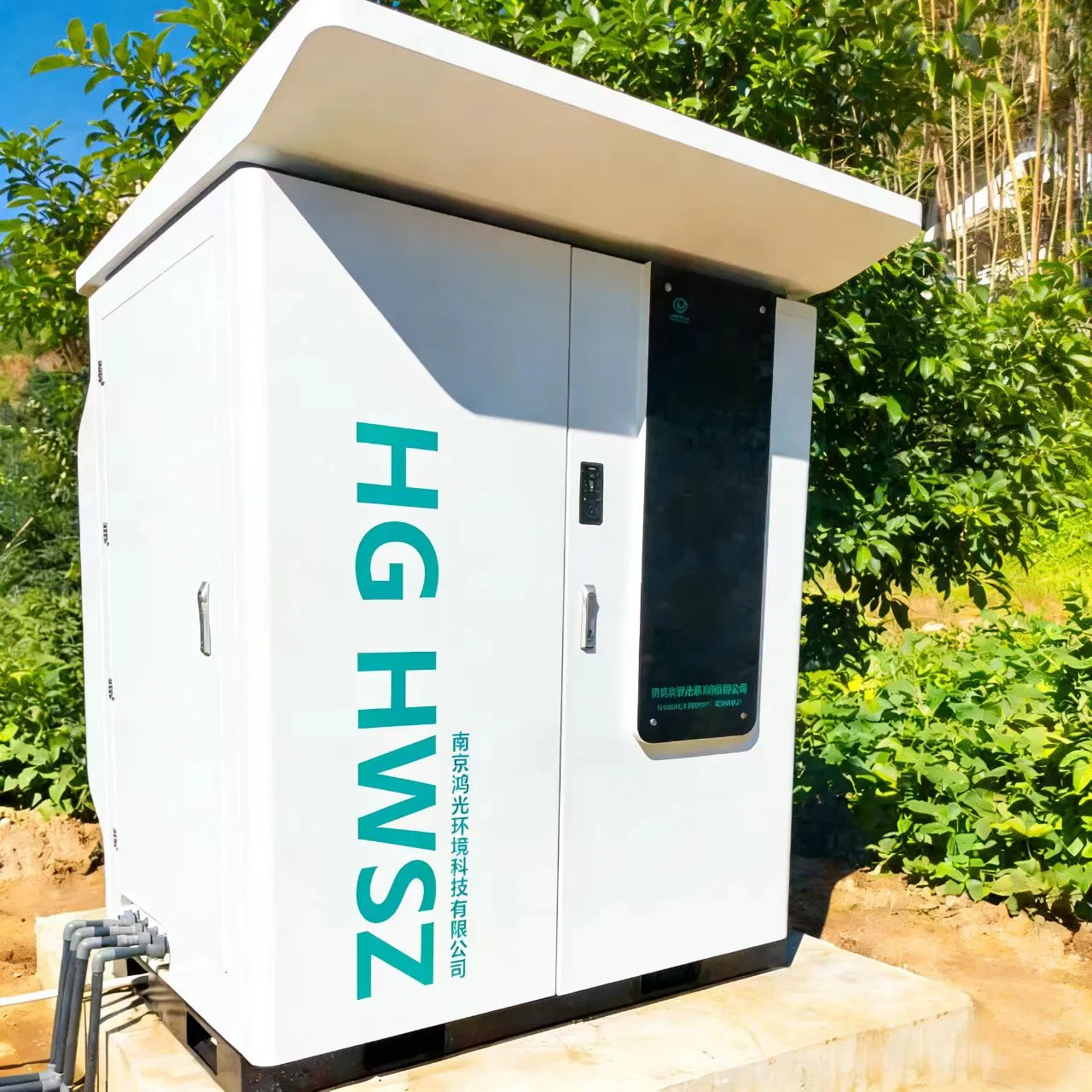

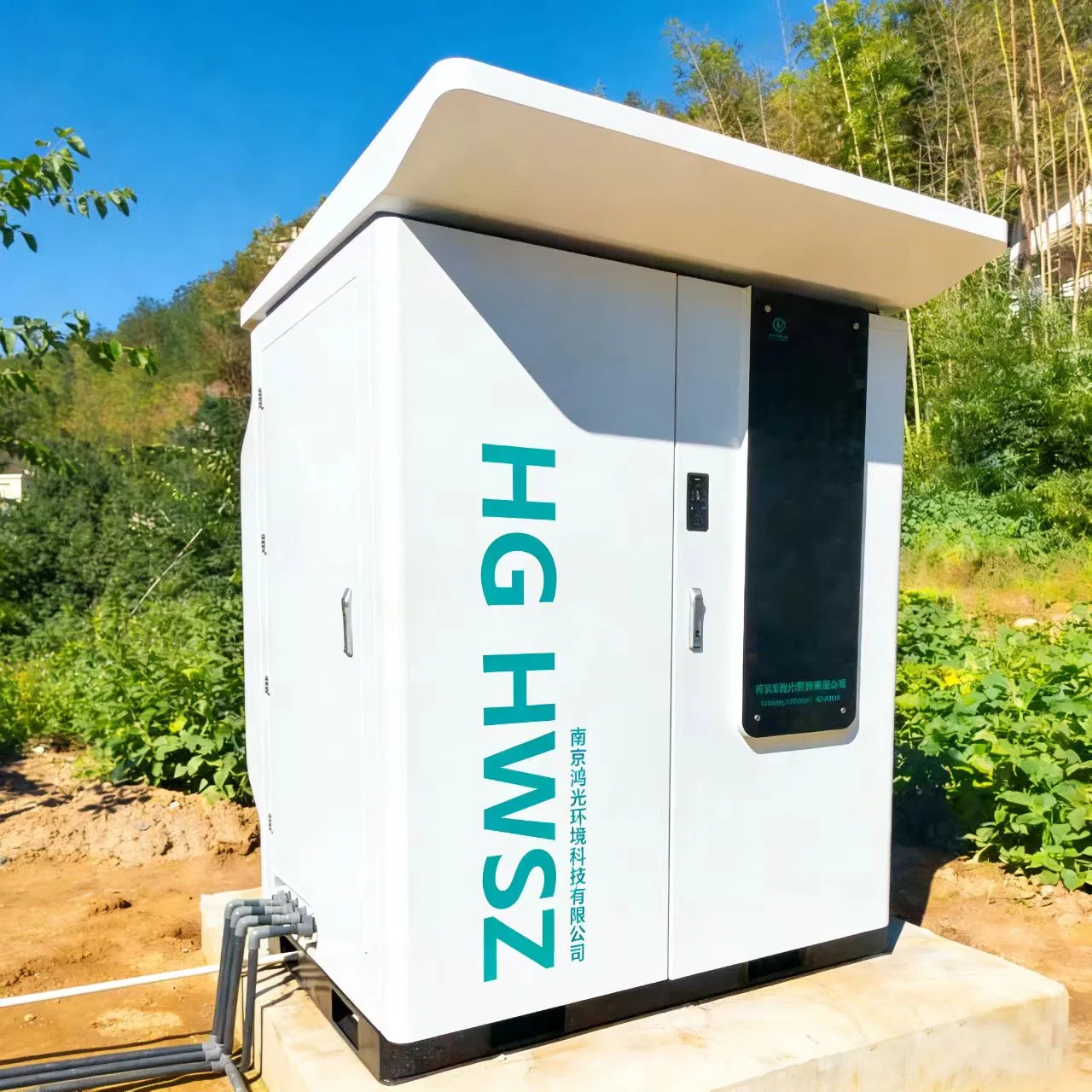

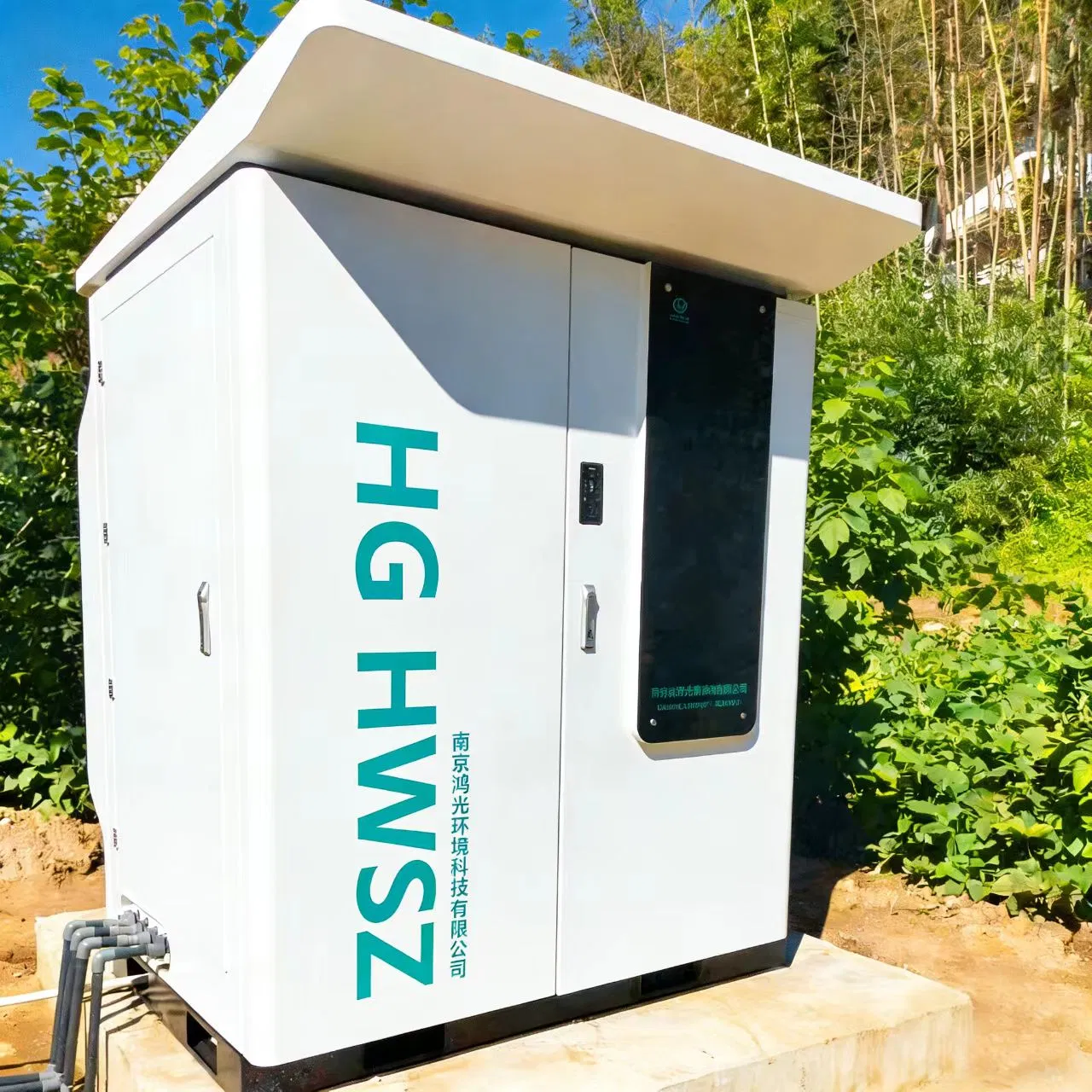

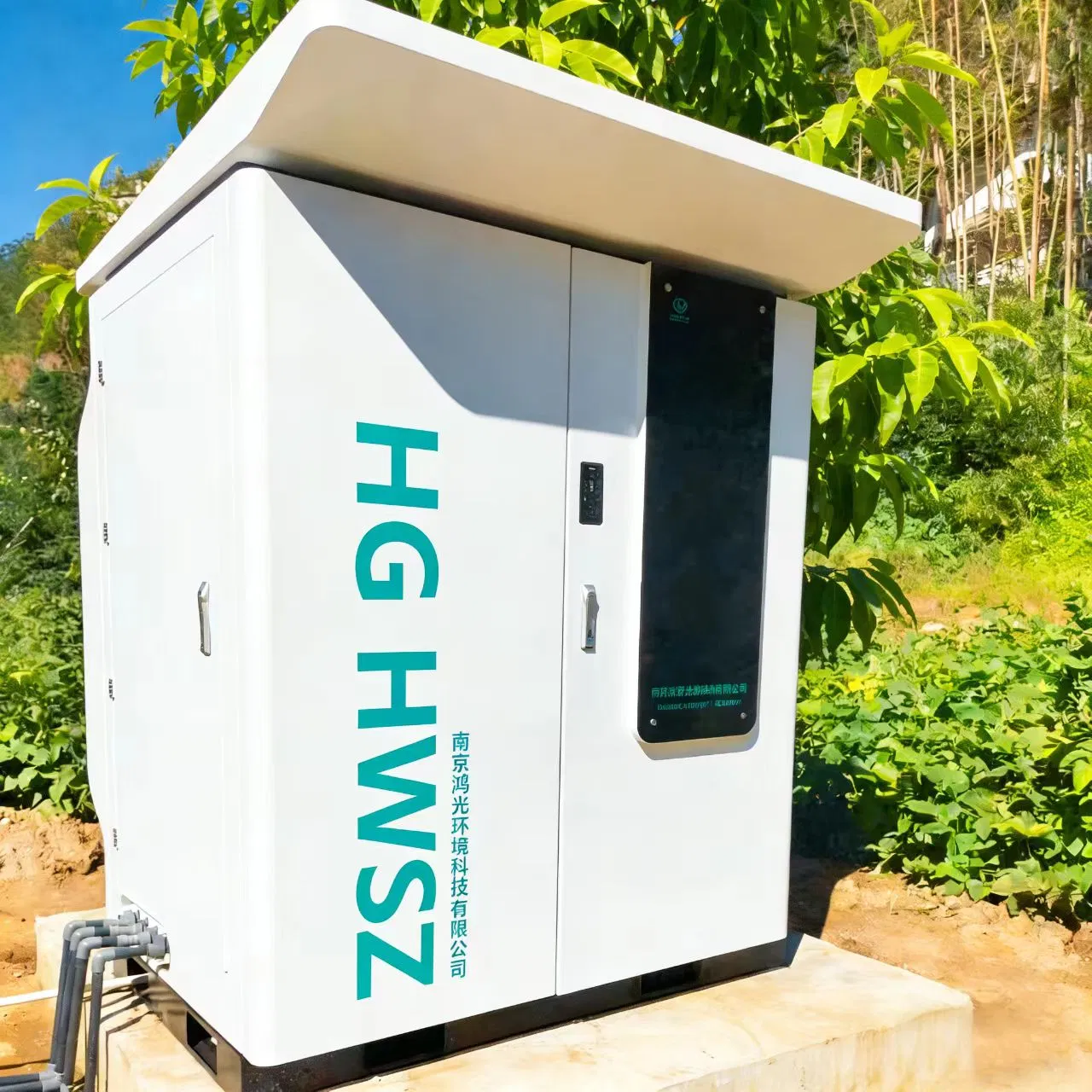

The Outdoor small-scale automatic water quality monitoring station adopts an integrated design principle. It includes a water collection and distribution system, detection units (total phosphorus, total nitrogen, permanganate index, ammonia nitrogen, and five conventional parameters), quality control units, and auxiliary units such as waste liquid collection, lightning protection, and air conditioning.

Floor area

≤ 2m²

Measurement cycle

≤ 60min

Insulation Resistance

Above 20 MΩ

Power Dissipation

2500W (Max)

Communication

RS232/RS485; Wireless

Key Applications & Configurations

Main Applications

Industrial wastewater: Monitoring pollution conditions and discharge.
Municipal sewage: Tracking treatment processes and discharge indicators.
Surface water: Comprehensive survey of rivers and lakes.
Groundwater: Monitoring level and environmental changes.
Industrial recycled water: Tracking system operation parameters.

Detection Technology

pH: Glass electrode method
Conductivity: Graphite four-electrode method
Dissolved oxygen: Fluorescence electrode method
Turbidity: 90° scattering method
Nitrogen/Phosphorus: Spectrophotometric methods

Technical Specifications

Parameter	Measuring Range	Indication Error
pH	(0~14) pH	±0.1 pH
Conductivity	(0~20000) mS/m	±2%
Dissolved Oxygen	(0~20) mg/L	±0.3 mg/L
Turbidity	(0~4000) NTU	±10%
Temperature	(0~60) °C	±0.5 °C
Ammonia Nitrogen	(0~300) mg/L	±5%
Total Phosphorus	(0~50) mg/L	±5%
Total Nitrogen	(0~160) mg/L	±5%

Detailed Modules

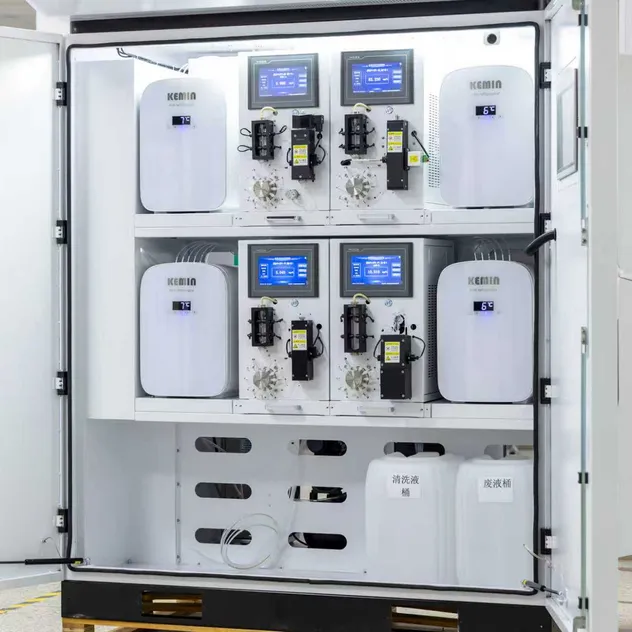

Analytical Unit

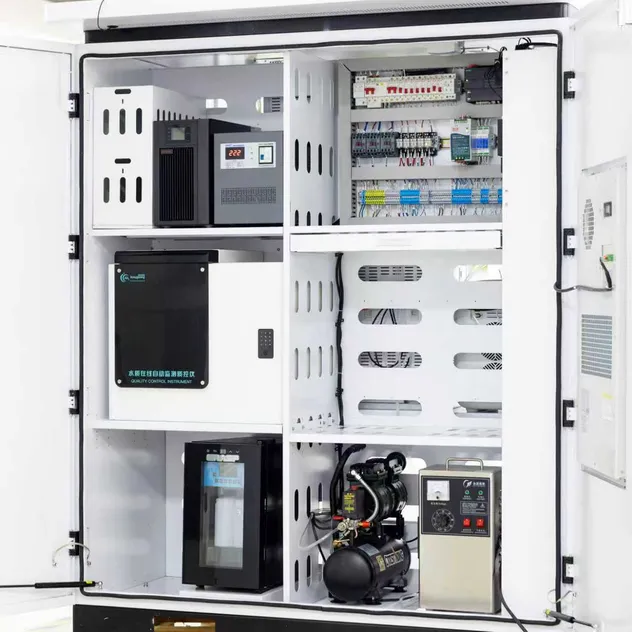

Control Unit

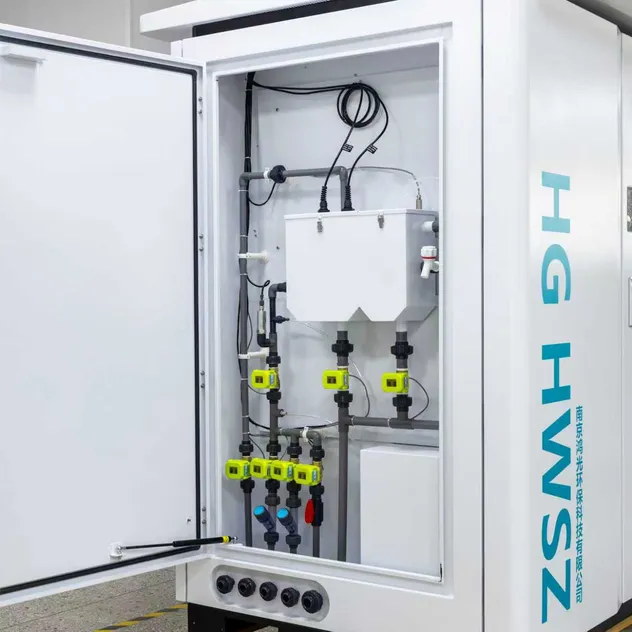

Water Distribution Unit

Professional Service Support

Pre-sales

Technical consultation, customized solutions, and sample testing verification.

In-sales

Strict factory inspections, efficient processing, and logistics support.

After-sales

Installation, remote guidance, technical training, and warranty policies.

Application Scenarios

Agricultural Monitoring

Implementation of nitrogen and phosphorus load monitoring in farmland runoff. Utilizes mobile and fixed-point sampling to establish source tracing systems, promoting coordinated development of agriculture and the environment.

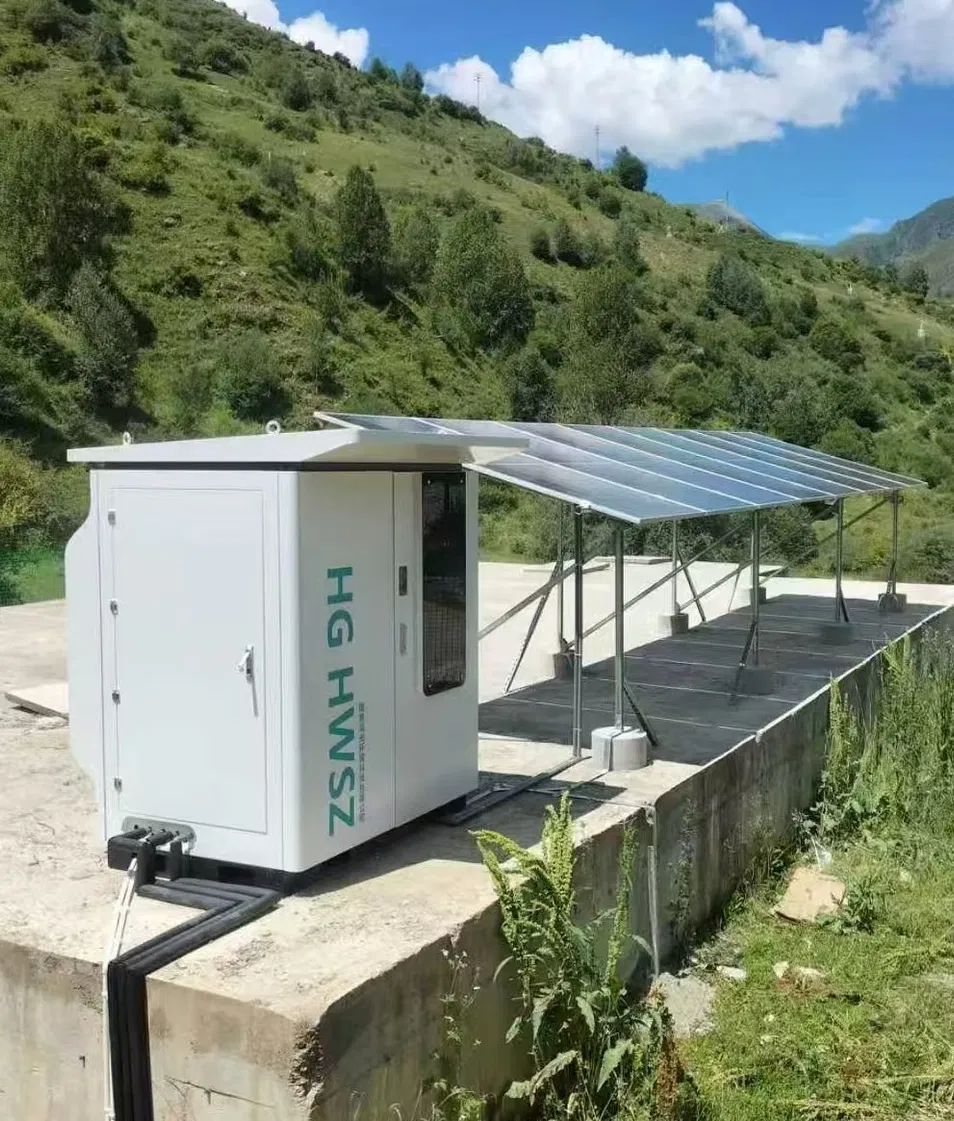

Water Source Safety

River discharge outlet monitoring in ecologically sensitive areas. Employs cold-resistant equipment for continuous COD and SS data collection, ensuring stable operation of sewage treatment plants.

Gallery & Other Products

Frequently Asked Questions

Q: What is the typical lead time for an order?

A: Standard models are usually shipped within 15–30 days, while customized units require approximately 30–45 days.

Q: Does the system support wireless data transmission?

A: Yes, our monitoring stations support RS232/RS485 and wireless transmission for remote data access.

Q: Can the station be customized for specific parameters?

A: Absolutely. We offer customizable configurations for various indicators such as total nitrogen, phosphorus, chloride, and sulfate.

Q: What are the maintenance requirements?

A: The system includes self-cleaning functions and quality control units. We provide full technical training and remote guidance for periodic maintenance.

Q: Is the equipment suitable for extreme environments?

A: Yes, the integrated outdoor station includes air conditioning and cold-resistant features suitable for high-altitude or plateau environments.

Q: How do I initiate a customized project?

A: You can share your application scenario and specific monitoring requirements with us. We will then provide a professional design recommendation and a detailed quote.
