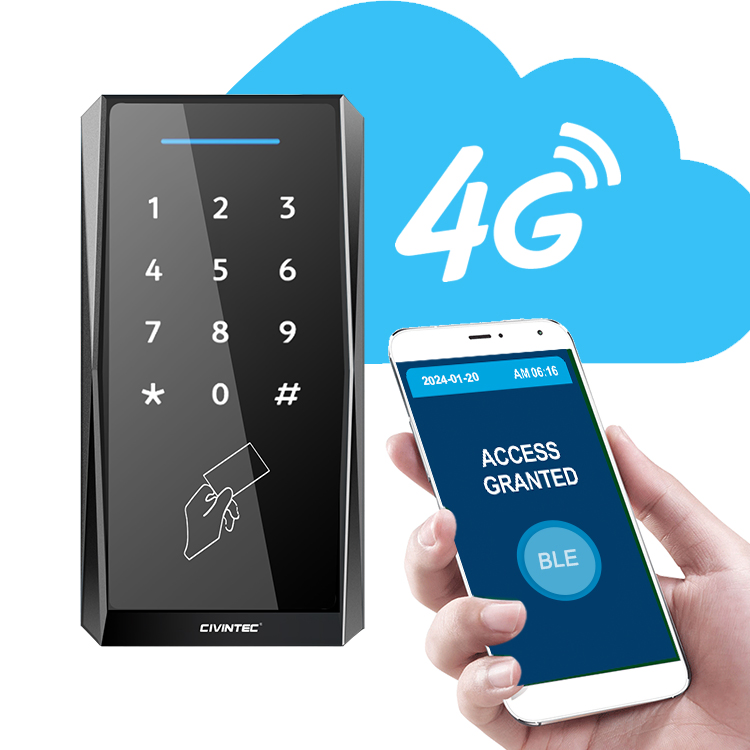

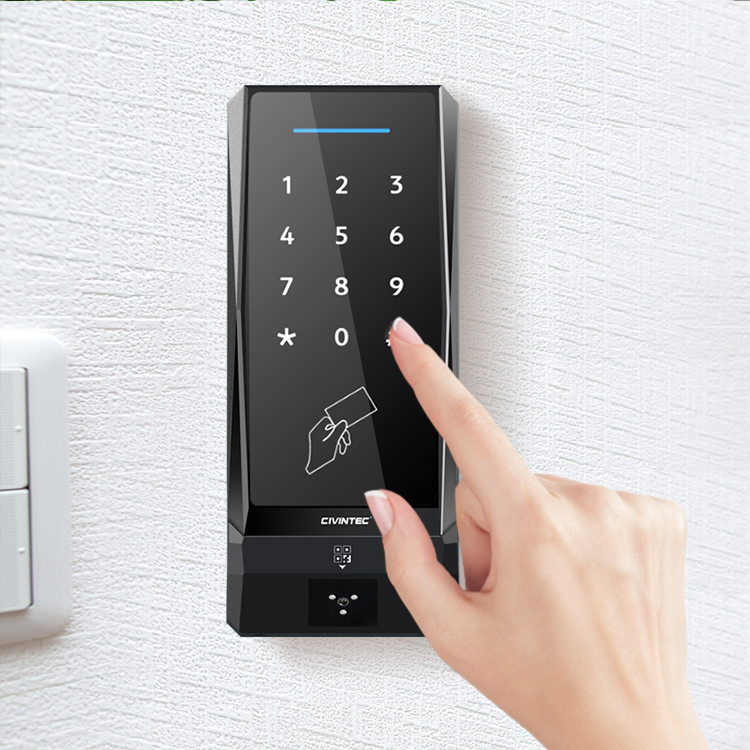

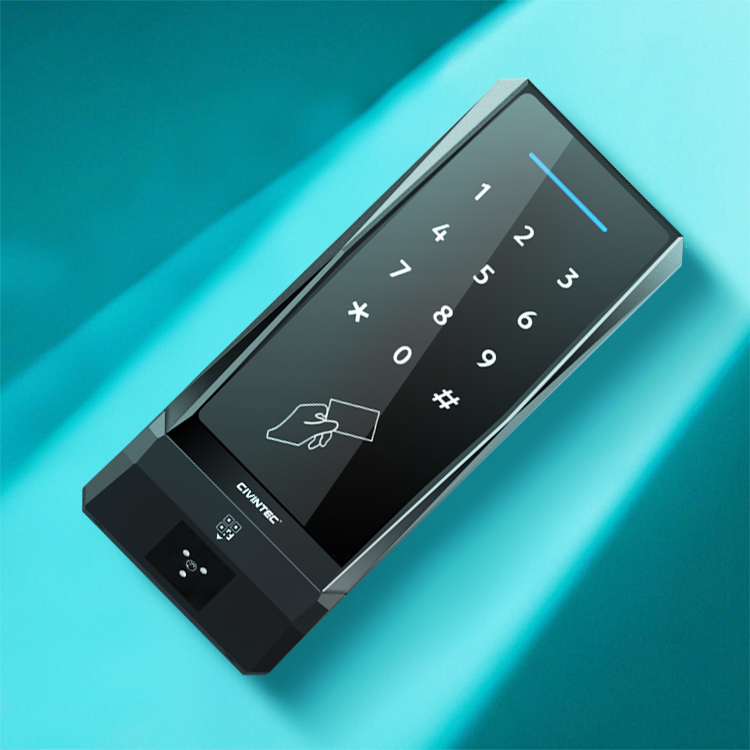

CT9 E is a Linux-based HTTP/HTTPS server centralized terminal equipped with wireless WiFi, 4G, and TCP/IP Ethernet. It is designed for seamless communication with both LAN and Internet cloud server software. With an embedded relay, it serves as a versatile solution for IoT and security. It supports 5-in-1 multiple access technologies, including a touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile devices.
HTTP Server Centralized Access Control & IOT System
Touch Keypad Reader with Embedded LINUX OS & SDK
Supports both HOST Mode & Local Mode
| Category | Specifications (CT9 E) |
|---|---|
| RFID Contactless | - 125KHz PROx, 125KHz EM - 13.56MHz Mifare® Classic, Plus, DESFire® EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |
| Barcode / QR | 1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 |
| Interfaces | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand Input |

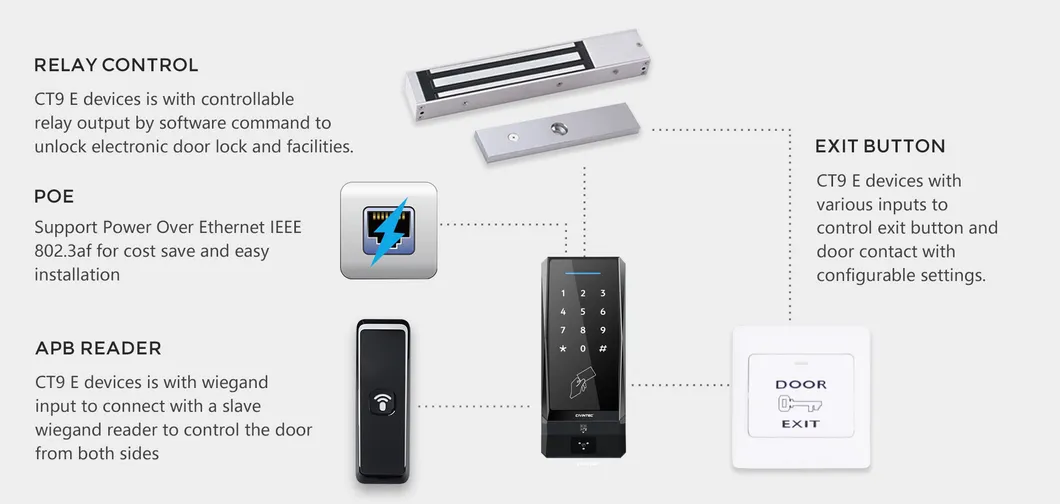

| I/O Ports | Door contact, Exit button, Fire alarm, Tamper switch, 1~2 relay outputs |
| Memory | 10,000 users / 50,000 logs (expandable) |
| Power Supply | 12~24V DC / PoE IEEE 802.3af |

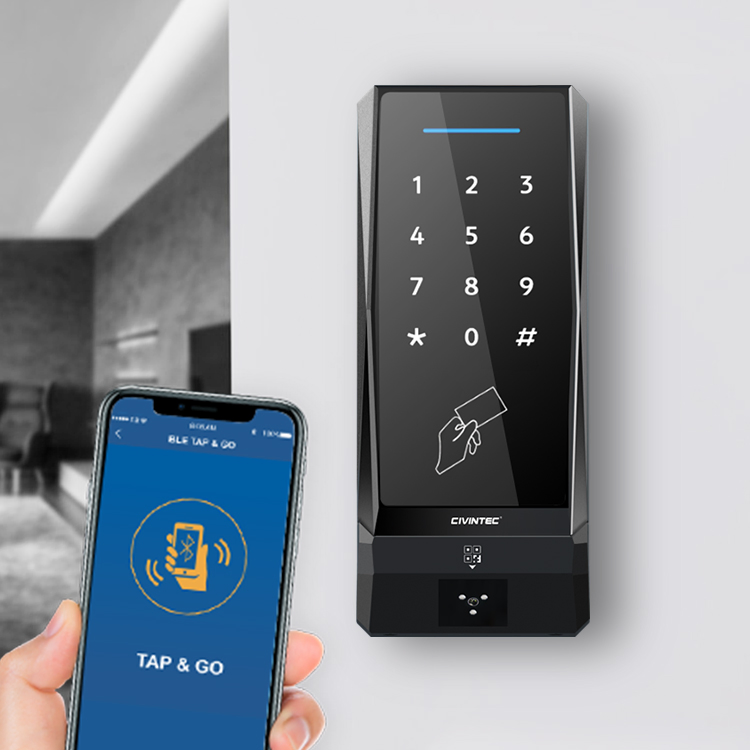

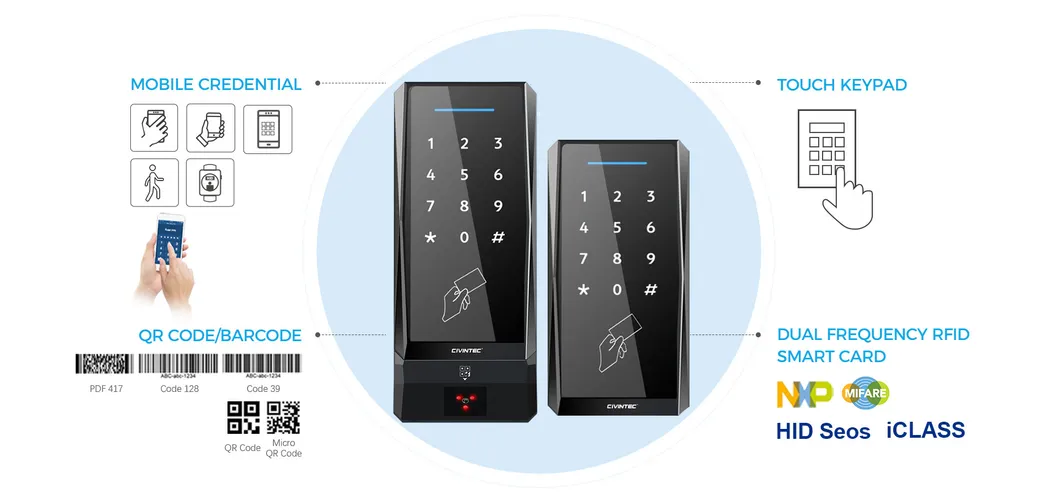

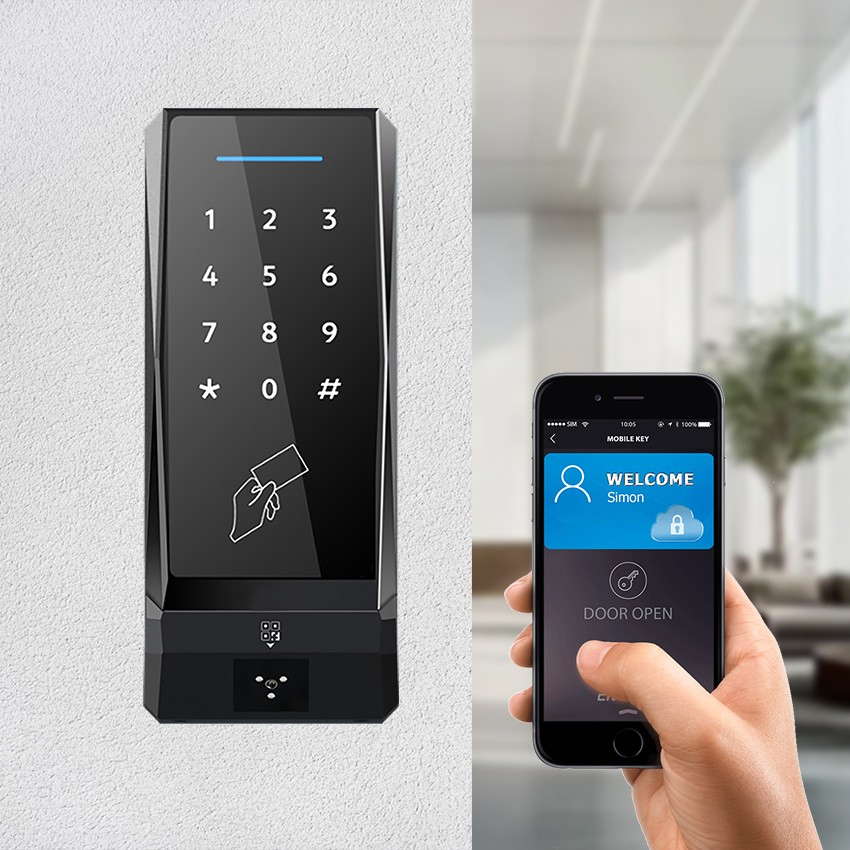

Multiple Access Credentials: Incorporates 5-in-1 technology including touch keypad, RFID smart cards, mobile access via BLE/NFC, and QR codes for visitor management.

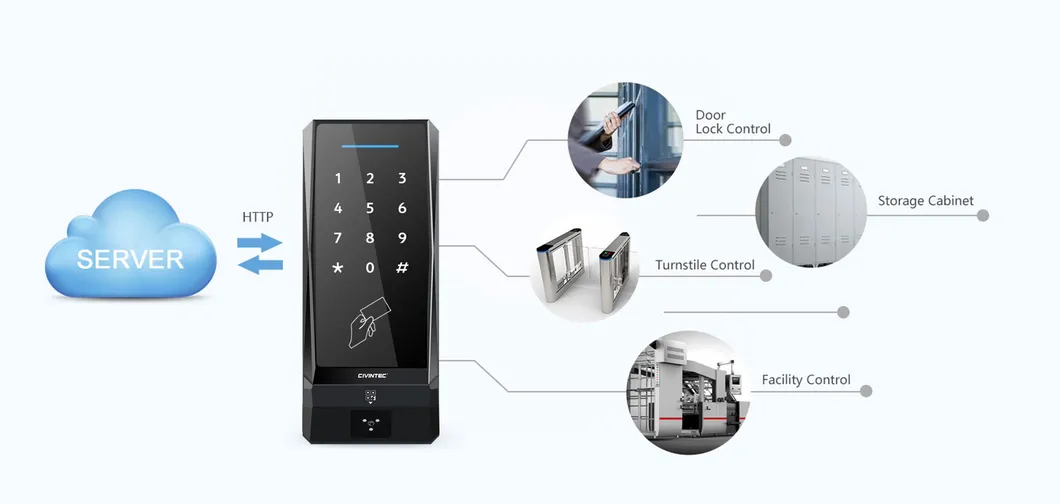

Cloud Server Remote Control: Bi-directional communication via standard HTTP & HTTPS between the terminal and server for remote facility management.
Weather-Resistant Protection: With an IP65 rating, the unit is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.
We offer ODM customization on hardware, reader housing, firmware, and software design. Users can program and display their own content on the 3.5" touch screen.
