CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
1 / 5
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP
CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP

CT9 All-in-One Mqtt Control Fingerprint RFID Card Reader Door Access System with Wiegand, TCP/IP

Customization: Available
Type: IC Card Reader
Card Type: CPU, HID, Mifare, EM, DESFire EV1/EV2, MIFARE Plus
Send Inquiry

Product Description

Overview
Product Overview
Product Features
System Configuration
Our Service
Related Product
📋Basic Info.
Model NO.
CT9 PRO
Interface
Serial Port, 4G, TCP/IP, RS485, Weigand
Reading Distance
10cm-15m
Application
Parking, Hospital, Library, Company, Bank, Store
Product
4G TCP/IP Access Control Terminal
Operating System
Linux OS
Display
3.5" Touch Screen Display
Identification
RFID, NFC, BLE, Pin Code
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2, Em 125kHz
Mobile Credential
ISO18092 NFC, BLE (Bluetooth Low Energy)
Qr Code
Qr Code, Barcode
Password
Touch Pincode
Card Holders
10,000 Users
Power
12-30V, Poe
IP Protection
Waterproof Outdoor Use
Origin
China
🔍Product Overview
Product Terminal

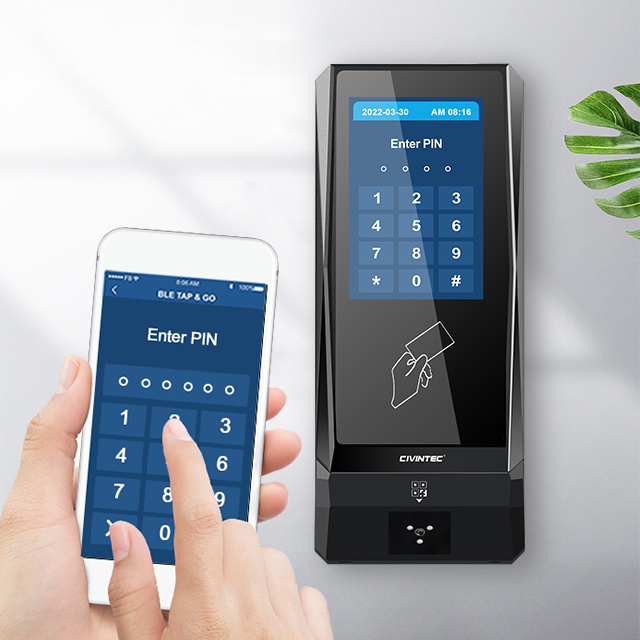

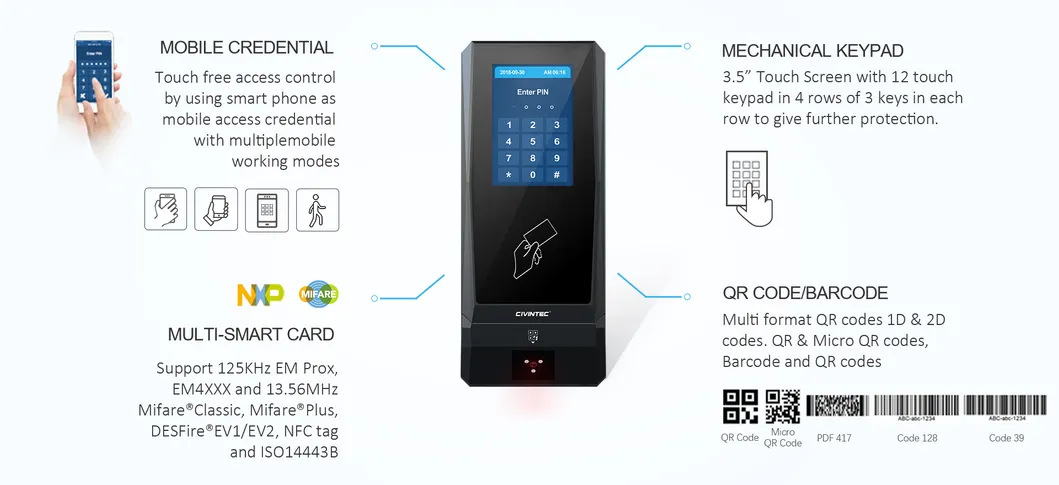

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with an embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode by using a mobile phone.
Display3.5" capacitive touch screen
QR codeMultiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream barcodes.
Mobile IDBLE, NFC
RFID smart cardEM 125KHz, 13.56MHz ISO14443A Mifare Classic, Plus, DESFire EV1, EV2, NFC tags, HID Prox and iCLASS SE/SR/Seos.
Communication4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2
I/O Port1~2 relay outputs, Tamper alarm switch, door contact, door exit.
IP ProtectionIP65 outdoor/indoor use, UV-resistance
🚀Product Features

🔹 Multiple Access Credential

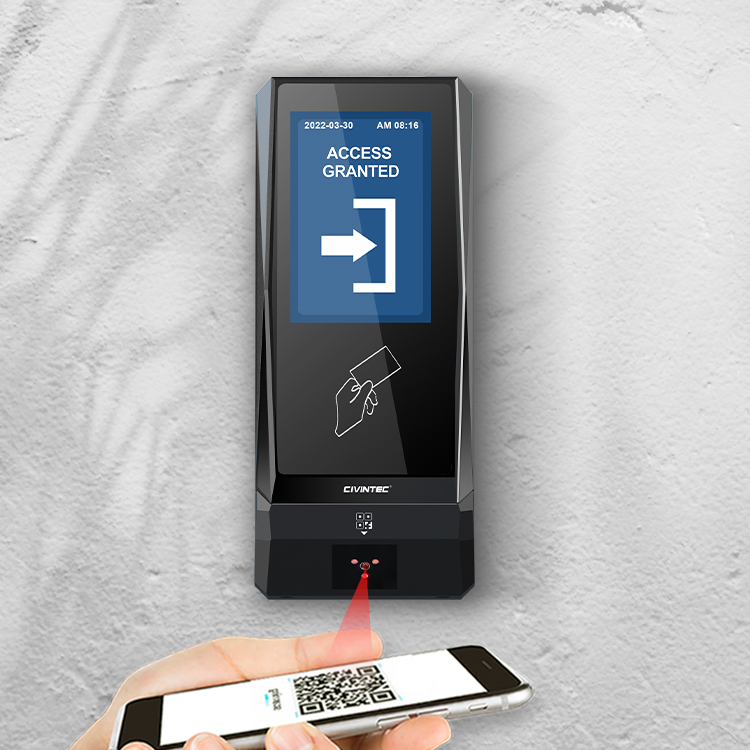

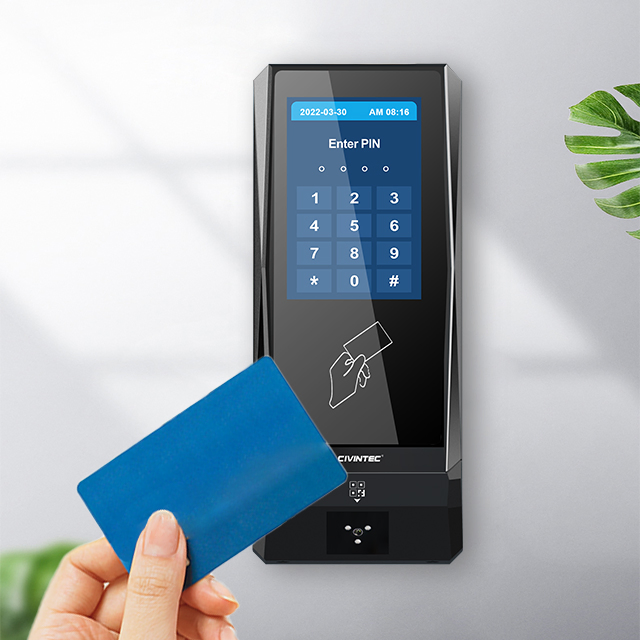

CT9 Pro incorporates with 5-in-1 multiple access credential technologies for visitor access control management including touch keypad, RFID, BLE/NFC, and QR codes.

🔹 Cloud Server Remote Control

Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.

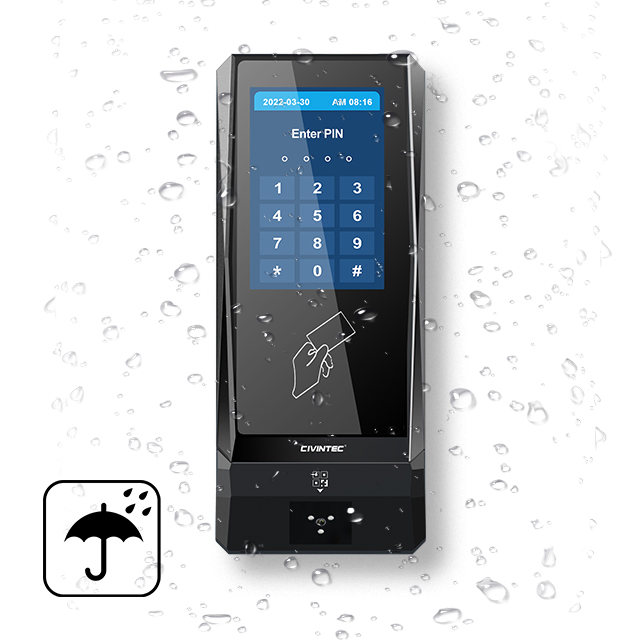

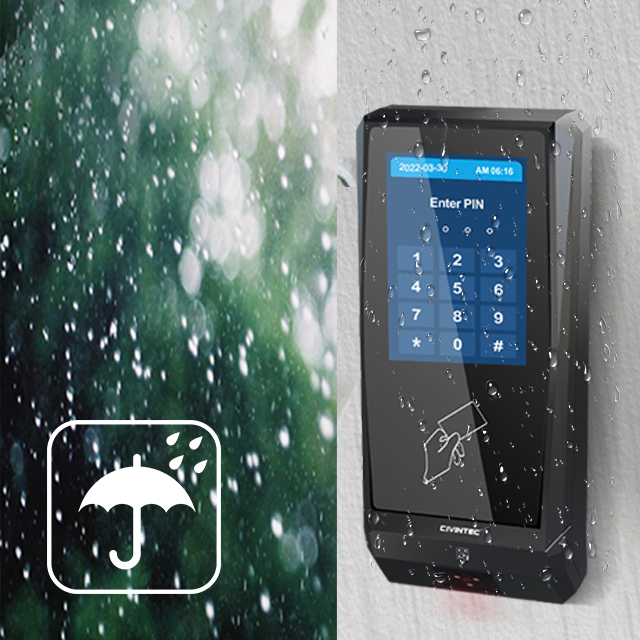

🔹 Weather-Resistant Protection

With IP65 ratings, CT9 PRO is weather resistant to rain, dust, and strong sunlight, ideal for outdoor use and various rugged working environments.

⚙️System Configuration
🛠️Our Service

We offer ODM customization on both hardware, reader housing, firmware and software design services. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.

🔗Related Product
❓Frequently Asked Questions
1. What identification methods does the CT9 PRO support?
The CT9 PRO supports 5-in-1 technologies: Touch Keypad (Pin code), RFID (125KHz & 13.56MHz), Mobile Access (BLE & NFC), and QR Code/Barcode scanning.
2. Is this device waterproof for outdoor installation?
Yes, the device features an IP65 rating, making it weather-resistant against rain, dust, and UV exposure, suitable for both indoor and outdoor environments.
3. Can I control the device via a cloud server?
Yes, the CT9 PRO supports bio-direction communication via standard HTTP and HTTPS protocols, allowing for real-time remote control from cloud-based web software.
4. What is the user and log capacity of the terminal?
The standard configuration supports up to 10,000 card users and 50,000 event logs, with the option to expand capacity upon request.
5. Does it support Power over Ethernet (PoE)?
Yes, the CT9 PRO can be powered via a standard 12-30V DC power supply or through PoE (IEEE 802.3af).
6. Which RFID card types are compatible?
It is compatible with EM 125KHz and 13.56MHz ISO14443A/B, including Mifare Classic, Plus, DESFire EV1/EV2, and HID Prox/iCLASS cards.
