| Model | CT9 PRO |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Optional QR Code |
| RFID Card | 13.56MHz 125kHz |
| Output | 1~2 Relay |
| Interfaces | 4G, WiFi, TCP/IP, RS485 OSDP, Wiegand |
| Power | 12-24V DC; PoE IEEE 802.3af |
| Protection | IP65 Waterproof, UV Resistance |
| Certification | CE, FCC |

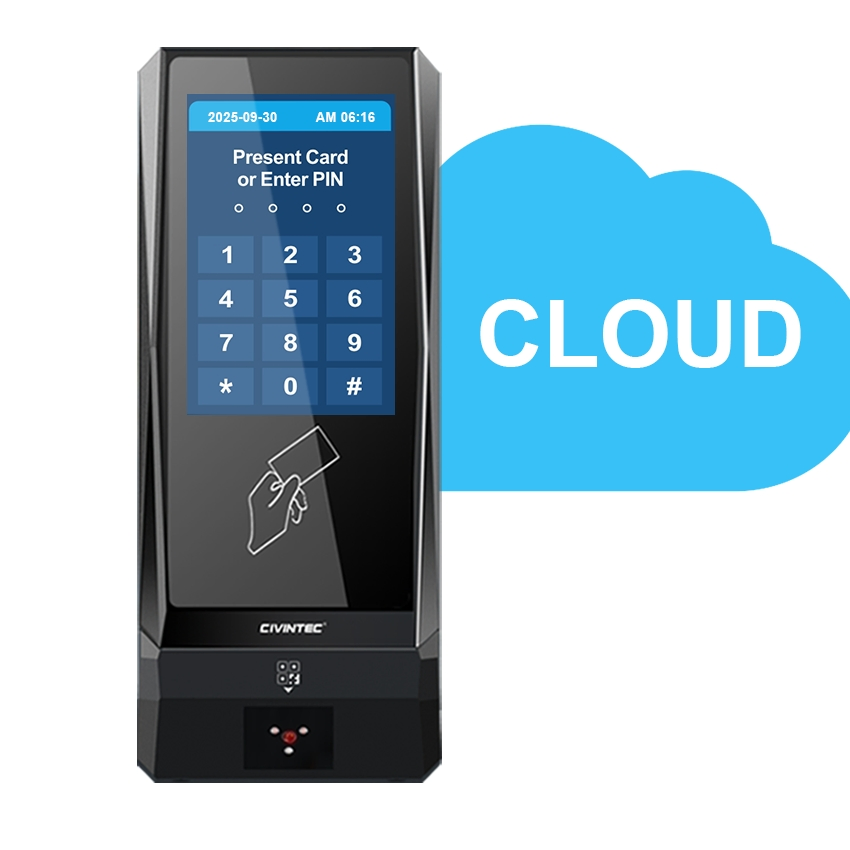

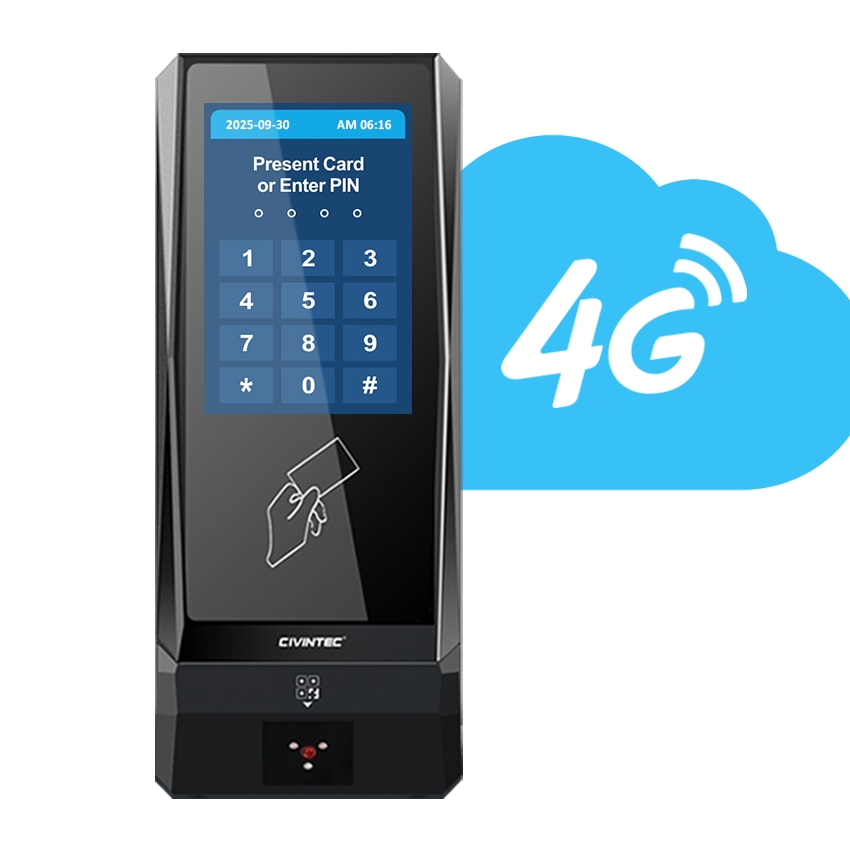

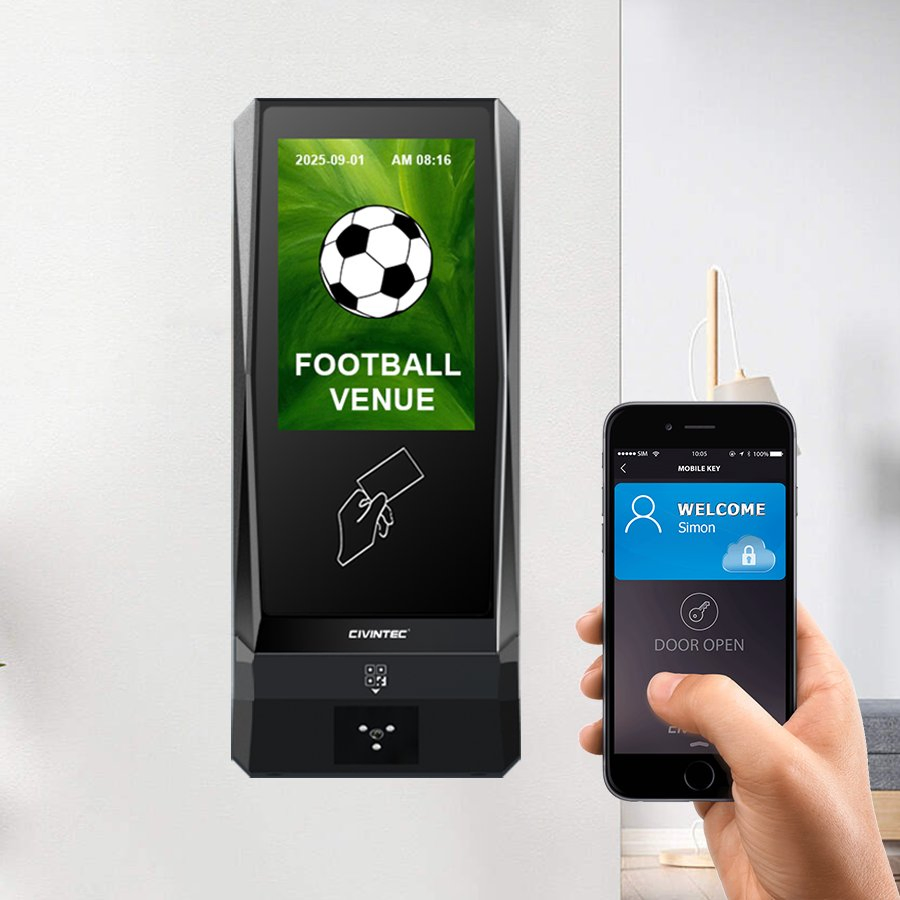

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode via mobile phone.
| Display | 3.5" capacitive touch screen |

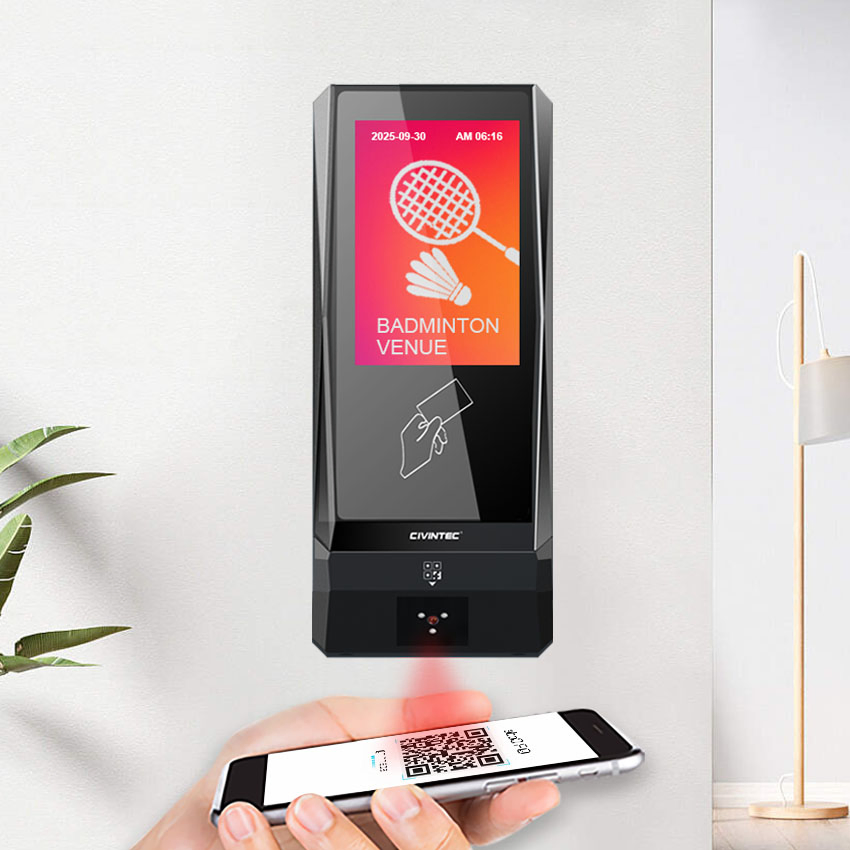

| QR code | Multiple formats supported (1D & 2D): QR Code, Micro QR, PDF417, Code 128, Code 39 etc. |

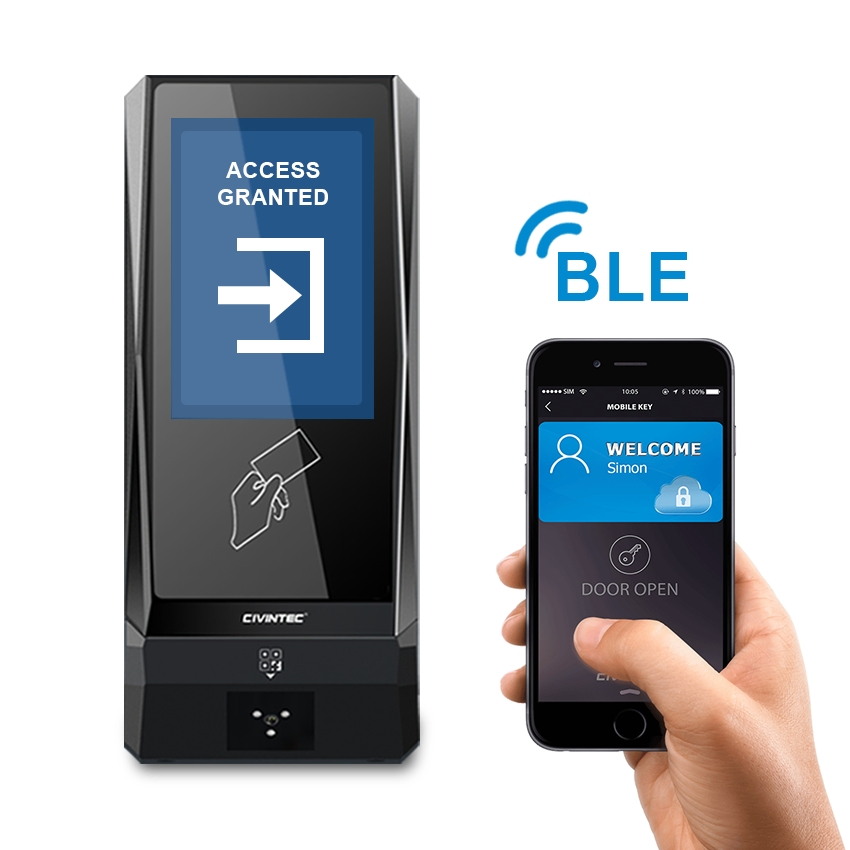

| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID Card Support | EM 125KHz, 13.56MHz Mifare® Classic, Plus, DESFire® EV1/EV2/EV3, NFC tags, iCLASS Seos® |
| Storage | 10,000 users / 50,000 logs (expandable) |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit |

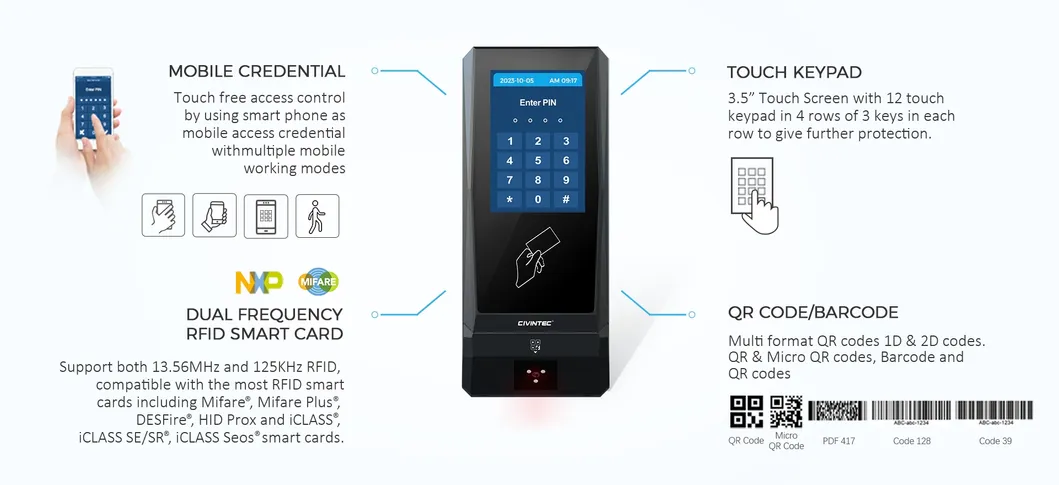

Incorporates 5-in-1 technologies: touch keypad, dual-frequency RFID, BLE/NFC mobile access, and QR CODE scanning for visitor management.
Bi-directional communication via standard HTTP & HTTPs to remotely control door locks and IoT facility management.
IP65 ratings ensure resistance to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.
We offer ODM customization on hardware, reader housing, firmware, and software design. Users can program and display their own LOGO on the 3.5" touch screen and request OEM LOGO printing on the reader body.
