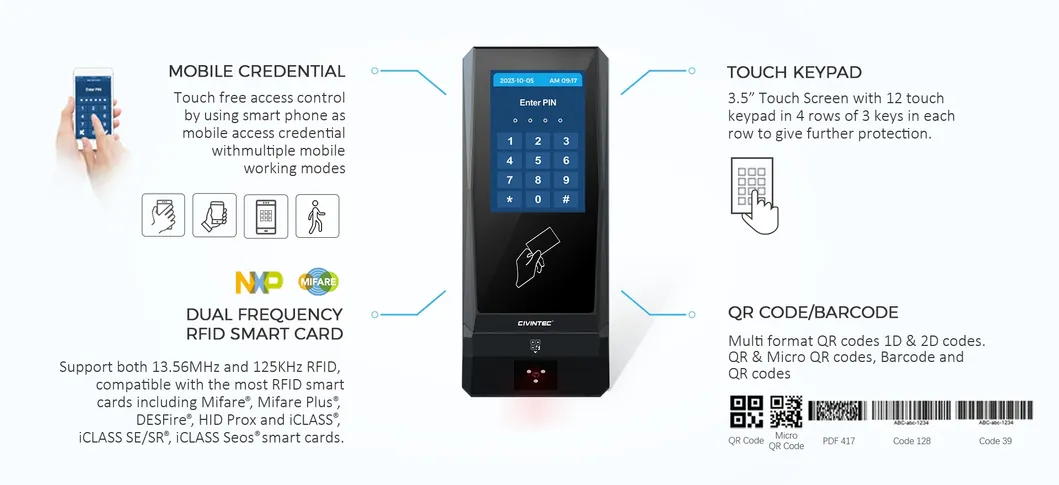

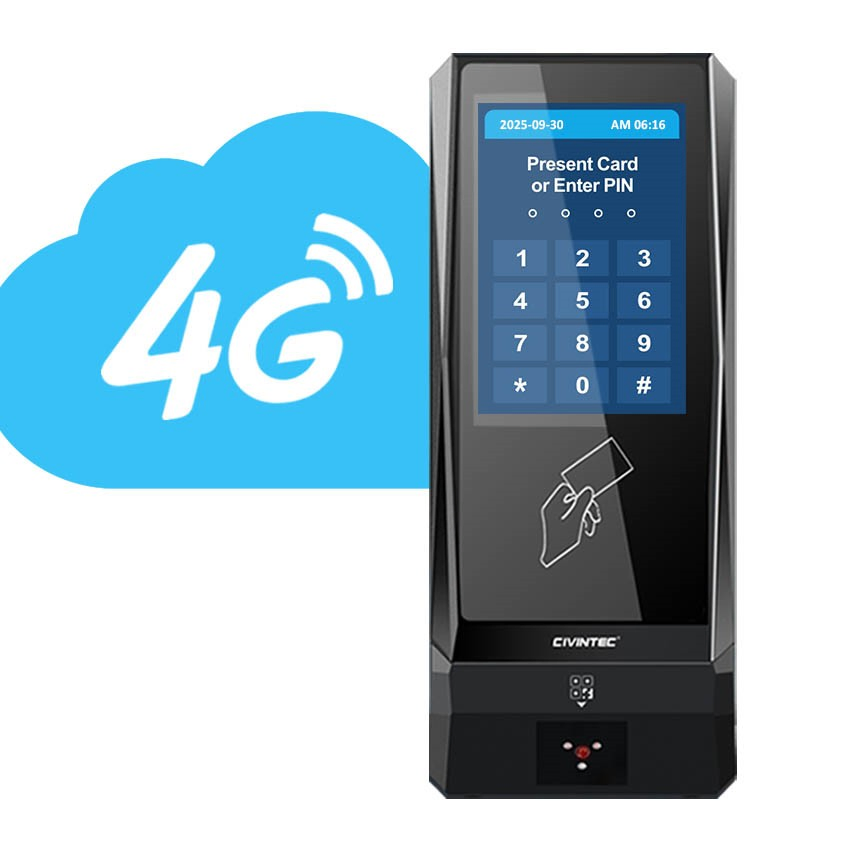

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication. It supports 5-in-1 multiple access credential technologies, featuring a touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | 1D & 2D Codes: QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID Card | 125KHz, 13.56MHz (Mifare Classic, Plus, DESFire EV1/EV2/EV3, Seos) |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper switch, door contact, exit button |
| Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor rated, UV-resistance |
Incorporates 5-in-1 technologies: touch keypad, RFID (dual frequency), BLE & NFC mobile access, and QR code scanning for versatile visitor management.
Bi-directional communication via standard HTTP & HTTPS between the terminal and server to remotely control door locks and manage IoT facilities.
With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor installations and rugged environments.
We offer comprehensive ODM customization including hardware, housing, firmware, and software design services to meet specific project needs.
Users can program and display their own LOGO on the 3.5" touch screen. OEM logo printing on the reader body is also available.
