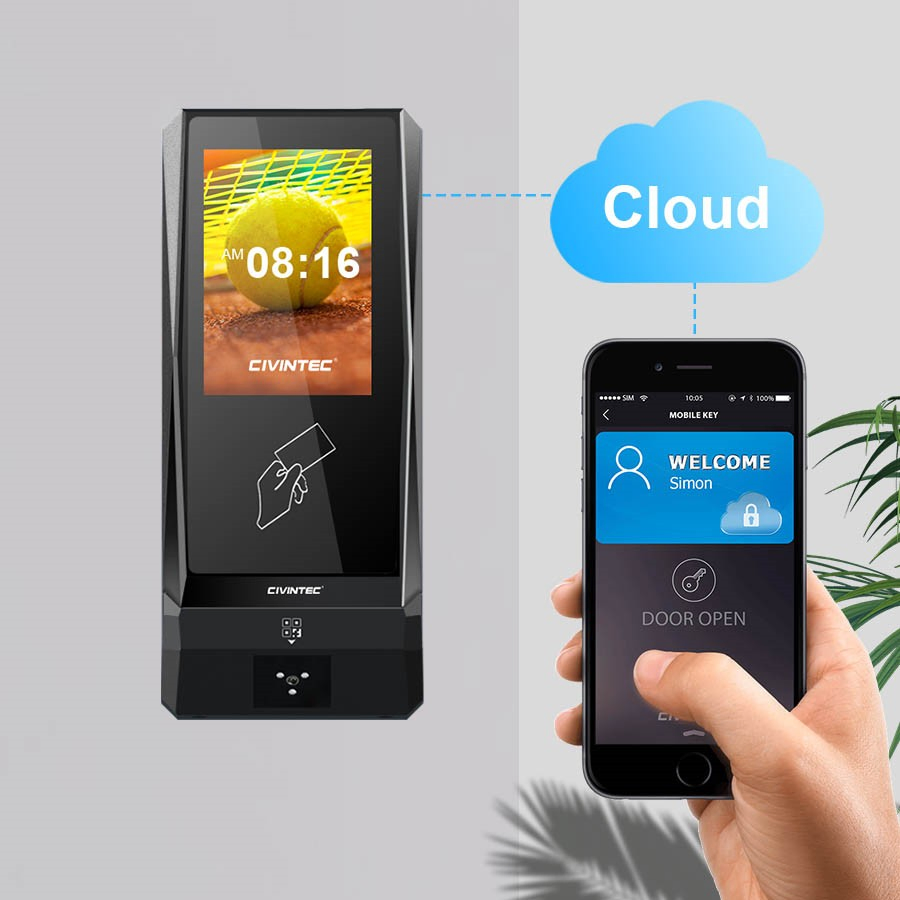

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE / barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Mobile ID | BLE, NFC (Support BLE in iOS, and NFC/BLE in Android) |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Mifare Plus, DESFire EV1, EV2, EV3, NFC tags (T2T, T4T), ISO14443B, CLASS SE/SR iCLASS Seos smart cards |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication interface | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-24V DC; PoE IEEE 802.3af |
| Indicator | Controllable buzzer |
| I/O Port | 1~2 relay outputs Tamper alarm switch, door contact, door exit |
| Logs | 10,000 users / 50,000 logs |
| IP protection | IP65 outdoor/indoor use, UV-resistance |
| Certification | CE, FCC |

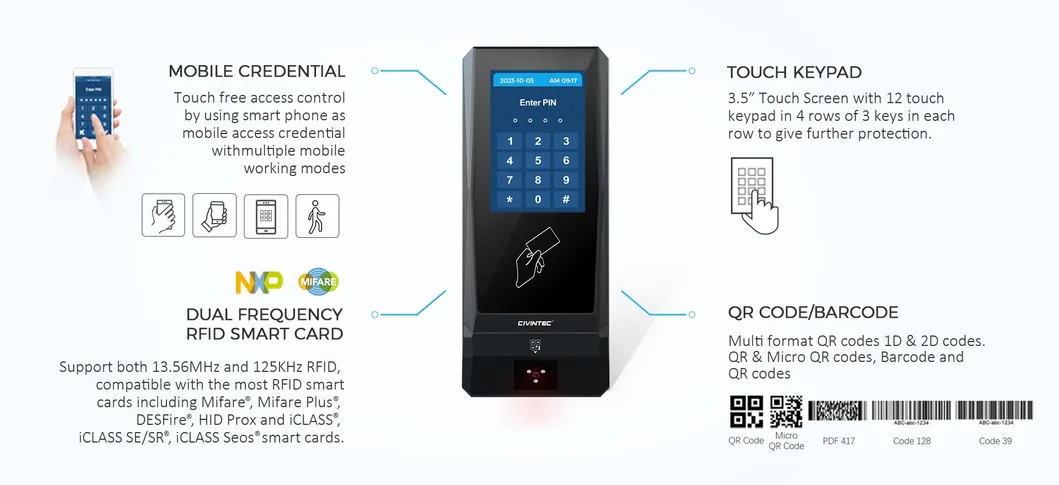

CT9 Pro incorporates 5-in-1 multiple access credential technologies, including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode for versatile visitor access management.
Bio-directional communication via standard HTTP & HTTPs between the terminal and server allows for remote control of door locks and various IoT facility management systems.
IP access control door reader remotely controlled by cloud web-based software in real time. It features an embedded relay output to control door locks as ACCESS DENIED or ACCESS GRANTED, effectively building comprehensive IoT solutions.
With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and low-temperature rugged environments.
We offer customization on hardware, housing, firmware, and software design services to meet specific project requirements.
Users can program and display their own content on the 3.5" touch screen. OEM branding options are also available for the reader body.
