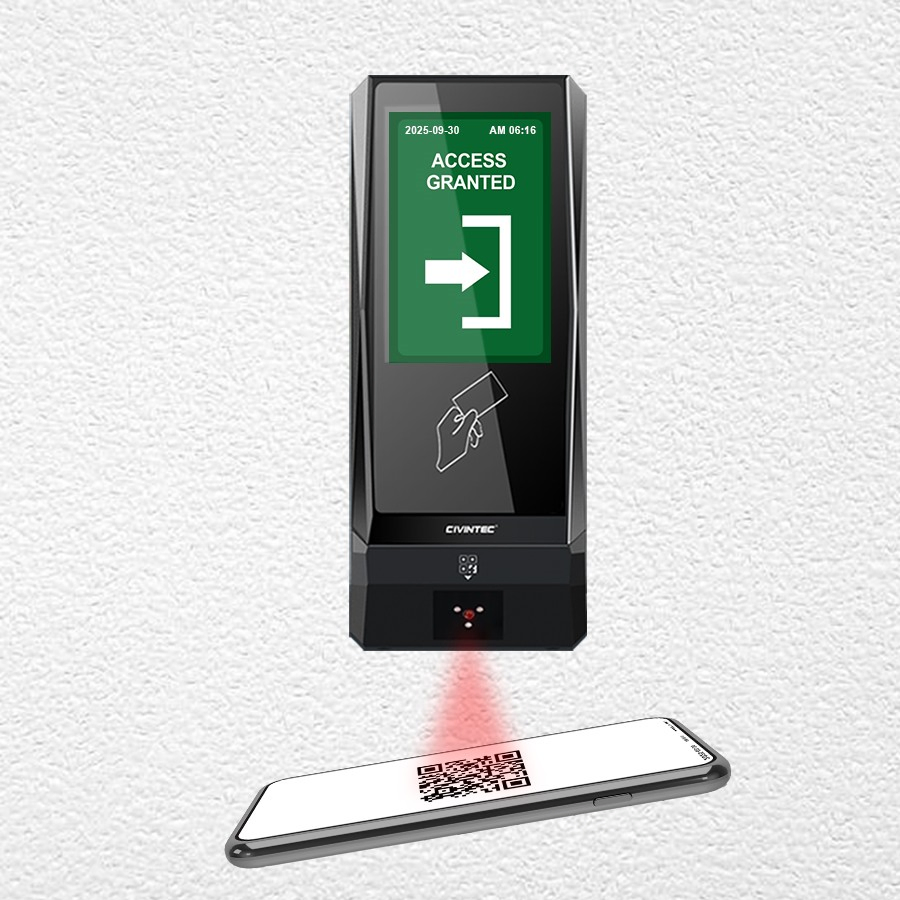

CT9 Modern Multifamily Door Entry Apartment Access Control System Create NFC Qr Access to Guests Via Smartphone

1 / 5

CT9 Modern Multifamily Door Entry Apartment Access Control System Create NFC Qr Access to Guests Via Smartphone

Customization:	Available
Type:	Access Control System
Card Type:	CPU, Mifare, EM, DESFire EV1/EV2/EV3, MIFARE Plus

Send Inquiry

Product Description

Basic Information

Model NO.

CT9 PRO

Reading Distance

10cm-15m

Operating System

Linux OS

Display

3.5" Touch Screen Display

Product

Access Control Terminal

Identification

RFID, NFC, BLE, Pin Code, QR Code

IP Protection

IP65 Waterproof

Power

12-24V DC; Poe IEEE 802.3af

Product Overview

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server communication, featuring embedded relays to build versatile IoT and security solutions.

● Supports 5-in-1 multiple access credential technologies: Touch keypad, RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.

Technical Specifications

Display	3.5" capacitive touch screen
QR Code	1D & 2D Codes: QR Code, Micro QR, PDF417, Code 128, Code 39, etc.
Mobile ID	BLE (iOS & Android), NFC (Android)
RFID Smart Card	125KHz EM, 13.56MHz Mifare Classic, Plus, DESFire EV1/EV2/EV3, Seos
Interface	4G, WiFi, TCP/IP, Wiegand, RS485 OSDP 1&2
I/O Port	1~2 relay outputs, Tamper switch, Door contact, Exit button
Capacity	10,000 users / 50,000 logs
Environment	IP65 outdoor use, UV-resistance

Key Features

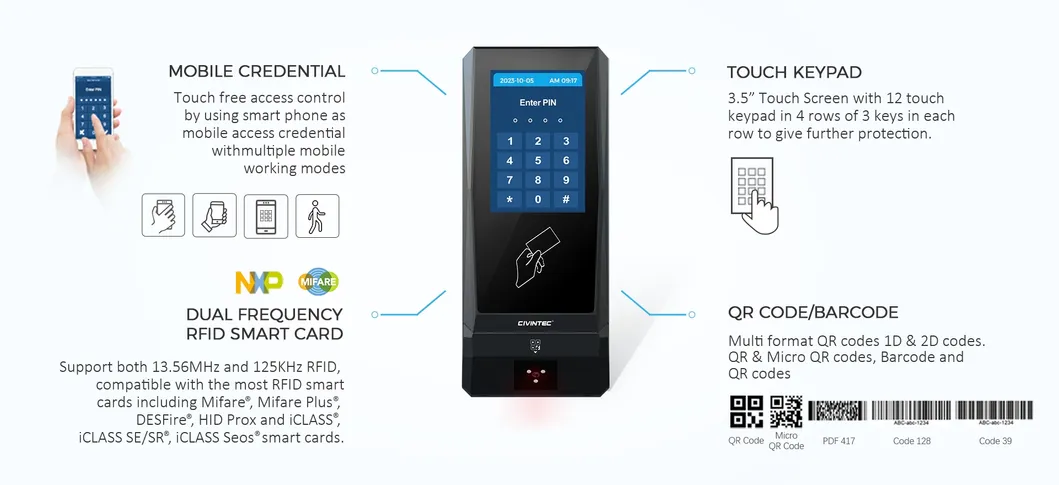

■ Multiple Access Credential
Incorporates touch keypad, dual-frequency RFID, mobile credentials, and QR code scanning for comprehensive visitor management.

■ Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs protocols allows for remote door lock control and facility management.

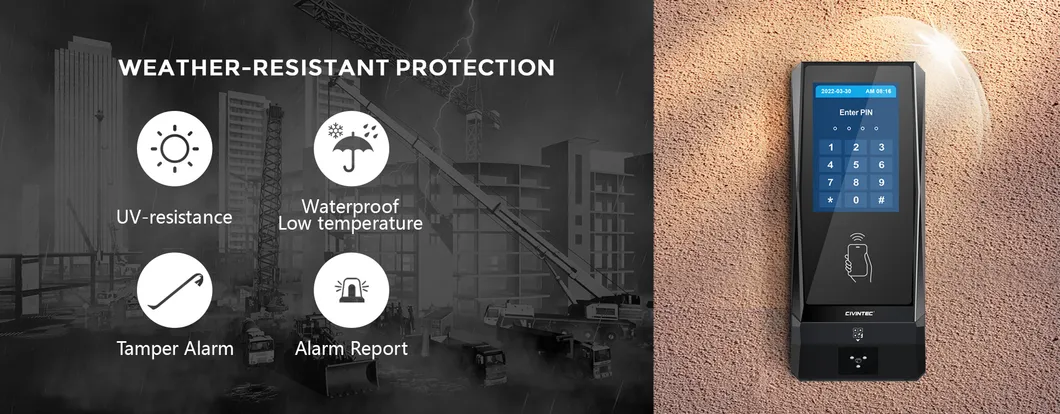

■ Weather-Resistant Protection
With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for rugged outdoor environments.

System Configuration

Customization & OEM Services

We offer leading design and manufacturing services for access control devices, including ODM customization for hardware, housing, firmware, and software.

Users can program and display their own logos on the 3.5" touch screen, and we provide OEM logo printing on the reader body.

Related Products

Frequently Asked Questions

What access methods does the CT9 Pro support?

The CT9 Pro supports 5-in-1 access methods, including RFID smart cards (125KHz & 13.56MHz), mobile access via BLE and NFC, QR code/barcodes, and a touch PIN code.

Is the device suitable for outdoor installation?

Yes, the device is IP65 rated, making it waterproof and dustproof. It also features UV resistance, ensuring reliable performance in various weather conditions and outdoor environments.

How does the terminal communicate with the server?

It uses encrypted HTTP or HTTPS protocols for bi-directional communication. Connection options include 4G wireless, WiFi, and TCP/IP Ethernet.

Can the CT9 Pro work during a network failure?

Yes, the terminal supports both Standalone and Network modes. It can store up to 10,000 users and 50,000 event logs offline.

Does it support Power over Ethernet (PoE)?

Yes, the CT9 Pro is compatible with PoE IEEE 802.3af, allowing both power and data to be delivered over a single Ethernet cable.

Can I customize the display with my own company logo?

Absolutely. Users can freely program the 3.5" touch screen to display a custom logo, and OEM printing services for the reader body are also available.
