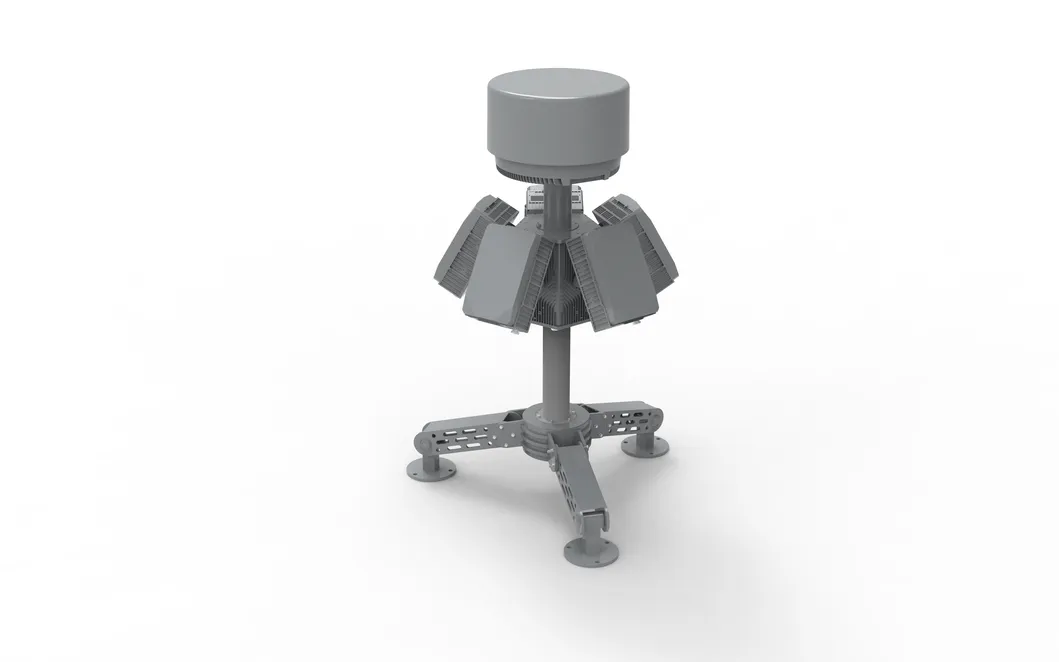

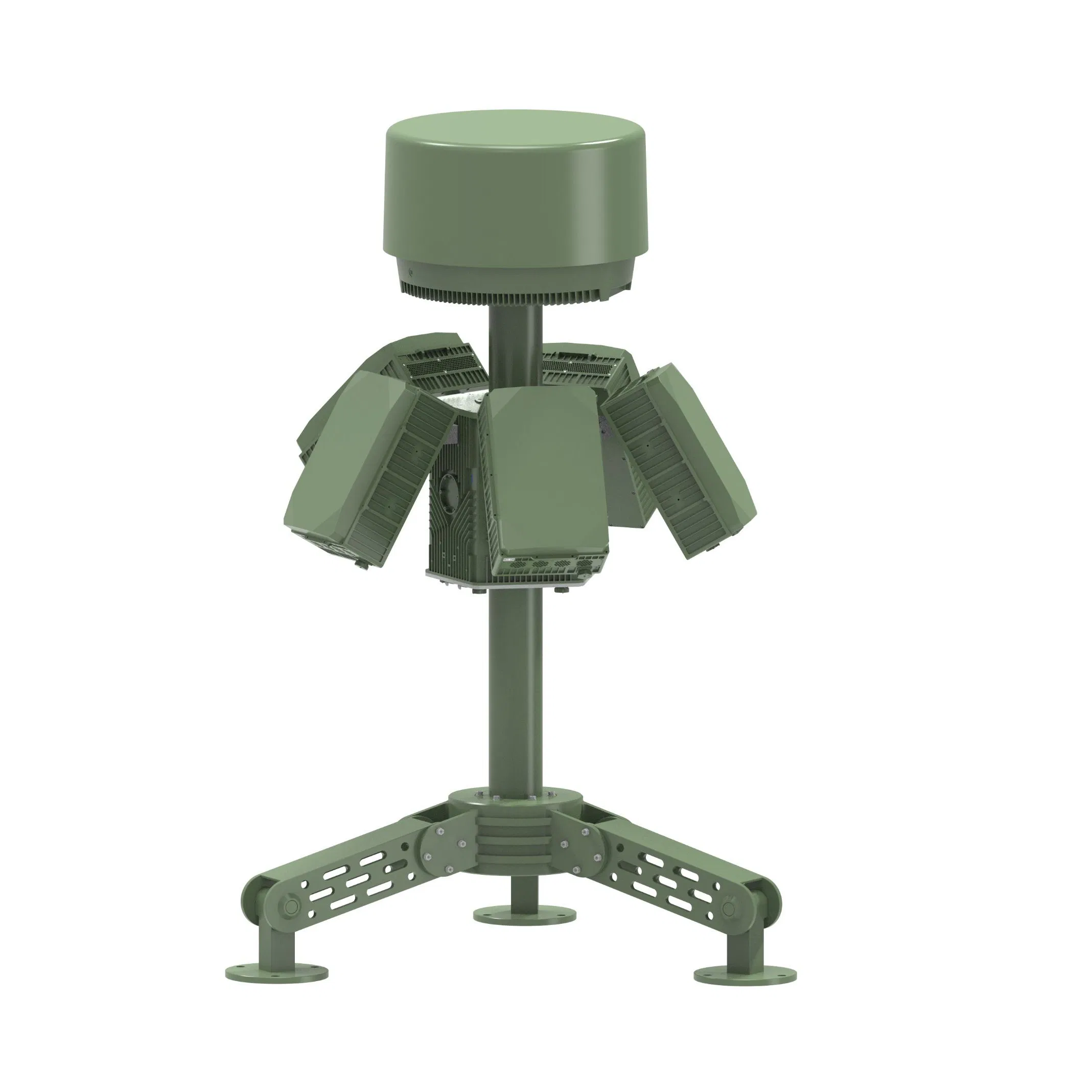

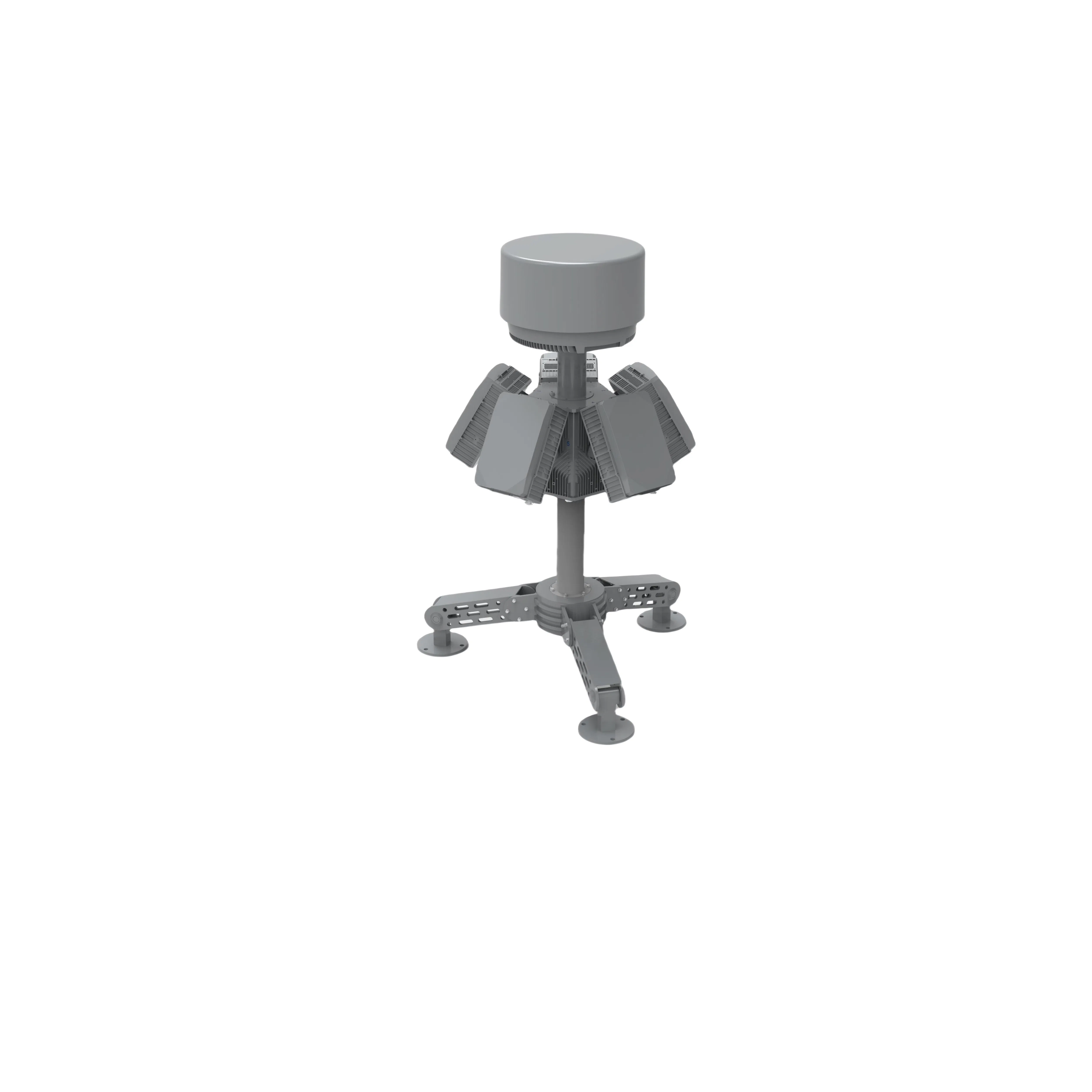

The fixed-installation detection and countermeasure and navigation decoy integrated system is a drone defense device that combines spectrum detection, electromagnetic interference, and navigation deception, enabling complete drone control processes with a single device. The system detects unauthorized drones by scanning their spectrum characteristics and analyzing DJI Drone ID signals. It can identify control signals and video transmission signals between the drone and its remote controller.
Through electromagnetic interference technology, it disrupts and blocks the communication and navigation links of the drone, forcing it to return home or land. By employing navigation deception technology, it alters the coordinate information in the drone's navigation system, inducing the target to respond incorrectly, either moving it away in a specified direction or causing it to misinterpret the area as a no-fly zone, resulting in a forced landing. When combined with radar, it can guide the target to a designated location.
The device features an IP66 protection rating and can operate reliably in a temperature range of -40°C to +65°C, ensuring stability in various harsh environments. Additionally, the integrated system can be upgraded through software algorithms to accommodate new drone models that may emerge in the future, protecting investments and ensuring the ongoing effectiveness of the equipment.
a) Integrated Detection and Countermeasure: The design incorporates detection, interference, and deception into a highly integrated system, allowing a single device to perform drone detection and defense.
b) Unmanned Operation: The fully automated defense mode enables automatic detection and response, achieving 24/7 automated protection.
a) Comprehensive Detection Capabilities: Supports identification of consumer-grade, industrial-grade, and non-standard drones. Suitable for mainstream commercial drones such as DJI, Autel, HUBSAN, Xiaomi, Swellpro, Skydoirh, as well as Wi-Fi drones and FPV flight control systems (TBS, Elrs, Futaba, Foxeer).
b) Low False Alarm Rate: Maintains an extremely low false identification rate even in complex electromagnetic environments.
a) Omnidirectional Interference: Uses five directional methods to emit interference signals, creating a 360° omnidirectional defense.
b) Stable Interference: The device can continuously emit interference signals for extended periods without frequency deviation.
a) Five Major Functions: Includes directional repulsion, area denial, no-fly zones, navigation interference, and targeted capture.
b) Fast Response Time: Features a short initialization time, allowing for quick intervention in the target's navigation system.
| Detection Frequency | 300-6000Mhz |
| Jamming Frequency | 433M / 800M / 900M / 1.2G / 1.4G / 1.6G / 2.4G / 5.2G / 5.8G |
| Jamming Range | ≥3km |
| Deception Frequency | GPS L1C/A, GPS L2C, GPS L5C; BDS B1I, BDS B2I; GLONASS G1, GLONASS G2; GALILEO E1; QZSS L1C/A. |
| Detection Distance | 10km |
| IP Rate | IP66 |
