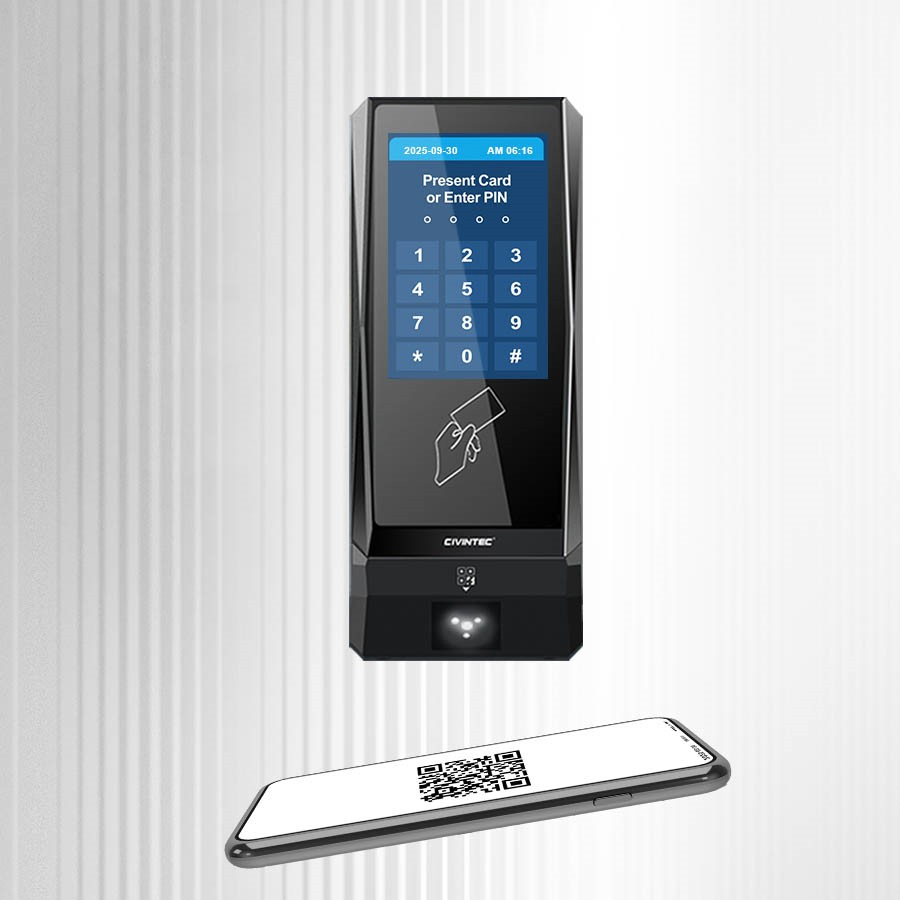

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. With an embedded relay, it builds versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC (Support BLE in iOS, and NFC/BLE in Android) |
| RFID smart card | - EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, EV3, NFC tags (T2T, T4T), ISO14443B - CLASS SE/SR® iCLASS Seos® smart cards |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module, more on request |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-24V DC; PoE IEEE 802.3af |
| IP protection | IP65 outdoor/indoor use, UV-resistance |

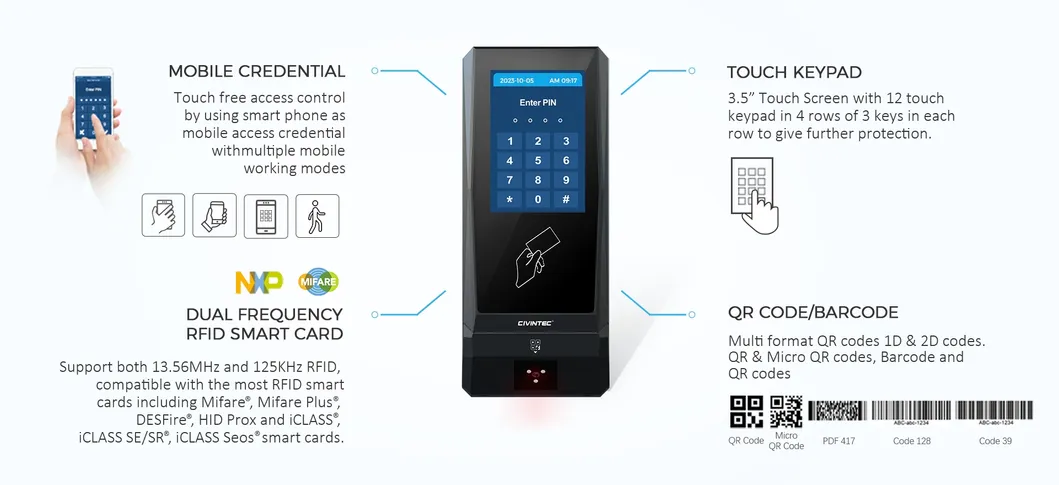

CT9 Pro incorporates 5-in-1 multiple access credential technologies, offering seamless management for RFID, mobile credentials, and QR codes.
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and the server to remotely control door locks and various IoT facility management systems.
With IP65 ratings, CT9 PRO is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
As a leading designer and manufacturer of access control devices, we offer ODM customization on hardware, reader housing, firmware, and software design services.
Users can freely program and display their own LOGO on the 3.5" touch screen. We also offer OEM LOGO printing on the reader body.
The CT9 Pro supports 5-in-1 identification methods including RFID (125KHz & 13.56MHz), NFC, BLE mobile access, touch pin code, and optional QR code/barcode scanning.
Yes, the device is IP65 rated, making it waterproof and dust-resistant. It is also built with UV-resistance, ideal for outdoor and rugged environments.
Yes, it supports Power over Ethernet (PoE IEEE 802.3af) as well as 12-24V DC power supply.
The terminal features 4G, WiFi, and TCP/IP Ethernet interfaces, using HTTP/HTTPs protocols for secure cloud server communication.
Yes, the 3.5-inch touch screen allows for customized programming to display your own logo, and we also offer OEM logo printing on the device body.
Standard configuration supports up to 10,000 users and 50,000 event logs offline, with more capacity available upon request.
