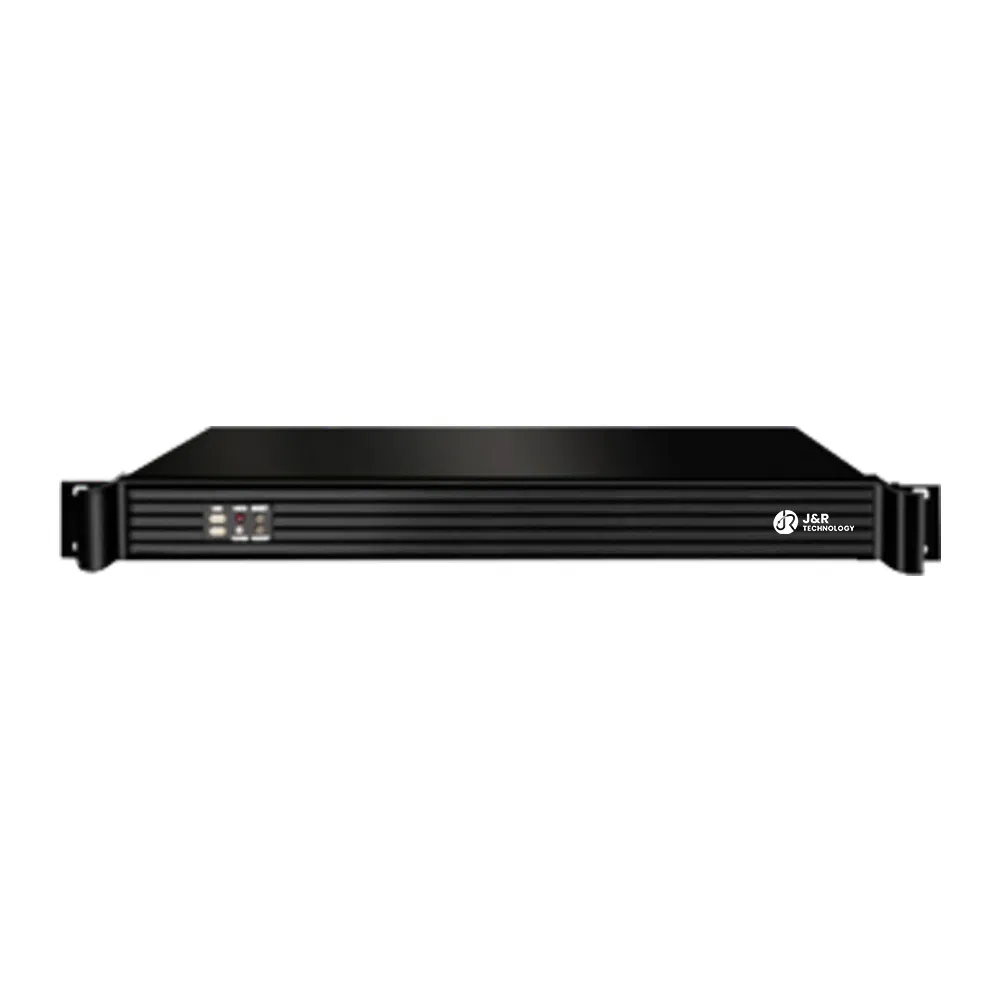

Jr-PBX-U200/300/500 SIP Dispatching System for Integrated Communication, Calling, Broadcasting, Recording, Security Linkage

1 / 5

Jr-PBX-U200/300/500 SIP Dispatching System for Integrated Communication, Calling, Broadcasting, Recording, Security Linkage

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.

JR-PBX-U200

Number of Channels

200/300/500

Wire or Not

Wire

Color

Black

Power Supply

100~220V AC

Power Consumption

≤35W

Storage

500GB

Operating Temp.

-10℃ to +60 ℃

Dimensions

430×44.5×600mm

Network Port

10/100/1000m

Registered Terminals

200

Concurrent Calls

100

Recording Channels

Production Capacity

3000 Pieces/Month

📋

Product Description

SIP Dispatching System for Integrated Communication
Integrated Hands-Free Calling, Group Calling, Zone Broadcasting, Recording, and Security Linkage.

This dispatching system integrates a professional business management platform. It enables one-key hands-free calling, two-way calling, group calling, shouting deterrence, zone broadcasting, background music, and security linkage. It is highly suitable for banks, schools, scenic spots, mines, metallurgy, petrochemical, electricity, ports, prisons, highways, and smart buildings.

🚀

Key Features

Supports G.711, G.729, G.723, H.263, H.264 standards.
Standard SIP protocol for third-party equipment access.
High-definition sound with echo cancellation technology.
Comprehensive call management: dial-up, answering, recording, and monitoring.
Flexible authority and account management.
Operating temperature: -10°C to +60°C.
Following RFC3261 Standard for signaling.
Support for registration database and dial plans.

⚙️

Technical Specifications

Model Name	JR-PBX-U200	JR-PBX-U300	JR-PBX-U500
Power Supply	100~220V AC	100~220V AC	100~220V AC
Storage	500GB	500GB	500GB
Registered Terminals	200	300	500
Concurrent Calls	100	150	250
Recording Channels	8	8	8
Network Port	10/100/1000M	10/100/1000M	10/100/1000M

🛠️

System Functions

Intercom Function

Two-way/video intercom, call recording, queuing, forced insertion, and environmental monitoring.

Broadcast Function

Shouting broadcast, music, text-to-speech, and dynamic multicast technology with priority levels.

Call Features

Call park, forward, transfer, IVR, DND, Blacklist/Whitelist, and voice/video conferencing.

Open API

Provides HTTP API interface for third-party platform integration and intelligent linkage.

🛡️

Certifications & Quality

Our products hold essential certifications such as CCC, CE, FCC, and RoHS for international compliance. Safety certifications include IECEx, ATEX, EAC, and INMETRO, along with various product patents and software copyrights.

❓

Frequently Asked Questions

How many registered terminals does the system support?

Depending on the model (U200, U300, or U500), the system supports 200, 300, or up to 500 registered terminals.

What is the warranty period for this system?

We provide a standard 2-year warranty for the SIP Dispatching System.

Does the system support video intercom?

Yes, it supports H.264, H.263, and VP8 video codecs for high-quality video intercom and conferencing.

Can this system integrate with my existing IP equipment?

Yes, the system is based on the standard SIP protocol (RFC3261), ensuring high compatibility with third-party SIP devices and gateways.

What audio recording capabilities are available?

The system supports up to 8 concurrent recording channels with a 500GB local storage capacity.

Is the system suitable for outdoor or harsh environments?

The server operates reliably between -10°C to +60°C. It is designed to manage terminals used in industrial sectors like mines, petrochemical plants, and ports.
