Product Description

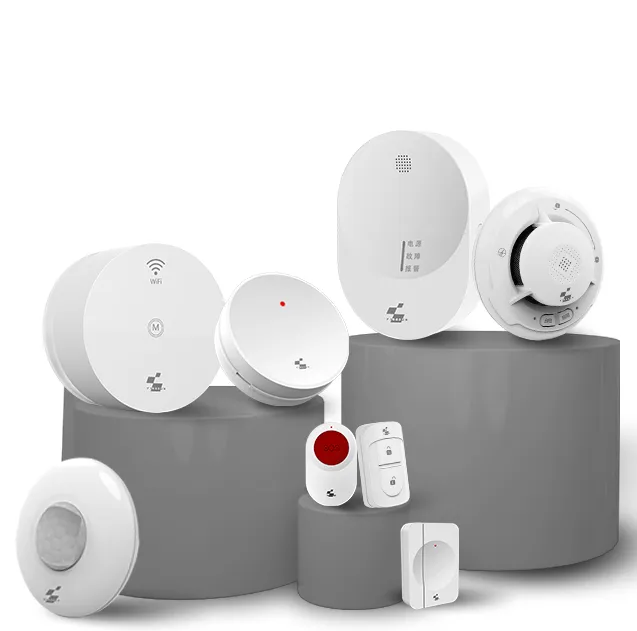

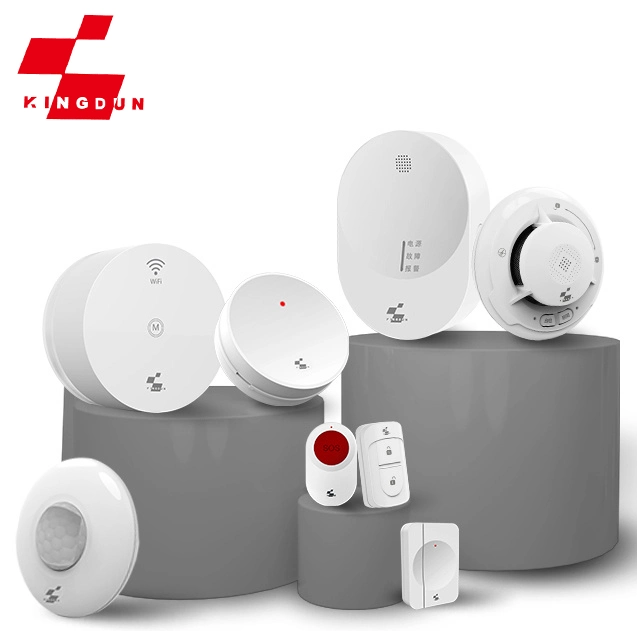

Smart Home Wireless Alarm Security System
System control of host, its main function is to set up communication among smart security equipment, mobile terminal and Internet connection. It provides interconnection of intelligent security devices and interconnection between security devices and mobile terminals. Intelligent chain gateway is also execute equipment. When the smart gateway receives an abnormal message from other devices, its built-in colorful LED light indicating unit and high-decibel buzzer sound indicating unit will alarm, prompting people to deal with various risks in time.

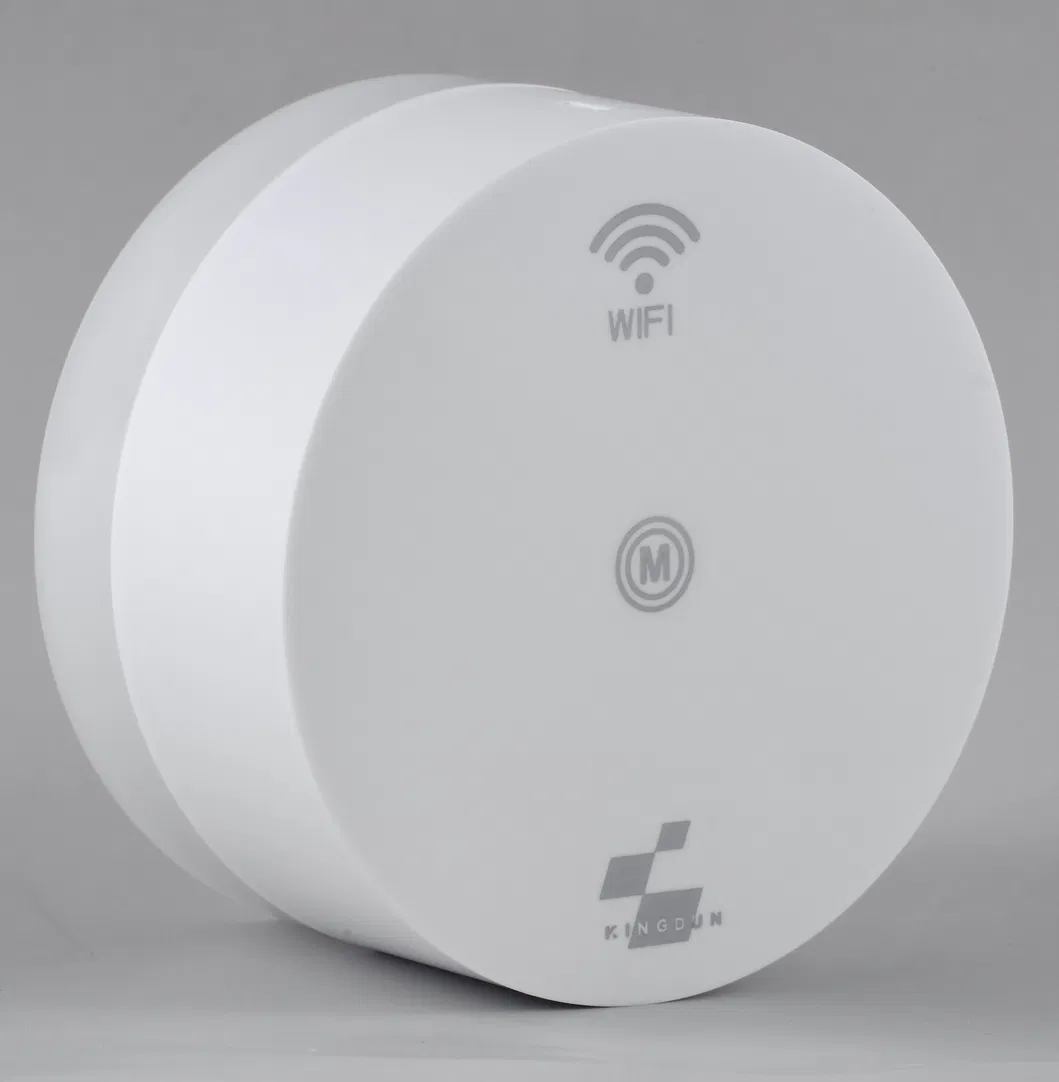

WiFi Gateway KD-805A
Power supply: 12V; Working current: ≤300mA
Frequency: 867.84Mhz, 2.4Ghz
Wi-Fi distance: Max 25m
Size: dia86 x 43.7 mm

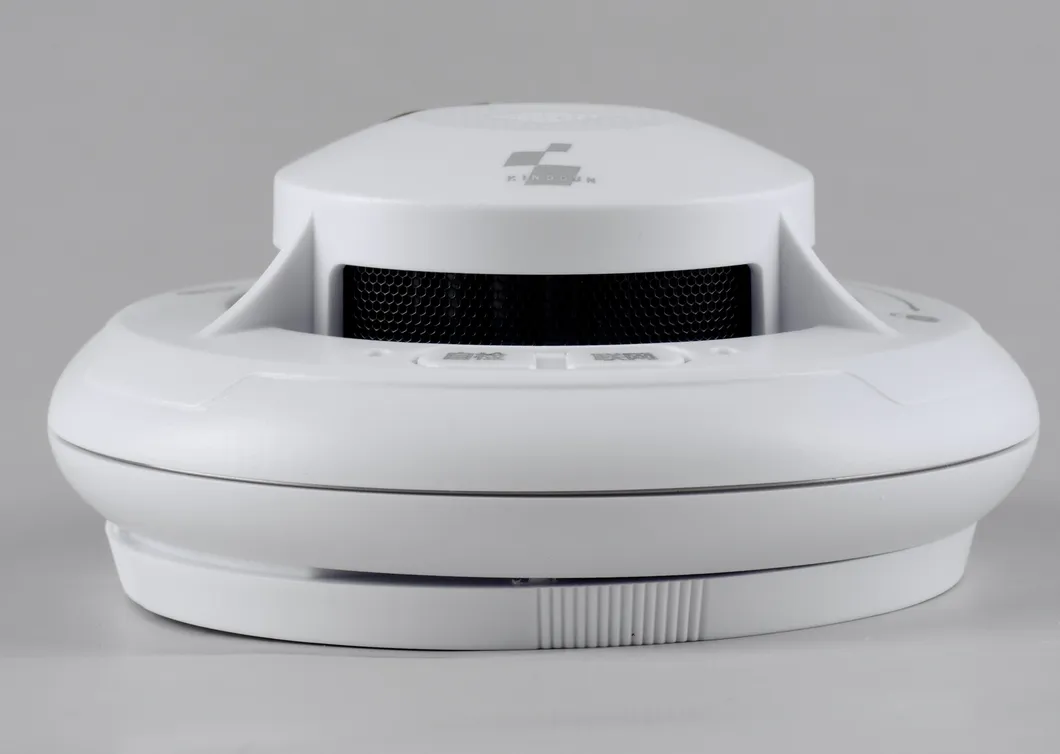

10Y Battery Linkable Smoke Alarm
Power: 3.0V (CP605050); Static current: ≤2uA
Wireless distance: ≥100m; Alarm sound: ≥ 85dB
HUSH function included
Size: dia85 x 38.4 mm

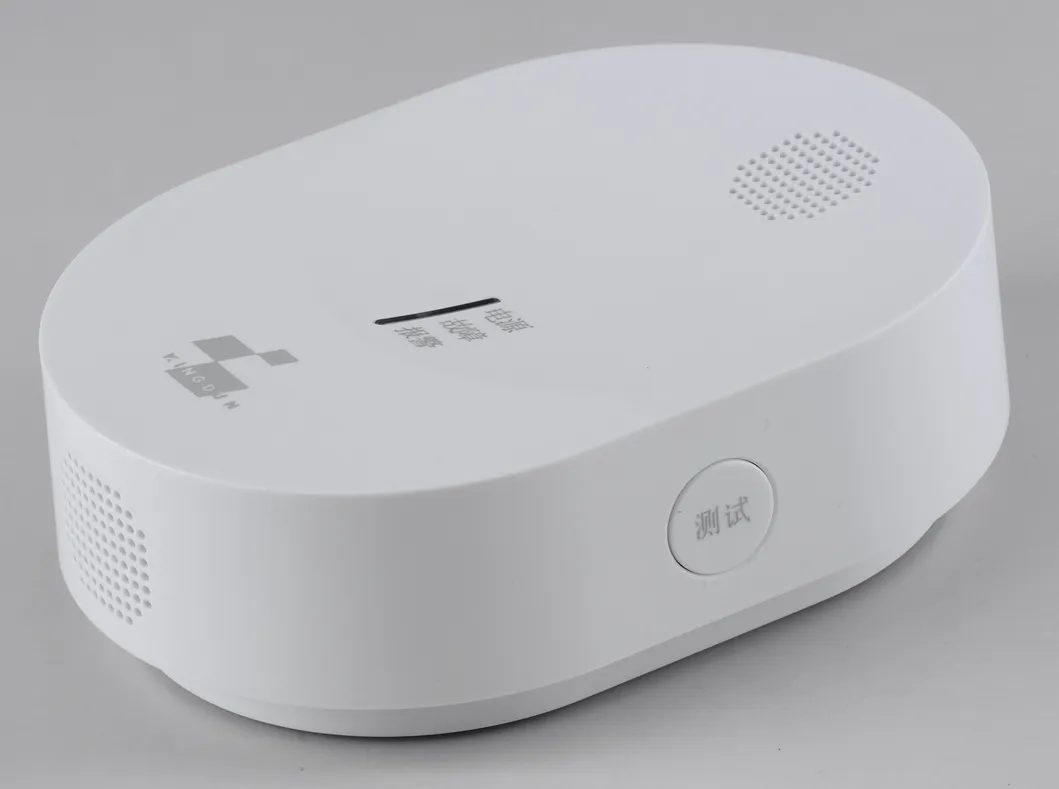

10Y Battery CO Alarm
Power: 3.0V; Alarm set valve: 100ppm
Alarm sound: ≥ 80dB (1m)
Wireless distance: ≥50m
Size: 109x81x31.5 mm

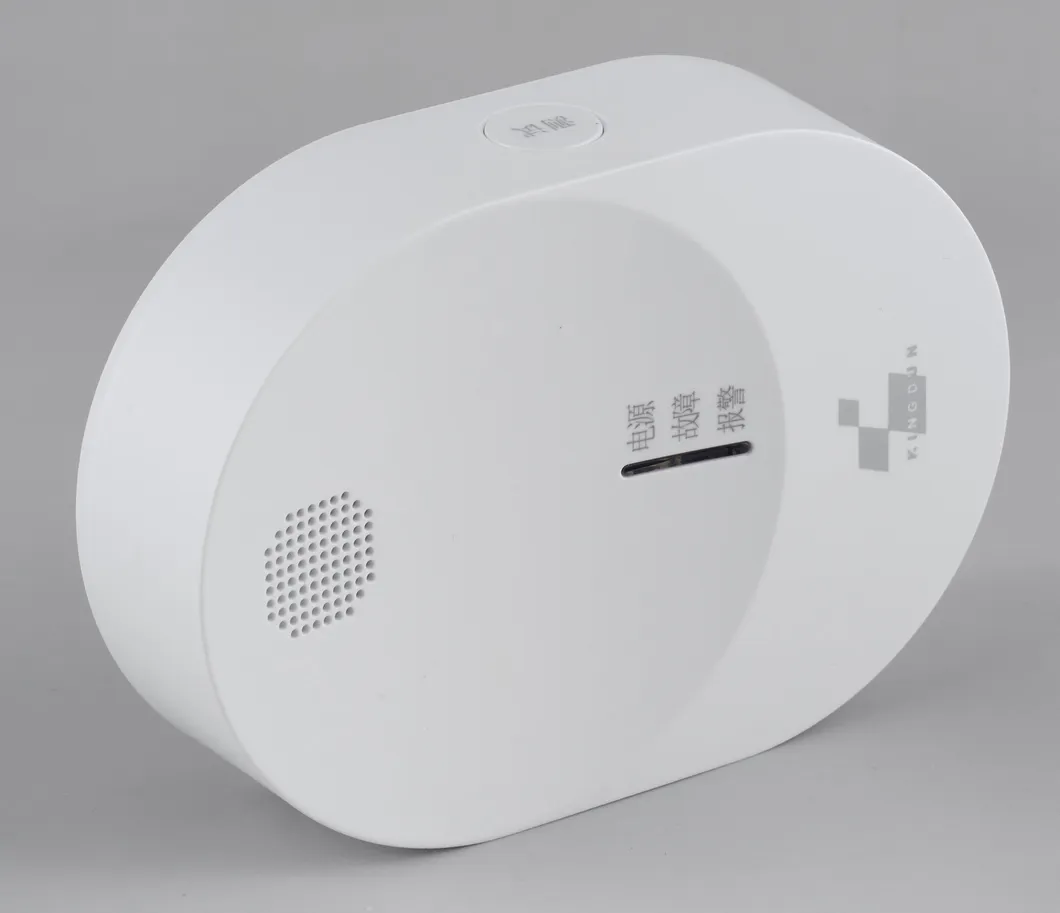

Gas Detector KD-212LA
Power input: AC100~240V; Rated power: <5w
Alarm sound ≥ 70dB (1m)
Wireless distance: ≥50m
Size: 99x71x32 mm

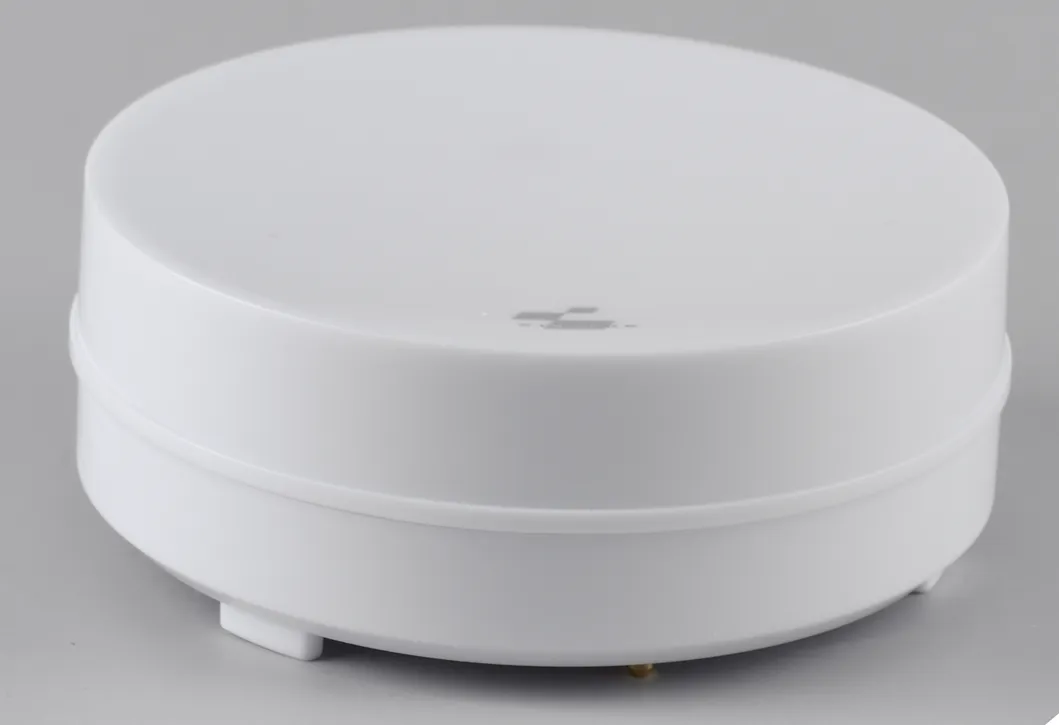

Water Leakage Alarm
Power: 3.0V (CR2450); Static current: ≤2uA
Wireless distance: ≥50m
Working temp: -10ºC ~ +50ºC
Size: dia66x26 mm

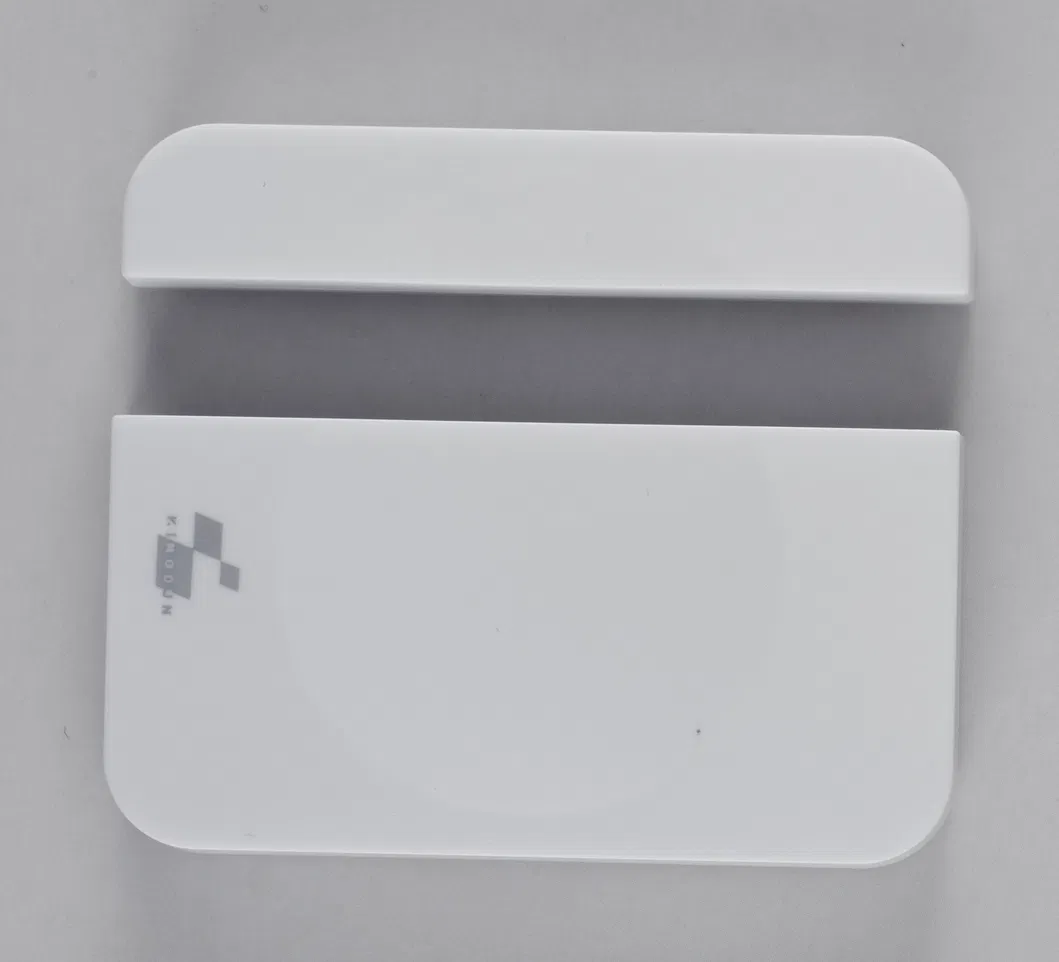

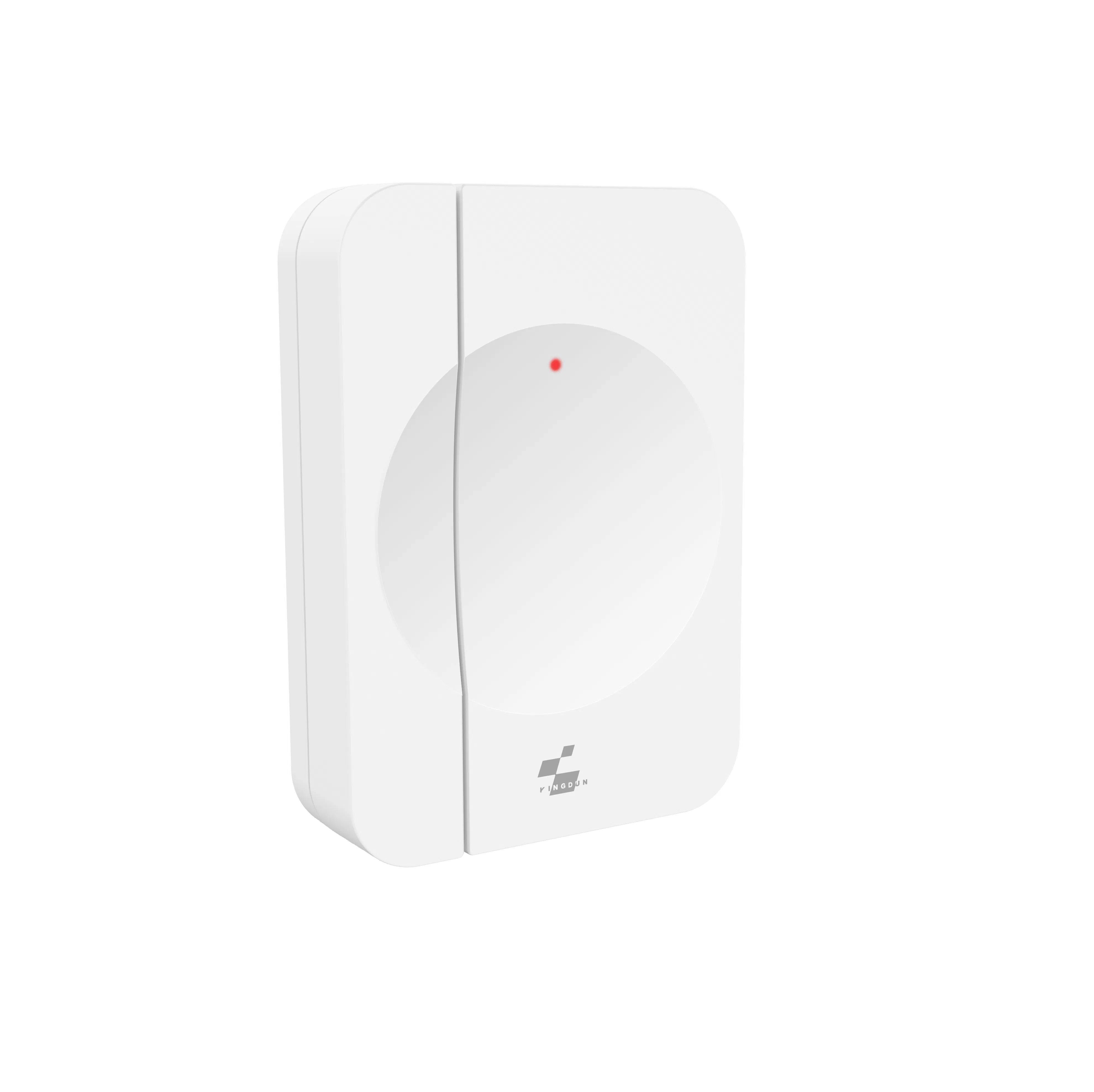

Doors and Windows Alarm
Power: 3.0V (CR20320)
Wireless distance: ≥50m
Status: ON≤2uA / OFF≤4uA
Size: 55.6X39.2X12mm

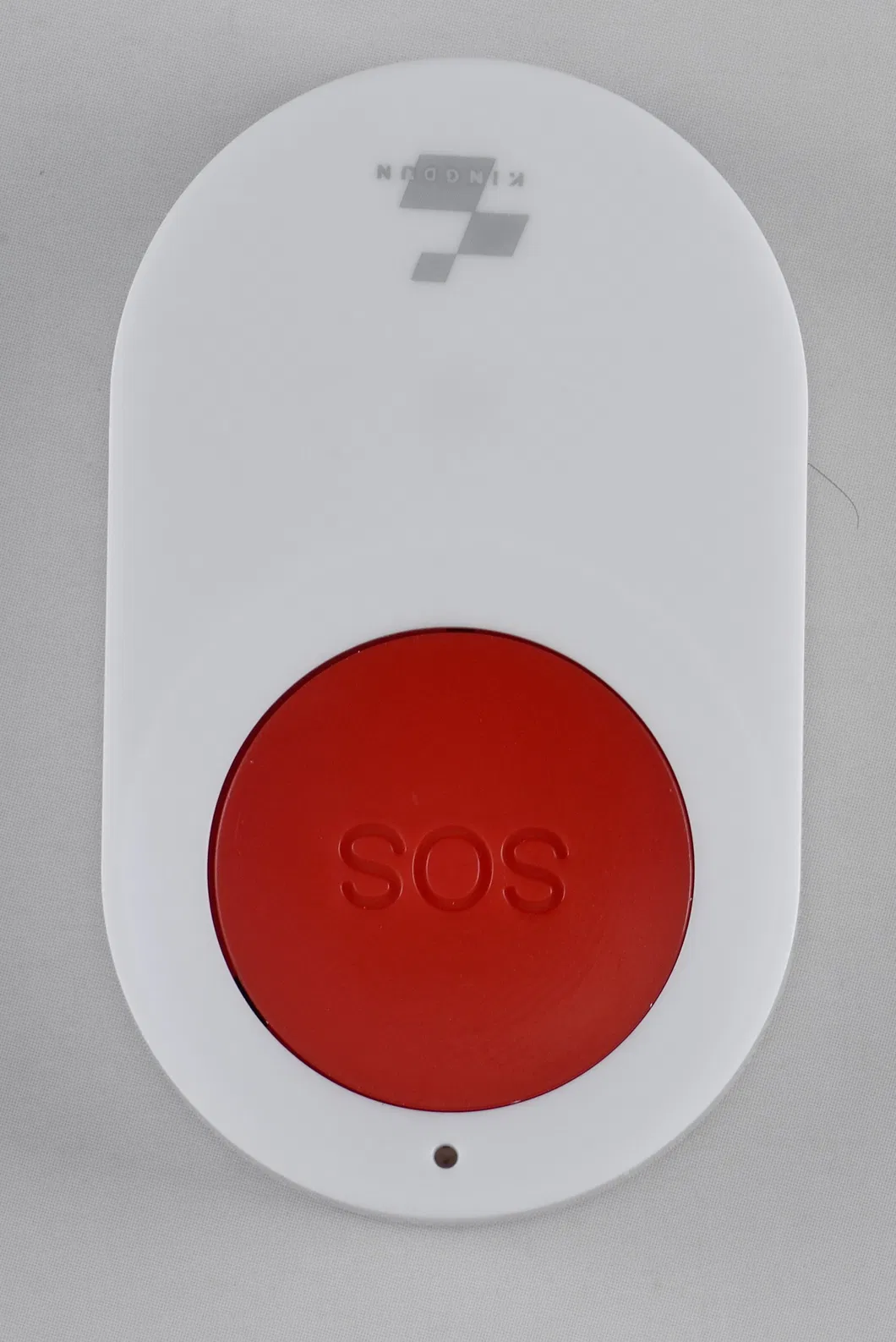

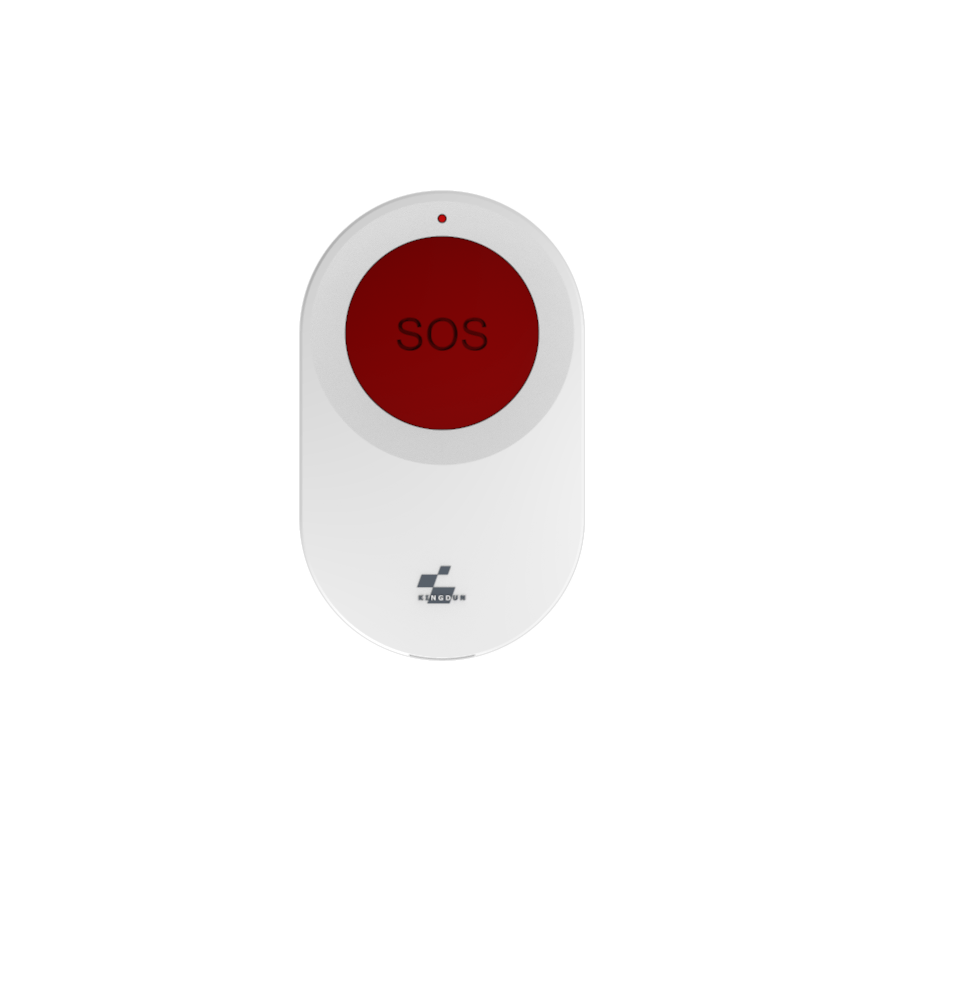

SOS Alarm KD-602LA
Power: 3.0V (CR20320); Static: ≤1.5uA
Working current: ≤10mA
Wireless distance: ≥50m
Size: 55.6X39.2X12mm

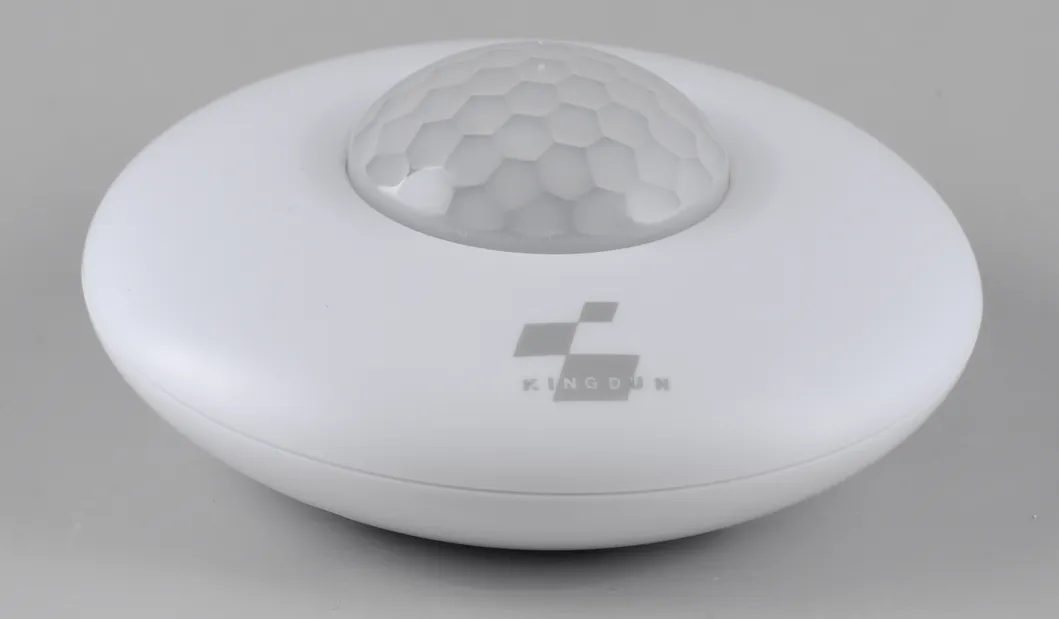

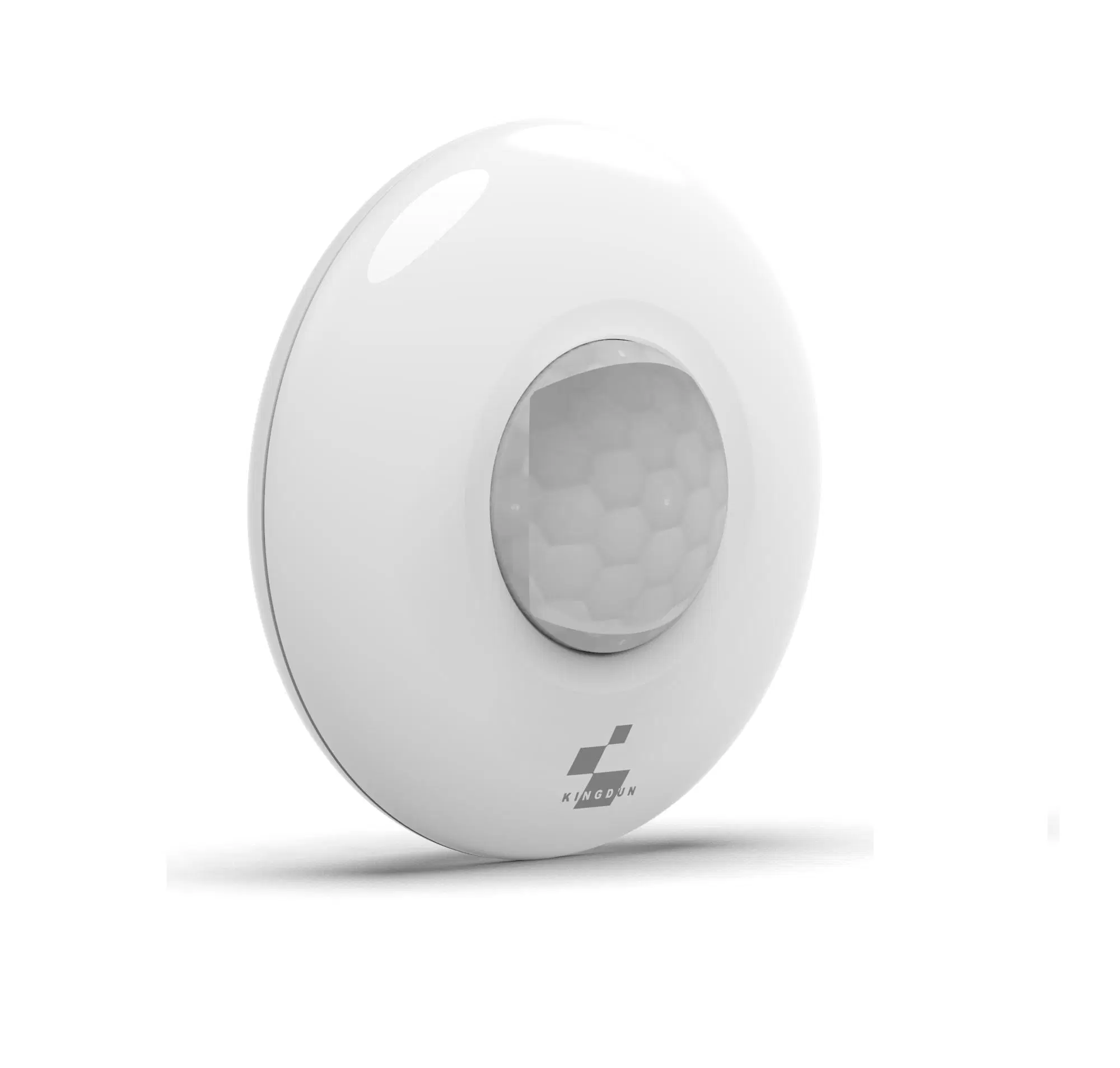

Motion Sensor KD-702LA
Power: 3.0V (AAA X 2)
Sensor range: 360° / 4~5 meter
Wireless distance: ≥100m
Size: dia83 X 36.8mm

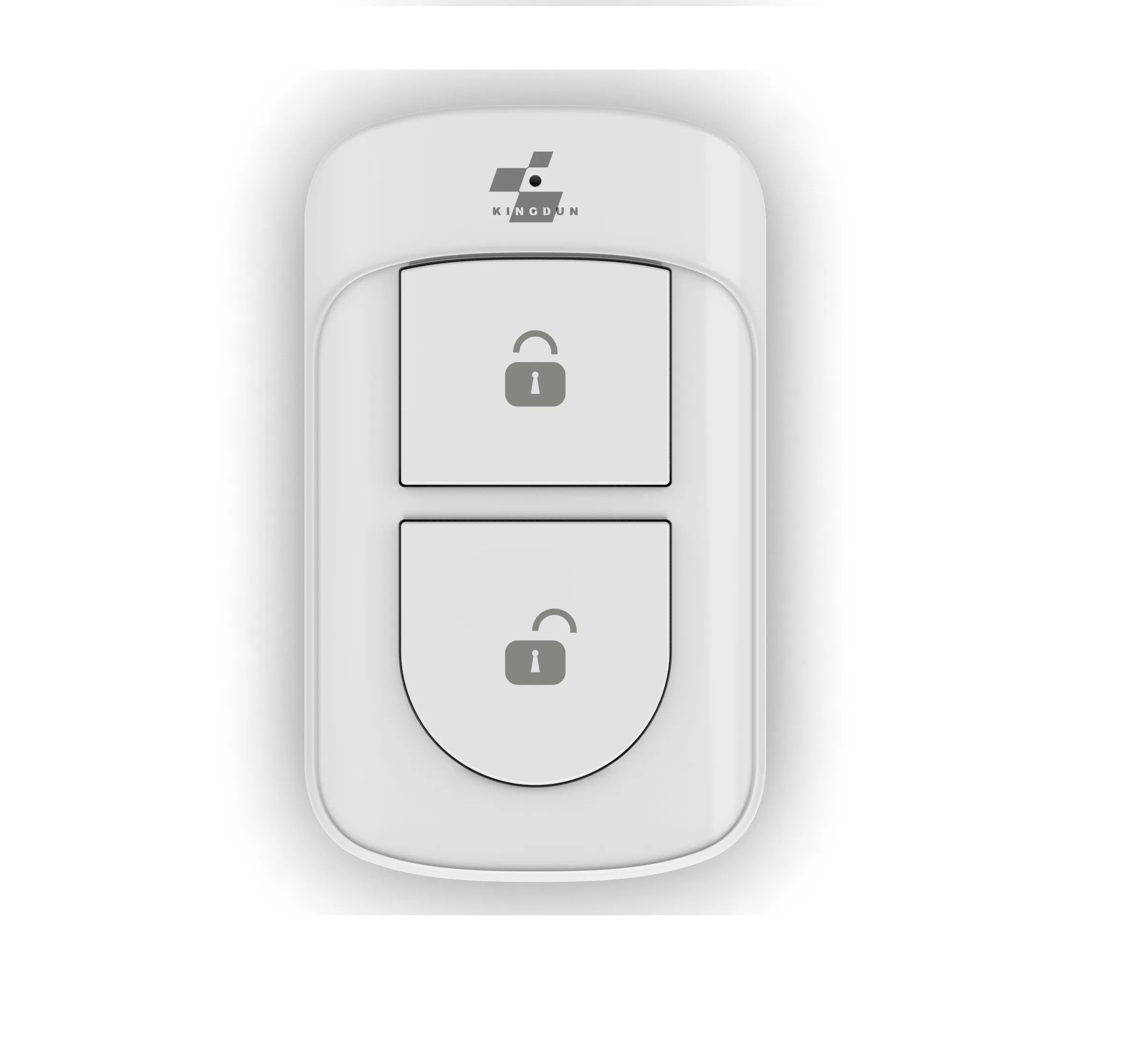

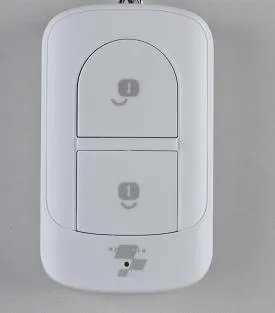

Remote Controller
Power: DC3V (CR2032); Static: <1.5uA
Wireless distance: >50m
Working temp: -10ºC ~ +50ºC
Size: 34 X 20 X 52mm
❓
Frequently Asked Questions
1. How does the wireless security system alert me of an emergency?
The system features a gateway with a built-in high-decibel buzzer and a colorful LED indicator that triggers immediately when a sensor detects an anomaly. It also facilitates communication with mobile terminals for remote monitoring.
2. What is the wireless range between the sensors and the gateway?
The wireless transmission distance varies by device; for example, the smoke alarm can reach up to 100 meters in spacious areas, while most other sensors cover at least 50 meters.
3. What types of hazards can this system detect?
This comprehensive system includes specialized detectors for smoke, carbon monoxide (CO), combustible gas leaks, water leakage, motion detection, and unauthorized door/window entry.
4. How long do the batteries last in the smoke and CO alarms?
Both the Smoke Alarm (KD-122LA) and the CO Alarm (KD-216LA) are designed with a 10-year battery life, ensuring long-term protection with minimal maintenance.
5. Does the system support Wi-Fi connectivity?
Yes, the main WiFi Gateway operates on a 2.4GHz frequency, allowing it to connect to your home network for smart terminal integration.
6. Is the system easy to install?
The system is wireless and designed for simple DIY installation. Most components come with compact sizes and long-life batteries, requiring no complex wiring.
