2-Wire Smart Home Security Tuya Video Doorbell Villa Intercom System

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Overview - Basic Information
Model NO.
ER012ATW & ED008-1APIC & BP001-18W
Color
Optional White/Black
Voice Service
With Voice Service
Installation
Surface-Mounted
Certification
RoHS, FCC, CE, ISO9001
Screen
7" Touch Screen
Screen Resolution
1024*600
Wi-Fi
2.4G & 5G
Mobile APP
Tuya Smart (iOS, Android)
Detection
Human & Motion Detection Recording
Video Recording
Supported
Camera
2MP CMOS, 125/150 Degrees
Protection
IP65, IK07
Materials
Aluminum
📦 Product Description

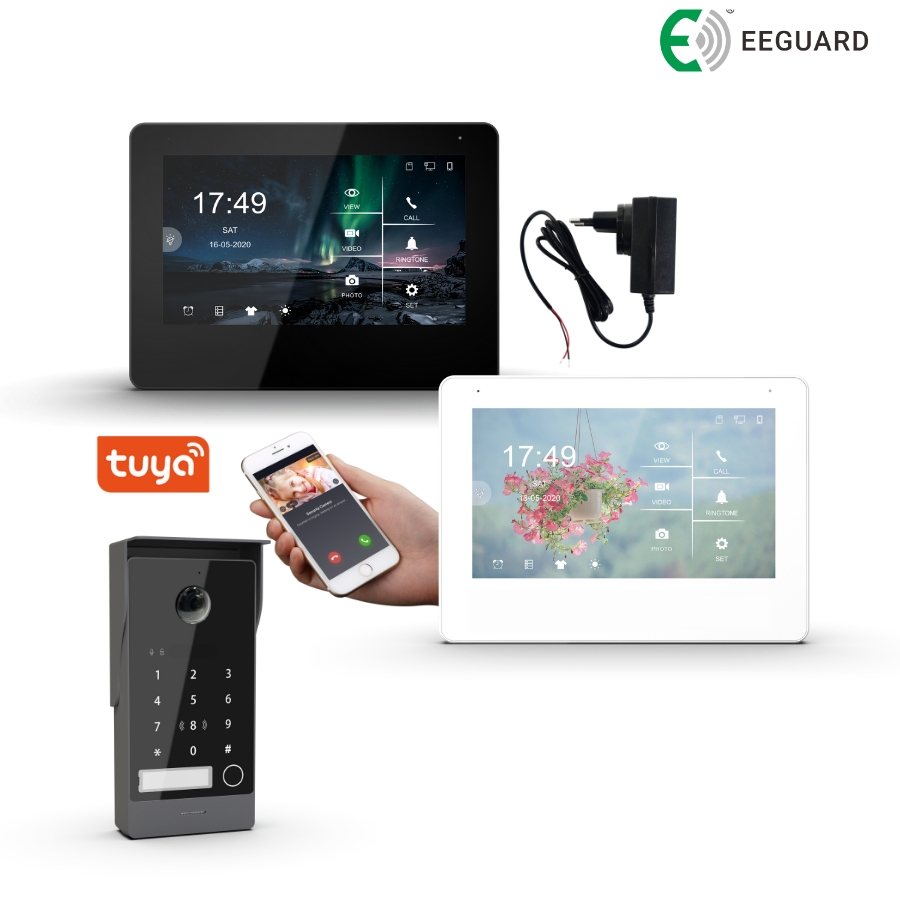

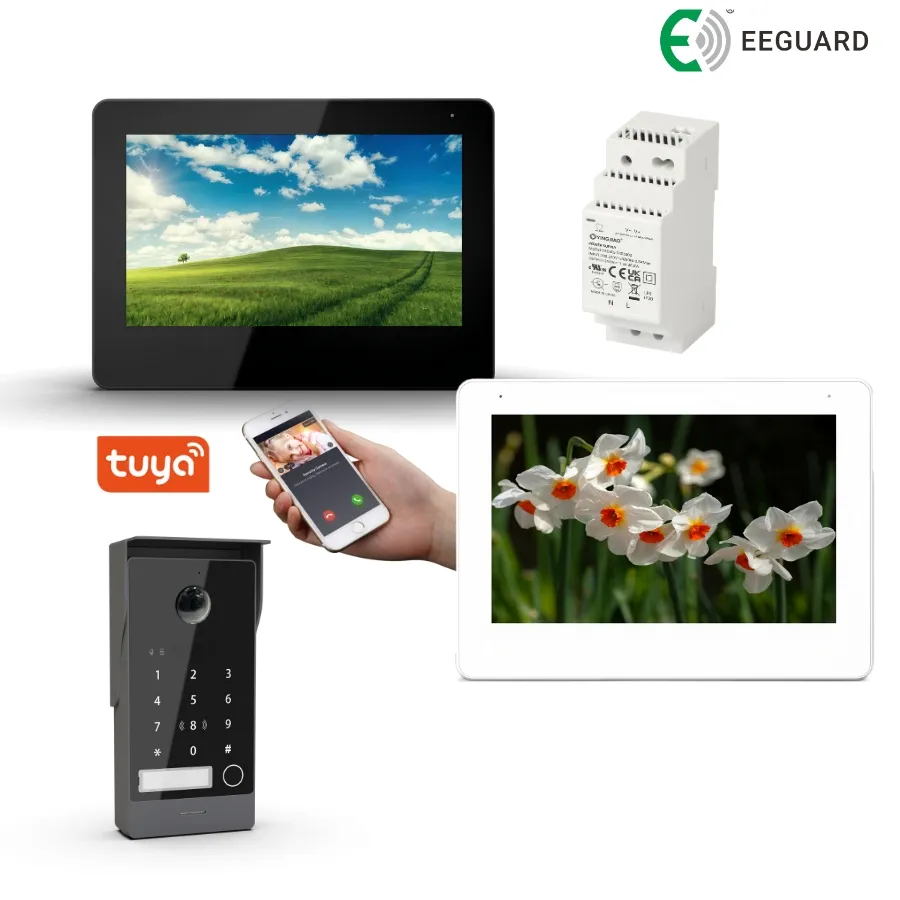

2-Wire 7" TCP/IP WiFi Touch Screen Video DoorPhone Intercom Tuya Villa Kit
📷 Detailed Photos
⚙️ Technical Parameters

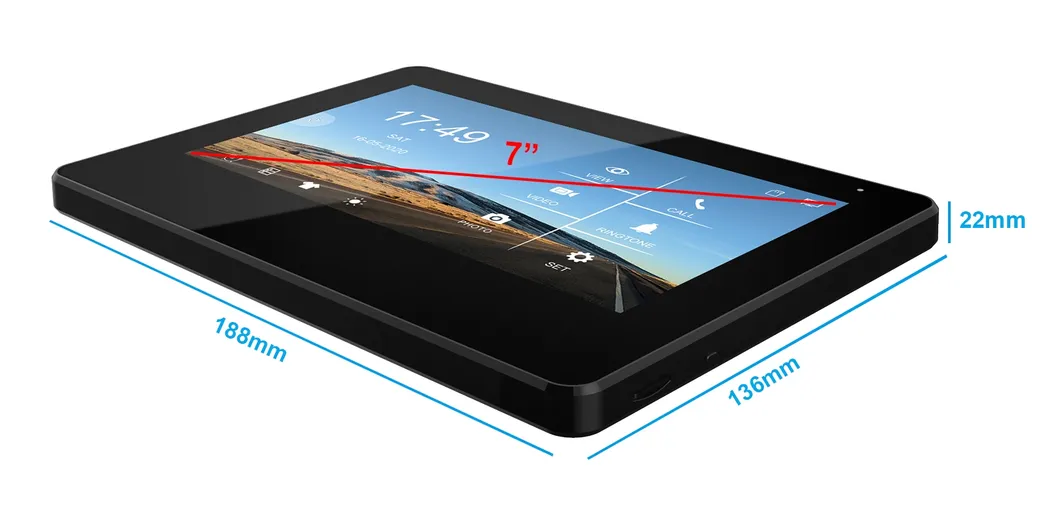

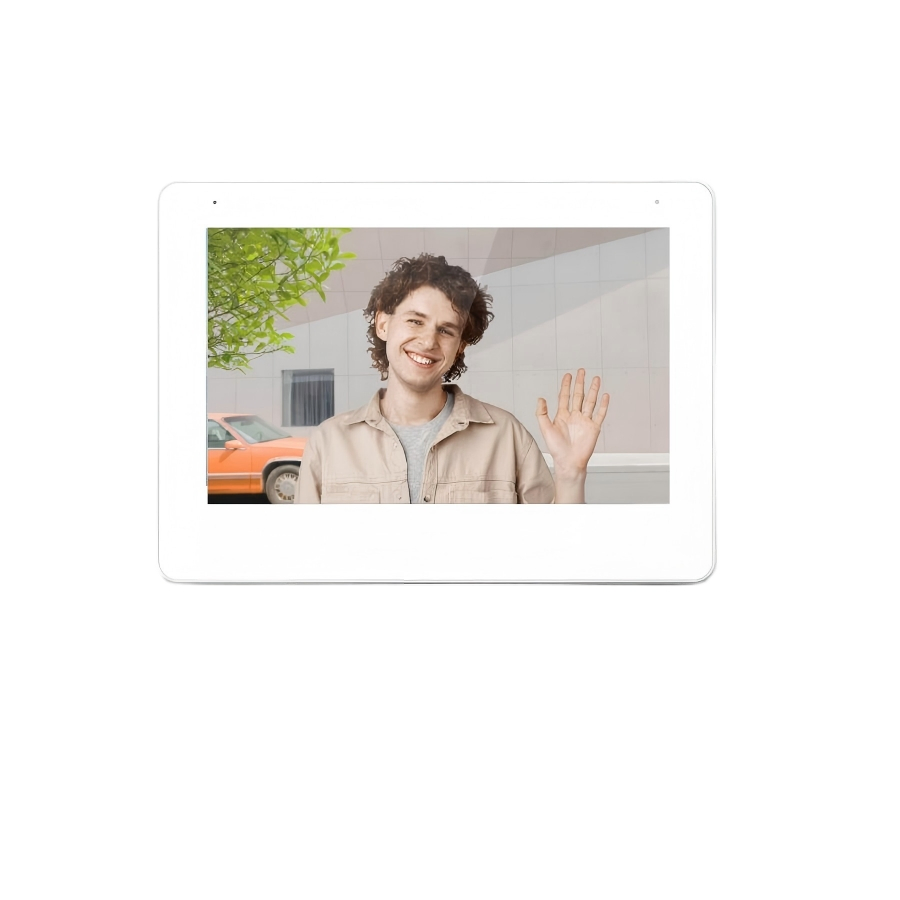

Component: ER012ATW (Indoor Monitor)
- 2-Wire Digital Video Intercom Monitor; Embedded Linux System
- Display: 7-inch touch screen, 1024x600 resolution
- Audio: Full-duplex for clear two-way communication
- Mobile App: Tuya Smart (iOS/Android) optional

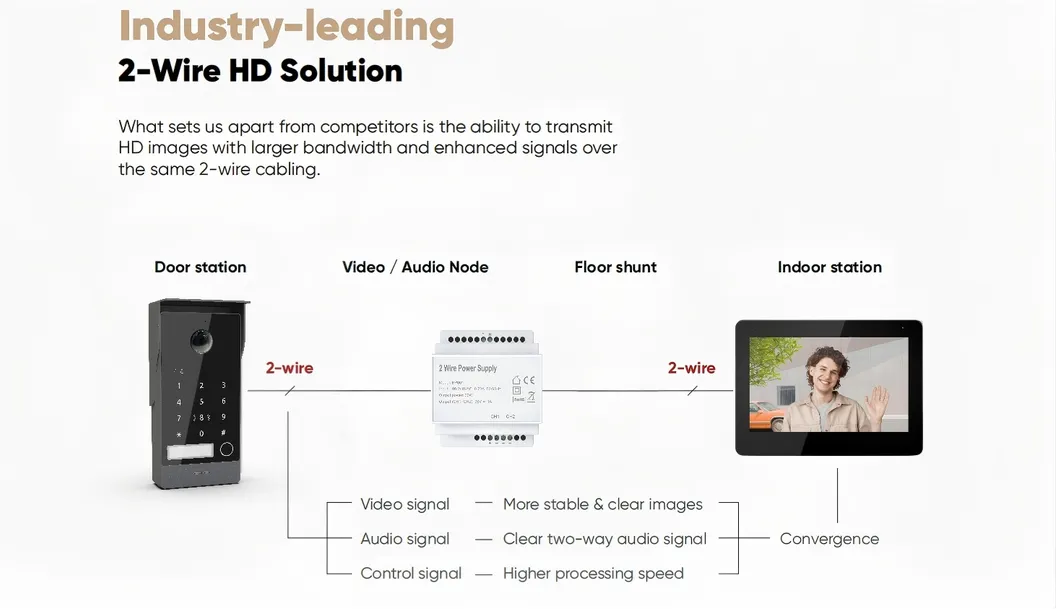

- Connection: 2-wire BUS; Supports up to 10 indoor monitors
- Compression: H.265 / H.264; Supports up to 8 IP panels
- Power Supply: DC24-36V

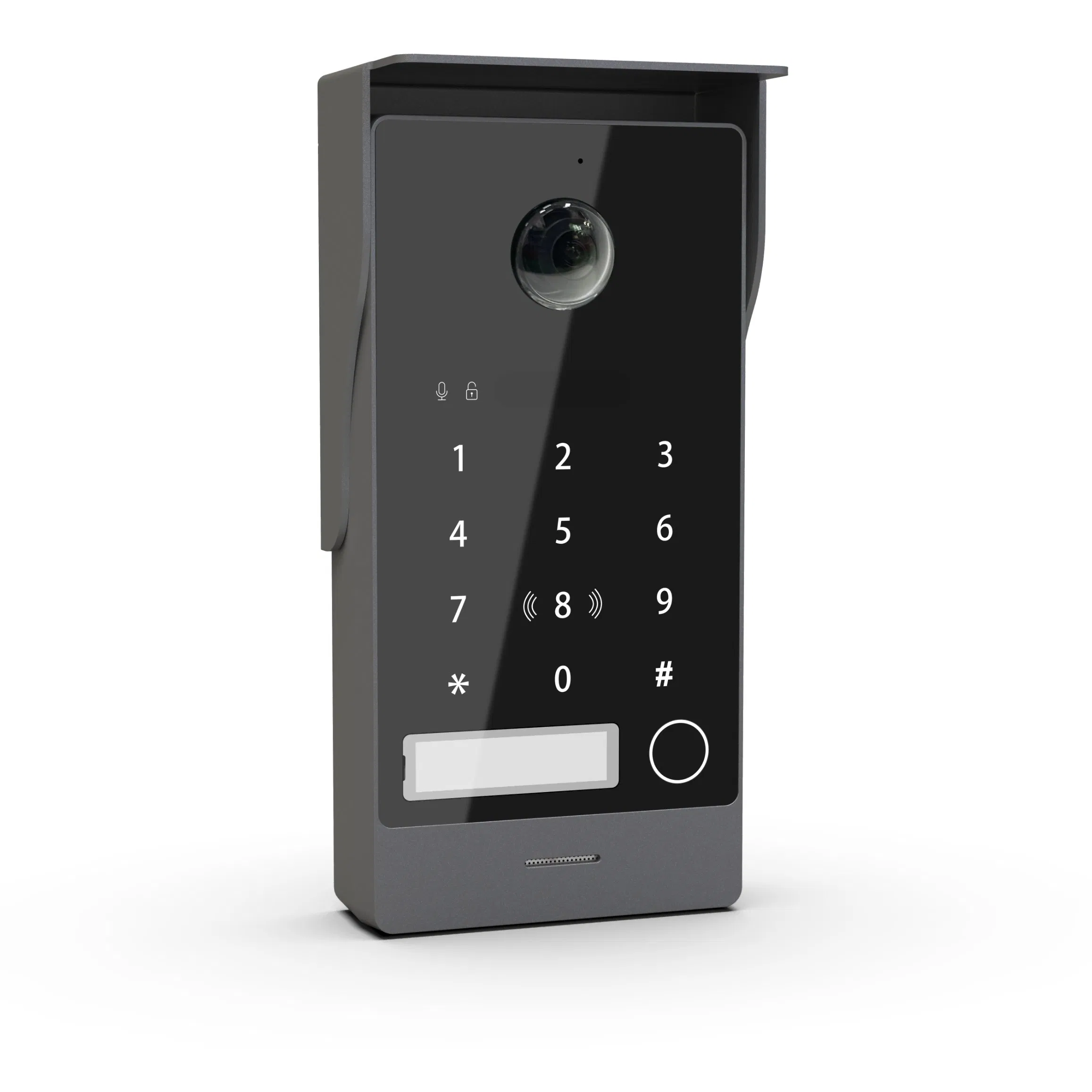

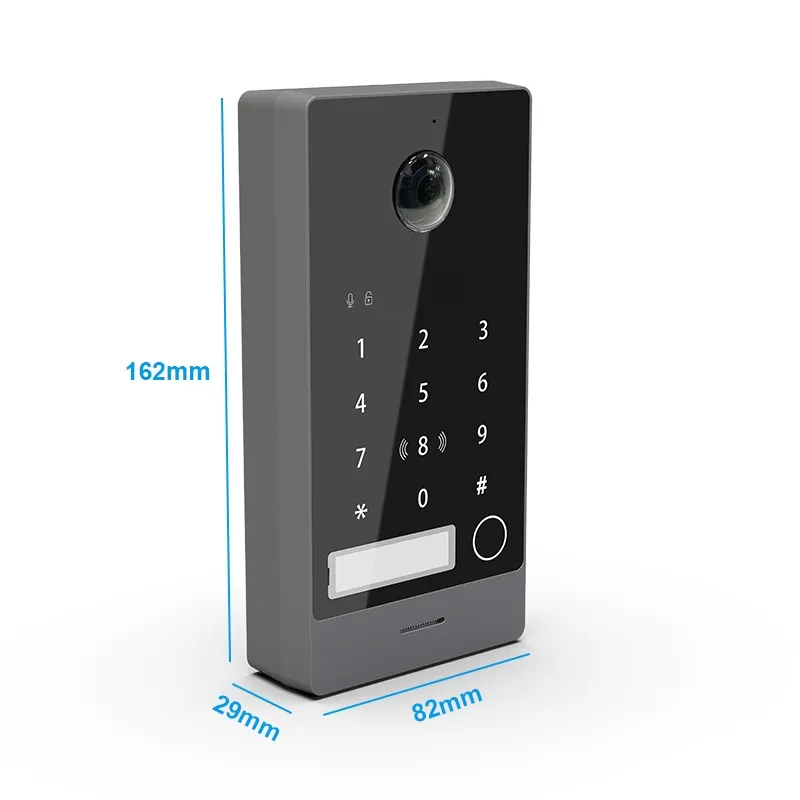

Component: ED008-1APIC (Outdoor Panel)

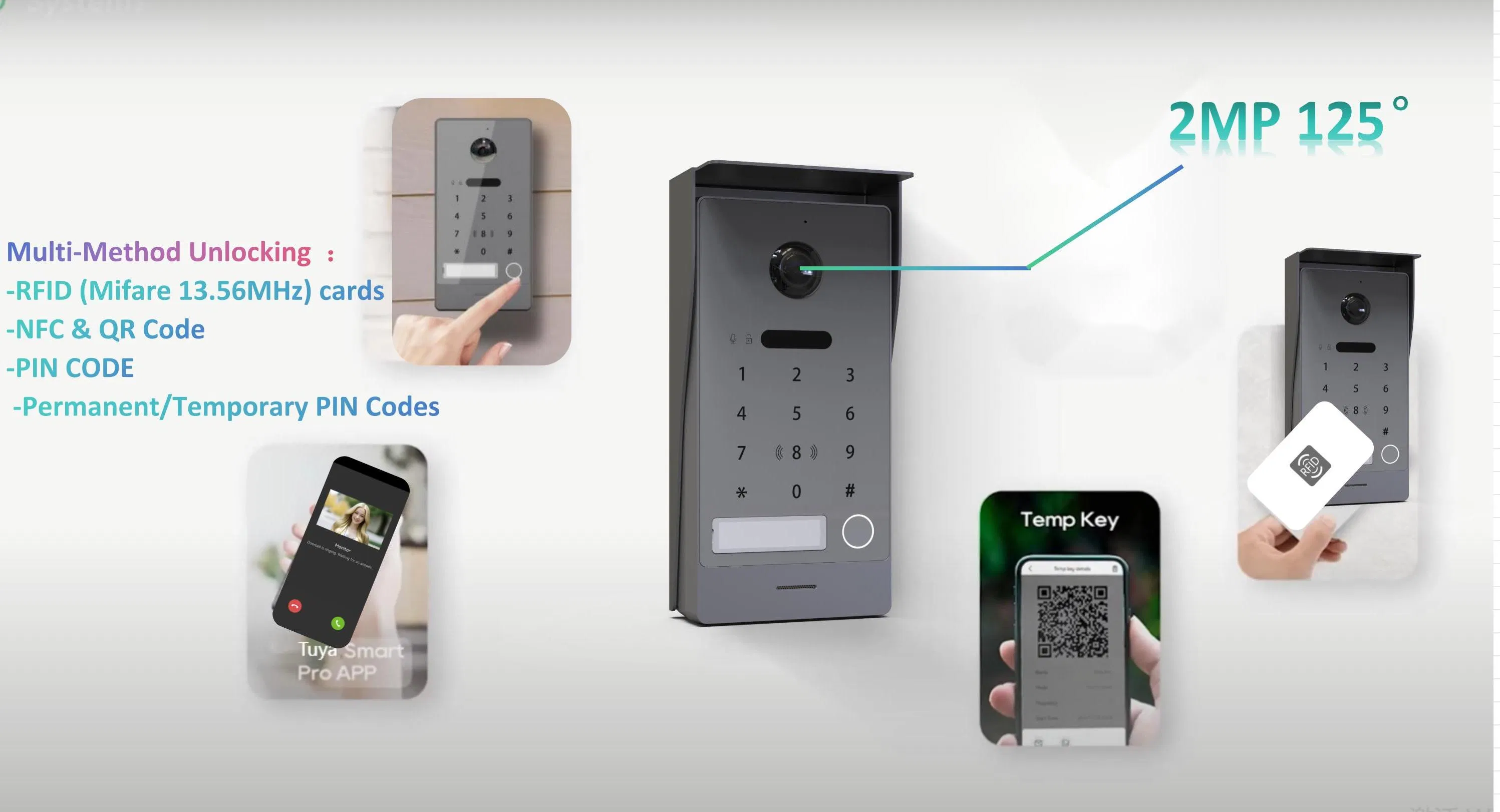

- 2MP HD Smart IR Camera; Angle of View: 125°
- Multi-Method Unlocking: RFID (13.56MHz), NFC, QR Code, PIN Code, App Remote
- Controls 2 Locks (Gate & Door); Supports Door Contact & Exit Button
- Protection Grade: IP65 & IK07; Surface Mounting
- Power Supply: DC18-36V via 2-wire BUS
Component: BP001-18W (Power Supply)
- 2-Wire DIN Rail Power Supply
- Output: DC 36V, 0.5A
- Dimensions: 90 x 72 x 59 mm

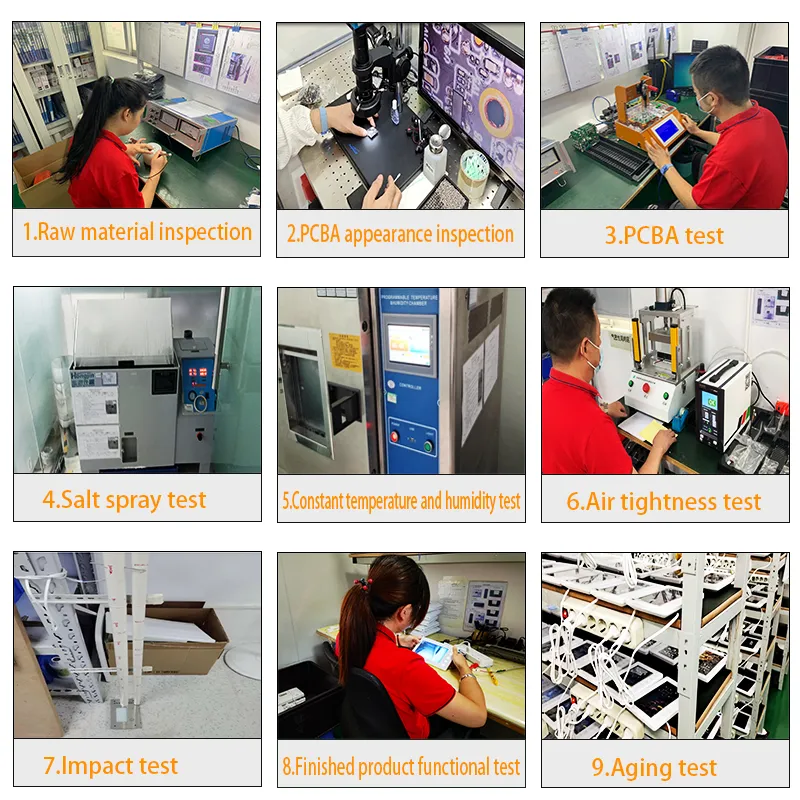

🛡️ Quality & Advantages
📜 Certifications

All models are in full compliance with CE, RoHS, and REACH standards. We ensure rigorous quality testing for all export samples.

Certification Documents

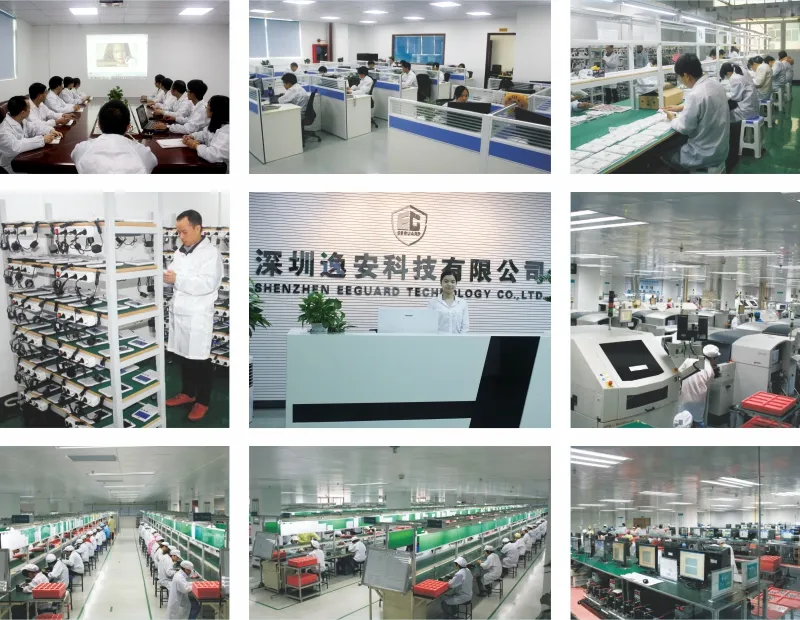

Global Standards
Frequently Asked Questions
Q: Can I get a sample to test first?
A: Yes, samples are available for quality testing at any time before placing bulk orders.
Q: Do you offer customization (OEM/ODM)?
A: Yes, we provide full OEM and ODM services, including custom logo printing, gift box designs, and functional modifications.
Q: What is the Minimum Order Quantity (MOQ)?
A: There is no MOQ for neutral models. For customized logos and packaging, the MOQ is typically 500 units per model.
Q: What is the standard lead time for orders?
A: Samples take 2-5 days. For bulk orders, the lead time is approximately 30 working days after the deposit is received.
Q: What kind of warranty do you provide?
A: We offer a 2-year warranty on all products starting from the date of shipment.
Q: Is the system compatible with mobile apps?
A: Yes, this villa kit supports the Tuya Smart App for both iOS and Android, allowing remote monitoring and unlocking.
