Product Description

Basic Specifications
Model NO.
KD-122LE
Working Mode
Active
Certification
CE, RoHS, CE En14604
Application
Indoor
Working Principle
Electro-Optical Type
Transmission Mode
Wireless
Alarm Volume
≥90dB (within 1m)
Receive Frequency
433.92MHz / 868MHz
Color
White
Power Source
DC9V + 3PCS 1.5V
Material
High-Quality ABS
Production Capacity
10,000 PCS/Day
Product Description

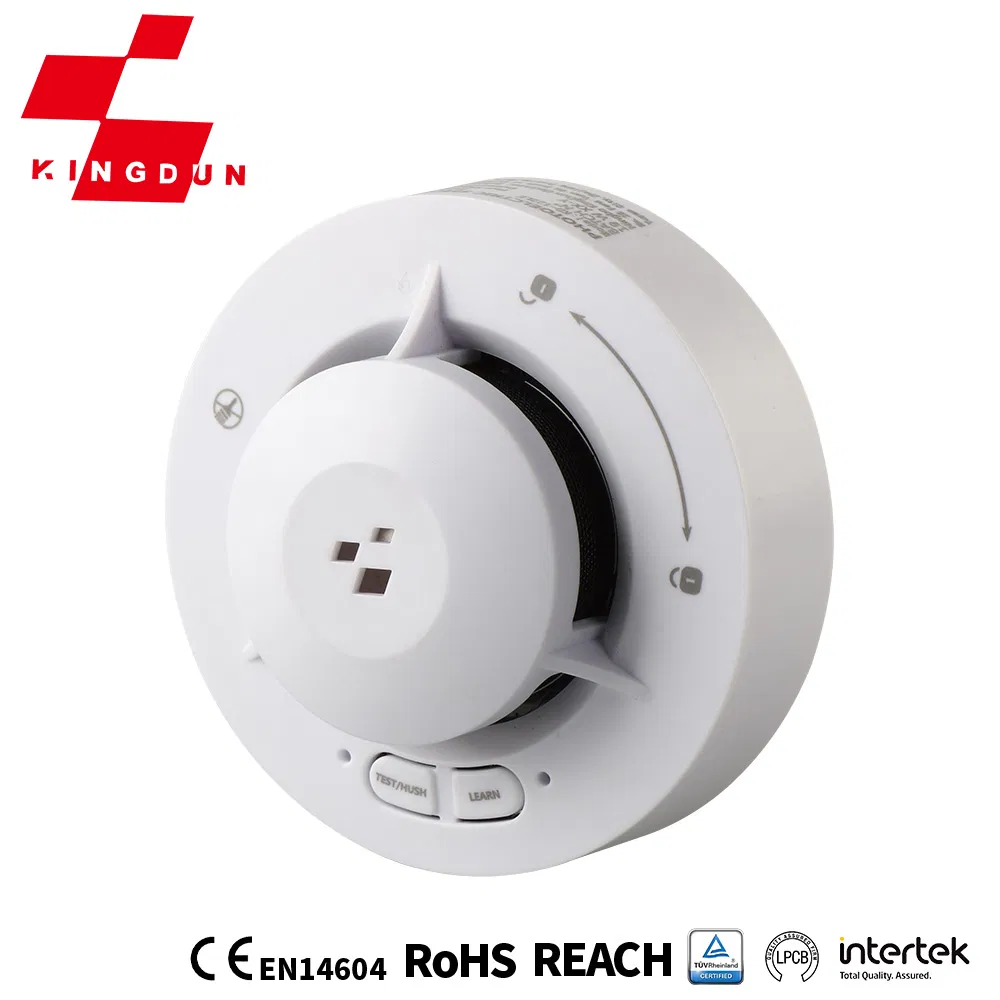

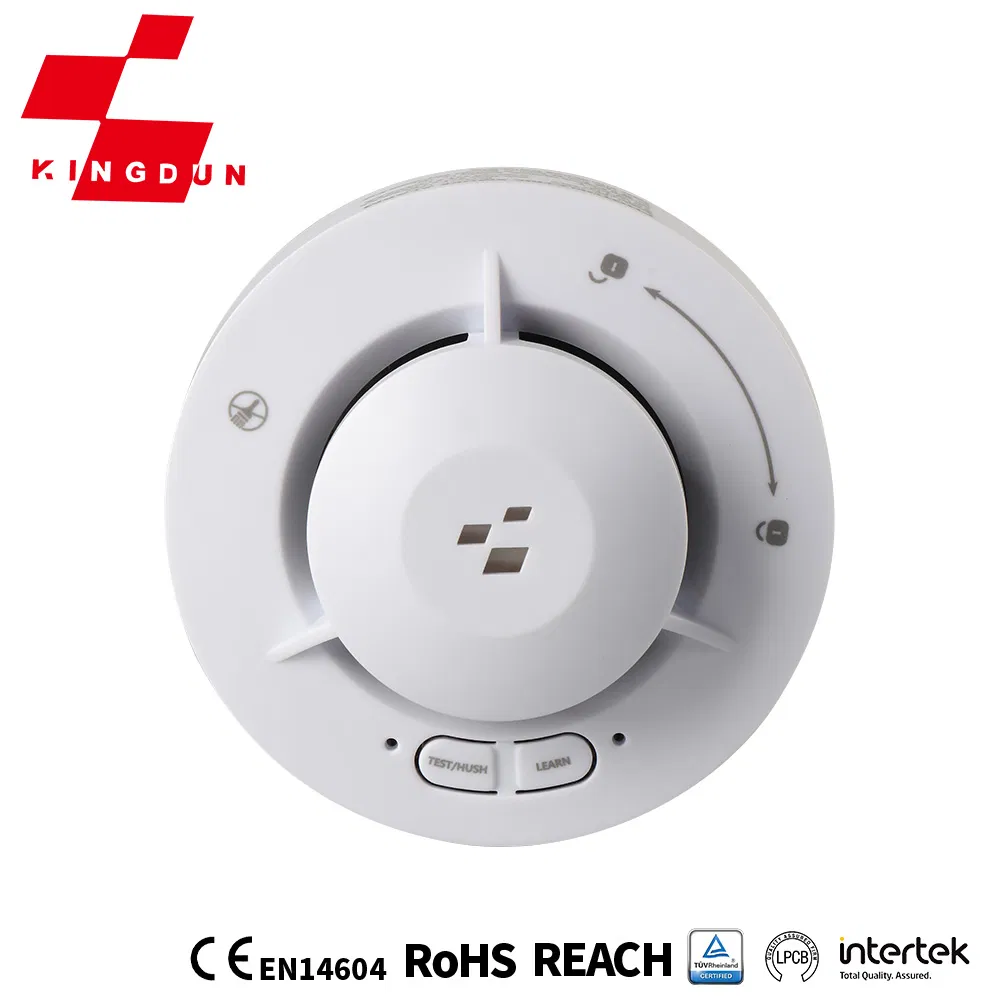

Low Power Smart Home System Wireless Best Security System

The KD-122LE Wireless Interconnectable Smoke Alarm is a highly efficient, photoelectric smoke detection device designed for low power consumption. Utilizing precise analog and digital circuitry, it ensures stable and reliable fire detection. Its primary feature is the radio frequency (RF) link interconnection, allowing all units within range to trigger simultaneously when smoke is detected by a single unit.

Key Characteristics:

  • Advanced Photoelectric smoke detection technology
  • Reliable performance with minimized nuisance alarms
  • Low power consumption for long-term monitoring
  • Portable and compact design for easy installation
  • Extended RF interlink range up to 100m (free field)
  • Integrated Push-to-Test and HUSH mode functionality
Technical Specifications
Device Performance Data
Operating Voltage DC1.5V * 2 AAA
Low Battery Warning 2.2V threshold
Standby Current ≤ 2uA
Alarm Current ≤ 120mA
Alarm Loudness ≥ 85dB at 3 meters
Radio Frequency 868MHz
Working Temperature -10ºC to +50ºC
Ambient Humidity ≤ 95%RH (no condensation)
Status Display LED (Red/Green) indicators for Standby, Alarm, Silence, and Memory modes
Detailed Product Photos

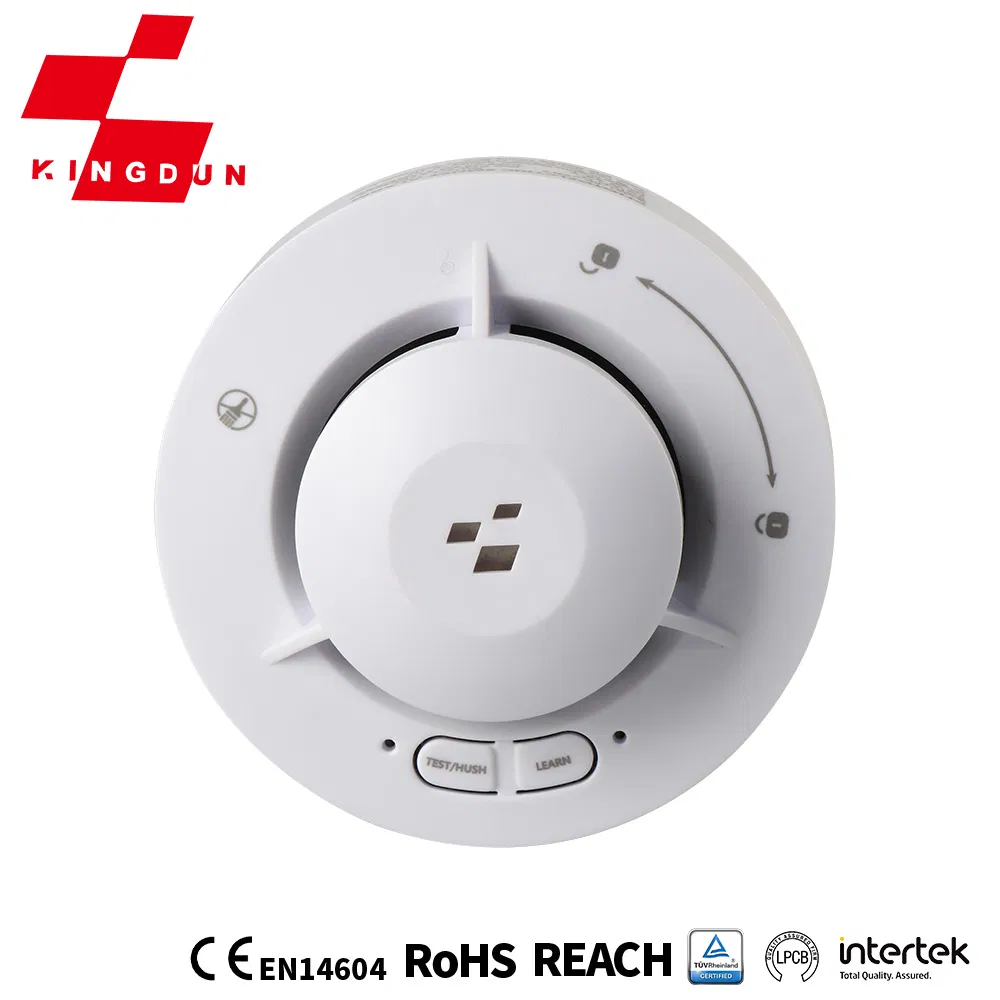

Smoke Alarm View 1

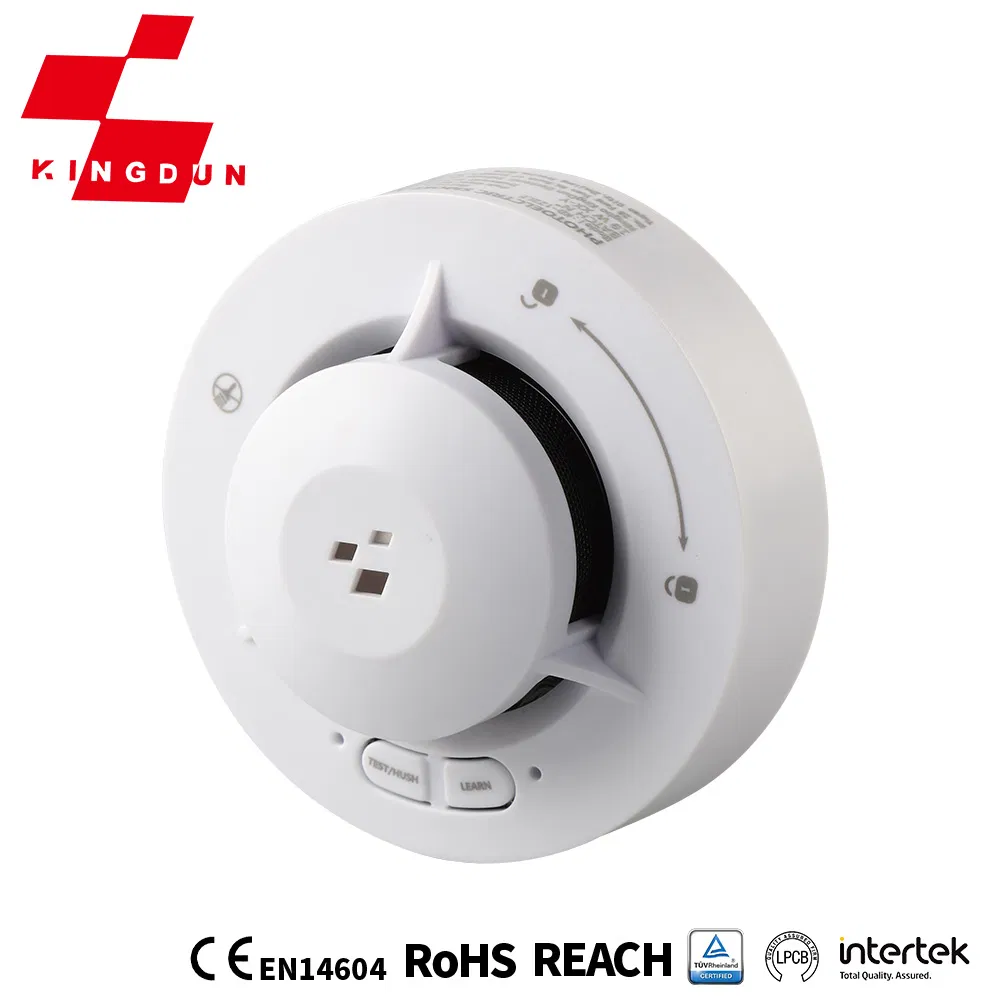

Smoke Alarm View 2
Production & Capability
Production Display 1

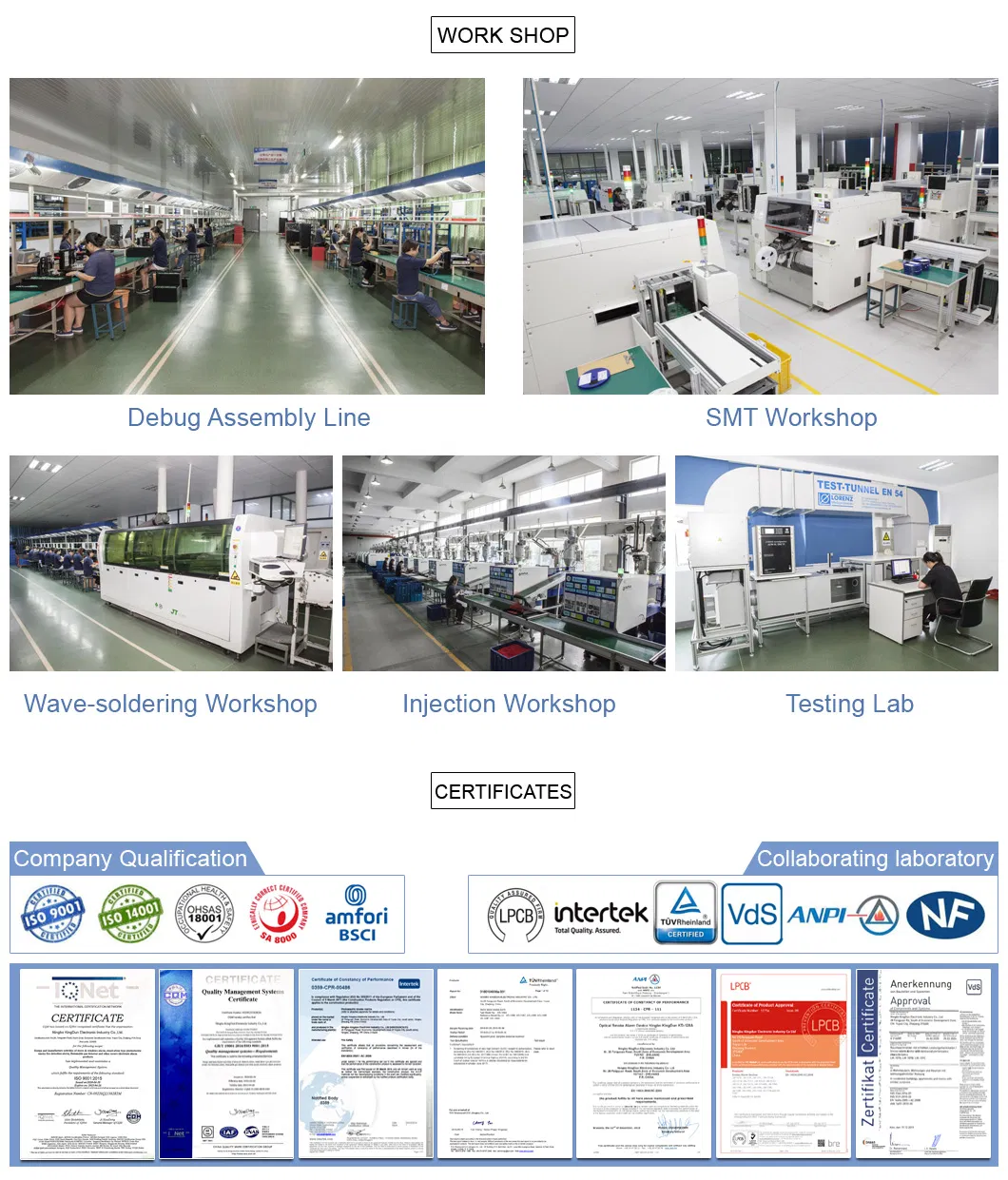

Production Display 2
Production Display 3
Production Display 4
Frequently Asked Questions
How does the wireless interconnection work?
The KD-122LE uses an RF link (868MHz). When one detector senses smoke and triggers an alarm, it sends a wireless signal to all other interconnected units within range (up to 100m in open field) so they all alarm simultaneously.
What is the alarm volume of the device?
The device provides a high-decibel alarm of ≥85dB at a distance of 3 meters, ensuring it can be heard throughout the indoor area.
How do I know if the battery is low?
The detector includes a low battery warning system. The red LED will flash every 344 seconds, and the buzzer will beep approximately every 43 seconds when the voltage drops below 2.2V.
Is there a way to temporarily silence the alarm?
Yes, the device features a "HUSH" mode. When activated, the red LED flashes every 10 seconds without sound. The device will automatically return to normal standby mode after about 9 minutes.
What kind of maintenance does it require?
We recommend using the "Push to Test" button regularly to ensure the circuitry and alarm are functioning correctly. The LED indicator also provides a standby flash every 344 seconds to show it is active.
What happens if I miss an alarm while I am away?
The KD-122LE has an alarm memory function. The green LED will flash 3 times every 43 seconds for 24 hours following an alarm event to notify you that a detection occurred.
