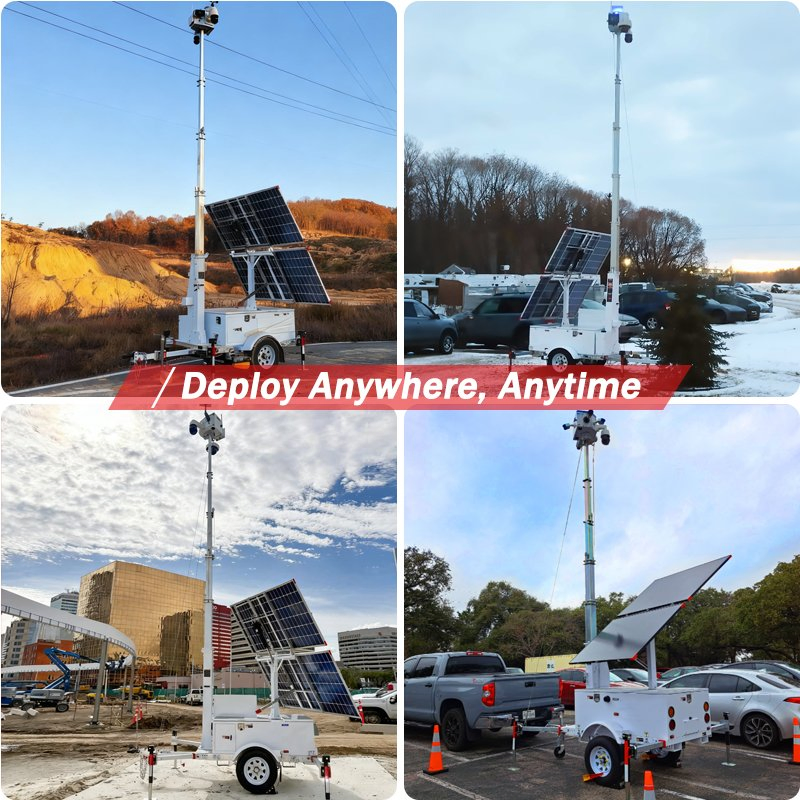

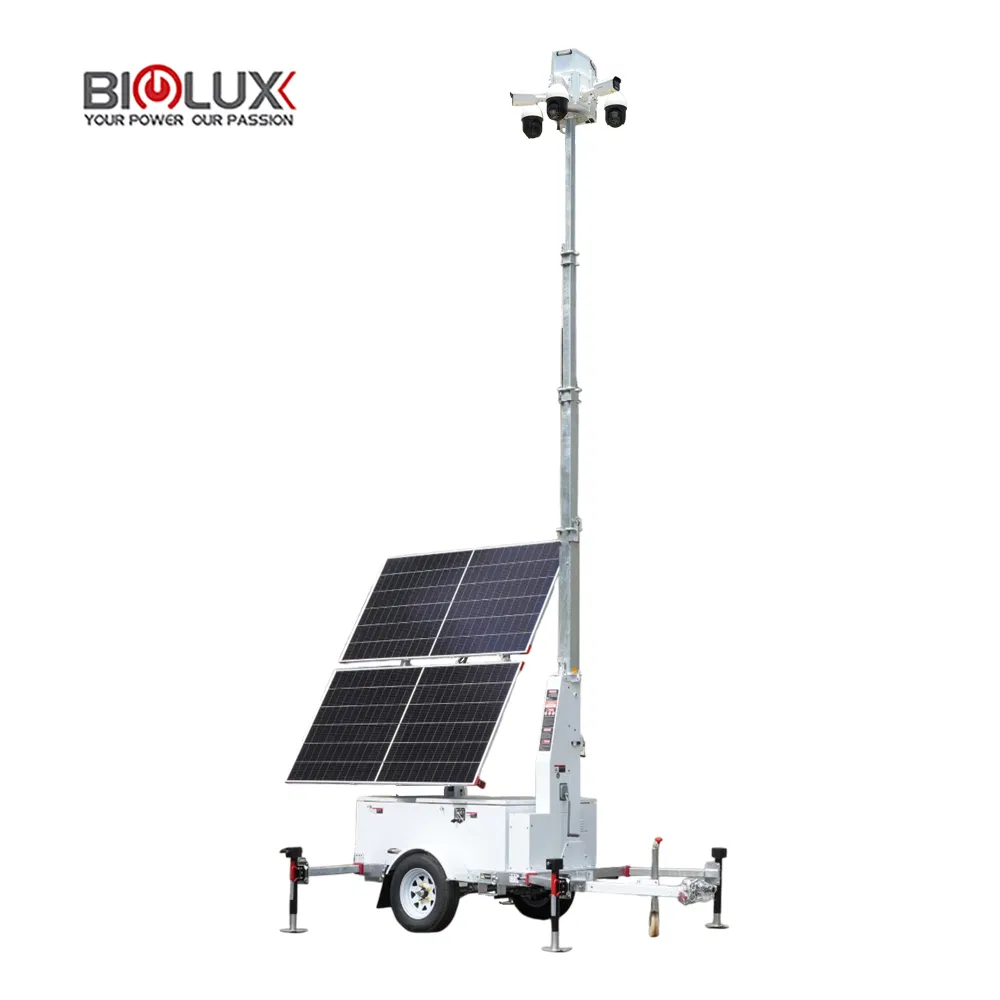

The Mobile Solar Surveillance Trailer is a flagship off-grid security solution, engineered for small-to-medium outdoor scenarios where grid power is unavailable or impractical. Ideal for rental, temporary security, and long-term off-grid monitoring, this system balances performance, portability, and cost-effectiveness—making it a trusted choice for global commercial and industrial customers.

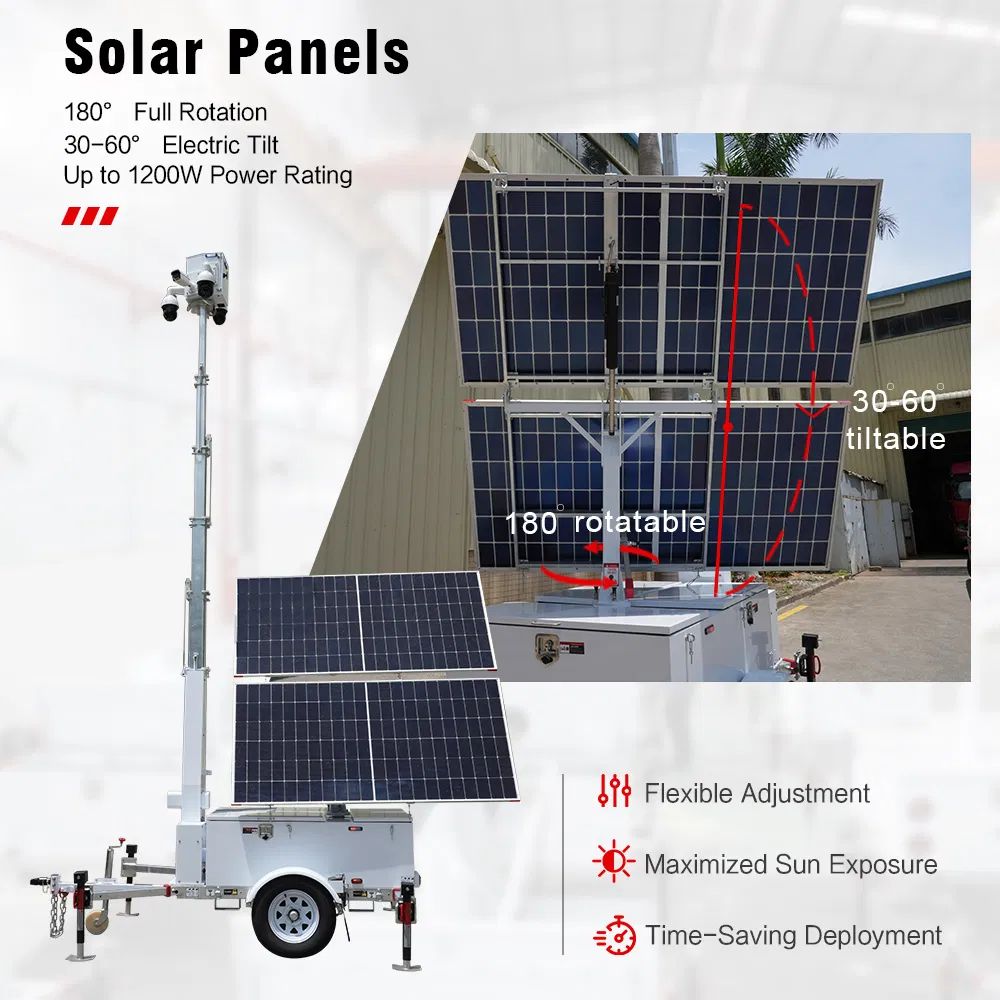

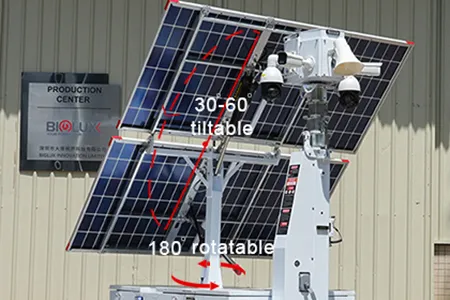

180° Full Rotation, 30-60° Electric Tilt. Up to 1200W Power Rating. Flexible adjustment for maximized sun exposure.

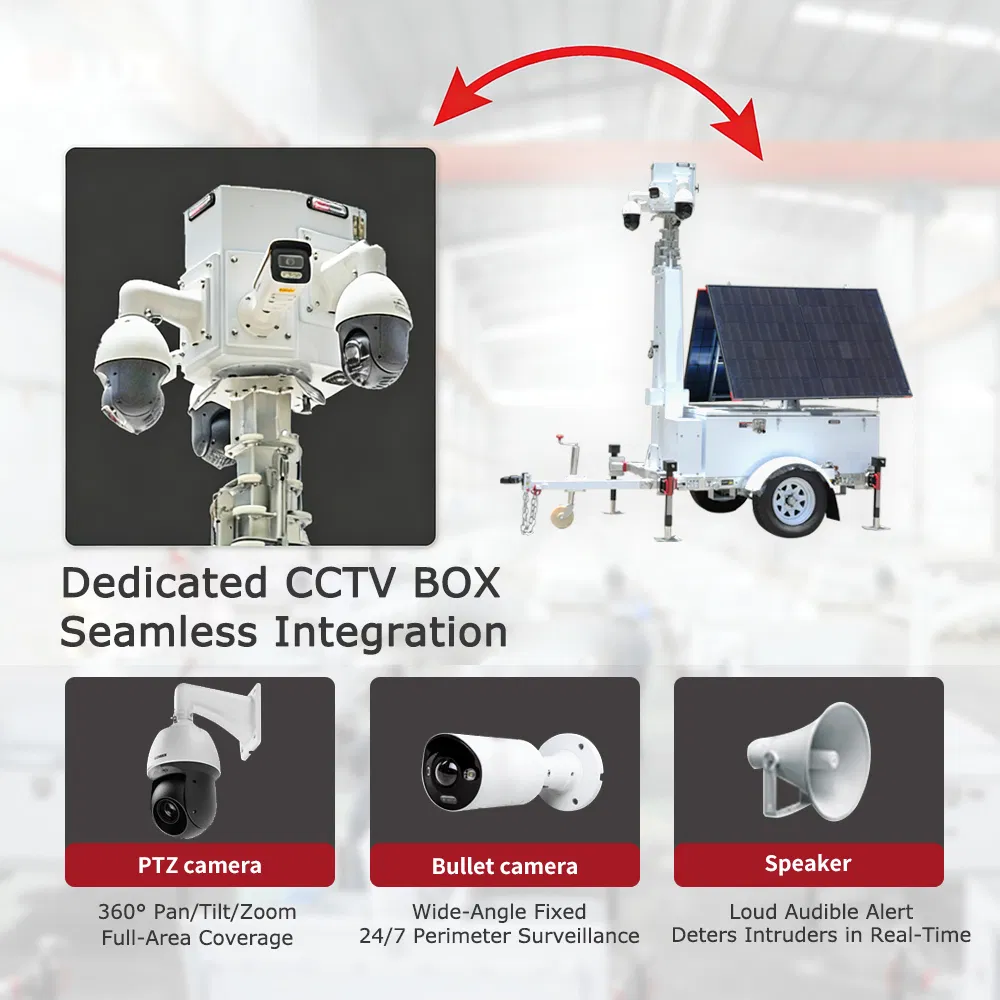

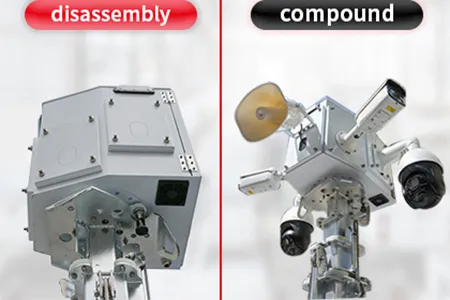

Six-Sided Structure, 360° Rotatable. Removable mounting plate, cooling fan inside, and 4 strobe lights.

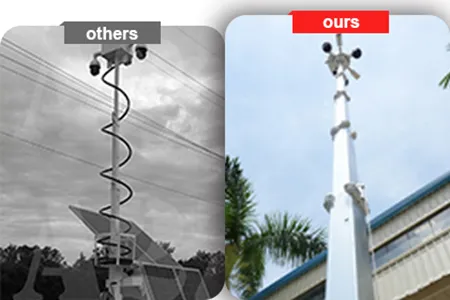

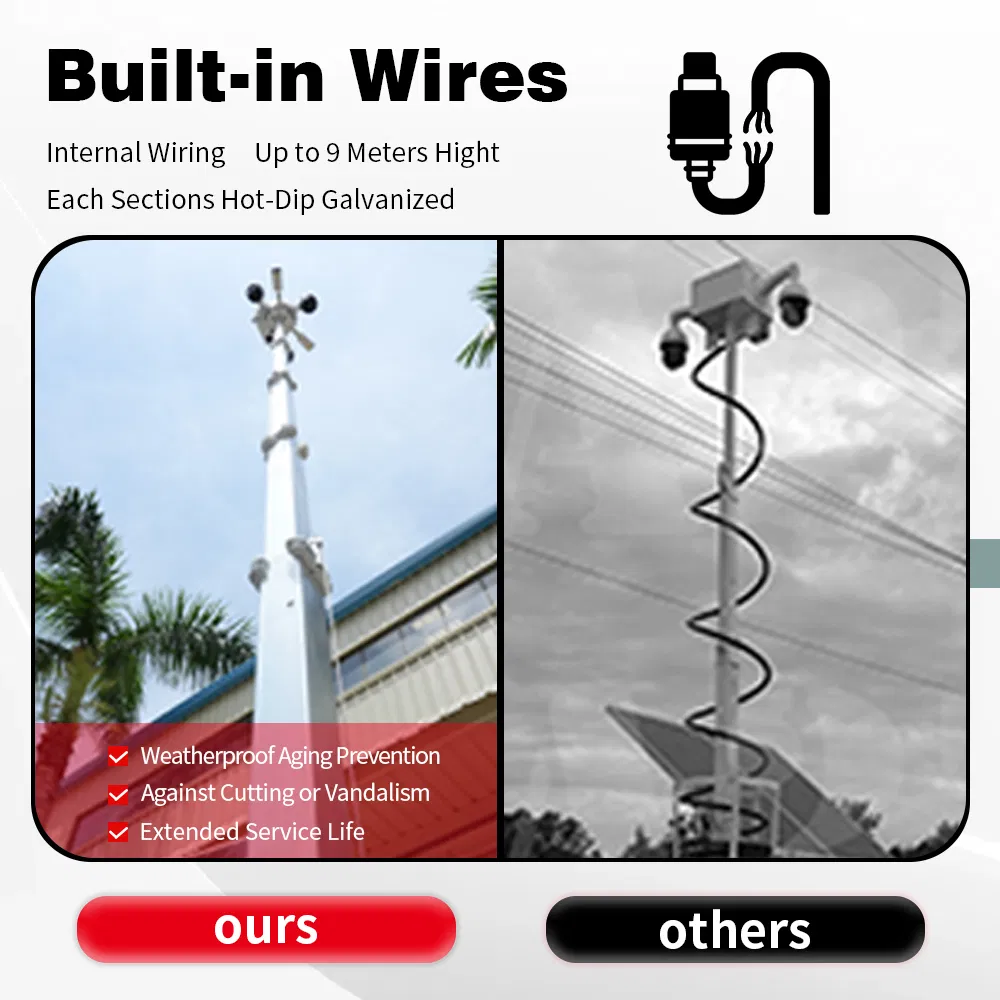

Internal wiring up to 9m height. Hot-dip galvanized sections protect against cutting, vandalism, and weather.

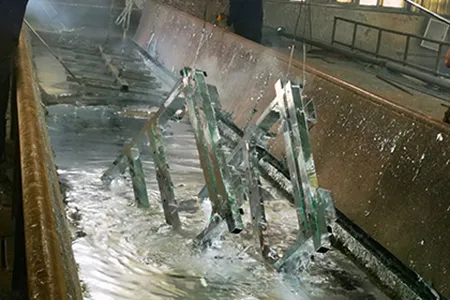

Key parts are 3x thicker than electroplating for high corrosion resistance and all-weather performance.

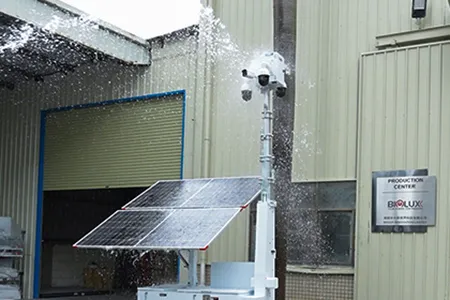

Enhanced joint sealing and blind hole fasteners. 100% moisture protection for operation in downpours.

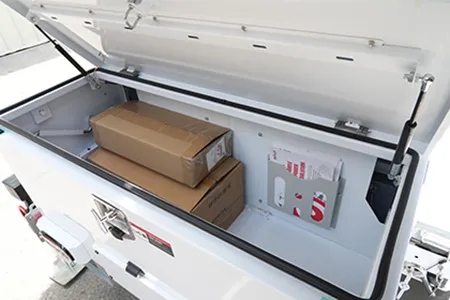

8 Square ft of capacity. Holds tools, cameras, and provides reserved space for future expansion.
| Models | BL2P-G7MHSS0B/BL2P-L7MHSS0B | BL2P-G9EHSS0P/BL2P-L9EHSS0P |
|---|---|---|
| Solar System | 2×450W Panels (180° Rot / 30-60° Tilt) | 2×600W Panels (180° Rot / 30-60° Tilt) |
| MPPT Controller | 50A (Remote Monitoring) | 150/45A (Remote Monitoring) |
| Battery | GEL 9600Wh / LFP 8038Wh | GEL 12000Wh / LFP 14336Wh |
| CCTV Box | 350° Rotatable, 8-Port POE Switch, 4 Strobe Lights, Cooling Fan | |
| Telescopic Mast | 6.5m Manual Winch, Galvanized | 8.5m Electric Winch, Galvanized |
| Working Temp. | -20℃ ~ 55℃ | |
| Backup Time | 72 Hours (90W Load) | 72 Hours (133W Load) |
| Gross Weight | 1000KG | 1100KG |

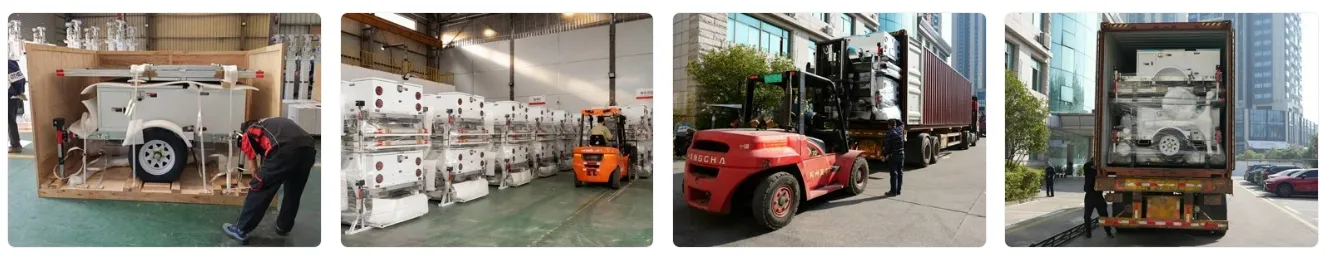

Packaging Details: Single units are packed in custom solid wooden boxes with shockproof foam. Bulk shipments utilize standard container packaging with internal reinforcement, reducing shipping costs by 25%+.
Handling: Forklift holes and lift rings enable local transport without specialized equipment. Standard samples ship within 2 weeks; bulk orders deliver in 1 month.
