Utilizing ARM chip technology, TCP/IP network integration, and a real-time embedded OS, this PMS leads the parking system into a new IP digital age.
1

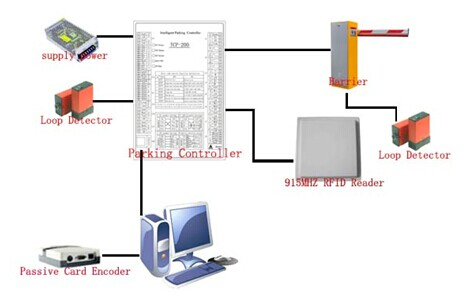

Full TCP/IP communication network: Includes WEB Server, PC charging terminal, and System Controller. Uses classical CS framework integrated by TCP/IP network.
2
16 Respective Park Management: Supports 16 respective parks/zones with independent access authorization, charge rates, and statistical data.
3
253 Access Control Terminals: Supports up to 253 Entry/Exit controllers or charging terminals with flexible IP address settings.
4
Flexible Charging: Offers various charging modes to suit different parking requirements.
5
Real-time Intercom: Supports unambiguous two-way intercom between access controllers and charging terminals.
6
Voice Prompt: Features onboard digital audio synchronized with LED displays for clear guidance.
7
Field Upgrading: System can be upgraded on-site or online via software updater for new functions or voice modifications.
8
Auto-Switch Mode: Supports both On-line and Off-line work; data uploads automatically after reconnection.
9

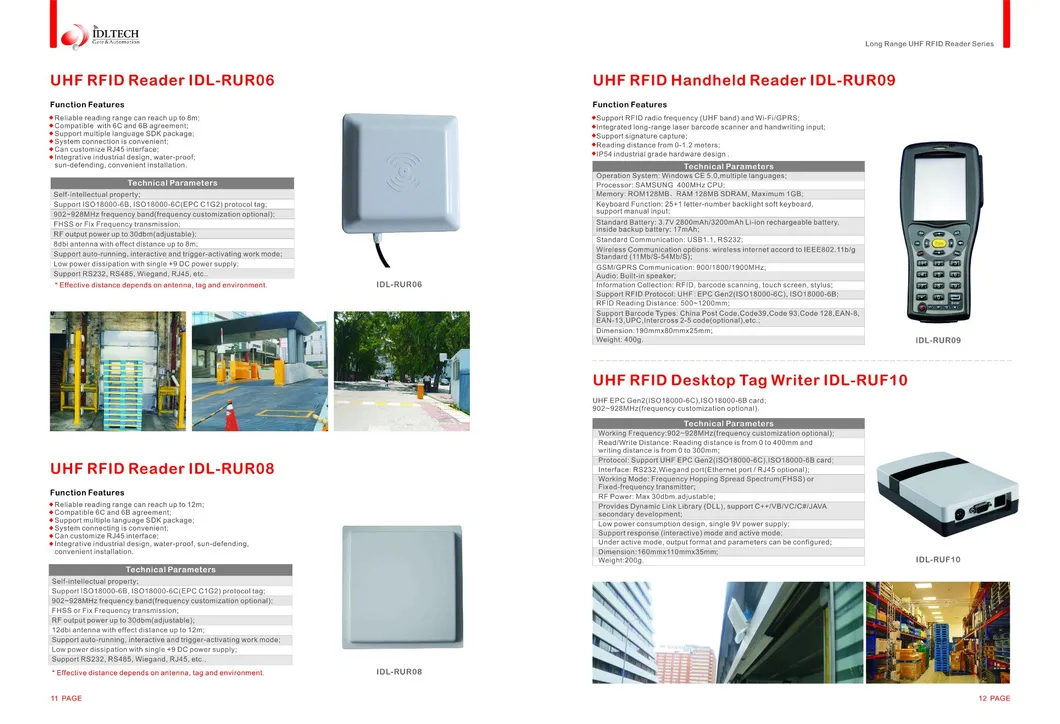

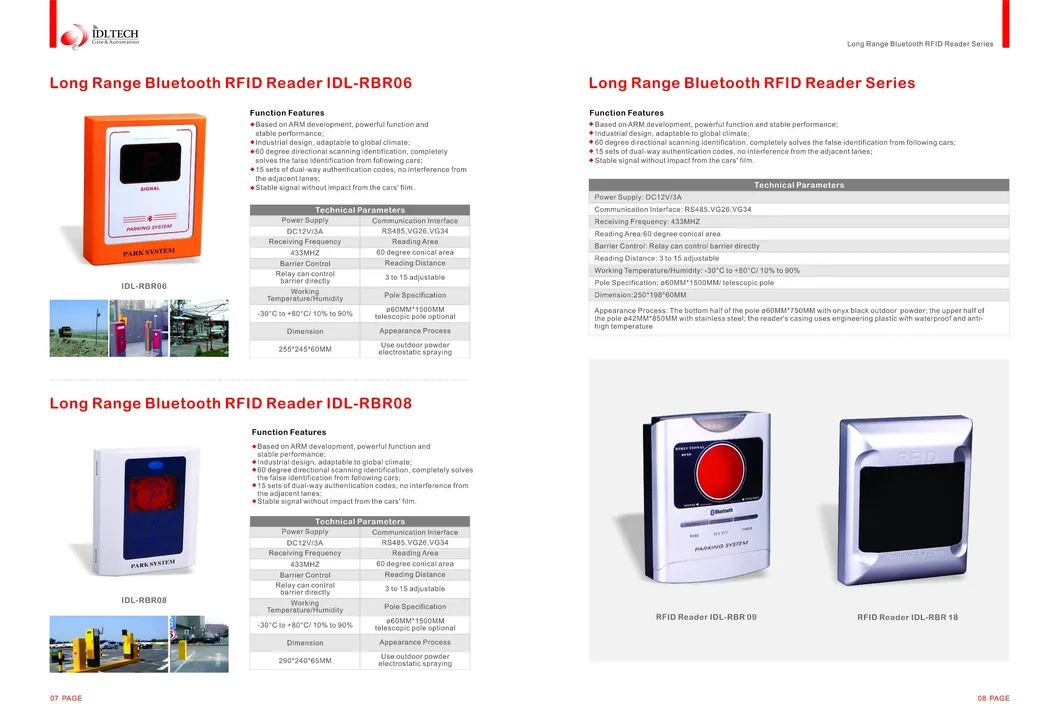

Various RFID Card Support: Compatible with 13.56MHz Mifare, 125KHz EM, 900MHz long range, and 2.4GHz Bluetooth cards.
10

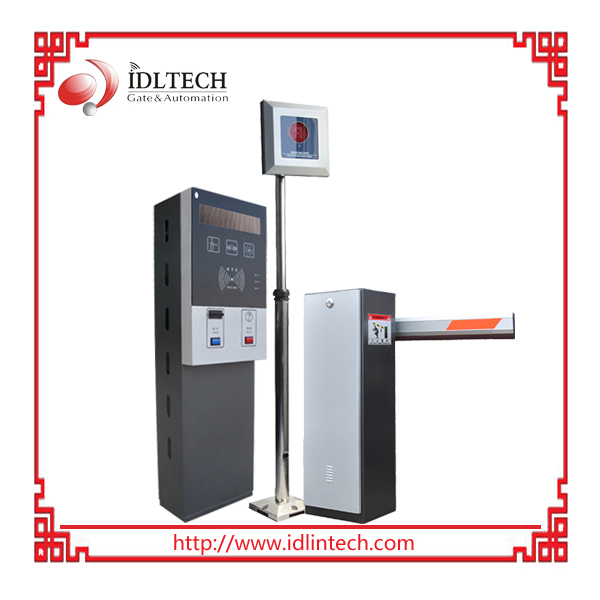

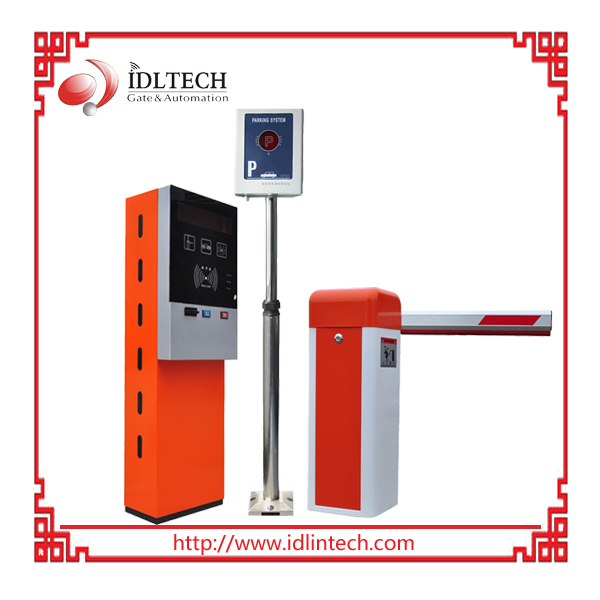

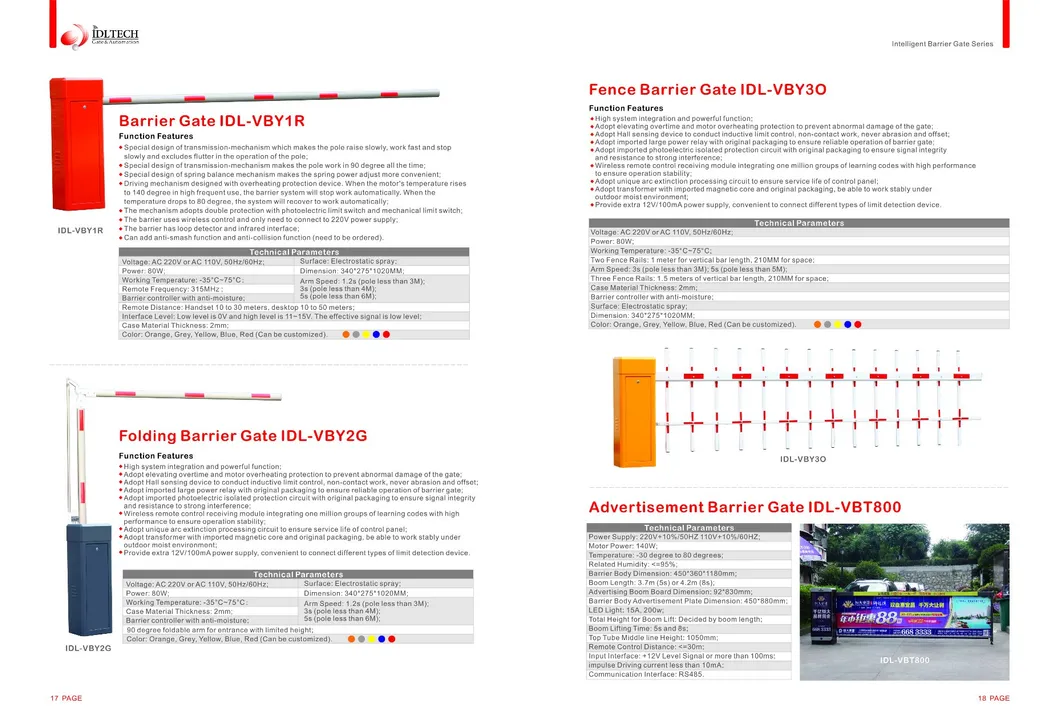

Barrier Gate Interface: Includes control and state feedback interfaces for intensive gate management on the server.
| Working Voltage | DC12V |
| Working Temperature | -30 to 70 degree |
| Output Relay | 4 |
| I/O Interface | 4/4 |
| RS232/RS485 | 2/1 |
| Wiegand 26 Interface | 2 |
| Network Communication | TCP/IP |
| Memorable Card Information | 20,000 |
Frequently Asked Questions
What communication network does the system use?
The system utilizes a full TCP/IP communication network, allowing every terminal or server to be managed via a PC within the Local Area Network (LAN).
Does the parking system support offline operation?
Yes, the system features an auto-switch function. It supports offline work, and once the connection is restored, all data is automatically uploaded to the server.
How many parking zones can be managed simultaneously?
The system can manage up to 16 independent parks or zones, each with its own independent access authorization and charging rates.
Which types of RFID cards are compatible?
It supports various cards including 13.56MHz Mifare (S50/S70), 125KHz EM4001 (ID card), 900MHz long-range ID cards, and 2.4GHz Bluetooth cards.
Can the system be upgraded after installation?
Yes, the system supports field upgrading. You can add functions or modify voice prompts on-site or online using the software updater.
Is there a voice guidance feature for users?
Yes, the system includes digital audio voice prompts that work synchronously with the LED display to provide real-time guidance to drivers.
