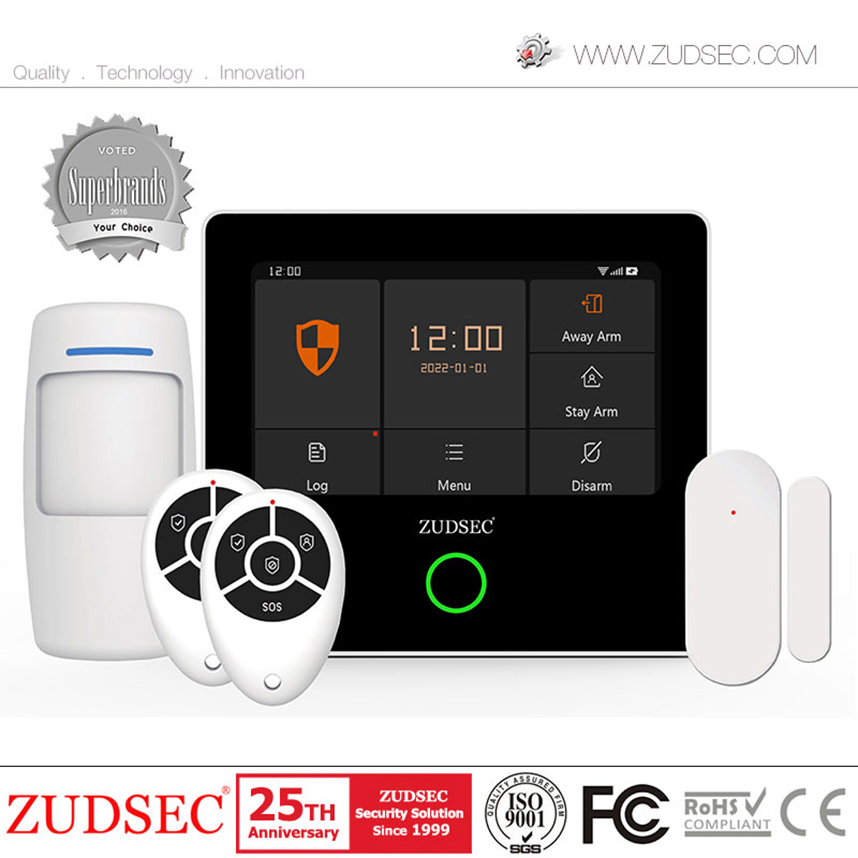

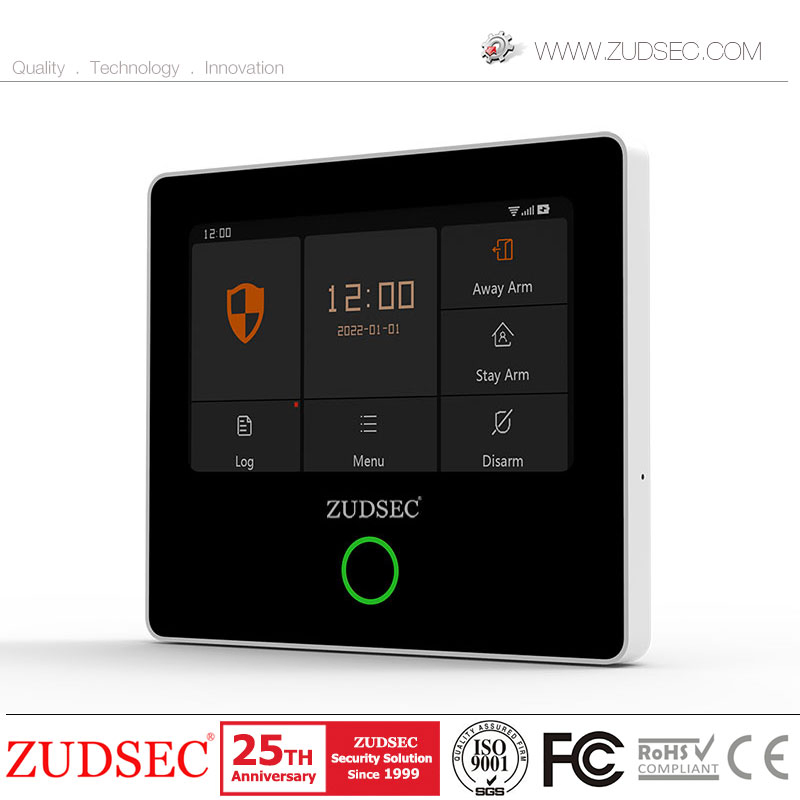

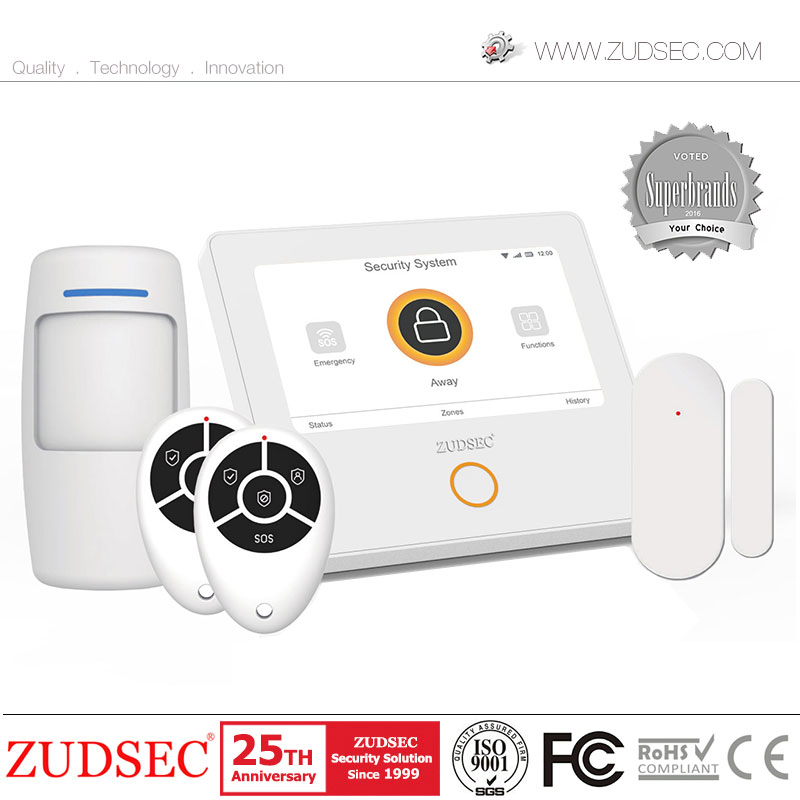

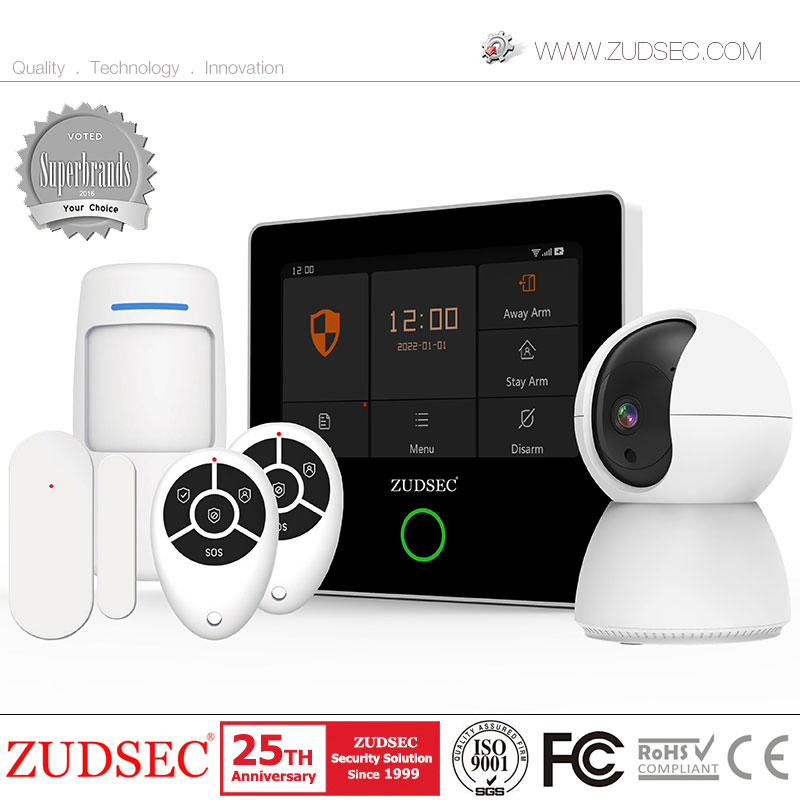

Tuya Smart Home Security Alarm System WiFi GSM Panel with Built-in Siren 433MHz Door Motion Sensors

1 / 5

Tuya Smart Home Security Alarm System WiFi GSM Panel with Built-in Siren 433MHz Door Motion Sensors

Customization:	Available
Type:	Anti-Theft Alarm
Signal Transmission:	Wireless Alarm

Send Inquiry

Product Description

1 Basic Information

Model NO.	ZDAS-P9	Working Mode	Passive
Certification	CE, ISO, FCC, RoHS	Application	Indoor
Working Principle	Electro-Optical Type	Transmission Mode	Wireless
Alarm Volume	≥110dB (within 1m)	Frequency	433.92MHz
GSM Network	2G/4G SIM Card	WiFi Network	2.4GHz Wi-Fi

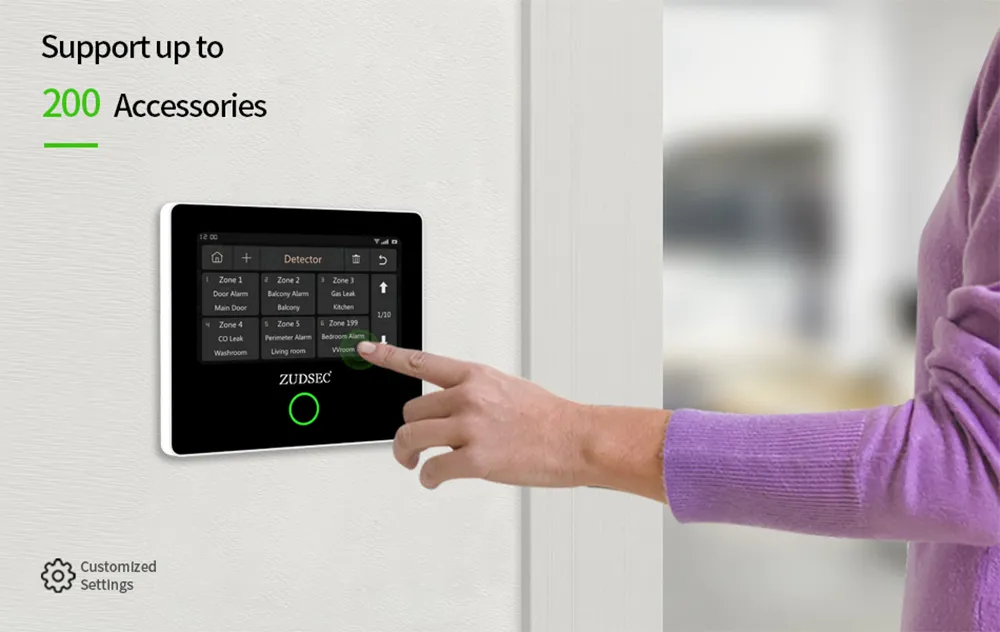

APP Control	iOS & Android	Protection Zone	Up to 200 Wireless Sensors
Backup Battery	3.7V, 1500mA Built-in Li-ion	Panel LCD	4.3" TFT Full Touch Screen
Production Capacity	1,000,000 PCS/Year	HS Code	85319010

2 Product Description

Tuya Smart Home Security Alarm System WiFi GSM Panel with Built-in Siren 433MHz Door Motion Sensors

GSM+WiFi Dual Network Technology, 600MHz high-speed smart chip, Support 100 wireless sensors, Built-in IPS Color full High-Sensitive touch Screen. Support 5 Alarm call, and can work with IP Camera to check the on-site status once alarm. Immediate detection and quick response times help protect you from intrusion, fires, and more. Control your home from virtually anywhere using our intelligent convenient mobile app.

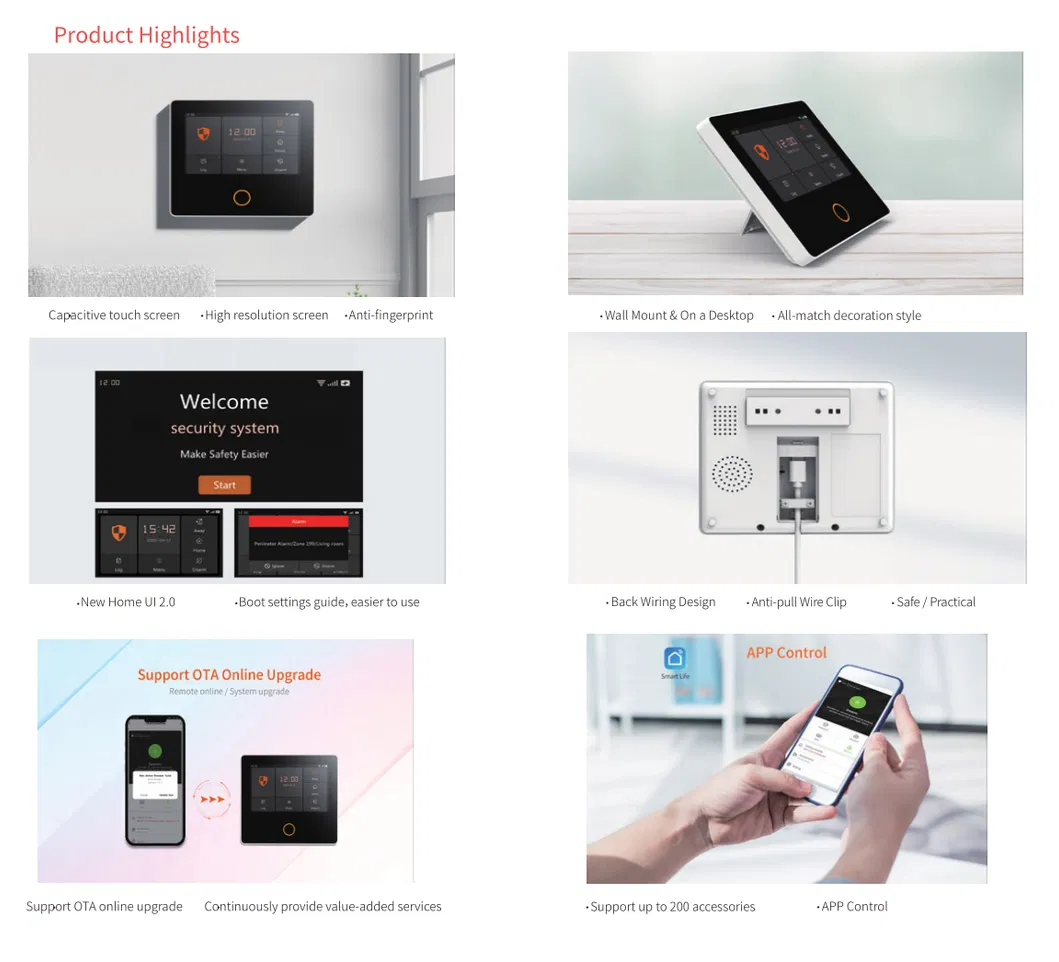

3 Key Features

4.3 inch IPS color display, full capacitive touch screen operation

User-friendly Quick installation Guide

GSM & WiFi Dual Network for redundant security

Support APP push, SMS, and voice monitoring

Multi-Language menu & Operation tone guide

Two-way intercom function

Learning code between accessories and host

Low battery alert & tamper alarm function

Integrated IP camera and smart home support

Supports OTA remote firmware upgrades

4 Product Parameters

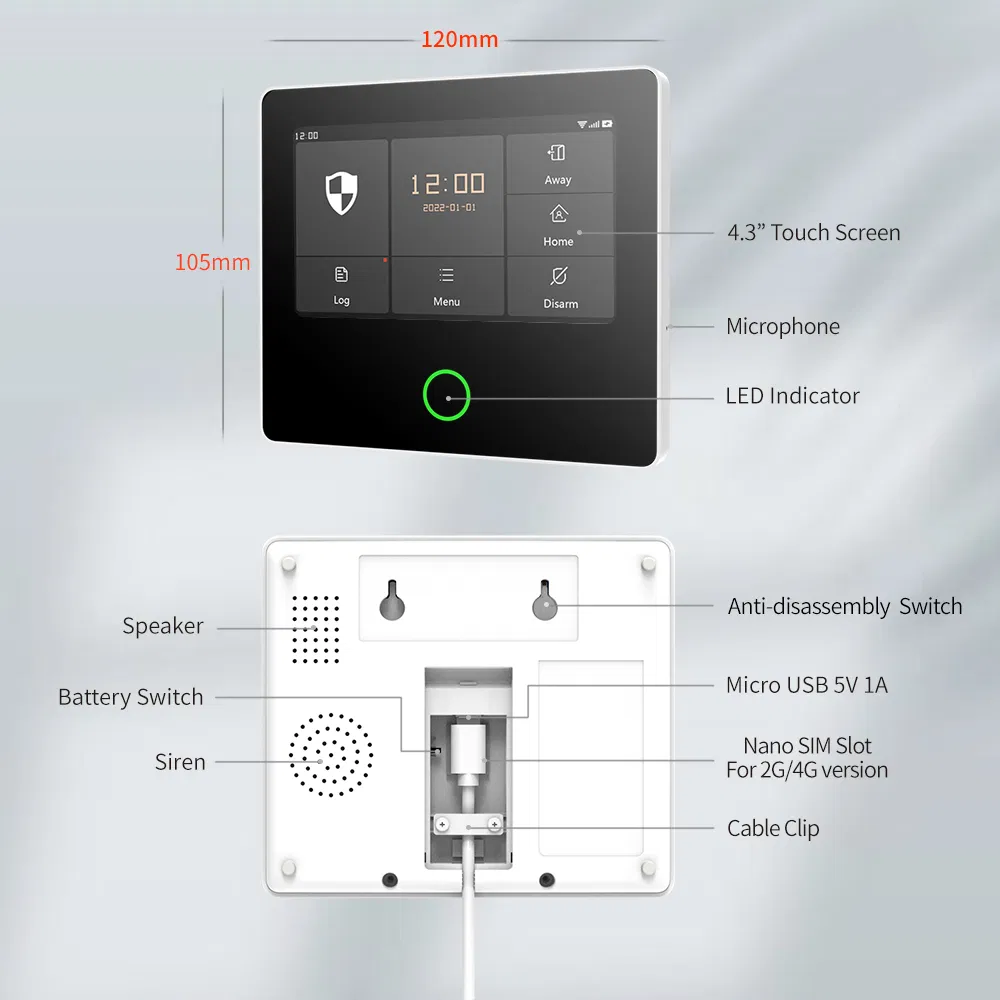

Display: 4.3" ISP Touch panel (480*272)
CPU: 600MHz high-speed smart chip
Zones: 99 wireless zones

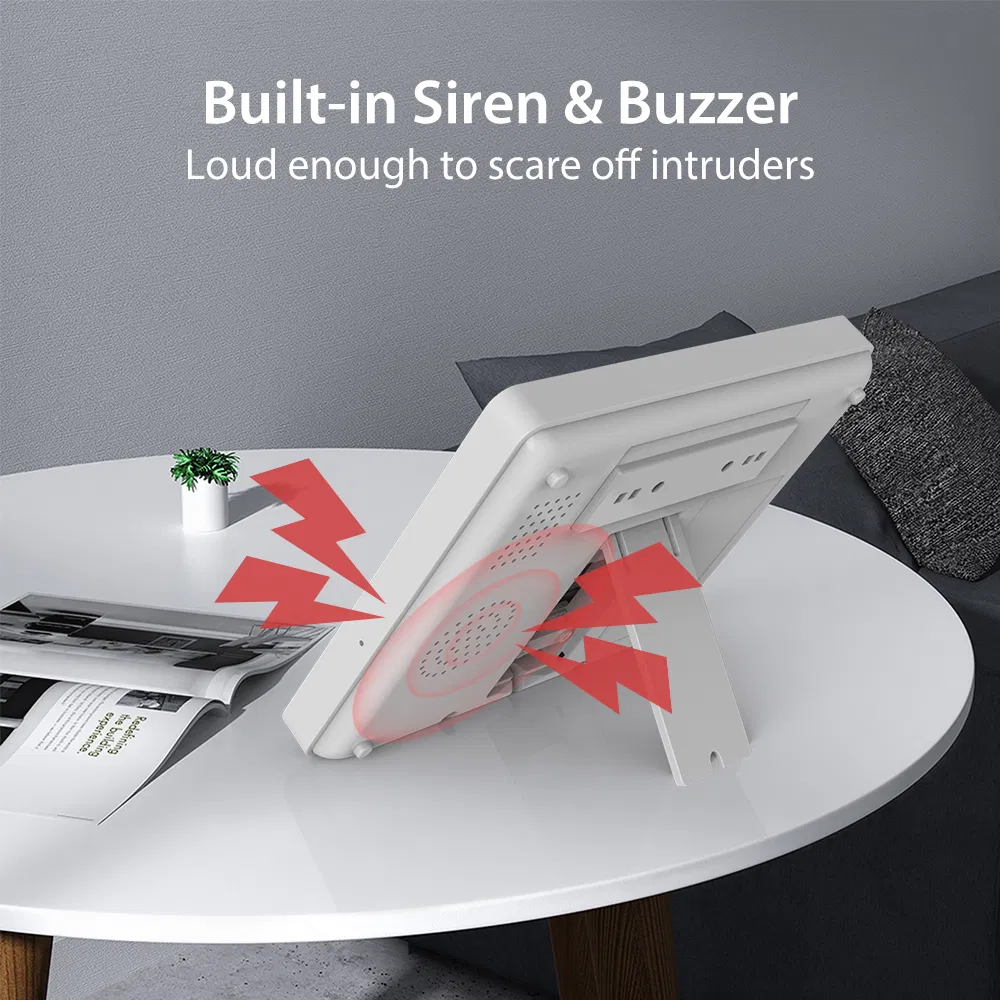

Siren: Internal 115dB

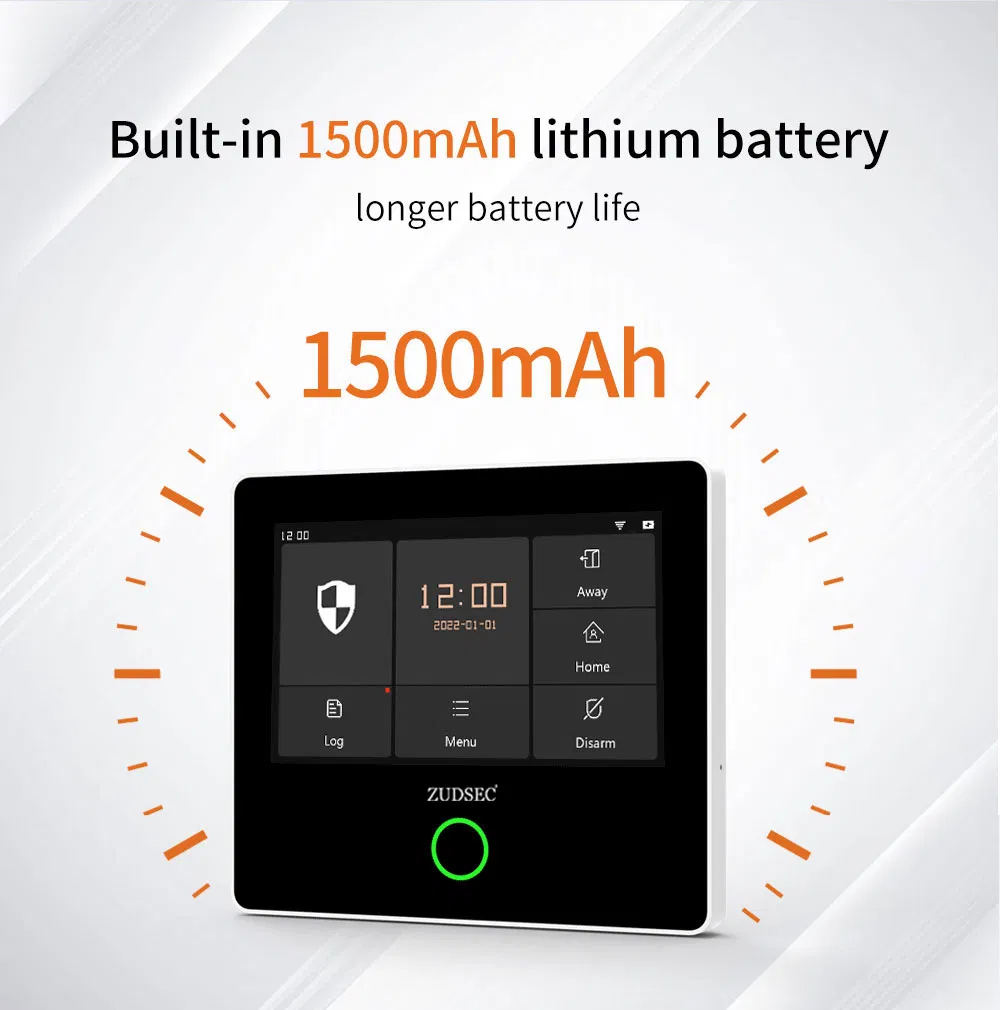

Battery: 3.7V 1500mAh lithium
Power: DC5V-1.0A, Micro USB
Consumption: <1.5W
Wireless: 433MHz, eV1527 encoding
Network: 4G (850/900/1800/1900MHz)
WIFI: IEEE802.11b/g/n 2.4G
Temperature: -10~55ºC
Humidity: <95%
Size: 120×105×15mm

5 Related Accessories

Frequently Asked Questions

Q1: Does this system support both WiFi and cellular networks?

A: Yes, it features GSM+WiFi Dual Network Technology. If the WiFi goes down, the system can switch to the cellular network (2G/4G SIM) to send alerts.

Q2: How many wireless sensors can I connect to this panel?

A: The system supports up to 100 wireless sensors and 99 wireless zones, allowing for comprehensive home coverage.

Q3: Is there a mobile app for remote control?

A: Yes, it is fully compatible with the Tuya Smart or Smart Life app, available on both iOS and Android.

Q4: What happens during a power outage?

A: The panel has a built-in 3.7V 1500mAh lithium backup battery that keeps the system running for several hours if main power is lost.

Q5: Can I upgrade the system firmware myself?

A: Yes, the system supports OTA (Over-The-Air) updates, meaning you can upgrade the firmware remotely through the mobile application.

Q6: Does it support two-way communication?

A: Yes, the panel features a two-way intercom function, allowing you to listen in or speak through the alarm panel.
