Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
1 / 5
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System
Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System

Hottest Tuya Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System

Customization: Available
Type: Home Alarm
Signal Transmission: Wireless Alarm
Send Inquiry

Product Description

Basic Info.

Model NO.:ZDAS-F5-ESP
Working Mode:Passive
Certification:CE, ISO, FCC, RoHS, CCC
Application:Indoor
Working Principle:Electro-Optical Type
Transmission Mode:Wireless
Alarm Volume:≥100dB
Receive Frequency:433.92MHz
Product Name:Wireless GSM WiFi Home Security Alarm System
Wireless Distance:100m Open
Defense Zone:50 Wireless + 6 Wired Zones
Material:ABS
Support:Android APP and iOS APP Control
Warranty:1 Year

Product Description

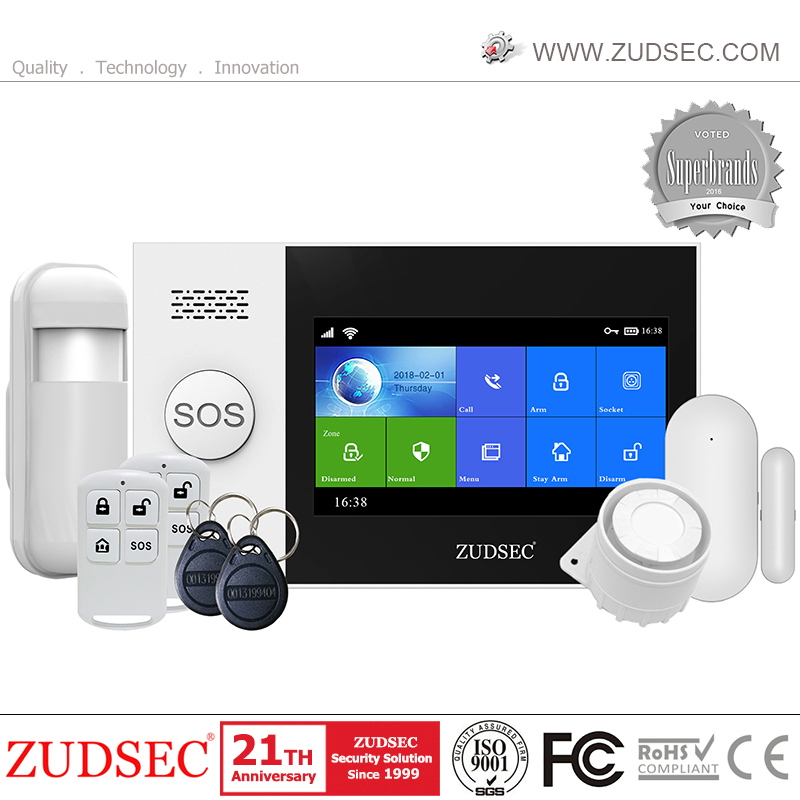

TUYA Smart APP House Wireless Burglar GSM WiFi Home Security Alarm System

The system is a 4.3" TFT Color full touch screen panel which supports GSM+WiFi Dual Network Technology. Features include SMS & WiFi Push notifications, Two-Way intercom, RFID tags, and Exit/Entry delays. It supports up to 100 wireless sensors/RFID cards/remotes and 4 wired zones. The system ensures continuous protection; if the internet service is interrupted, it automatically alerts via GSM call or SMS.

System Features

  • GSM wireless network + WiFi network dual protection.
  • 4.3" TFT Full Touch screen panel with large SOS button.
  • Multi-Language menu and operation tone guide.
  • Support iOS & Android APP control with instant push notifications.
  • Support 100 wireless zones/RFID cards/remote controls.

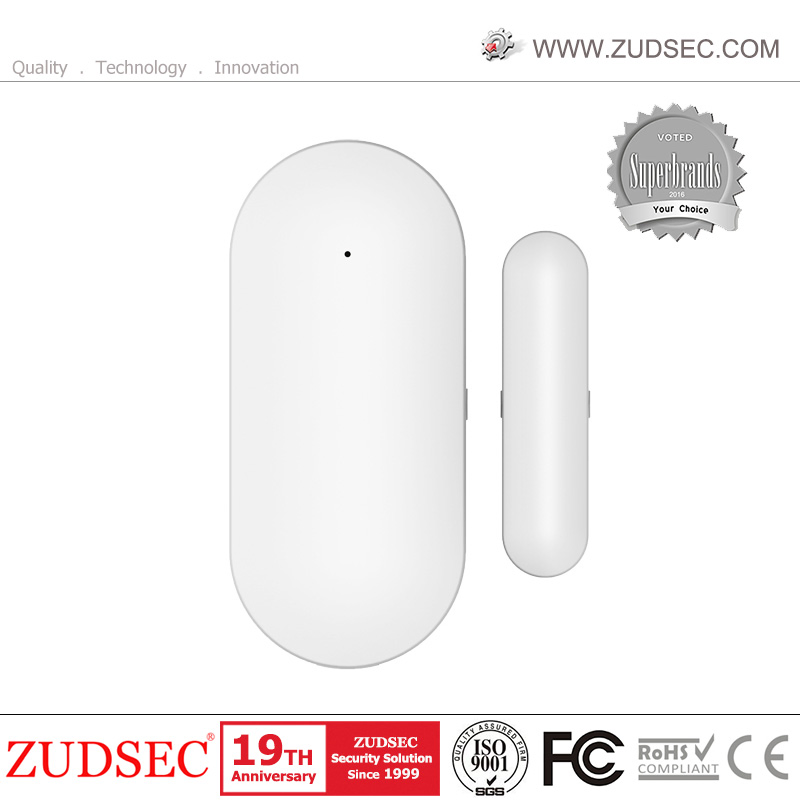

  • Intelligent door sensor with Open/Close status signal.
  • Automatically dials 5 phone/SMS alarm numbers when triggered.
  • Advanced zone attributes with customizable zone names.
  • Built-in Li-ion backup battery (works for up to 2 hours).

Technical Specifications

Parameter Details
Alarm CommunicationGSM Dialing and WiFi Network
GSM Frequency850/900/1800/1900MHz (Quad-Band)
Wireless Frequency315MHz / 433MHz
Protection Zones99 Wireless Zones
Working VoltageInput: AC 110~220V; Output: DC5V / 1A
Static Current<200mA
Backup Battery3.7V, 500mA Li-ion
Wireless DistanceOpen space: >200m; Indoor: 30~50m
Alarm VolumeInternal: 45dB; External: 110~120dB
ProtocolAdemco Contact ID
Working Temp-20 ~ 55°C

Product Display

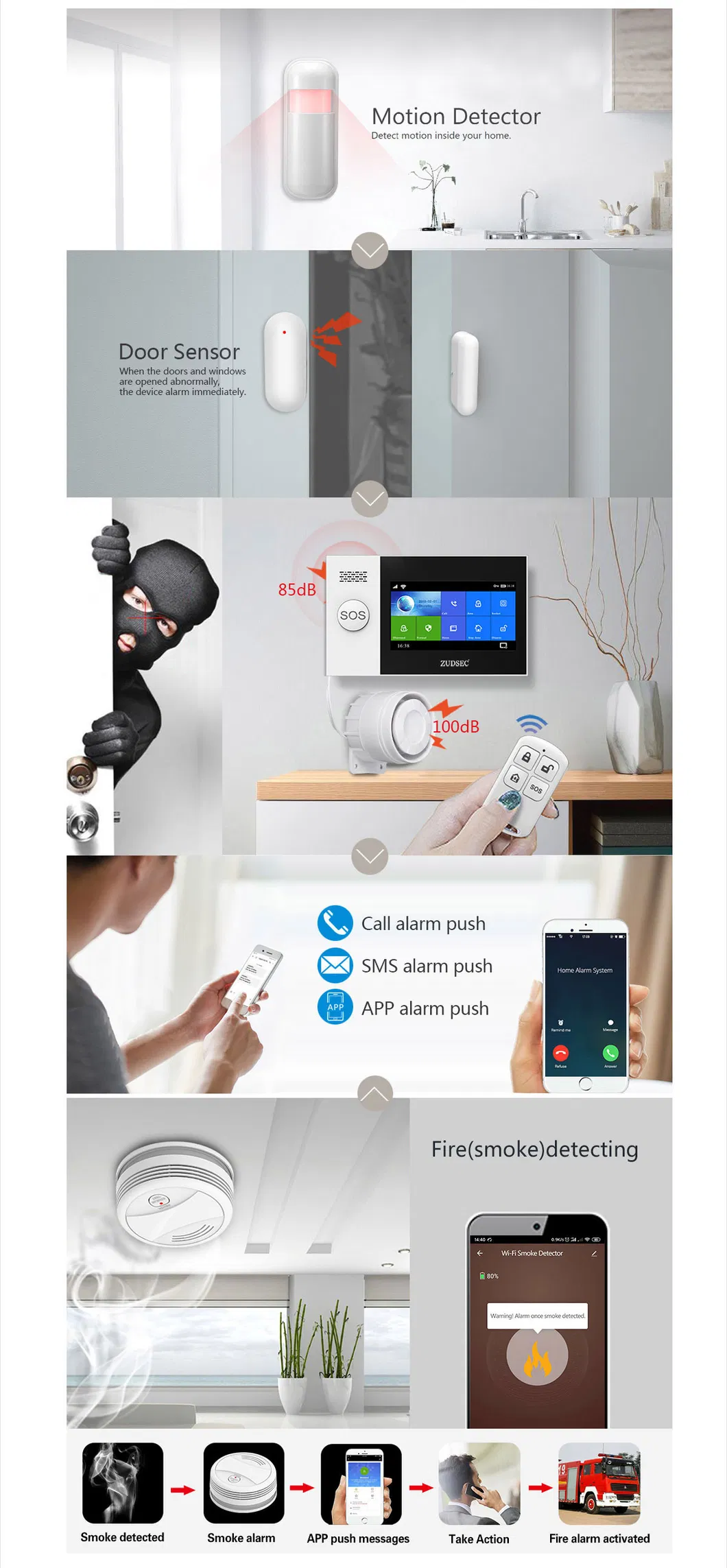

Security System Overview Product Features APP Interface Installation Diagram

Related Accessories

Sensor A
Sensor B
Sensor C
Remote Control
Full Kit

Frequently Asked Questions

Q1: Does this system support both WiFi and GSM? A: Yes, it features dual-network technology. It uses WiFi for primary APP notifications and GSM (SIM Card) as a backup for calling or texting during internet outages.
Q2: How many wireless sensors can I add? A: The system supports up to 100 wireless zones, allowing you to connect a wide variety of sensors including PIR motion detectors, door/window sensors, and smoke detectors.
Q3: Is there a mobile app for remote control? A: Yes, it is fully compatible with the TUYA Smart or Smart Life APP, available for both iOS and Android devices.
Q4: What happens if there is a power failure? A: The system has a built-in rechargeable Li-ion backup battery that can keep the panel functional for approximately 2 hours and will alert you if the external power fails.
Q5: Can I connect wired sensors to this system? A: Yes, the system includes 4 to 6 wired zones for integrating traditional wired security peripherals.
Q6: Does the panel have a loud siren? A: The panel has a built-in alarm sound, and the kit typically supports an external wired siren with a volume of up to 110-120dB.
