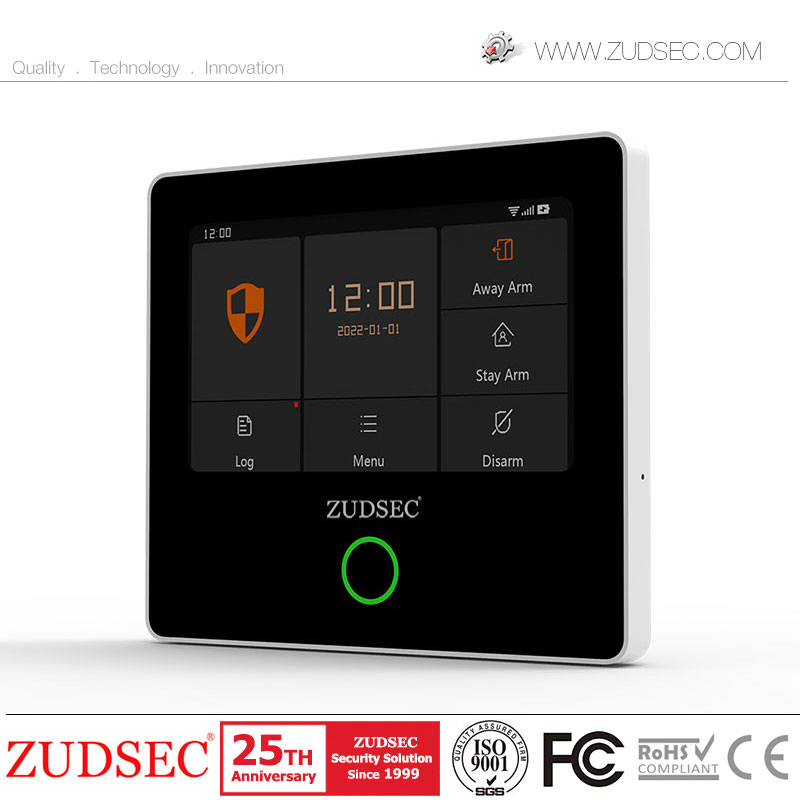

Tuya WiFi 4G Home Security Alarm System with Wired Wireless Smart Zones

1 / 5

Tuya WiFi 4G Home Security Alarm System with Wired Wireless Smart Zones

Customization:	Available
Type:	GSM Alarm
Usage:	Door, Auto, Personal, Window, Fire, Smoke

Send Inquiry

Product Description

📋Basic Specifications

Certification

CE, ISO, FCC, RoHS

Alarm Volume

≥110dB (within 1m)

Networking Mode

GSM Dial-up / WiFi

Frequency

433.92MHz / 315MHz

Wiring Mode

Wireless

Product Name

WiFi/GSM Wireless Burglar Alarm

GSM Frequency

850/900/1800/1900MHz

Protocol

SIA

Material

High-Quality ABS

Application

Home Automation & Security

App Support

Android and iOS Control

Warranty

1 Year

🛡️Product Overview

Tuya WiFi 4G Home Security Alarm System with Wired Wireless Smart Zones

Featuring GSM+WiFi Dual Network Technology and a 600MHz high-speed smart chip, this system supports up to 100 wireless sensors. The built-in IPS Color High-Sensitive touch screen provides an intuitive interface for users.

The system supports 5 alarm calls and integrates with IP cameras for real-site status checks. Immediate detection and quick response times protect your property from intrusion, fires, and other emergencies. Manage your security remotely via a convenient mobile application.

Supports SIA Central Monitoring System (CMS) connections for professional oversight and quicker emergency responses, making it ideal for residential and business properties alike.

✨Key Features

4.3 inch IPS color display with full capacitive touch operation.
User-friendly Quick Installation Guide included.
GSM & WiFi Dual Network redundancy for constant connectivity.
Supports App Push, SMS, and Voice monitoring.
Multi-language menu and operation tone guidance.
Two-way intercom function for real-time communication.
Low battery alert and anti-tamper alarm functions.
OTA remote firmware upgrade capability.
Preset up to 5 alarm phone numbers and 5 SMS numbers.

⚙️Technical Parameters

4.3" ISP Touch panel (Resolution: 480*272)
600MHz high-speed smart chip
99 wireless zones
Internal Siren: 115dB
Battery: 3.7V 1500mAh lithium battery
Input power: DC5V-1.0A, Micro USB
Power consumption: < 1.5W
Wireless parameters: 433MHz, eV1527 encoding
4G system support: Full Band
WiFi standard: IEEE802.11b/g/n 2.4G
Working temperature: -10~55ºC
Product size: 120×105×15mm

📸Product Display

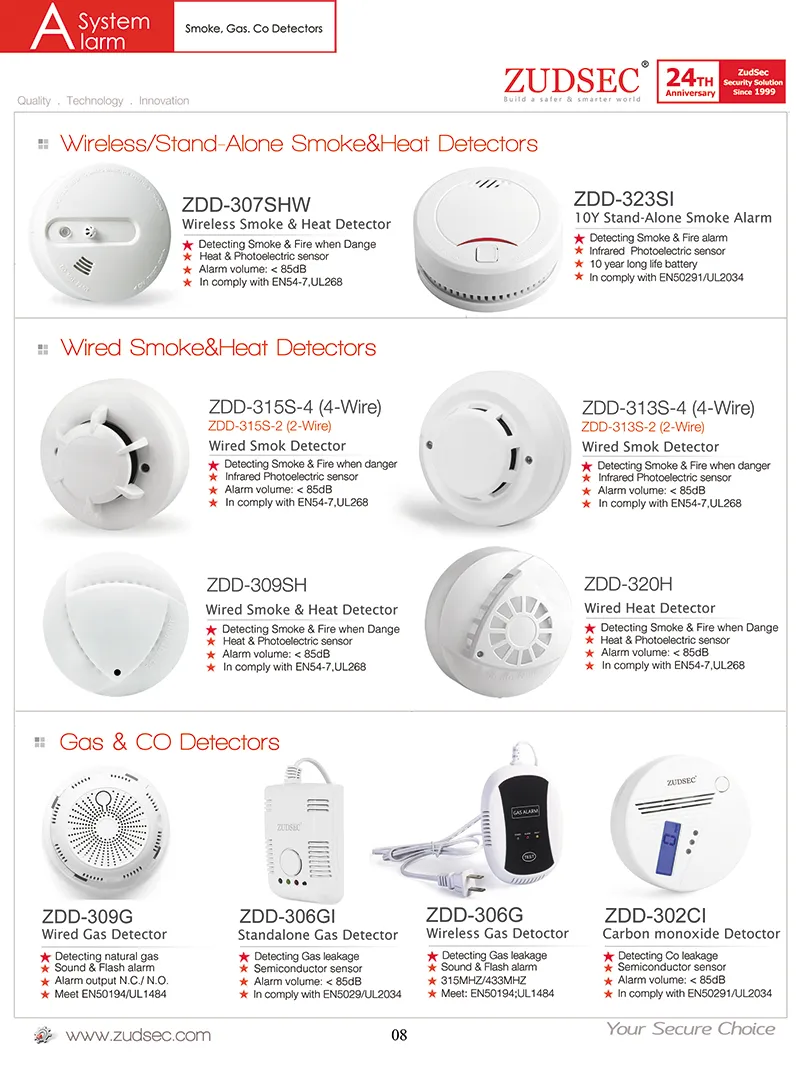

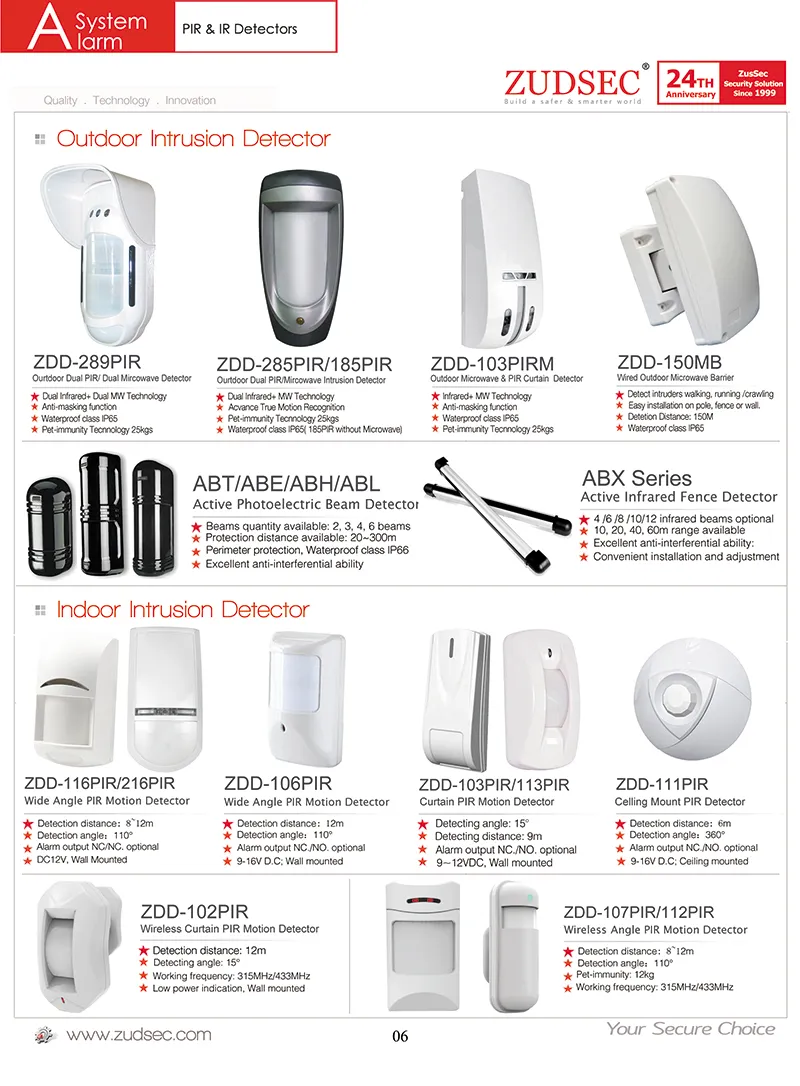

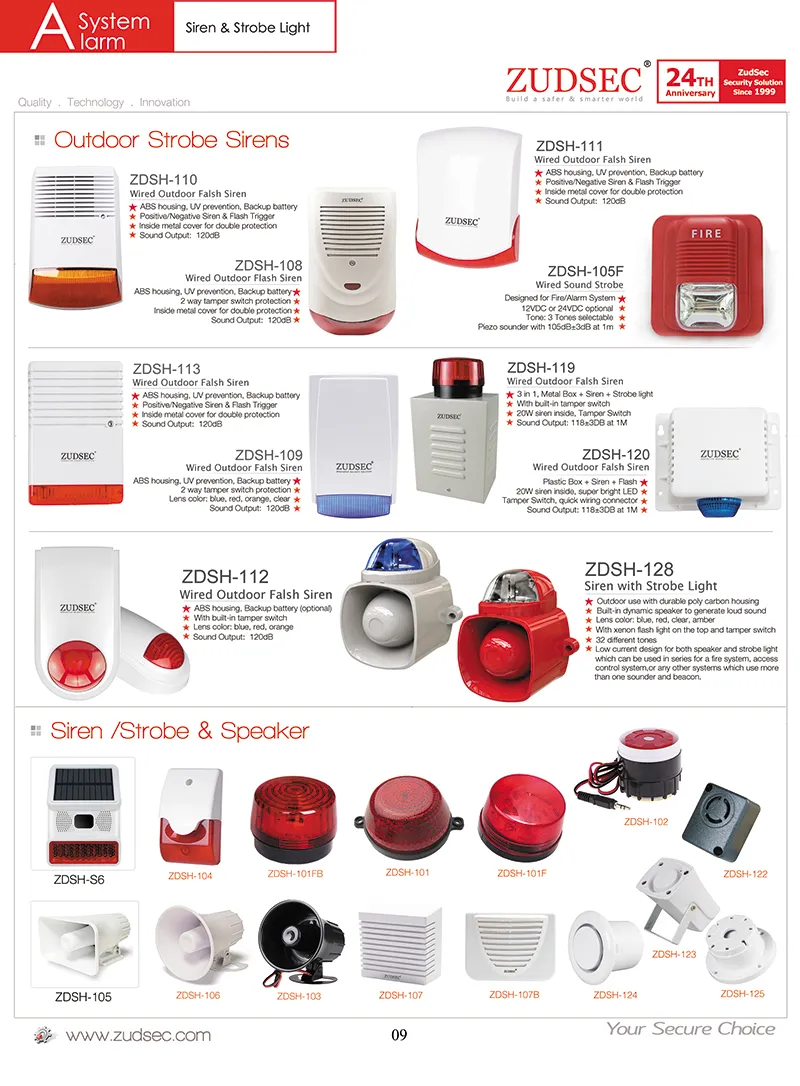

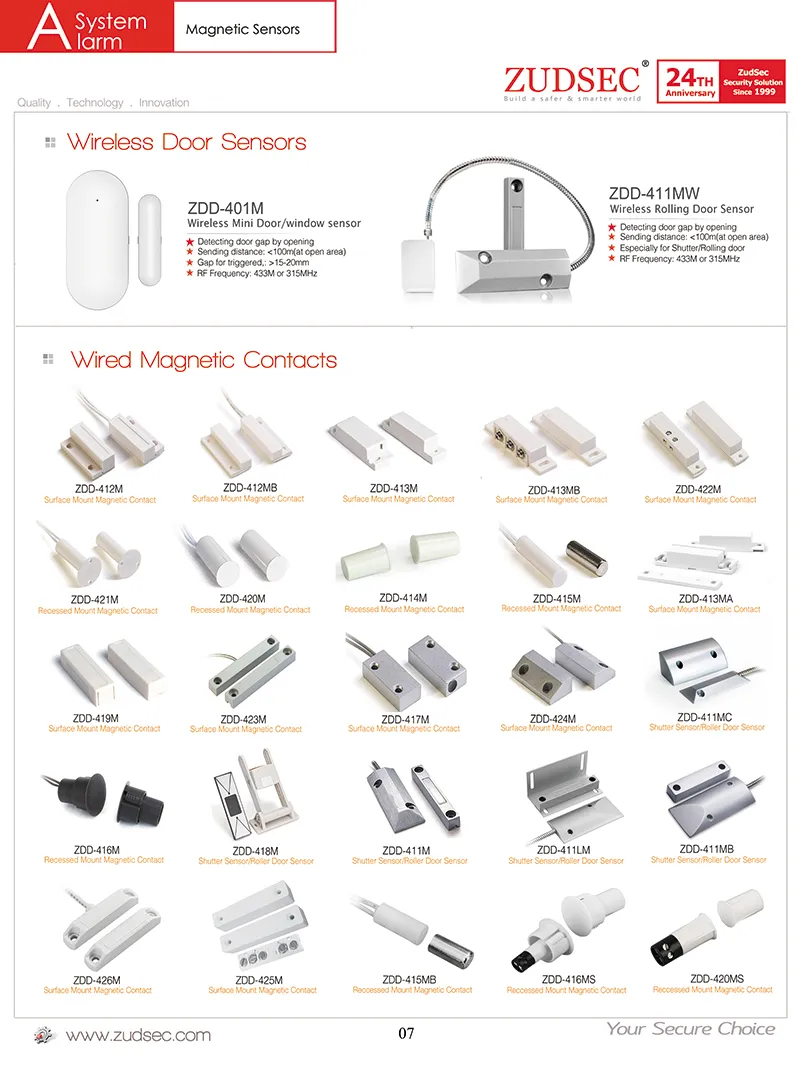

🔗Related Security Solutions

Frequently Asked Questions

Q1: Does this alarm system support both WiFi and GSM?

Yes, it features a dual-network system. It primarily uses WiFi for alerts and App control, but will switch to GSM (SIM card) to send SMS or calls if WiFi is disconnected.

Q2: How many sensors can I connect to this system?

The system is highly expandable and supports up to 100 wireless sensors, covering doors, windows, motion detection, and smoke alarms.

Q3: Is there a monthly fee for the monitoring service?

No, there is no mandatory monthly fee for using the Tuya app. However, if you choose to connect it to a professional Central Monitoring System (CMS) via SIA protocol, service fees from those providers may apply.

Q4: Can I upgrade the system firmware myself?

Yes, the system supports OTA (Over-the-Air) updates. You can easily upgrade the alarm host's firmware remotely via the mobile app.

Q5: What happens during a power outage?

The alarm host includes a built-in 3.7V 1500mAh lithium backup battery, ensuring the system remains operational for several hours during power failures.

Q6: Does the system support multiple languages?

Yes, the system features a multi-language menu and operation tone guidance, supporting English, Spanish, and other languages.
