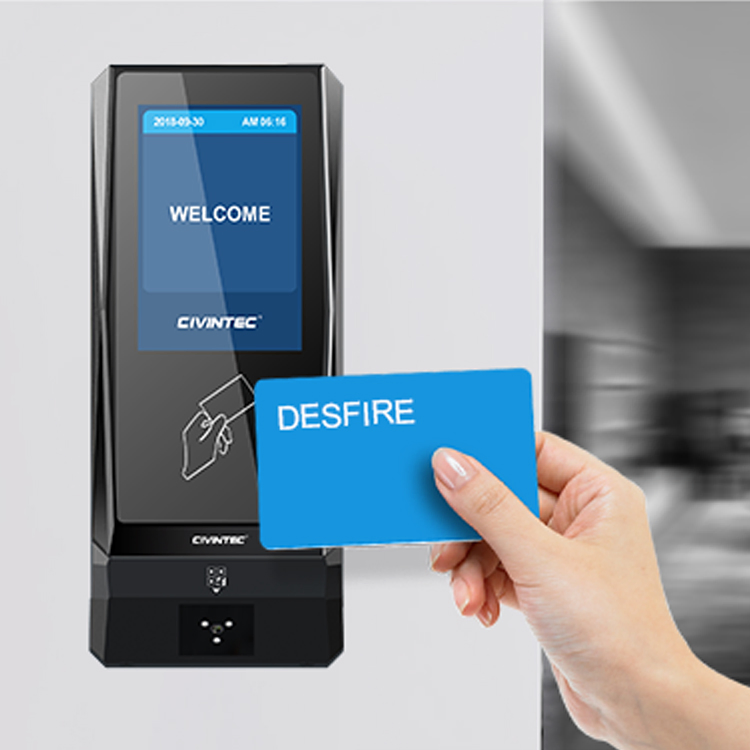

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 etc. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags, ISO14443B |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | Relay output, Tamper alarm, door contact, exit button |
| Capacity | 10,000 users / 50,000 logs |
| IP protection | IP65 |

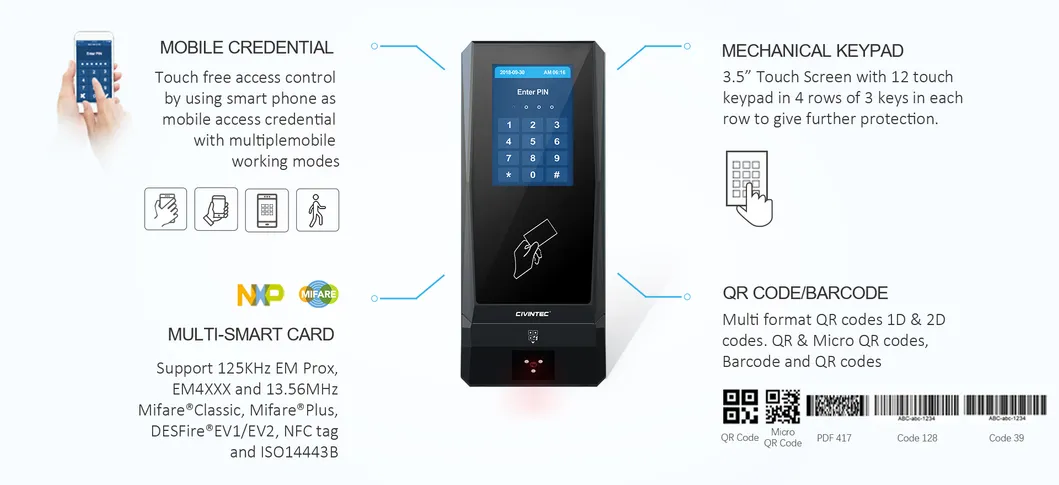

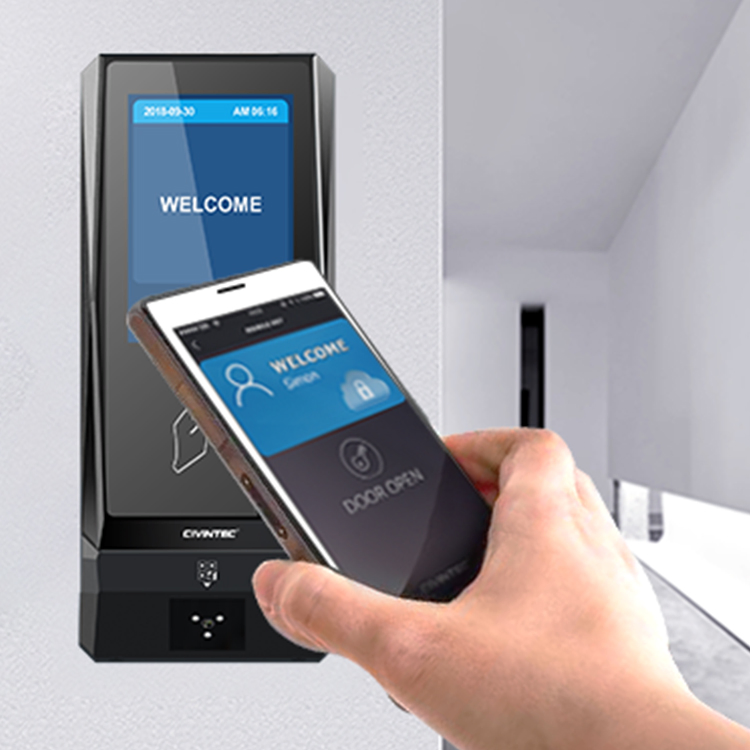

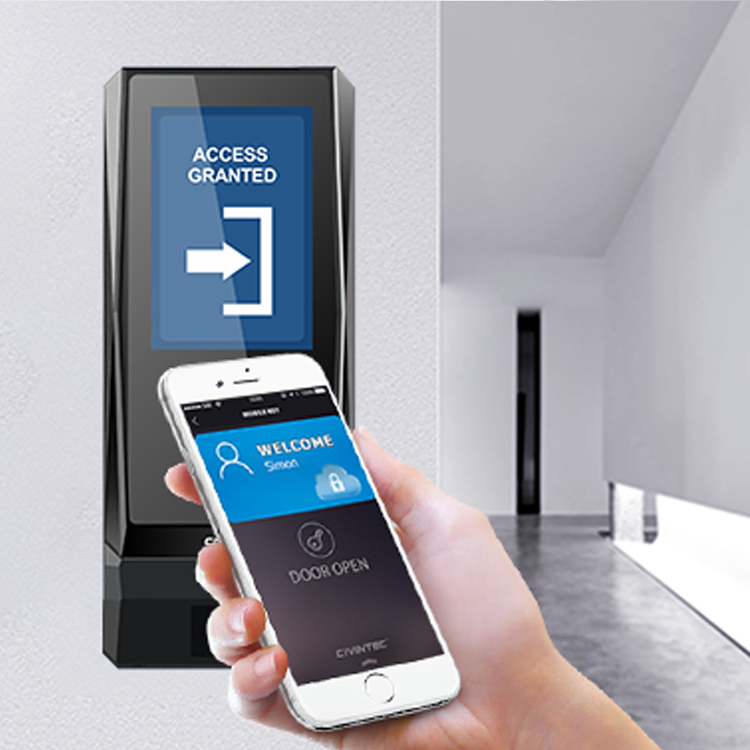

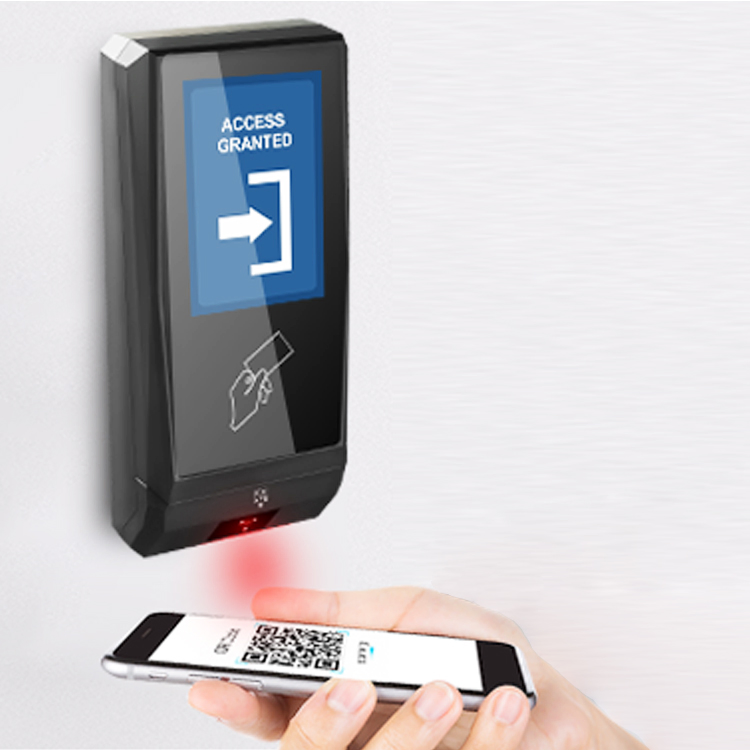

CT9 Pro incorporates 5-in-1 multiple access technologies: touch keypad, RFID dual frequency (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning for visitor management.
Bi-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door locks and various IoT facility management systems.

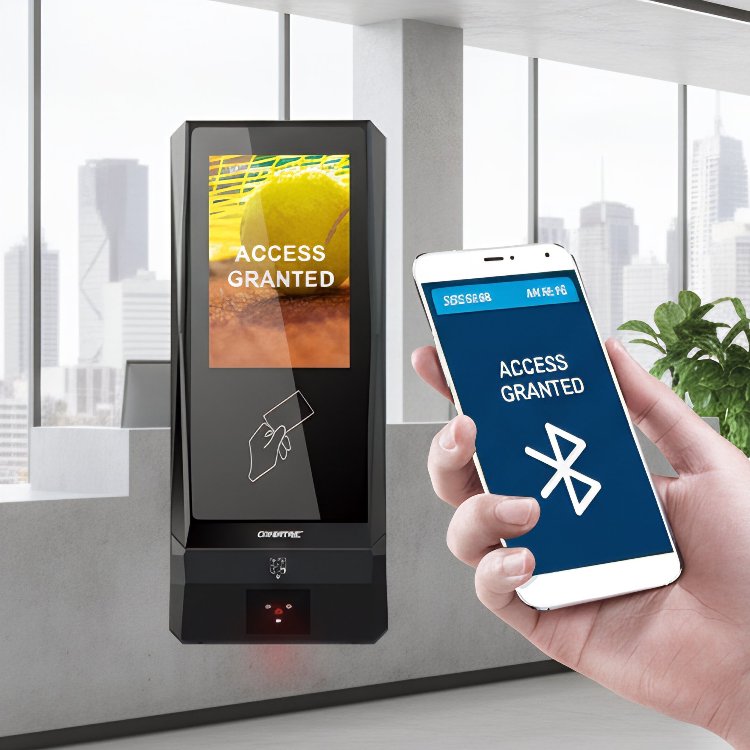

Remotely controlled by cloud web-based software in real time. It features an embedded relay output to control door locks for Access Denied or Granted scenarios.
We offer ODM customization on both hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen.
