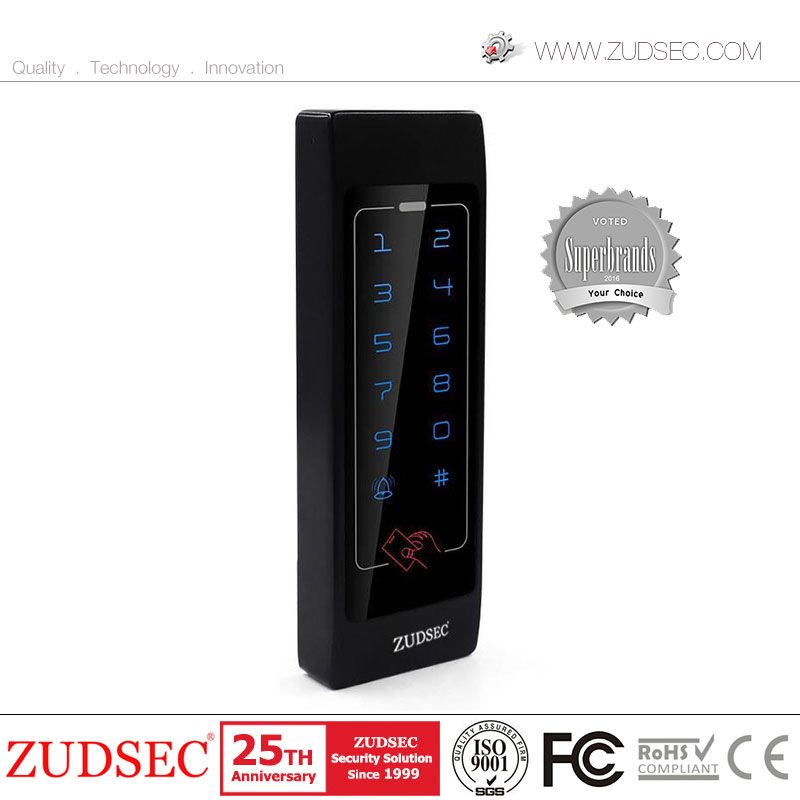

Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
1 / 5
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard

Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

Overview
Model NO.
ZDAC-2700W
Technology
32-Bit Technology
Way of Control
Hand Control
Communication
not Networked
Type
One-way Controller
Item
Metal Shell Access Control System
Application
Office Building etc
Color
Silver
Card Type
125kHz Em ID Cards
Access Ways
Cards, Code, Card & Code
Capacity
4000 Users
Open-Door Time
0~99 Seconds
Reading Range
up to 5 Cm
Tamper Protection
Negative Loop, Normally Closed
Doorbell
with Doorbell Key
Keypad Housing
Metal
Short-Circuit Protect
Yes
Backlight
Keystroke Backlight
Warranty
1 Year
Transport Package
Color Box
Specification
CE, RoHS
Product Description

Touch keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard

Touch Keypad, Metal structure, IP68 Waterproof design, 125KHz EM card (IC card optional), Multi-function with built-in door bell function, operating as slave reader etc. Can realize the card reading and keypad operation functions, lock, ring bell, exit button and the magnetic contact switch on the door. Suitable for various occasions.

Key Features
⭐ Metal case, waterproof design
⭐ Touch Panel backlit keypad
⭐ External doorbell connection support
⭐ Built-in 125KHz EM card reader
⭐ Large capacity: 4000 users
⭐ Built-in buzzer for anti-tamper
⭐ Wiegand 26 output support
⭐ Relay control to open
Technical Specifications
Parameter Details
ModelZDAC-2700W
Card TypesEM or EM compatible
Operating VoltageDC 12V±10%
User Capacity4000
Card Reading Distance3~6cm
Active Current<60mA
Idle Current25±5 mA
Lock Output LoadMax 3A
Operating Temperature-45ºC~60ºC
Operating Humidity10%- 90% RH
Door Relay time0 - 99 seconds
Alarm Time0 - 3 minutes
Wiegand InterfaceWiegand 26 bit
Dimensions120L x 78W x 22D (mm)
Weight500g
Product Gallery
Access Control Front

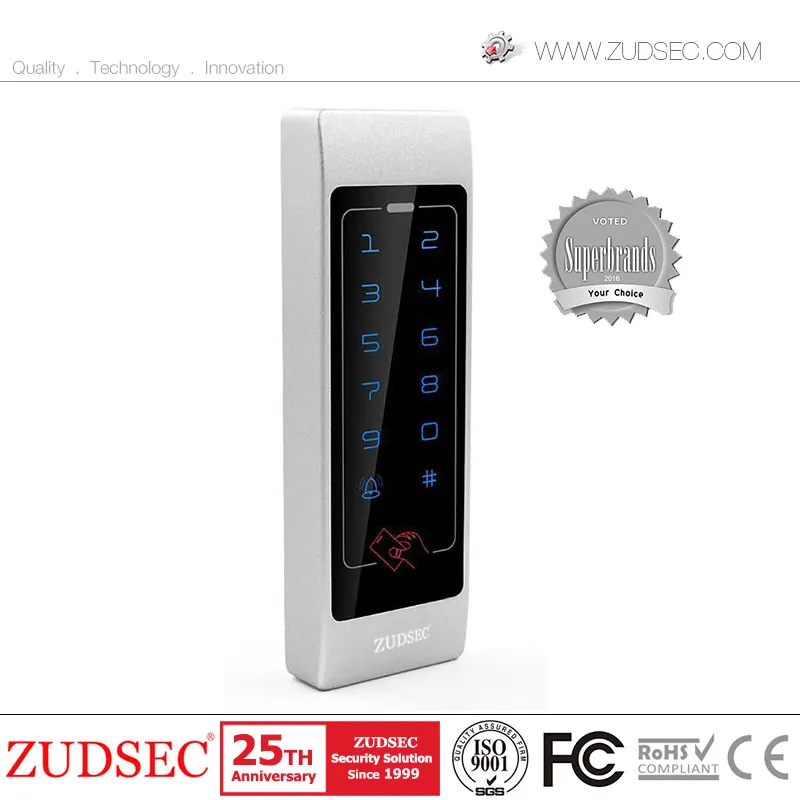

Access Control Side
Backlit Keypad View
Installation Setup
Wiring Detail
Packaging Box
Related Products
Related Product 1
Related Product 2
Related Product 3
Related Product 4
Related Product 5
Related Product 6
Frequently Asked Questions
Q1: How many users can this standalone access control system support? A: The ZDAC-2700W model supports up to 4000 individual users.
Q2: Is the device suitable for outdoor use? A: Yes, it features a rugged metal case and an IP68 waterproof design, making it suitable for various environments.
Q3: What are the available entry modes? A: You can access the door using RFID Cards, a PIN code, or a combination of both (Card + Code).
Q4: Does the keypad have a backlight for night use? A: Yes, it is equipped with a touch panel backlit keypad for easy operation in low-light conditions.
Q5: Can I connect an external doorbell to this device? A: Yes, the unit includes a built-in doorbell key and functionality to connect with external doorbells.
Q6: What type of RFID cards is it compatible with? A: It is compatible with 125KHz EM or EM-compatible ID cards. IC card support is optional.
