Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
1 / 5
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option
Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option

Digital Waterproof Outdoor Safe Biometric Fingerprint Scanner RFID Card Reader Access Control System with Keypad Option

Customization: Available
Voice Service: Without Voice Service
Clock: Without Clock
Send Inquiry

Product Description

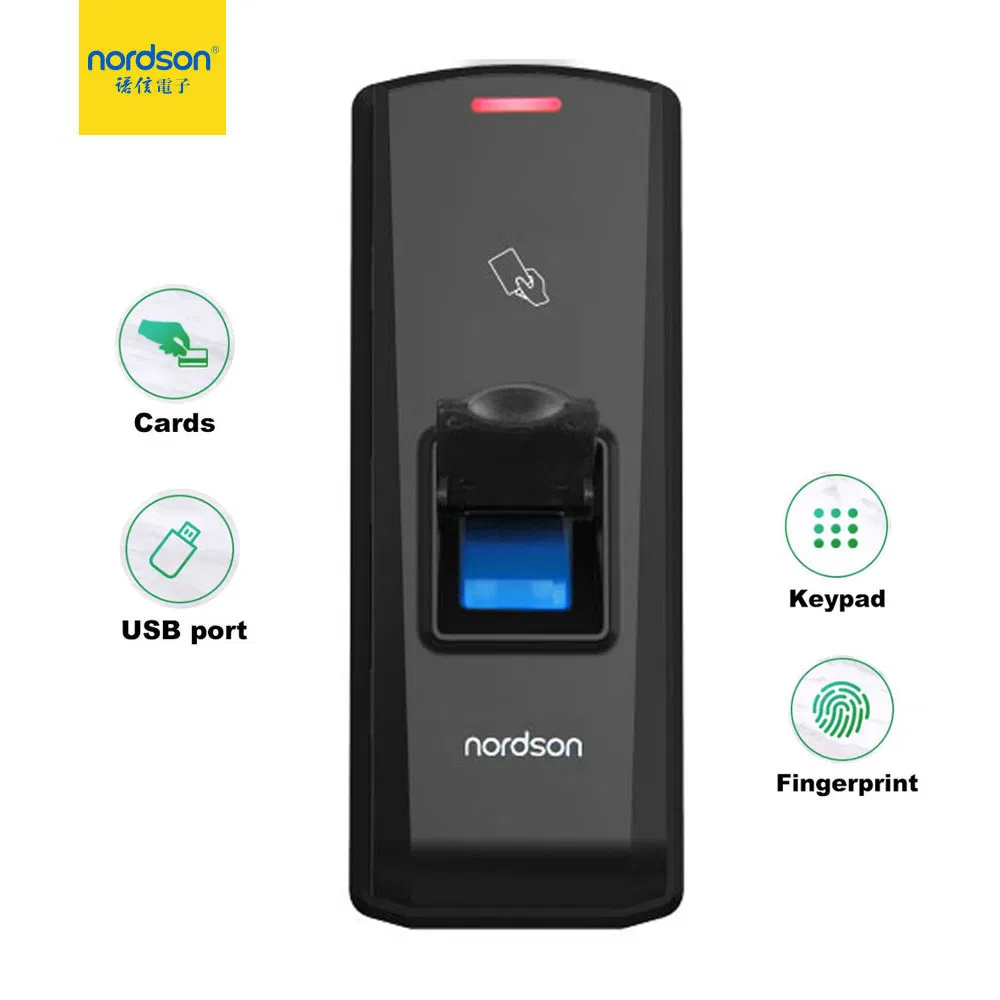

Digital Biometric Fingerprint Access Controller

Overview: The FR-T1 fingerprint access controller is a high-performance, competitively priced solution for modern security systems. It supports dual authentication methods via Fingerprint and ID card, ensuring flexible and secure operations. Designed for standalone mode, it integrates seamlessly with third-party electric locks, alarms, exit buttons, and doorbells. The built-in USB interface allows for easy data management via U-Disk.

Dual Verification
Supports Fingerprint and ID Card.
Rapid Speed
Verification in less than 0.5 seconds.
Offline Mode
Supports standalone operation via USB.

Technical Specifications

Model FR-T1/T2
Fingerprint Capacity 500
ID Card Capacity 500
Communication Interface USB / Hot USB
Verification Speed < 0.5 Sec
Power Supply DC 12V
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Door Bell
Working Way Off-Line
Wiegand Signal Output (26/34)
Operating Temperature 0°C ~ 45°C
Operating Humidity 20% ~ 80%
Dimension 151*61*31mm
Net Weight 0.25kg
Package Size 38.00cm * 24.00cm * 30.00cm

Product Gallery

Product Display 1

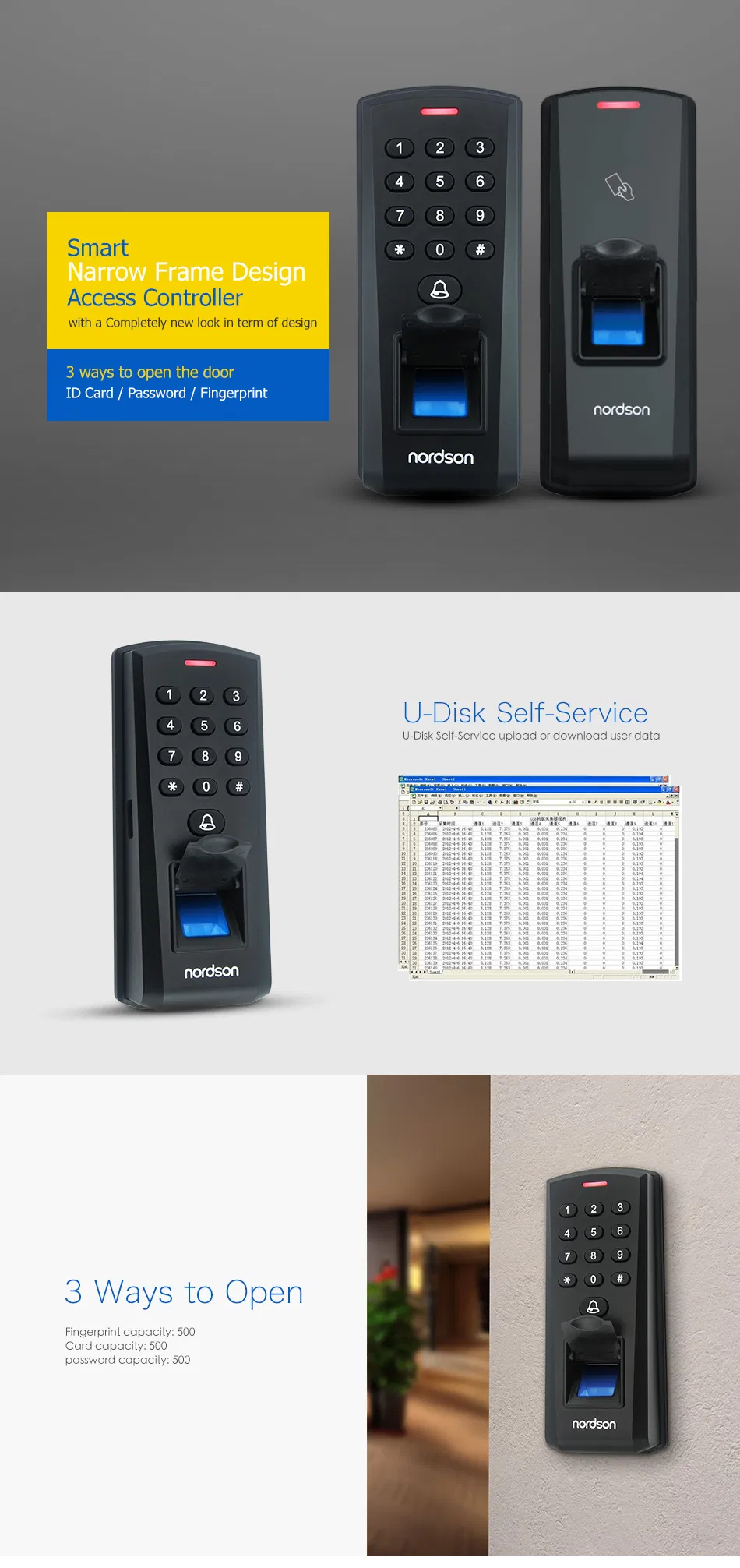

Product Display 2

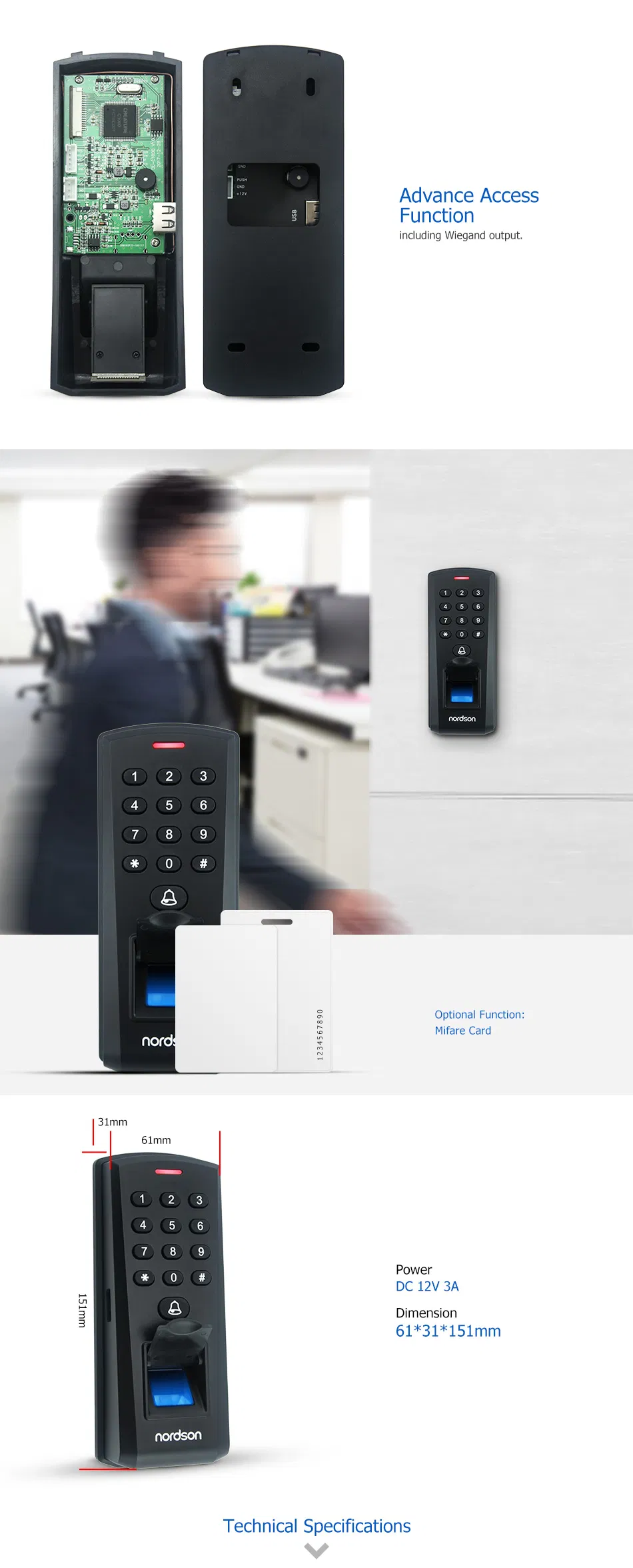

Product Display 3

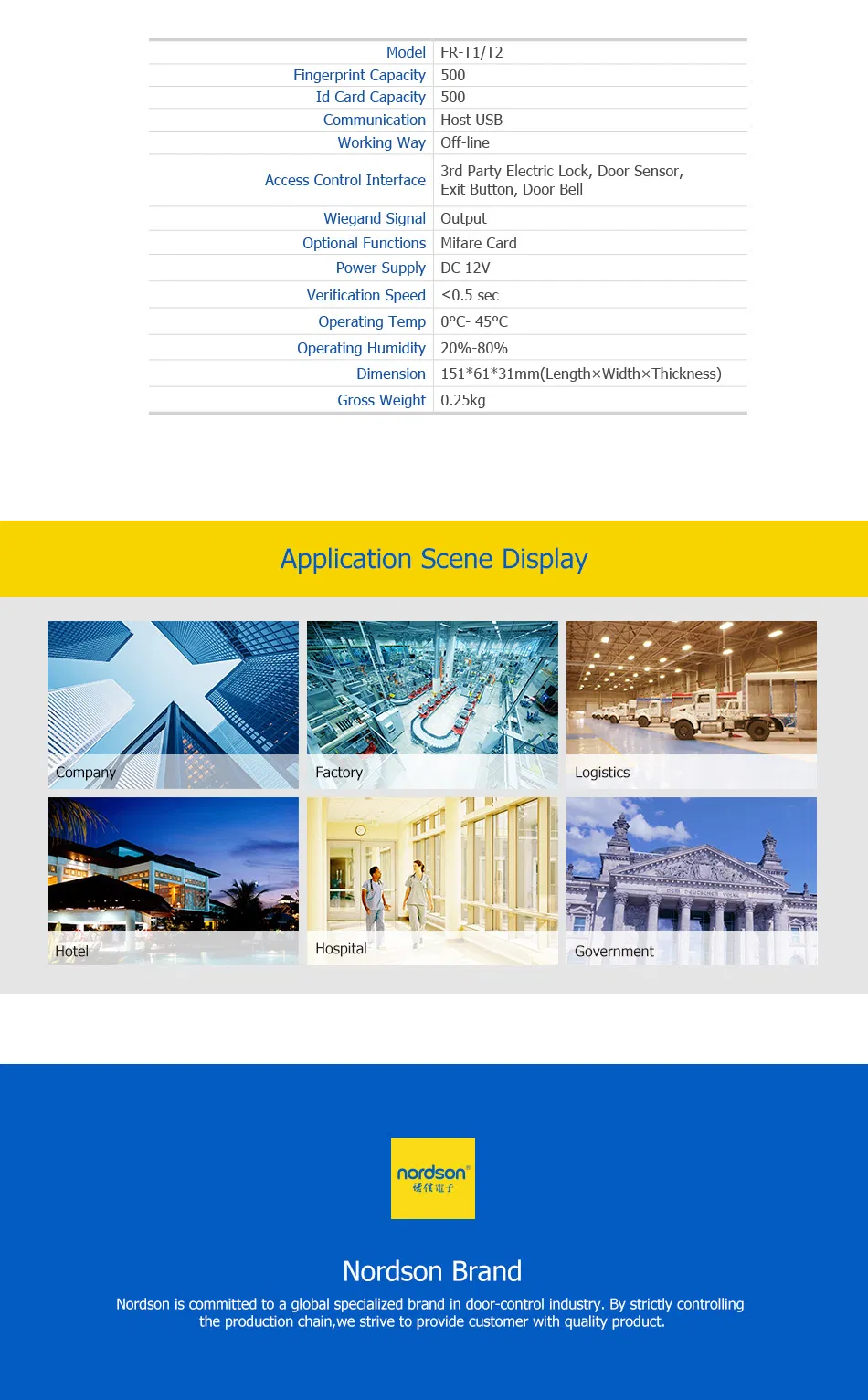

Product Display 4
Technical Diagram

Key Functions

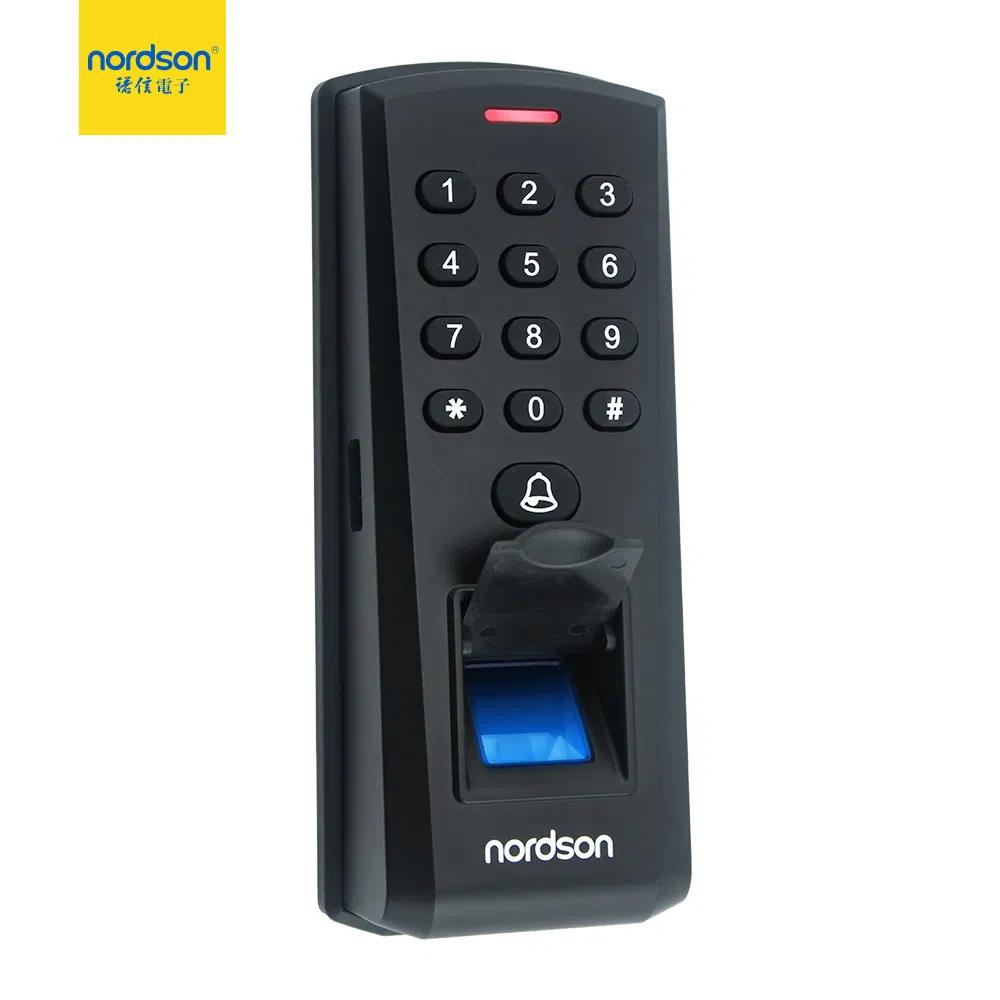

  • ✅ Multiple Verification: Supports Fingerprint, ID card, and Password.
  • ✅ Large Capacity: User capacity of 1,500 (500 Fingerprints / 500 ID Cards / 500 Passwords).
  • ✅ Wiegand Output: Supports Wiegand 26/34 output for integration with other controllers.
  • ✅ Self-Service Management: U-Disk support for rapid upload or download of user data.
  • ✅ Compact Design: Sleek dimensions of 151x61x31mm suitable for various door frames.

Frequently Asked Questions

How many users can this device register?
The device supports a total capacity of 1,500 users, including 500 fingerprints, 500 ID cards, and 500 passwords.
Does this controller require a constant PC connection?
No, it operates in Off-line (standalone) mode. You can manage user data using a U-Disk via the USB interface.
What type of power supply is needed?
The device requires a standard DC 12V power supply.
Is it compatible with different types of locks?
Yes, it features an access control interface that works with 3rd party electric locks, door sensors, and exit buttons.
How fast is the fingerprint recognition?
The verification speed is highly efficient, taking less than 0.5 seconds to recognize a registered fingerprint.
Can I use Mifare cards with this model?
The standard model supports ID cards, but Mifare card functionality is available as an optional feature.
