Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP

1 / 5

Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP

Customization:	Available
Card Reader Quantity:	2
Control Gates:	One Gate

Send Inquiry

Product Description

Basic Information

Model NO.

ZDAC-2400W-WiFi

Technology

32-Bit Technology

Way of Control

Computer Control

Communication

not Networked

Type

One-way Controller

Item

Waterproof WiFi Access Control

Identification Way

Card, Pin, Card & Pin

Reading Distance

3-6cm

Type of ID Card

125kHz, EM

Transmit Format

Wiegand 26-37

Voltage

DC 12-24V

User Capacity

2000

Waterproof

IP68

Material

Metal Case + Metal Keypad

Size

120* 58*20(mm)

Product Description

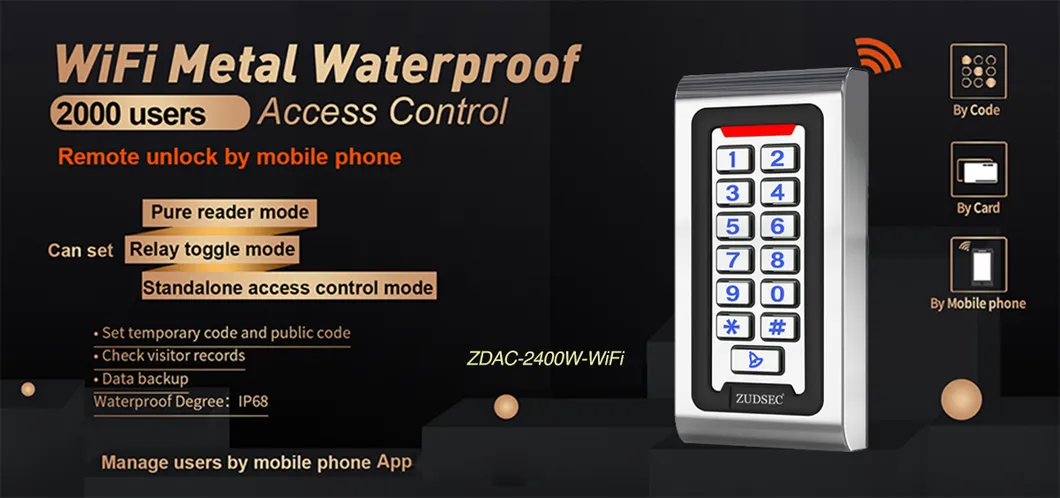

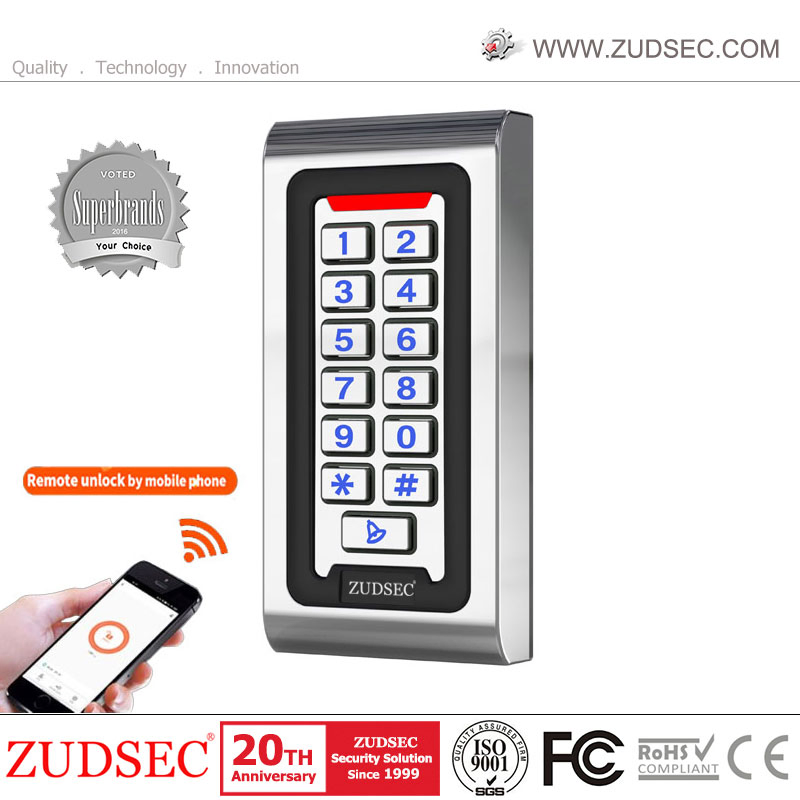

IP68 Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP

Aluminum alloy structure, Waterproof, fully potted, confirms to IP65, 125KHz EM and HID card for optional, Multi-function, 12P cable with built in door bell function, operating as slave reader, single door, anti-pass back, etc. Suitable for various occasions.

Features

Aluminium alloy case, waterproof, fully potted, meets IP-65 waterproof standard
Metal digital backlit keypad (Adjustable backlight: Normal ON, Normal OFF, or Human-Approach ON)
Built-in doorbell function
Built-in 125KHz card reader with Auto-Recognition
Supports 2000 users, each with a card and 4-6 digits password
Master card support for easy management
Supports registration of 2000 serial number cards at once
Supports 2-10 cards for entry
Relay control to open, 1A
Wiegand 26-37 output for card numbers and button presses

Product Parameters

Operating Voltage	DC 12-24V; Operating Current ≤35mA
Card Reading Distance	3-6CM
Keypad Format	4-6 digits key press, 4 bits or 8 bits data

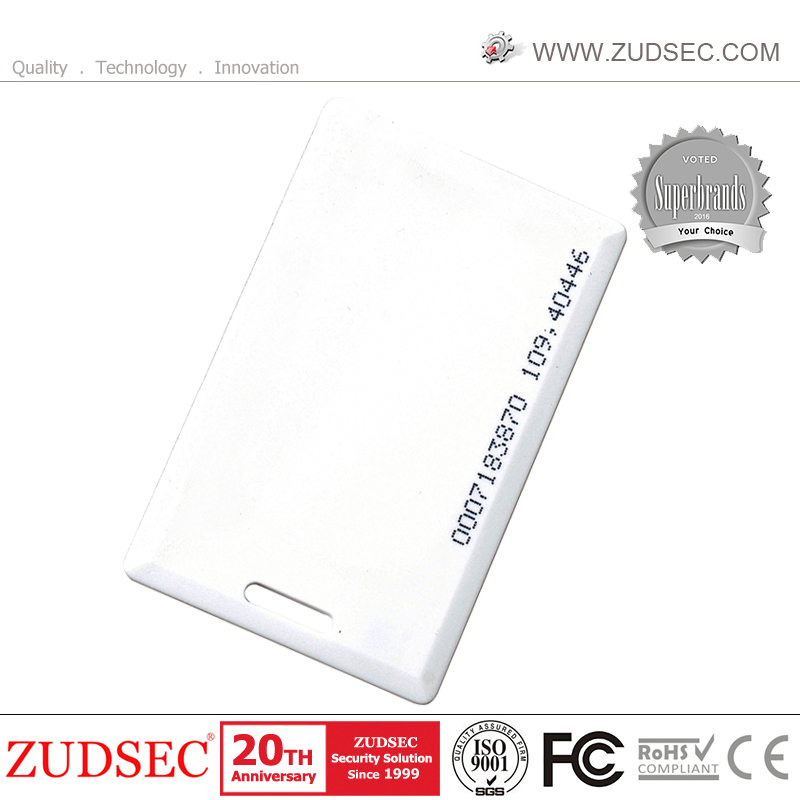

ID Card Type	125KHz, EM
Transmit Format	Wiegand 26-37
Temperature	-40ºC to 60ºC
Humidity	0~95% (non-condensing)
Product Size	158.6L x 43W x 21.7D (mm); Weight: 0.5Kg

Related Products

Frequently Asked Questions

Is this access control system waterproof for outdoor use?

Yes, the device features an IP68 waterproof rating with a fully potted aluminium alloy case, making it suitable for both indoor and outdoor installations.

How many users can the system manage?

The system supports up to 2000 users. Each user can be assigned an RFID card, a 4-6 digit password, or a combination of both.

Does it support mobile app control?

Yes, this is a smart WiFi-enabled version that is compatible with the Tuya APP for remote management and monitoring via your smartphone.

What types of RFID cards are compatible?

The built-in reader is designed for 125KHz EM cards. There are also options available for HID card compatibility.

Does the keypad have a backlight for night use?

Yes, it features a metal digital backlit keypad. The backlight mode can be set to be always on, always off, or triggered by human approach.

Can I use this device as a slave reader?

Yes, the system supports Wiegand 26-37 output, allowing it to operate as a slave reader for other controllers or as a standalone single-door controller.
