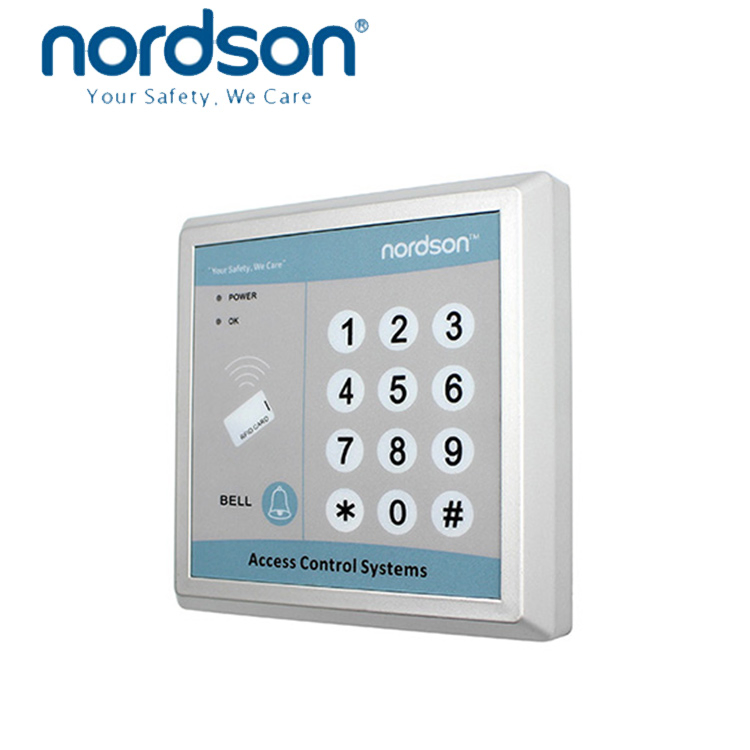

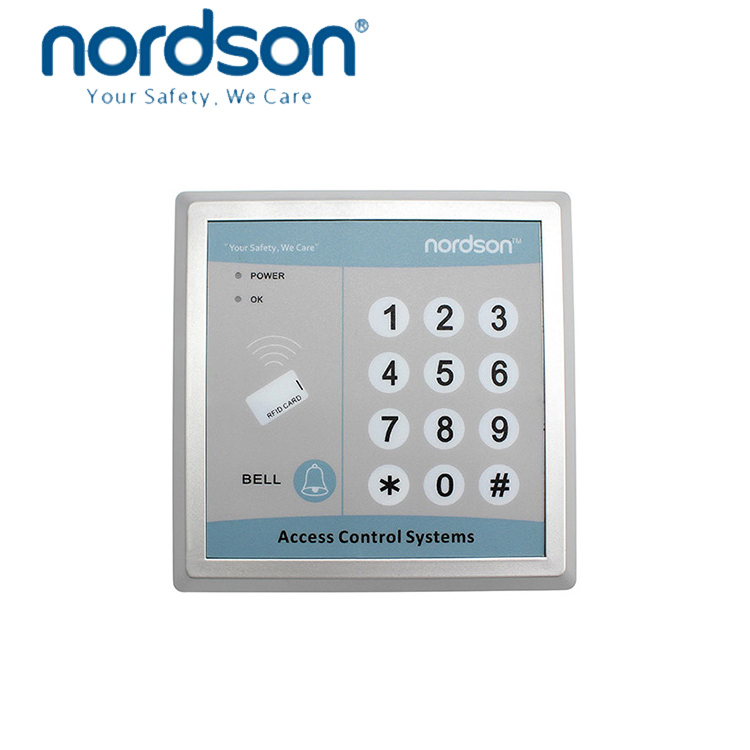

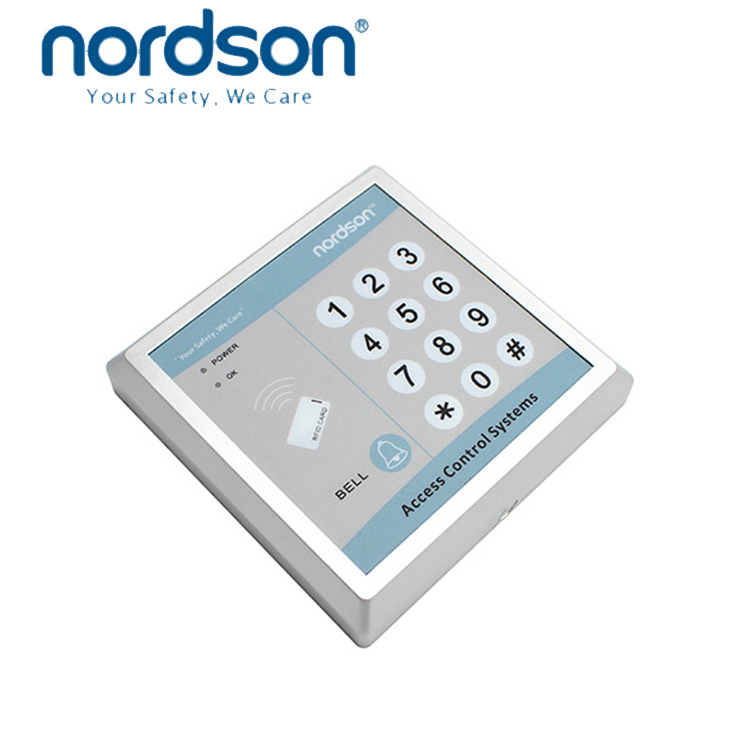

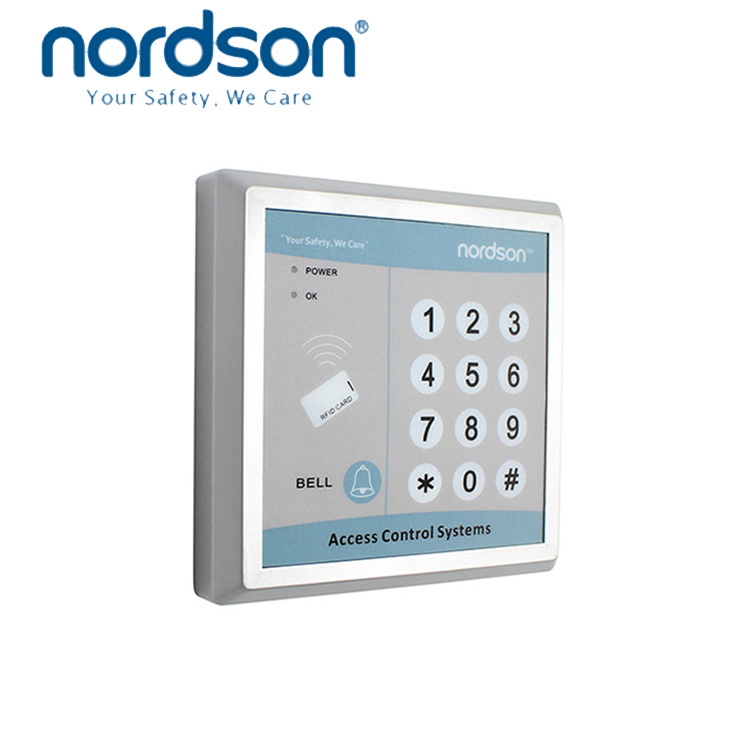

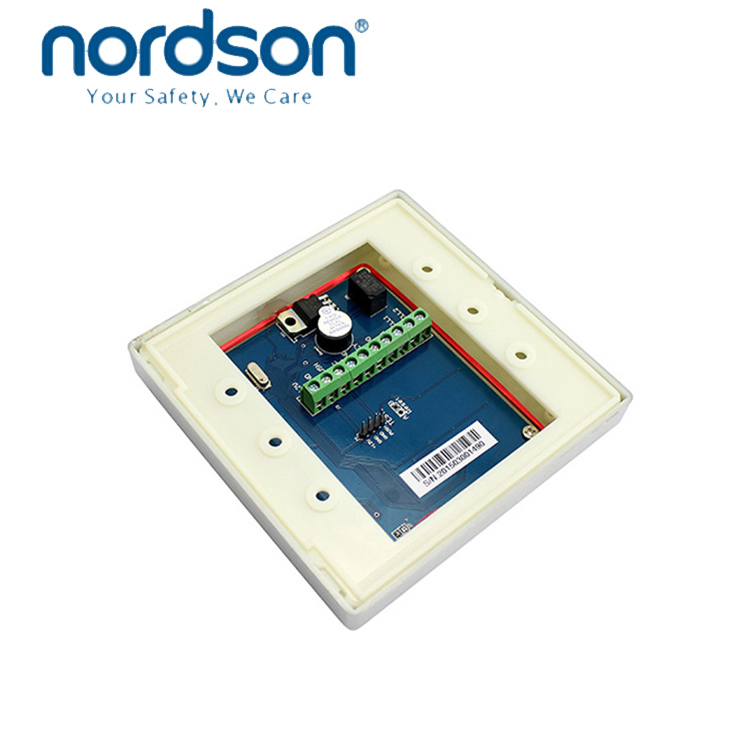

Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
1 / 5
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad
Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad

Nordson 125kHz 13.56MHz RFID Single Door Access Control System with Keypad

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
NT-100EM Access Control system
Verification Method
RFID Card / Password / RFID Card + Password
Capacity of Cards
1000
Reading Distance
1-5m / 3-15cm Proximity Range
RFID Card Type
EM Card 125kHz or MIFARE 13.56MHz
Voltage
DC 12V
Application
Parking, Hospital, Library, Company, Bank, Store
Dimensions
116mm × 116mm × 20mm
★

Product Overview

Classic style Stable Quality 125KHz 13.56MHz RFID Single door Access Control system with Keypad

NT-100EM/MF standalone single door RFID access control keypad machine is optional for single-door entrances. It combines card reader and keyboard input in one function. It is easy to install, easy to use, and offers stable performance with built-in data storage. Features include rapid identification of induction reader, short circuit protection, and safety interference resistance. It meets the needs of automated office spaces, industrial enterprises, government agencies, telecom base stations, and other public access entrance applications.

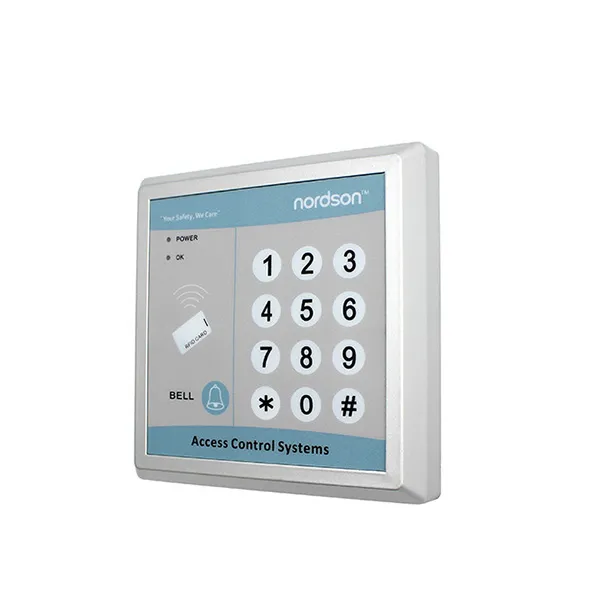

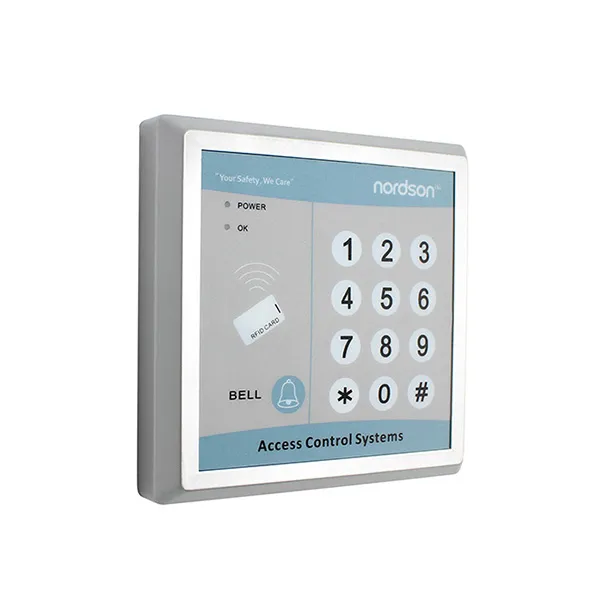

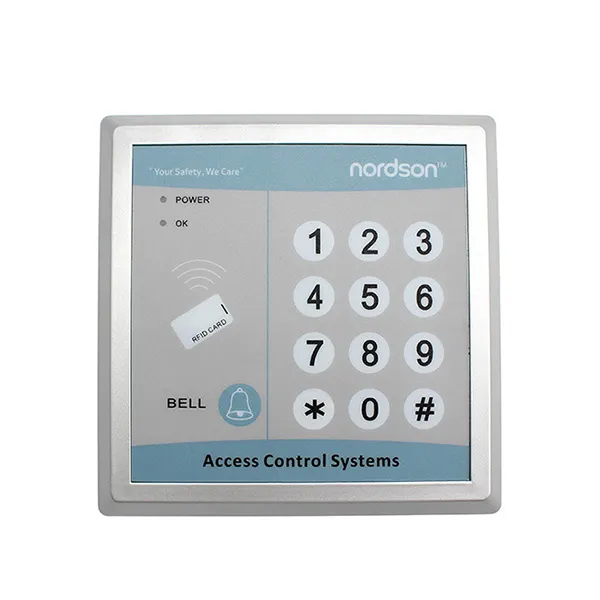

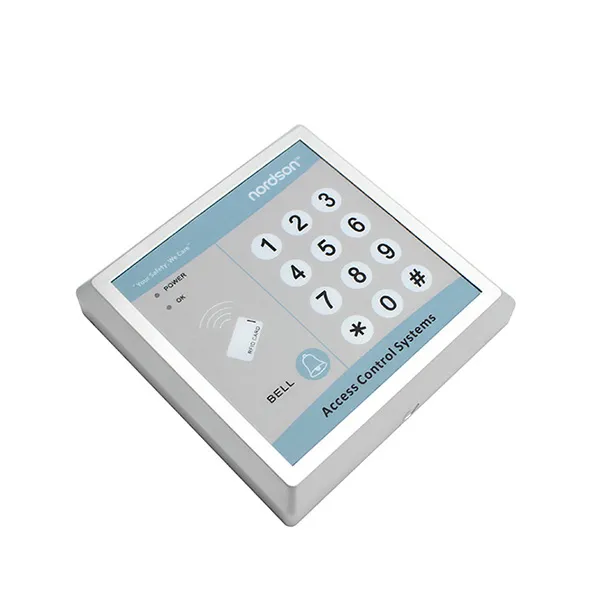

Access Control System Detail 1 Access Control System Detail 2 Access Control System Detail 3 Access Control System Detail 4
📋

Specifications

Model NT-100EM/MF RFID Access Control Keypad
Door Open Time 0-99 seconds
Capacity 1000 Cards/Users
RFID Format NT-100EM (125KHz) / NT-100MF (13.56MHz)
Interface Electric lock, Door sensor, Exit button, Alarm, DoorBell
Operating Temp 0°C - 45°C
Humidity 20%-80%
Gross Weight 0.20kg
✔

Key Functions

Classic design RFID access control keypad.
Fully independent access control with keyboard-based management.
Three authentication modes: Card, Password, or Card + Password.
High sensitivity reader sensor with less than 0.1s identification time.
Supports stand-alone card capacity up to 1000 users.
Anti-smashing plastic shell with tamper and door sensor alarm functions.
Supports exit button and doorbell input functions.
Built-in surge absorption protection for enhanced safety.
?

Frequently Asked Questions

1. How many user cards can this system store? The NT-100EM/MF system has a capacity to support up to 1000 user cards or passwords.
2. What are the available door opening methods? You can open the door using an RFID card, a digital password, or a combination of both (Card + Password) for higher security.
3. What is the reading range for the RFID cards? The proximity reading range is between 3cm to 15cm, ensuring quick and reliable access.
4. Can I adjust the door open duration? Yes, the door open time is programmable and can be set anywhere from 0 to 99 seconds.
5. Is there an alarm system included? Yes, the device features an anti-smashing shell and supports both tamper alarms and door sensor alarm functions.
6. What type of power supply is required? The system operates on a standard DC 12V power supply.
