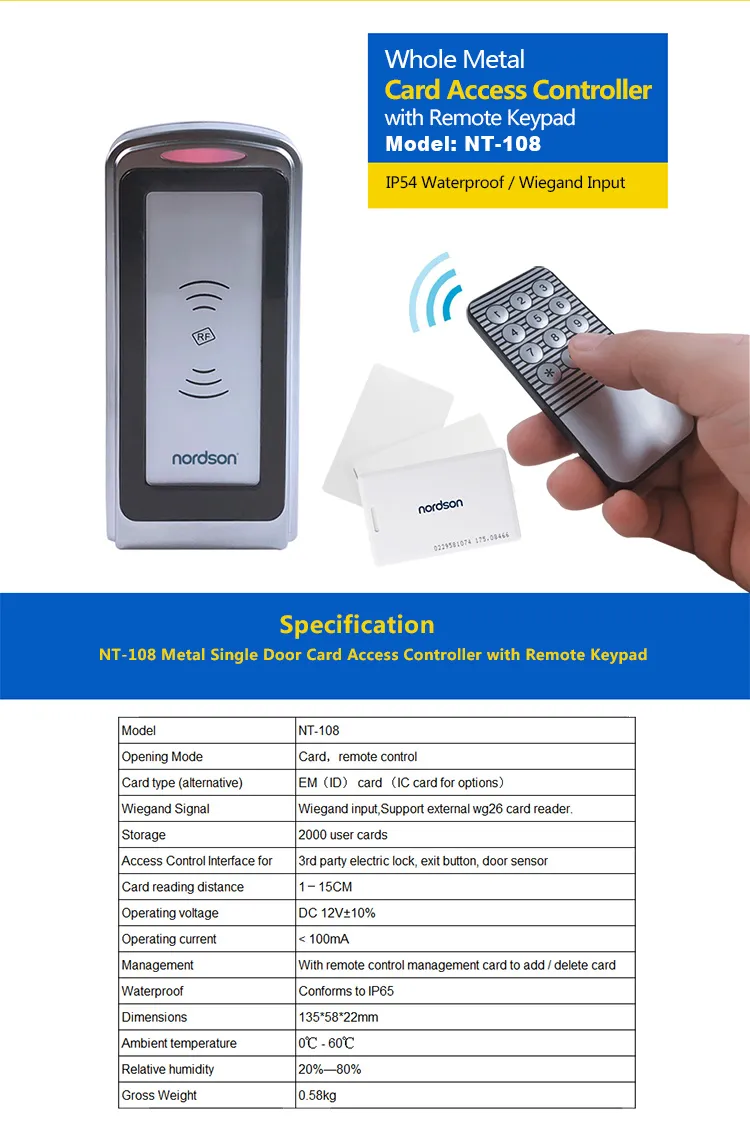

Basic Specifications
Model NO.:NT-108 Security Access Controller
Technology:Wg26
Way of Control:Hand Control, Card Control
Opening Mode:Card, Remote Control
Storage:2000 User Cards
Waterproof:IP65 Rating
Operating Voltage:DC 12V±10%
Dimensions:135*58*22mm
Product Description

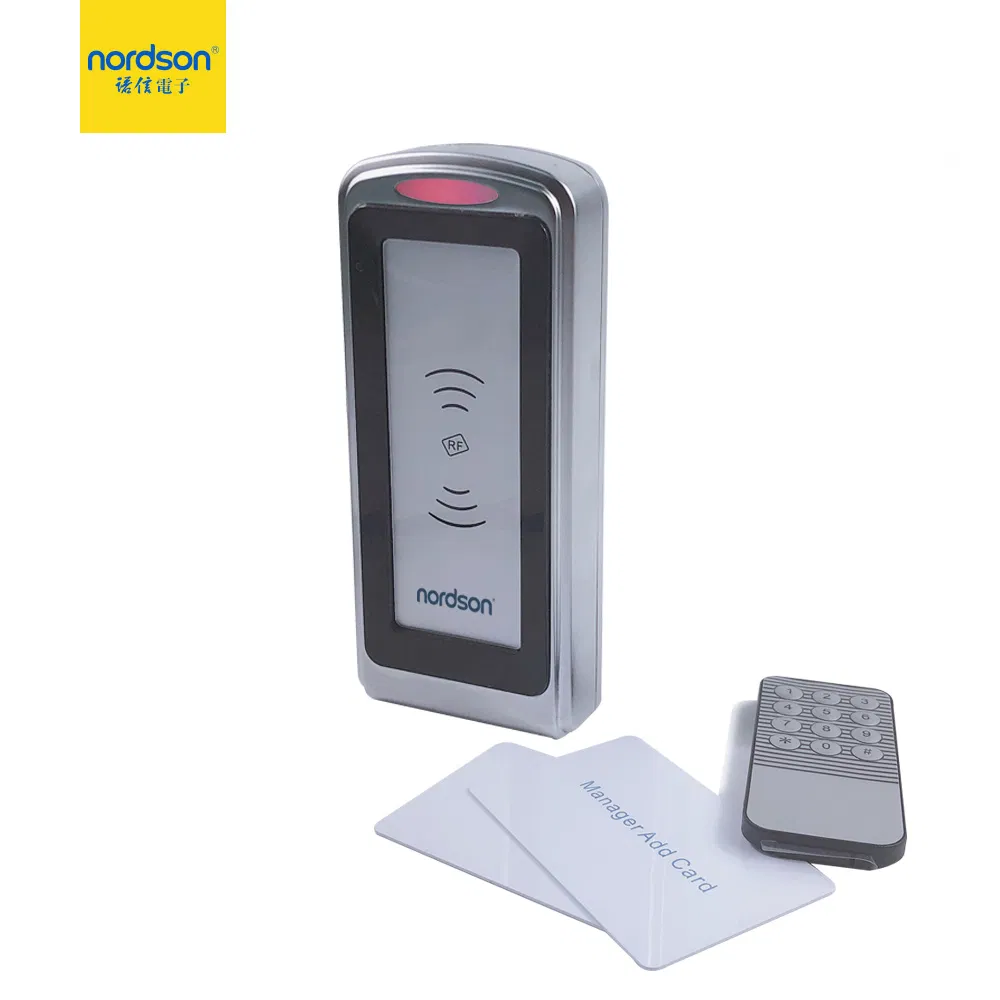

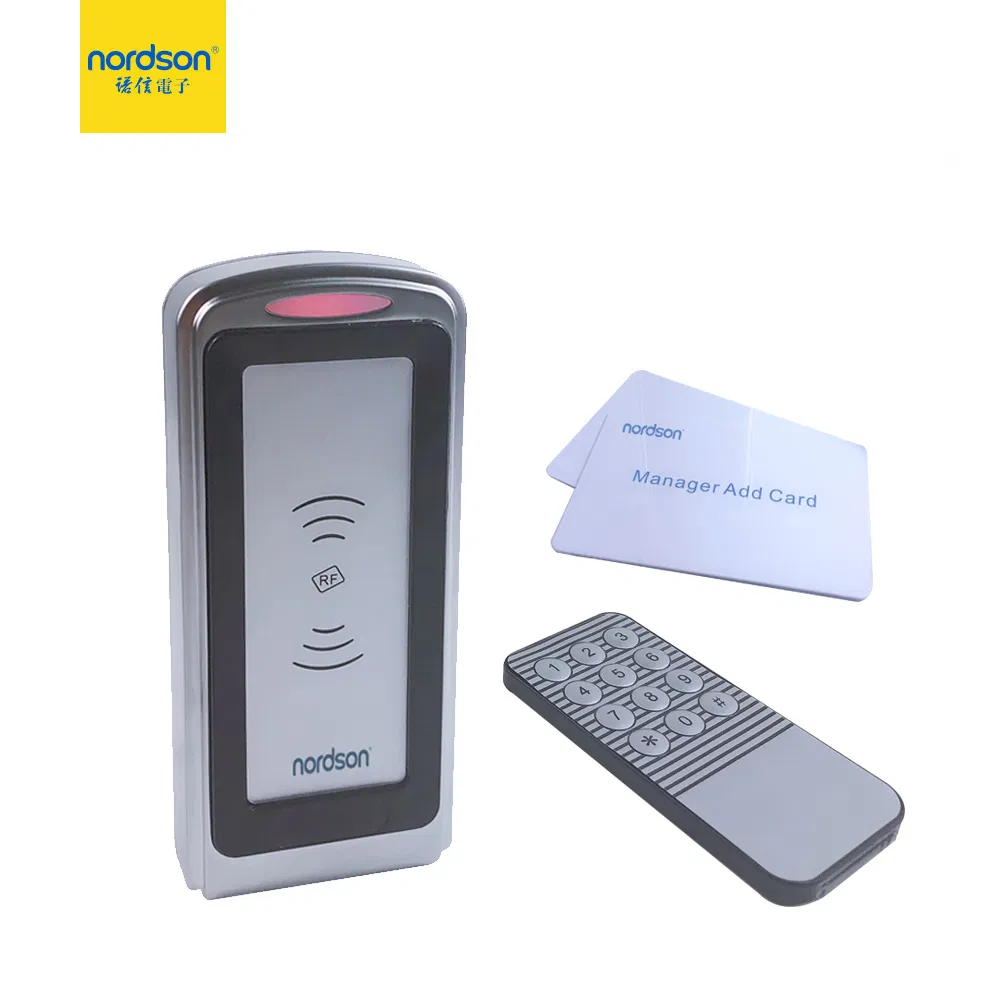

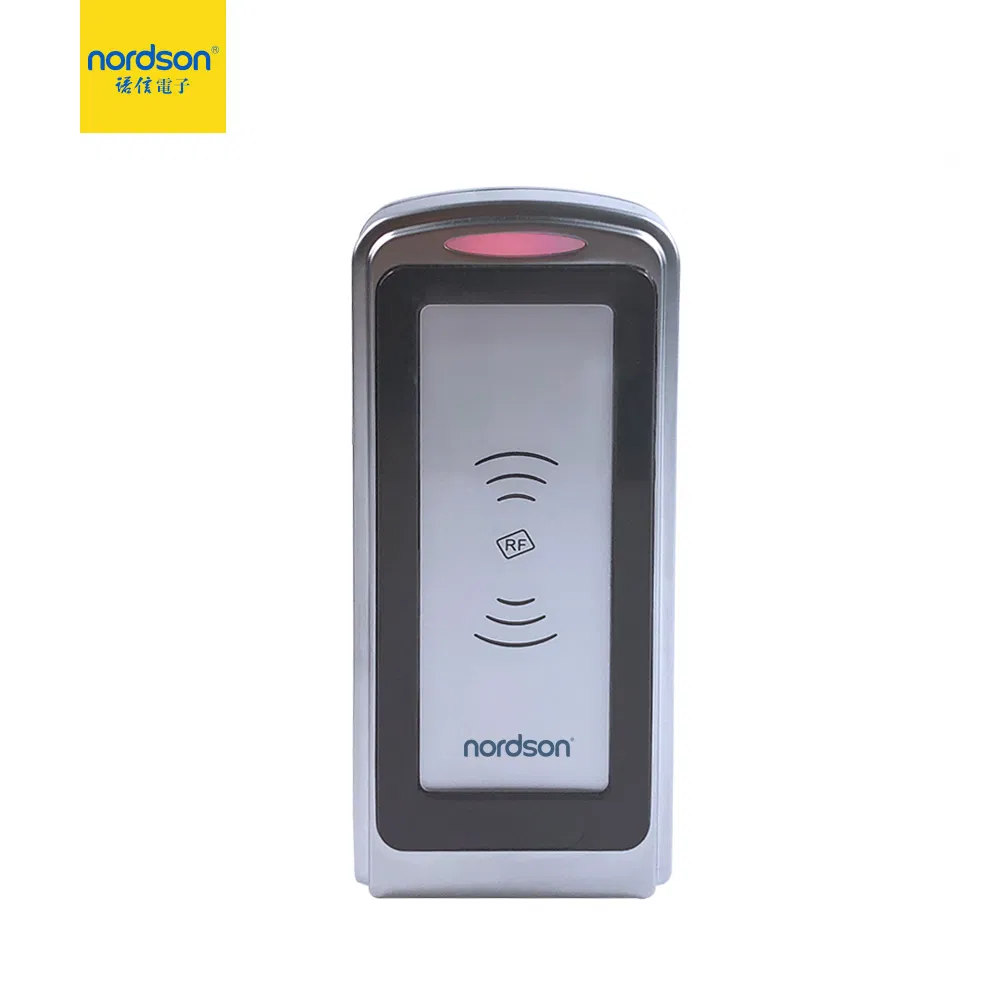

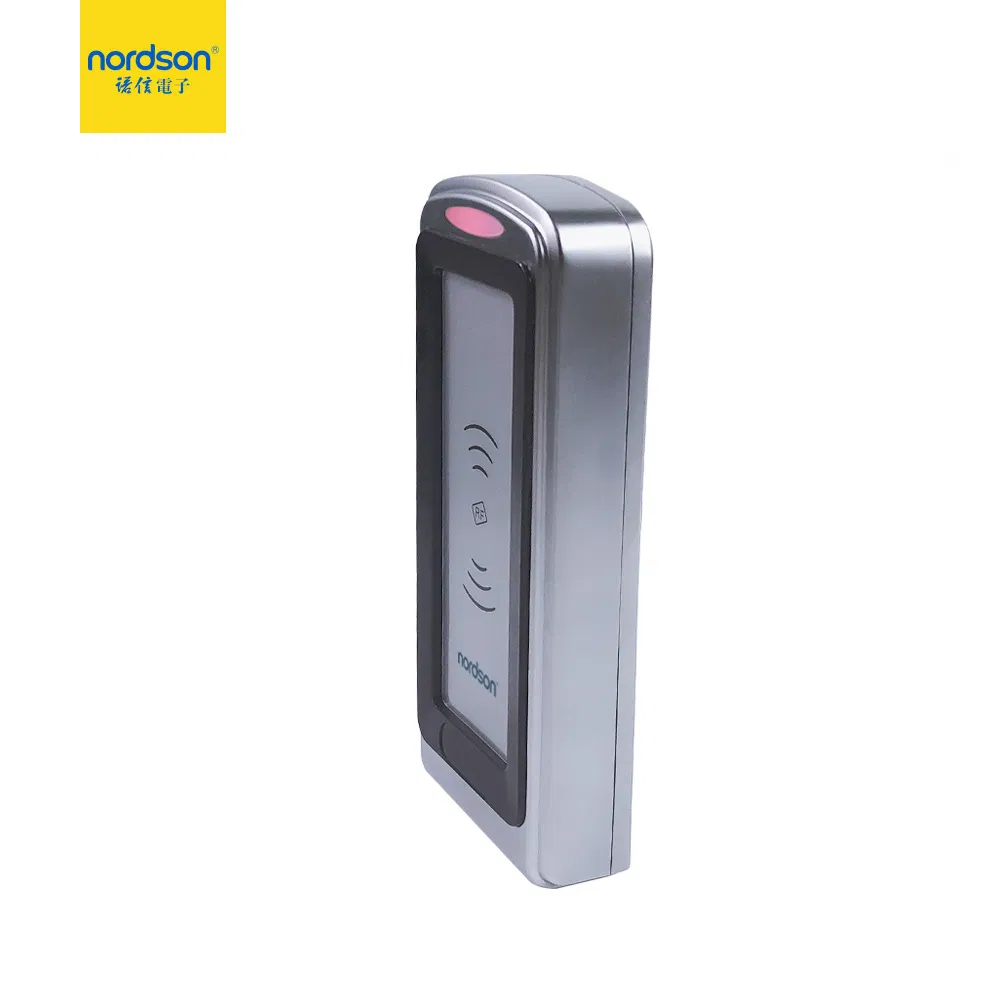

One door hotel wiegand input RFID door access control system with keypad remote

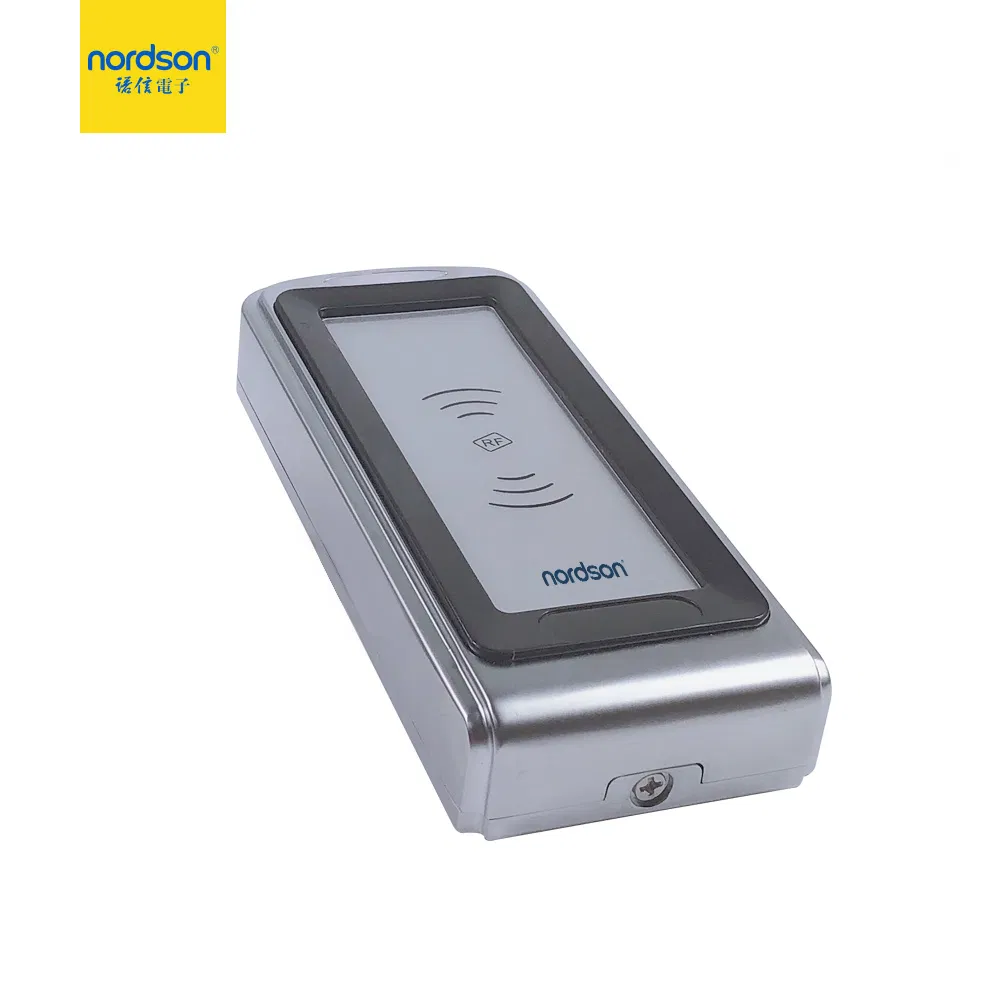

The NT-108 is a high-performance one-door RFID card access controller featuring a keypad remote control. This system allows for efficient management of user access, including adding or deleting user cards via the remote interface. Designed with a sleek narrow metal frame, it boasts an IP65 waterproof rating, making it suitable for both indoor and outdoor security applications.

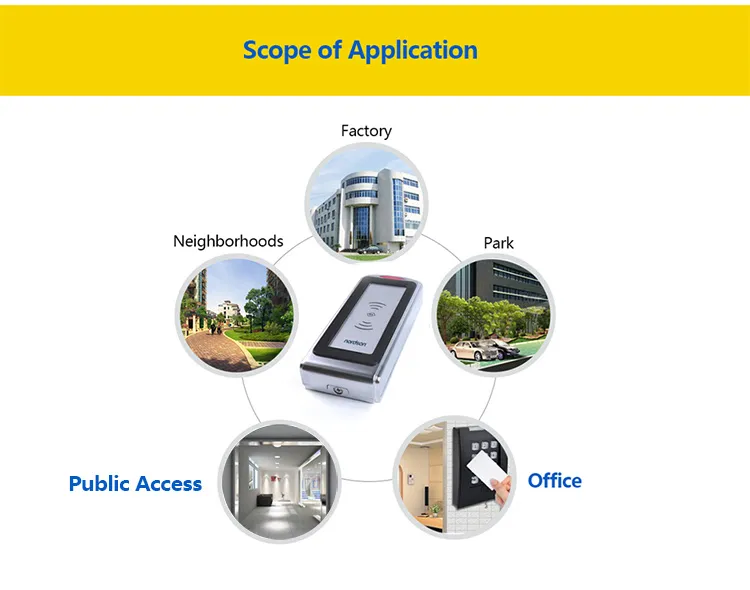

This smart controller supports WG26 signal input and is compatible with external card readers. It integrates seamlessly with multiple devices such as electric locks, exit buttons, and magnetic door sensors, forming a complete access control solution. Ideal for commercial and industrial areas including offices, apartments, laboratories, and factories.
Frequently Asked Questions

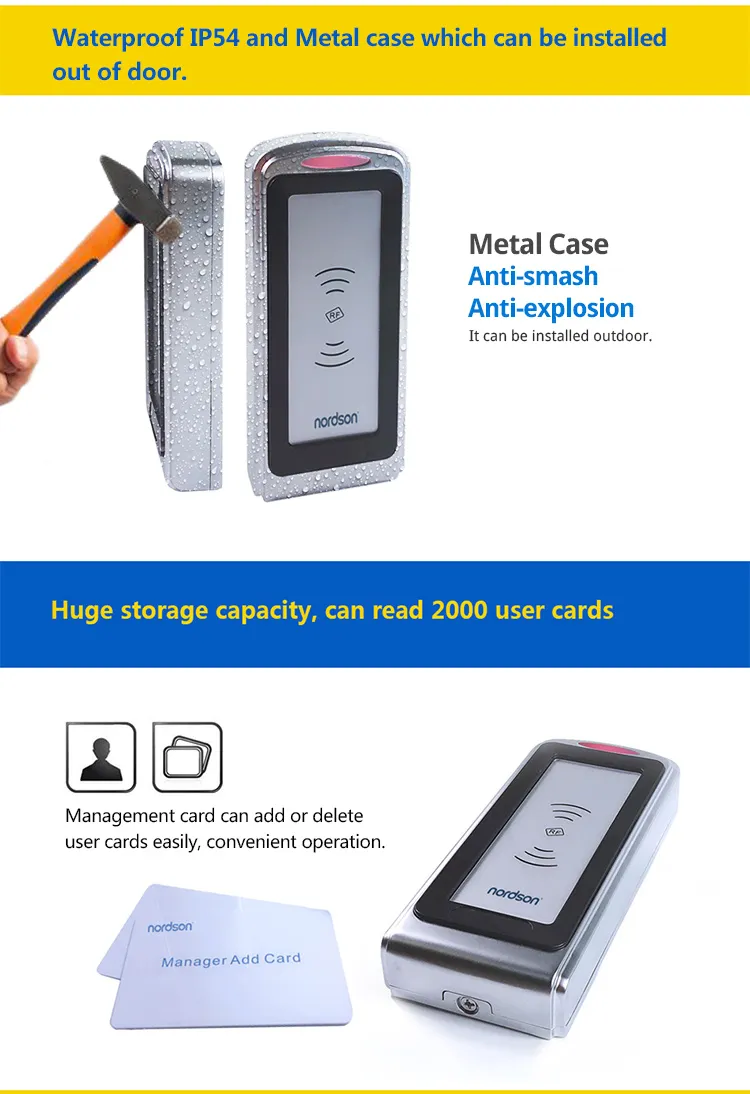

Q1: Is this device suitable for outdoor installation?
Yes, the device features a metal case and is IP65 waterproof rated, making it durable for outdoor environments.
Q2: How many users can the NT-108 store?
The system has a large storage capacity that can support up to 2000 user cards.
Q3: What types of RFID cards are supported?
It standardly supports EM (ID) 125Khz cards, with IC (Mifare 13.56MHz) cards available as an option.
Q4: How do I manage user cards?
Users can be added or deleted easily using the provided keypad remote management card.

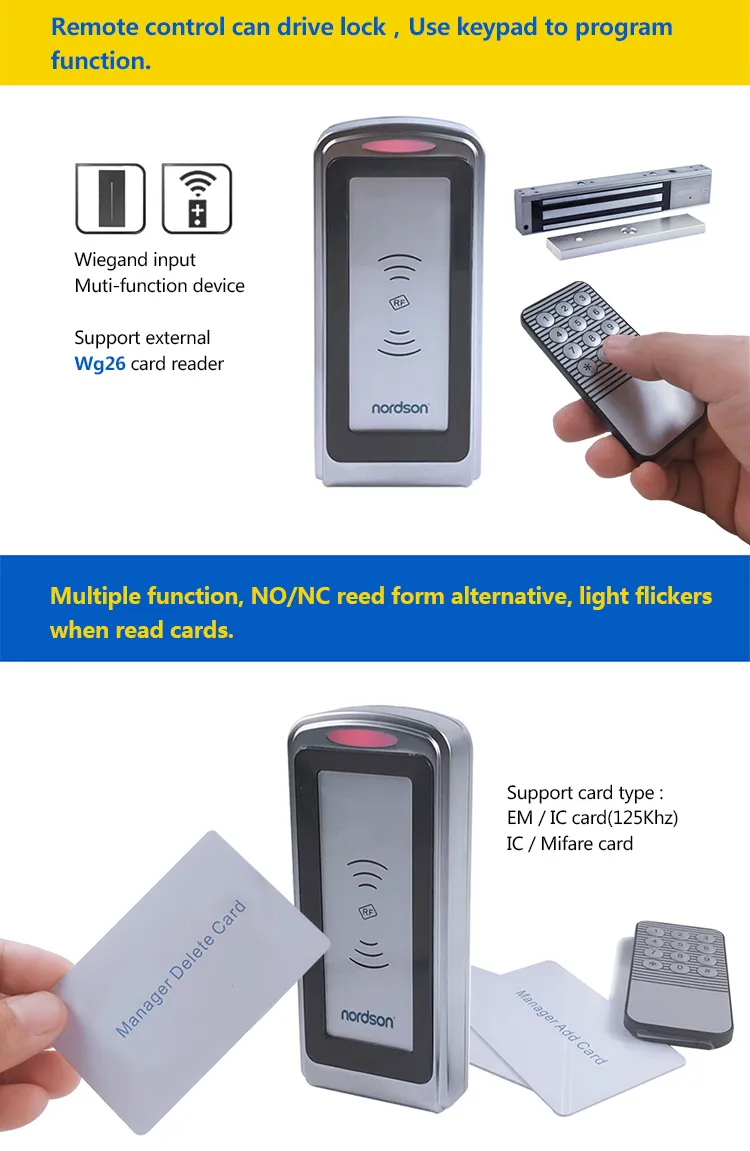

Q5: Does it support external card readers?
Yes, it includes a Wiegand 26 input, allowing you to connect an external Wg26 card reader for two-way control.
Q6: What is the maximum card reading distance?
The card reading distance typically ranges from 1 to 15 cm depending on the environment and card type.
