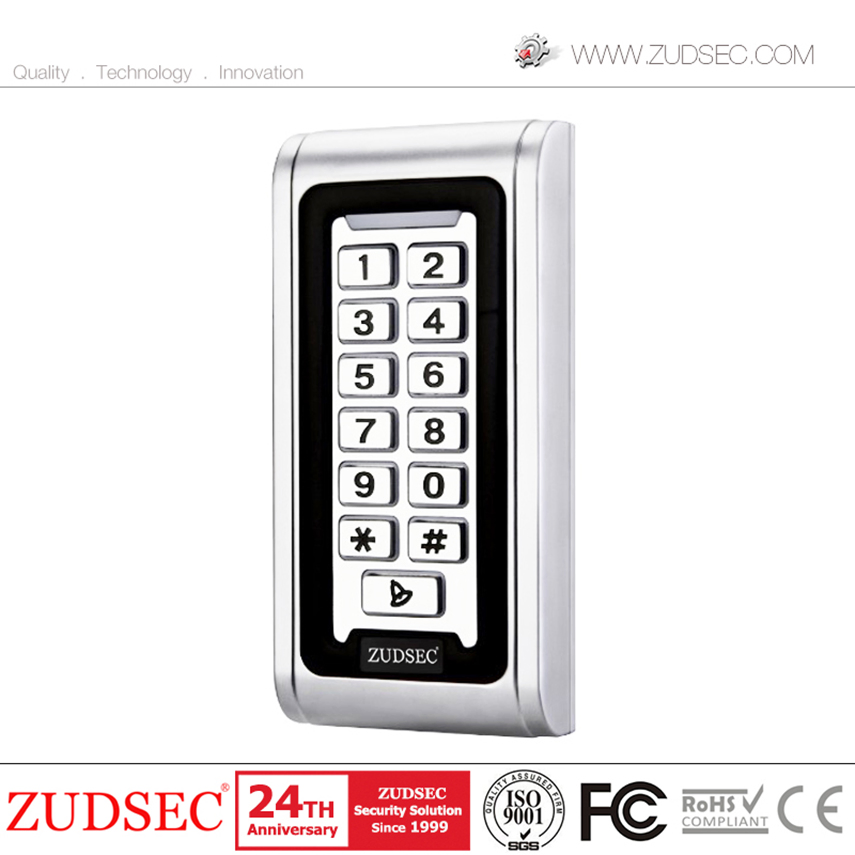

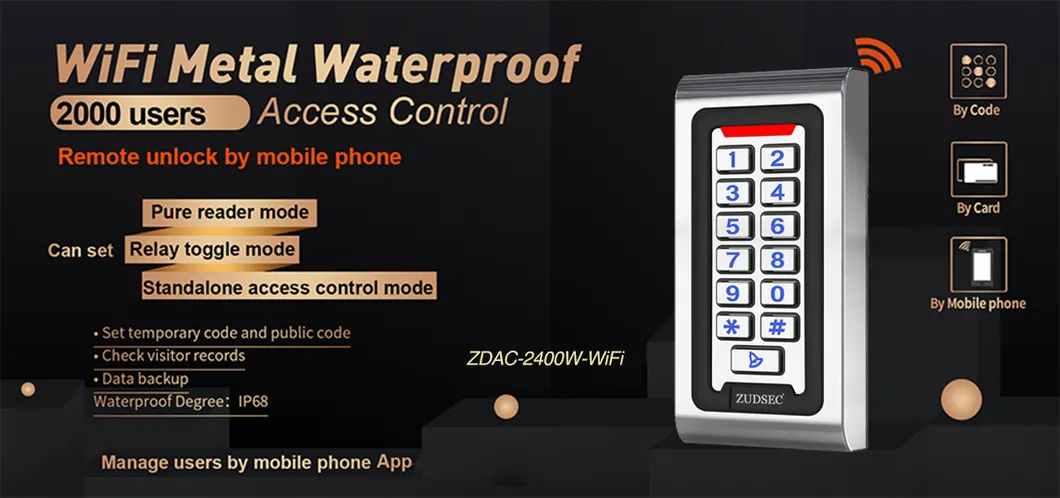

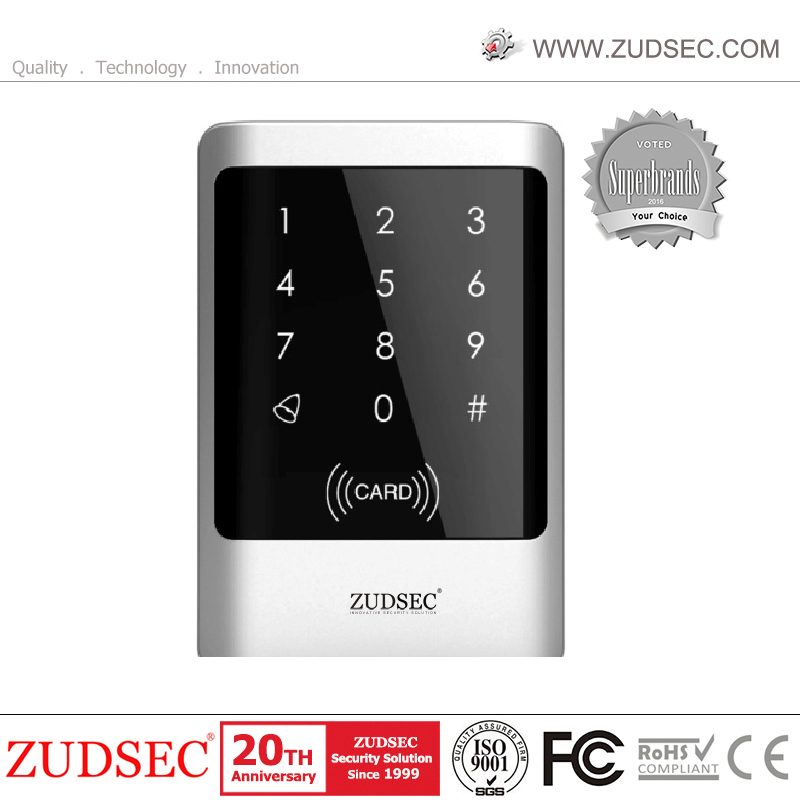

WiFi Smart Tuya New Electric Door Lock Keypad Security Access Control System
ℹ️ Basic Information
Technology
32-Bit Technology
Way of Control
Computer Control
Communication
not Networked
Identification
Card, Pin, Card & Pin
Operating Voltage
DC 12-24V
Material
Metal Case + Metal Keypad
📝 Product Description
Aluminum alloy structure, Waterproof, fully potted, confirms to IP65, 125KHz EM and HID card for optional, Multi-function, 12P cable with built in door bell function, operating as slave reader, single door, anti-pass back, etc. Suitable for various occasions.
⭐ Key Features
✔ Aluminium alloy case, waterproof, fully potted, meets IP-65 standard
✔ Metal digital backlit keypad with adjustable light modes
✔ Built-in door bell and 125KHz card reader with Auto-Recognition
✔ 2000 users capacity, each supports card and 4-6 digits password
✔ Support for master card and batch recording of 2000 serial number cards
✔ Multi-card entry support (2-10 cards) and Wiegand 26-37 output
📊 Technical Specifications
| Operating Voltage | DC 12-24V; Operating Current ≤35mA |
| Card Reading Distance | 3-6CM |
| Keypad Format | 4-6 digits key press to output card number format, 4 bits or 8 bits data |
| Card Type | 125KHz, EM |
| Output Format | Wiegand 26-37 |
| Temperature | -40ºC to 60ºC |
| Operating Humidity | 0~95% (non-condensing) |
| Dimensions & Weight | 158.6L x 43W x 21.7D (mm); 0.5Kg |
📷 Product Gallery
🔗 Related Products
❓ Frequently Asked Questions
1. How many users can this access control system support?
The system supports up to 2000 users, each having their own card and a 4-6 digit password.
2. Is the device suitable for outdoor installation?
Yes, it features an aluminum alloy structure and is fully potted to meet IP65/IP68 waterproof standards, making it ideal for outdoor use.

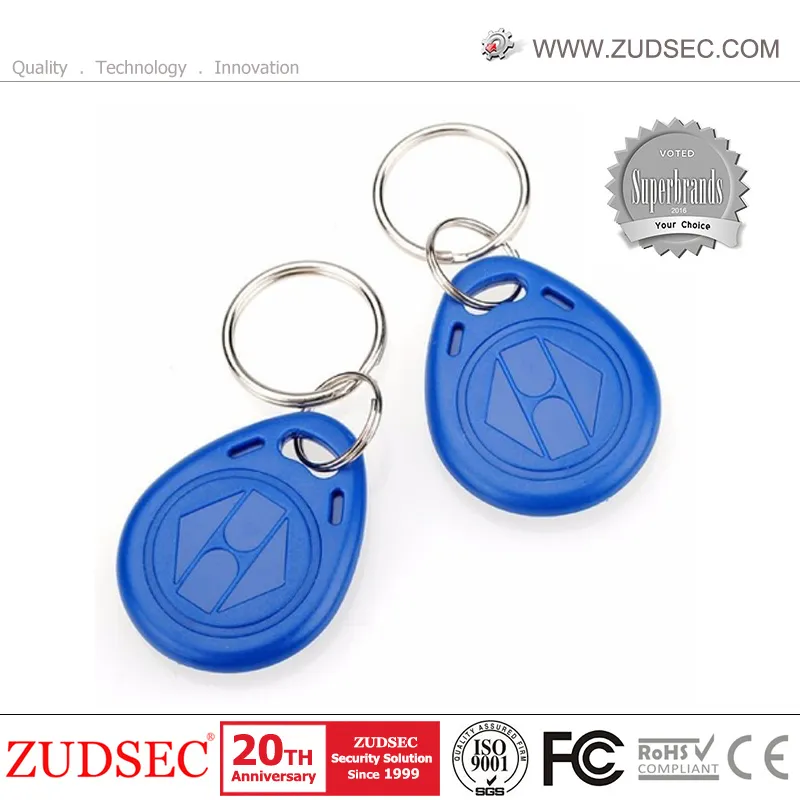

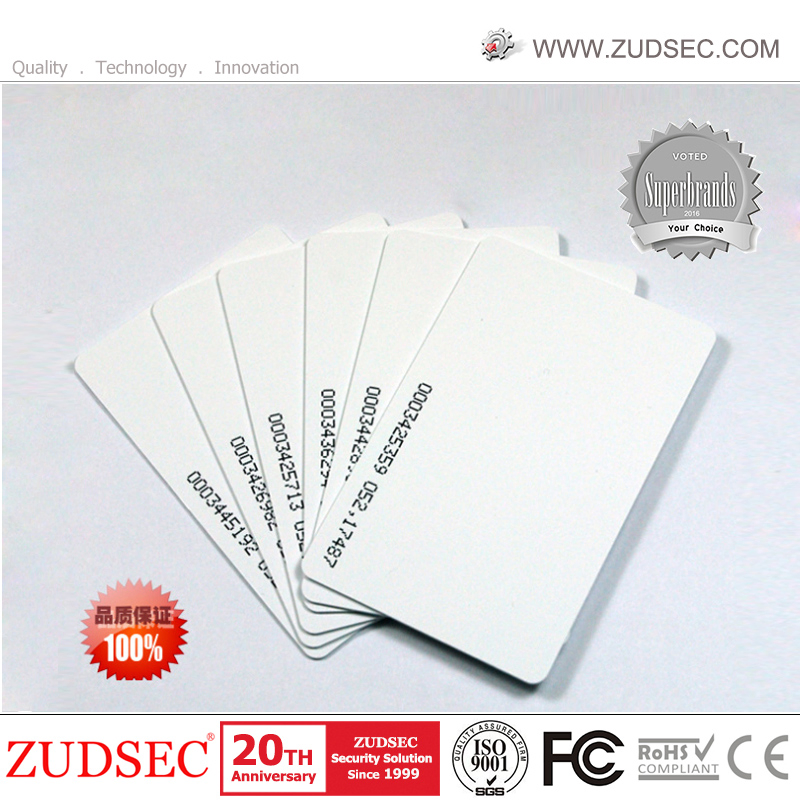

3. What card types are compatible with this reader?
This device is built with a 125KHz card reader compatible with EM and HID cards.
4. Can I use this device with the Tuya Smart App?
Yes, this is a WiFi-enabled smart Tuya system, allowing for modern security management via compatible platforms.
5. Does the keypad have a backlight for night use?
Yes, it features a metal digital backlit keypad. The backlight can be set to Normal ON, Normal OFF, or Human-Approach ON.
6. What is the required operating voltage?
The system operates on a wide voltage range of DC 12-24V, ensuring compatibility with most power supplies.
