| Model NO. | SF-S5K3M5 | Sensor | CMOS |
| Type | Camera Module | Pixel | 13MP |
| Focus | Auto Focus | Interface | Mipi |
| Sensor Size | 1/3.2 Inch | Certification | CE, FCC, RoHS, ISO9001 |
| Production Capacity | 10kk PCS/Month | Warranty | 10 Years |
| Package Size | 30.00cm * 20.00cm * 10.00cm |
| Package Gross Weight | 1.500kg |

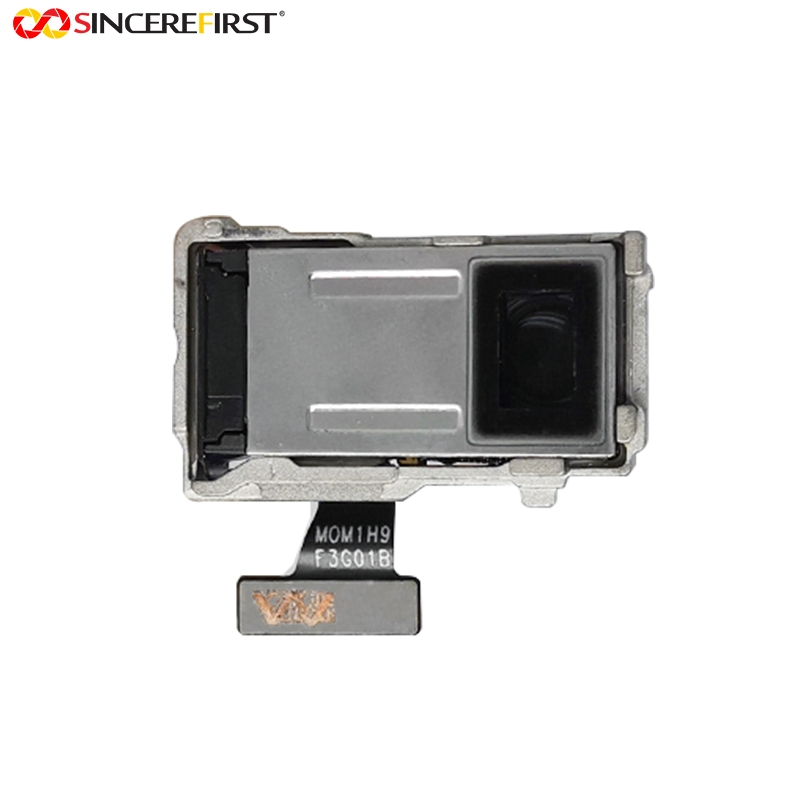

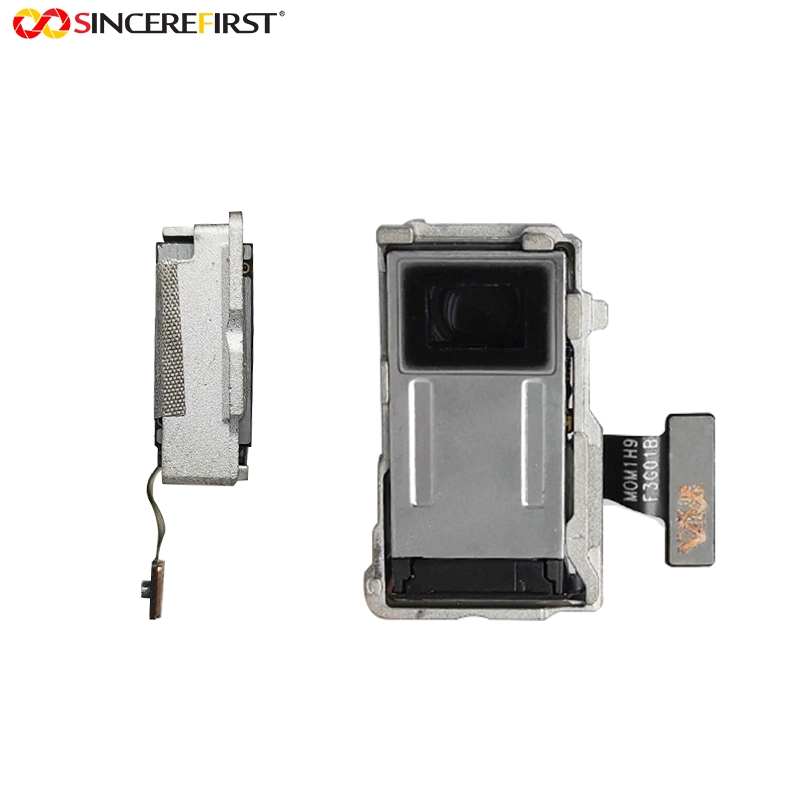

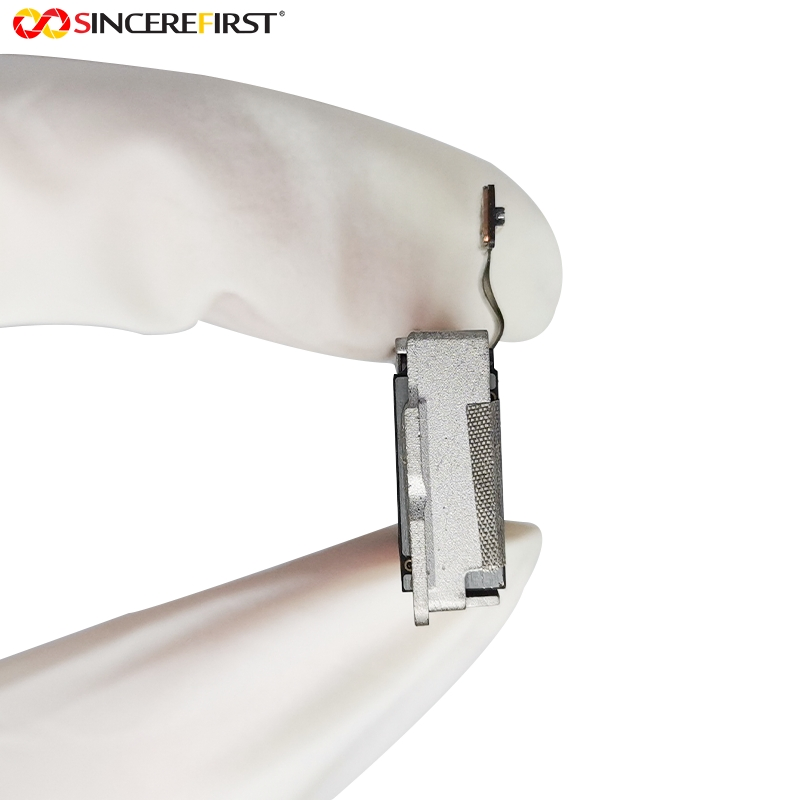

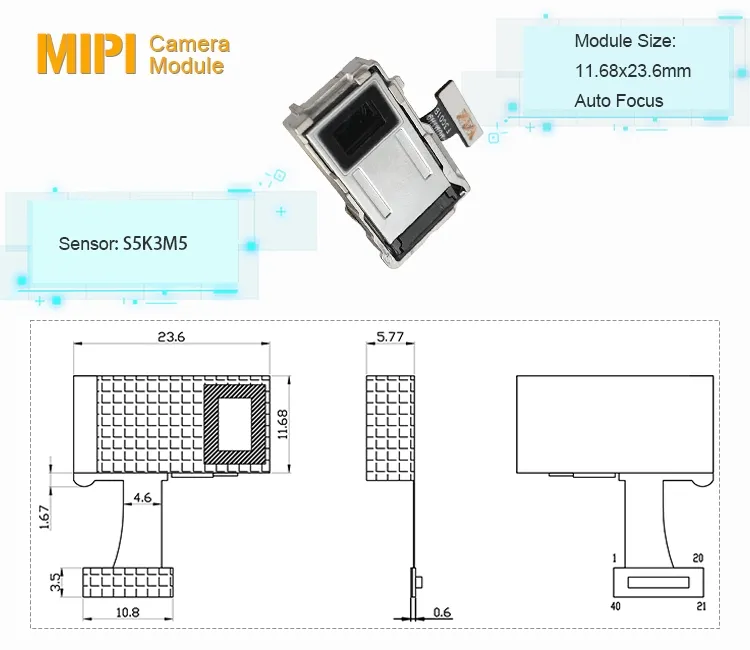

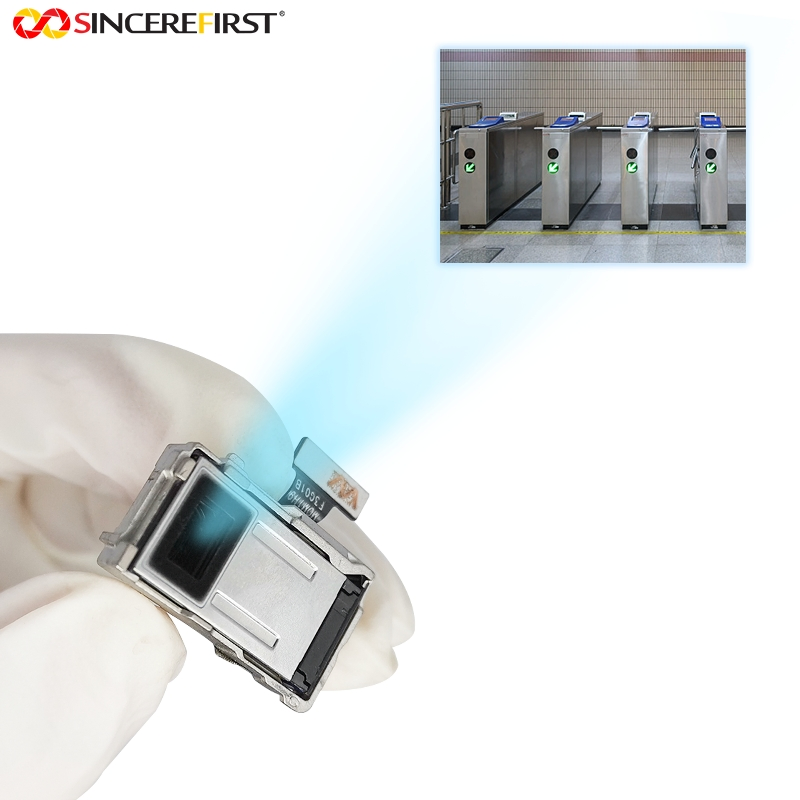

This is a S5K3M5 CMOS image sensor 5X optical zoom camera module with 13 MP megapixels. It features a supply voltage of 2.8 V (analog) and supports a frame rate up to 30 fps (normal) and 120 fps (video). Operating temperature ranges from -20 to 70 degrees Celsius.
| Sensor | S5K3M5 | Pixels | 13MP |
| Focus Range | 10cm to Infinity | Focal Length | 2.92mm |
| F.NO | 2.4 | Fov(D) | 75° |

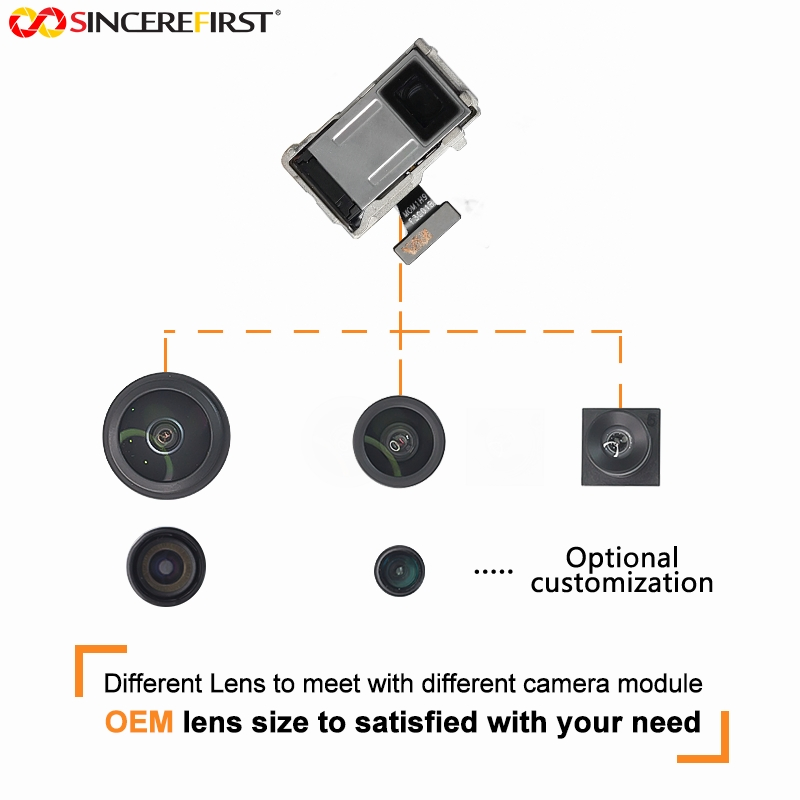

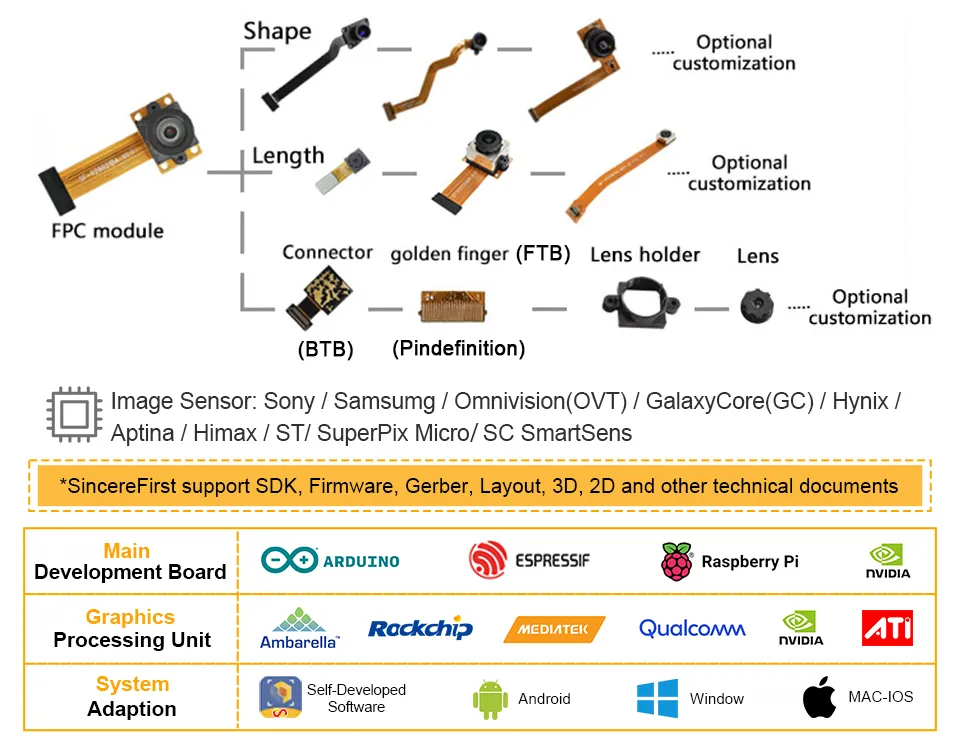

We provide comprehensive customization services including FPC length, module shape, connector types, PIN OUT, and software support to meet specific application requirements.
Major Applications: Eye tracking, self-service machines, robotic arms, face recognition, VR glasses, barcode scanners, and embedded systems.
