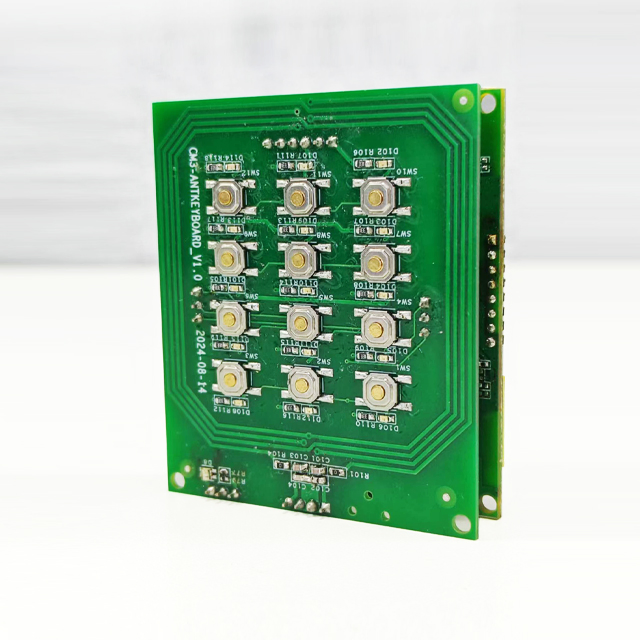

Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
1 / 5
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control
Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control

Cm3 WiFi Door Access Control System Cloud-Based Access Control Security Gate Access Control

Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

📋 Basic Information
Model
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Standard
Anti-theft Standard A
Backset
70mm
Communication
WiFi, BLE 5.3, USB
Keypad
12 Digit Mechanical Keypad
Power
3V, 4 * Battery
🔍 Product Overview
Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi-technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.

Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meets the high security application.

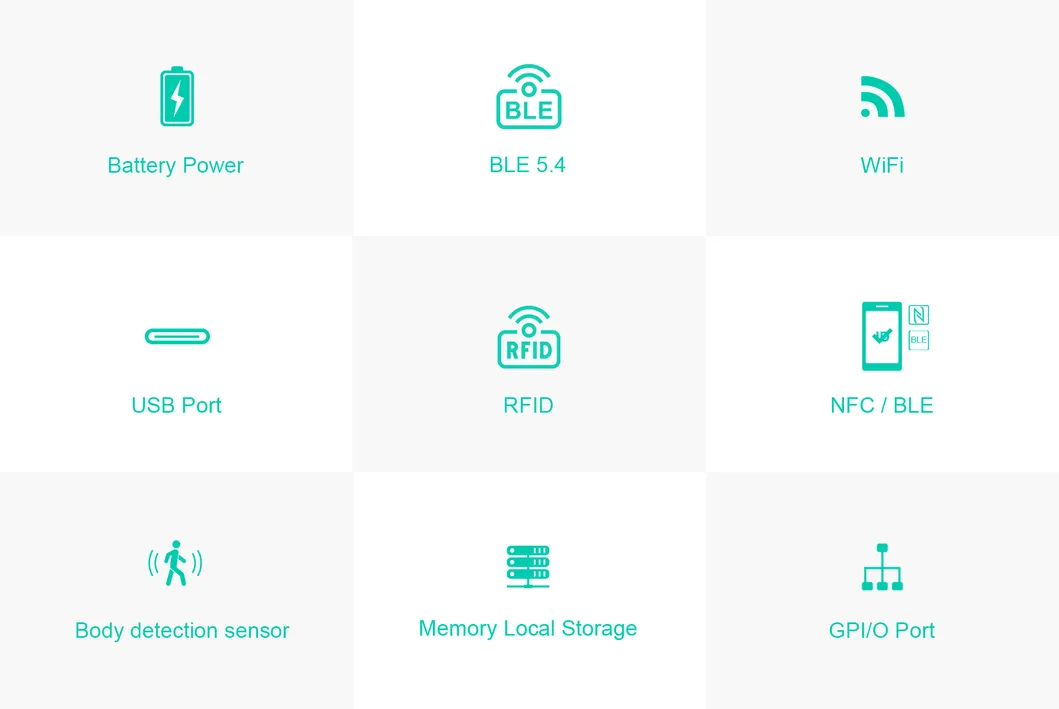

Product Overview
⚙ Product Features

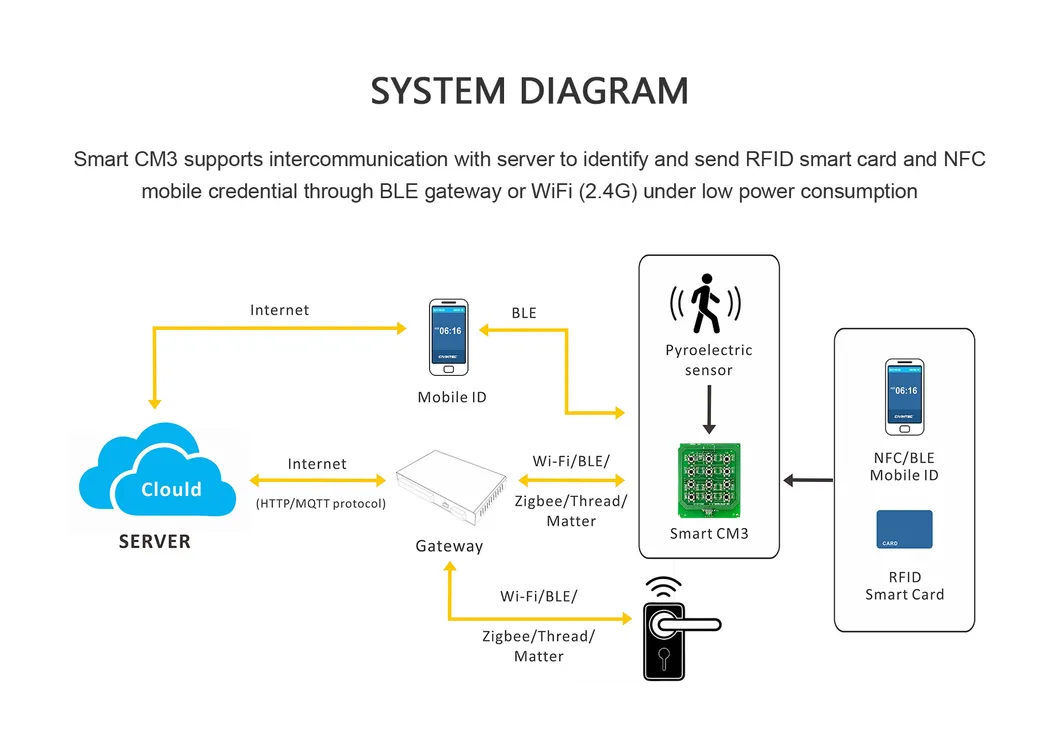

Feature 1 Feature 2 Feature 3
🎊 Main Advantages
✔Support 13.56MHz Desfire EV1/EV2/EV3 and NFC technologies.
✔Support Arm® TrustZone® for high-level security architecture.
✔Rich I/O port options for comprehensive electric lock control.
✔Integrated memory for reliable local data storage.
✔Ultra-low power consumption, ideal for battery-powered solutions.
✔Supports BLE 5.4, Zigbee, Thread, Matter, and MQTT protocols.
✔Advanced body detection function included.

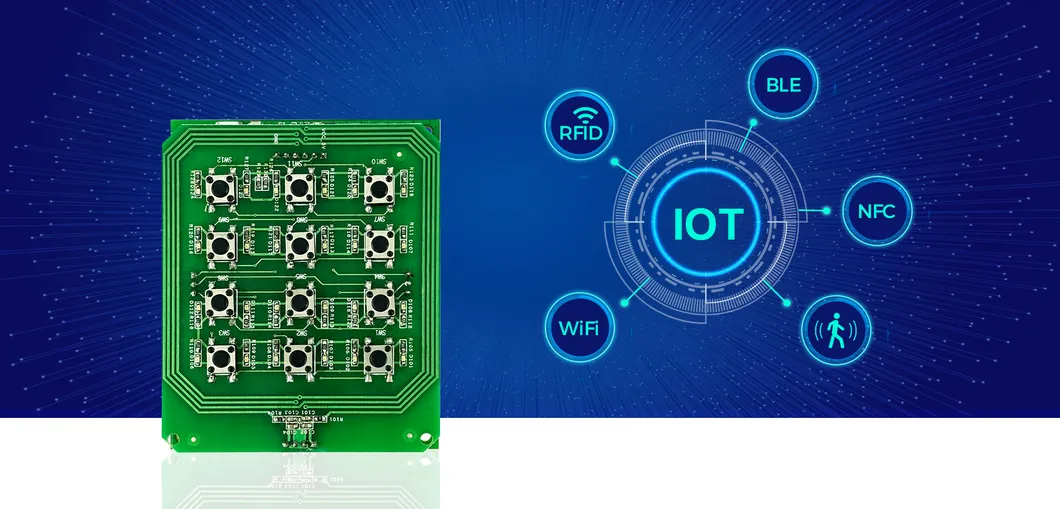

Advantages Diagram
📊 Technical Specifications
Memory4M BYTE
Power SupplyUSB or 3V / 4 * battery
RFID Standards13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, NFC tag, HID iCLASS CSN
Secure InterfaceOptional SAM slot ISO7816; SAM AV2 support; Secure IC for MCU protection (EAL5+ Level)
Mobile CommunicationNFC and BLE 5.3
Keypad12 digit mechanical keypad
InterfacesWiFi, BLE 5.3 (Master & Slave, Beacon, Thread, Zigbee, Mesh), USB
IndicatorsBuzzer and Bio-color LED
Input/OutputGPI/O * 8
Operating Temp.-20ºC to 60ºC
🏭 Expertise & Capability
Capability Overview
❓ Frequently Asked Questions
Q1: What types of RFID cards are supported by the CM3 system?
The system supports a wide range of 13.56MHz standards including Mifare Classic, DESfire EV1/EV2/EV3, ISO14443A, ISO15693, and NFC tags.
Q2: Does it support mobile phone unlocking?
Yes, it supports both BLE 5.3/5.4 and NFC mobile credentials for convenient smartphone-based access.
Q3: How is the device powered?
The CM3 can be powered via a standard USB connection or through a 3V battery setup (typically 4 batteries) for wireless operation.
Q4: What wireless protocols are compatible for integration?
The platform is highly versatile, supporting WiFi, BLE 5.3, Zigbee, Thread, Matter, and MQTT protocols for various smart environment integrations.
Q5: Is the data storage secure on this device?
Absolutely. It features Arm® TrustZone® support, secure I/Os, and an optional SAM slot with EAL5+ level encryption for high-security applications.
Q6: Can it handle outdoor temperatures?
The device is designed to operate efficiently in temperatures ranging from -20ºC to 60ºC, making it suitable for most indoor and sheltered outdoor environments.
