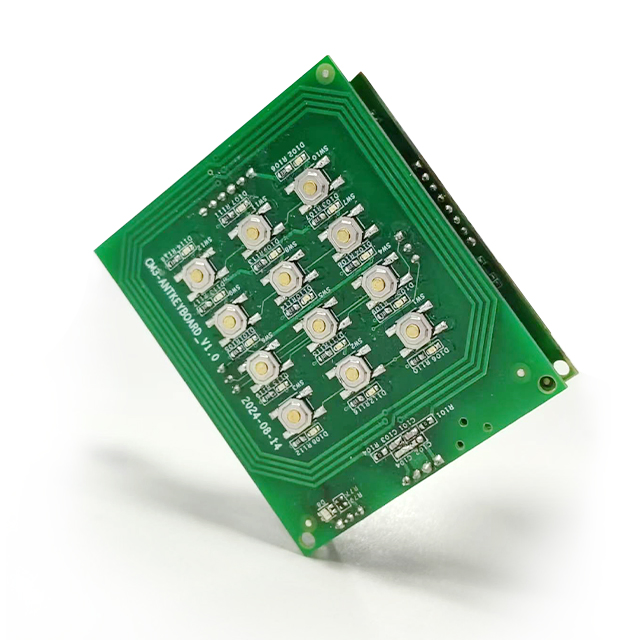

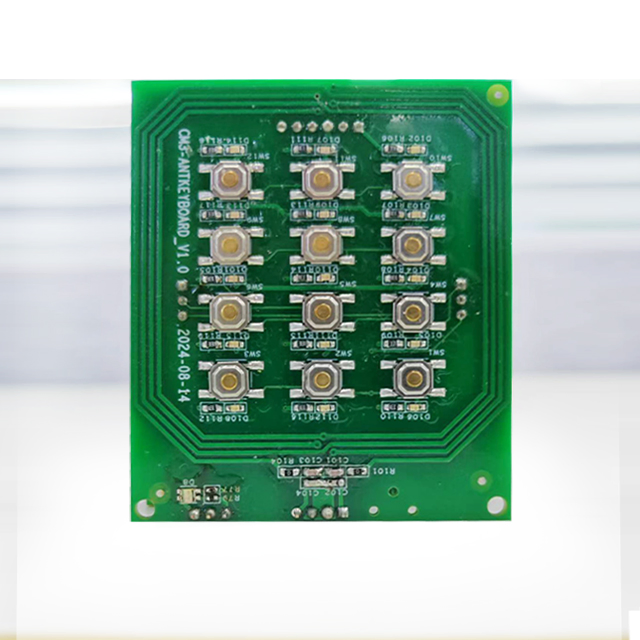

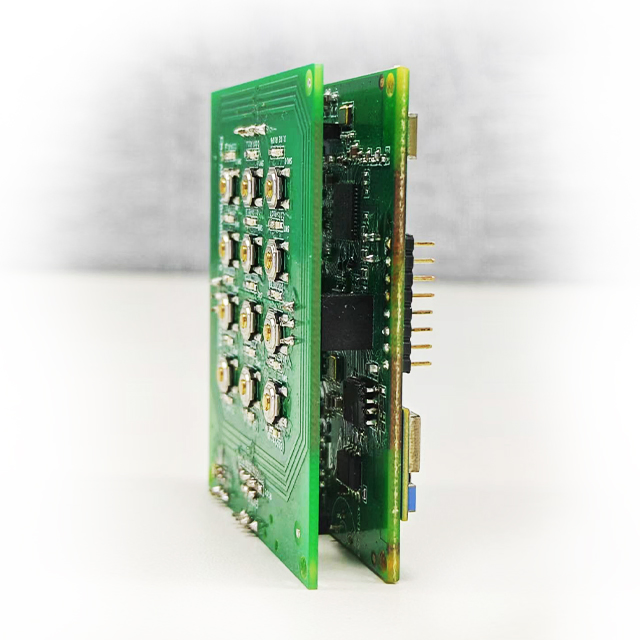

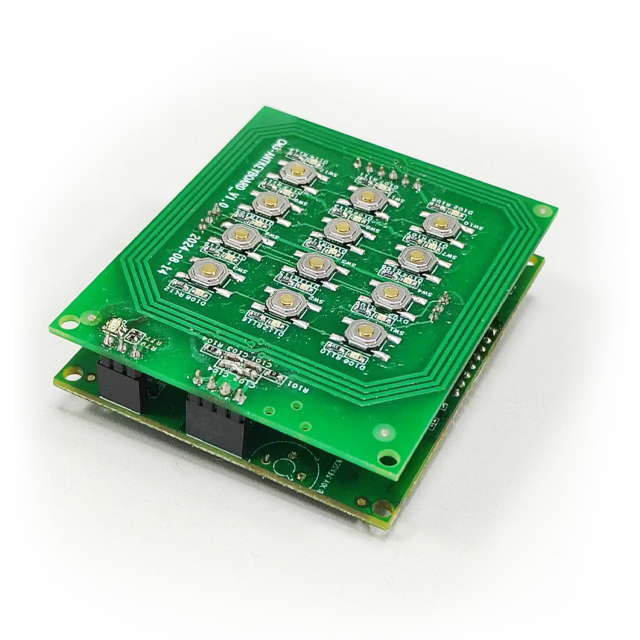

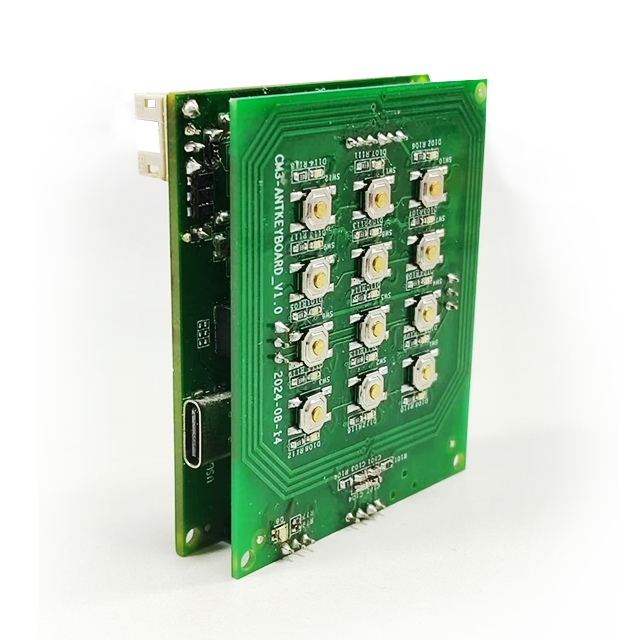

Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
1 / 5
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control
Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control

Cm3 Cloud-Based WiFi Door Access Control System Security Gate Locks Access Control

Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

i

Basic Information

Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Part
Lock
Backset
70mm
Usage
Household Door Locks, Bedroom, Channel Lock
Secure Interface
Sam Slot & Secure IC Eal5+ Level
Communication
WiFi, BLE 5.3, USB
Power
3V, 4 * Battery
Origin
China
★

Product Overview

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery operated power consumption design, which contain the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.

Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application.

Thanks to the latest technologies, it meet the Ultra-low power consumption requirement. Smart CM3 powerful platform is highly recommended for both hardware and software customization.

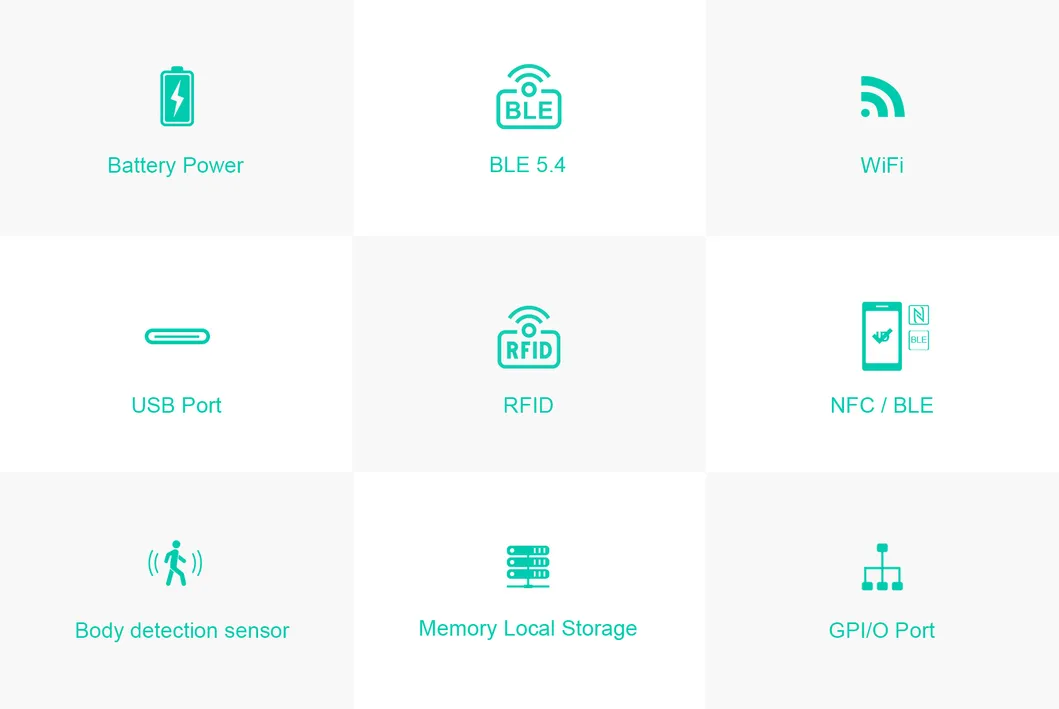

Smart CM3 Overview
⚙

Product Features

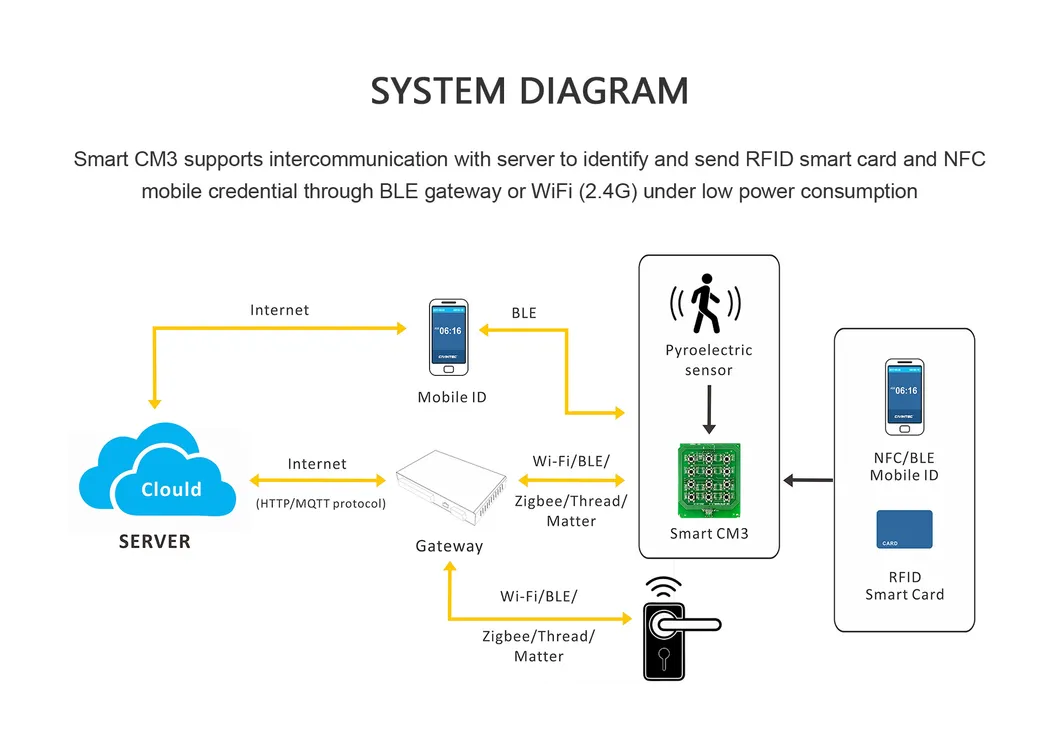

Feature 1 Feature 2 Feature 3
▶

Advantages

  • Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
  • Support Arm® TrustZone® for high security
  • Rich I/O port for electric lock control
  • With memory for local data storage
  • Economic solution for battery powered ultra-low power consumption reader
  • Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
  • Embedded software development
  • With Body detection function
Advantages Visualization
📋

Specifications

Memory4M BYTE
Power Supply- USB
- 3V / 4 * battery
RFID ISO Standard & Cards13.56MHz ISO14443A, ISO15693 and ISO18092 standard
- Mifare Classic CSN & Sector
- DESfire EV1/EV2/EV3 CSN & Sector
- Ultralight/Ultralight C CSN & Sector
- NFC tag / HID iCLASS CSN
Secure Interface- Optional SAM slot ISO7816 T=0, T=1
- Support SAM AV2 for 13.56MHz encryption
- Secure IC for MCU communication protection EAL5+ Level
Mobile Communication- NFC mobile phone
- BLE 5.3
Mechanical Keypad12 digit keypad
Communication Interfaces- WiFi
- BLE 5.3 (Master & Slave mode, Beacon, Thread, Zigbee, Mesh)
- USB
IndicatorsBuzzer and Bio-color LED
Operating Temperature-20ºC~60ºC
Configuration MethodsConfiguration card, reader tool software or factory configured readers.
🏢

About Us

Company overview image
?

Frequently Asked Questions

What wireless protocols does the CM3 support?
The Smart CM3 platform supports a wide range of protocols including WiFi, BLE 5.3/5.4, Zigbee, Thread, Matter, and MQTT, making it highly versatile for IoT applications.
Which RFID technologies are compatible with this device?
It supports 13.56MHz contactless technologies such as Mifare Classic, DESfire EV1/EV2/EV3, Ultralight C, Plus S/X, and NFC tags.
How is the device powered?
The CM3 can be powered either via a USB connection or through a 3V battery setup (typically 4 * batteries) designed for ultra-low power consumption.
Does the system provide high-level security features?
Yes, it supports Arm® TrustZone®, features an optional SAM slot, and includes a Secure IC with EAL5+ level protection for MCU communication.
Can the hardware or software be customized for specific needs?
Absolutely. The CM3 is a powerful platform recommended for both hardware and software customization to fit various access control and handheld applications.
What is the operating temperature range?
The device is designed to operate reliably in temperatures ranging from -20ºC to 60ºC.
