Customization: Available
After-sales Service: Technical Support & Customization Service
Warranty: 1
Send Inquiry

Product Description

1

Overview & Basic Info

Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Anti-theft Standard
A
Backset
70mm
RFID Card
13.56MHz 125kHz
Wireless
BLE 5.3 Master & Slave
Power
3V, 4 * Battery
Origin
China
Capacity
1000 Pieces Per Month
2

Product Overview

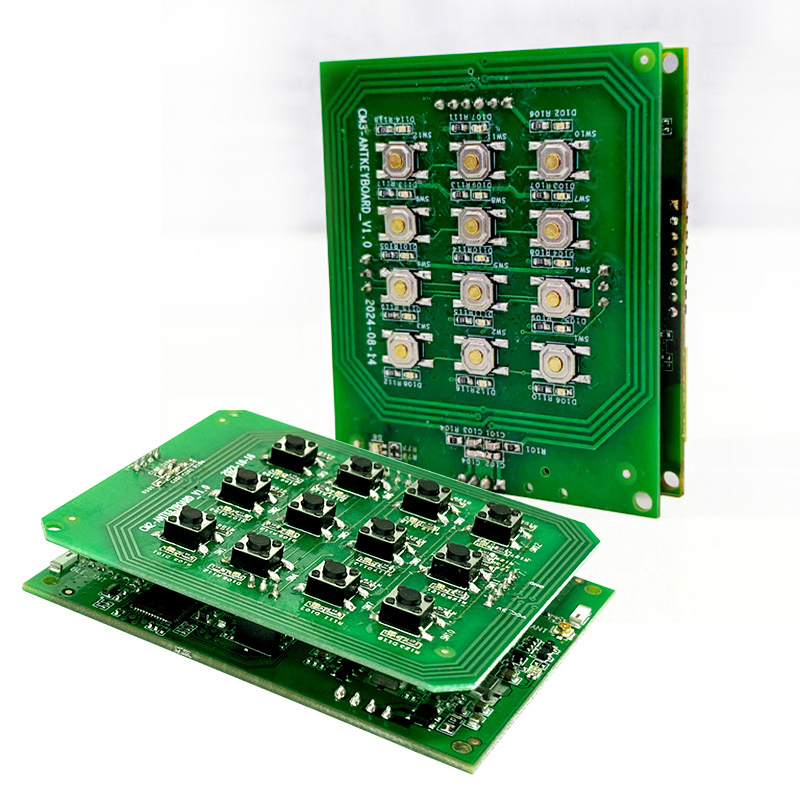

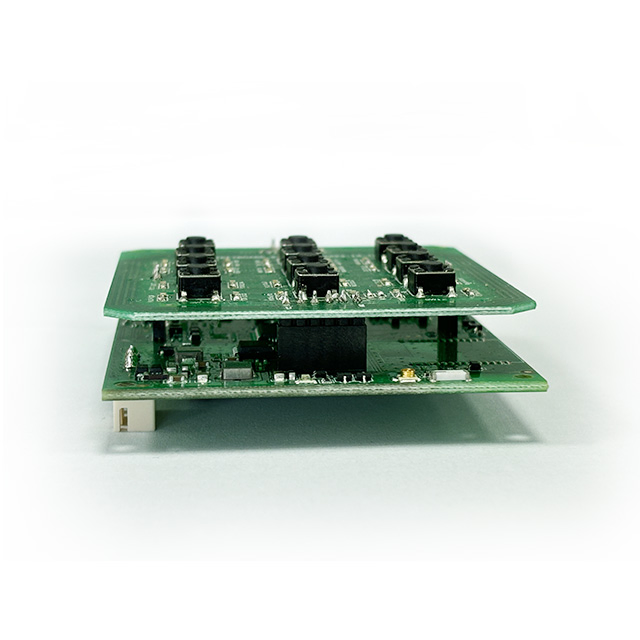

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi-technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, asset tracking, and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including DESFire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meets high-security application requirements.

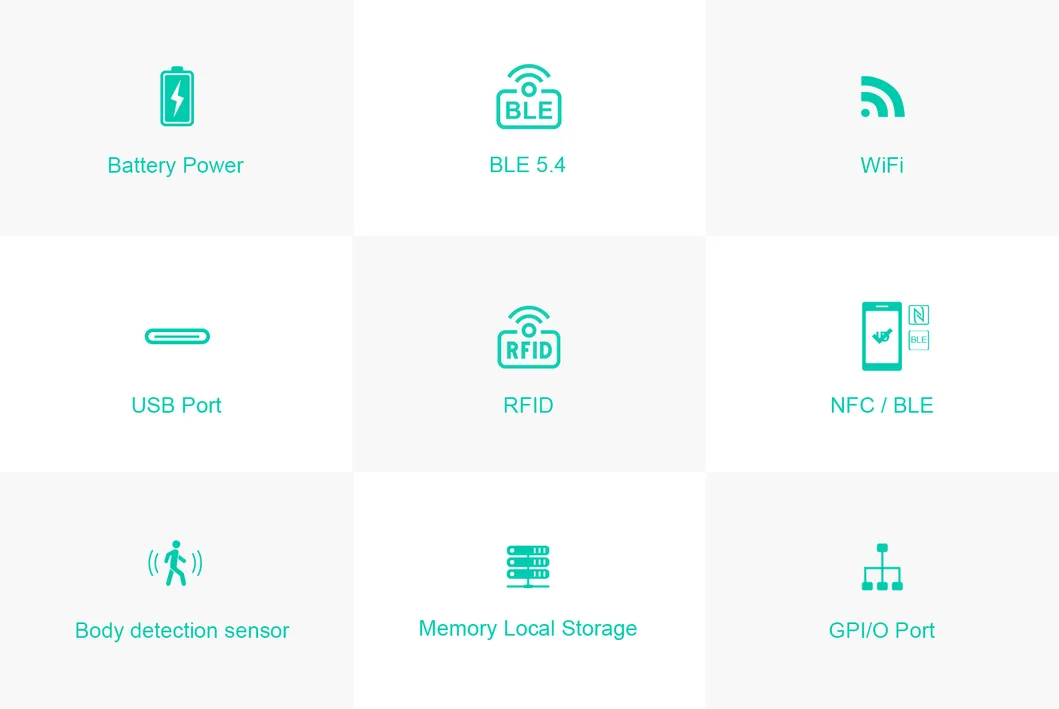

Access Control System Overview
3

Product Features

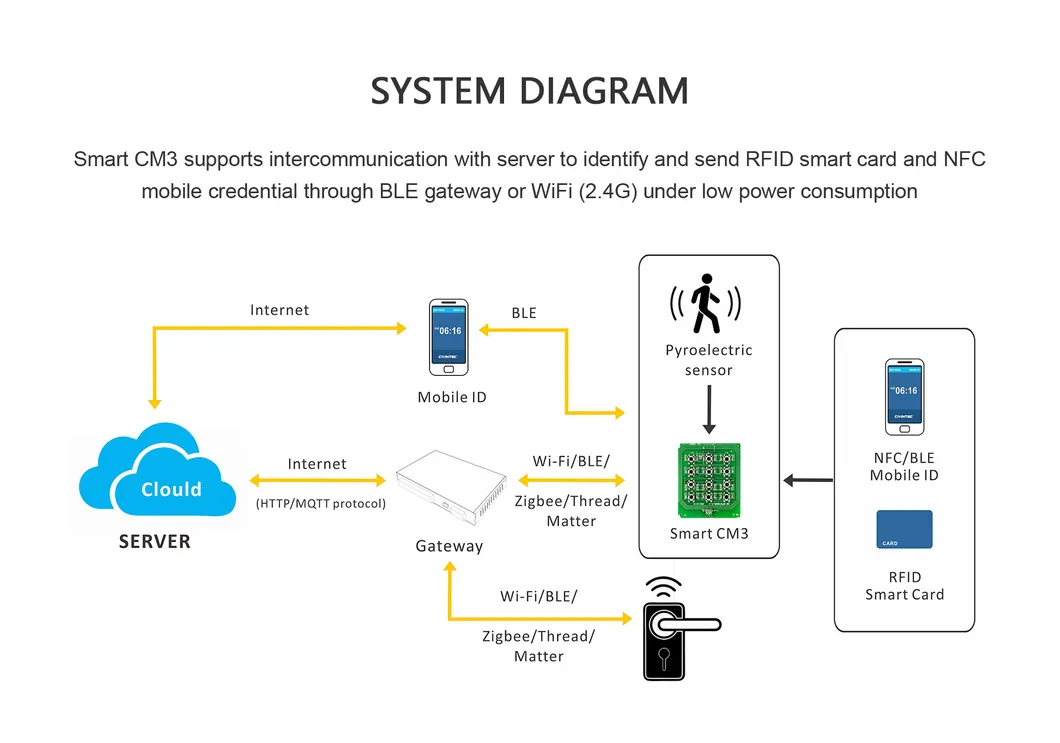

Feature Image 1
Feature Image 2
Feature Image 3
4

Advantages

  • Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
  • Support Arm® TrustZone® for high security
  • Rich I/O port for electric lock control
  • Equipped with memory for local data storage
  • Economic solution for battery powered ultra-low power consumption reader
  • Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
  • Embedded software development available
  • Built-in Body detection function

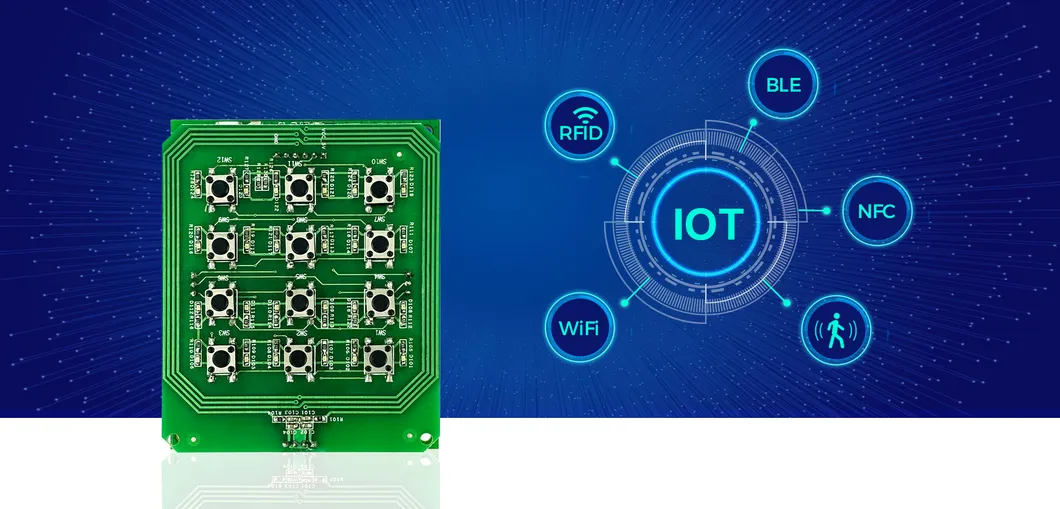

Security Advantages
5

Specifications

Memory 4M BYTE
Power Supply USB / 3V (4 * battery)
RFID Standards 13.56MHz ISO14443A, ISO15693, ISO18092; Mifare Classic, DESfire EV1/EV2/EV3, NFC Tag, HID iCLASS CSN
Secure Interface Optional SAM slot ISO7816; SAM AV2 support; Secure IC EAL5+ Level
Mobile Comm. NFC mobile phone, BLE 5.3
Keypad 12 digit mechanical keypad
Interfaces WiFi, BLE 5.3 (Master/Slave, Beacon, Zigbee, Mesh), USB
Input/Output GPI/O * 8
Temperature -20ºC ~ 60ºC
6

Capabilities

Manufacturing Capabilities

Frequently Asked Questions

Q1: What are the main wireless protocols supported by Smart CM3?
The Smart CM3 platform supports BLE 5.3/5.4, WiFi, Zigbee, Thread, and Matter protocols, ensuring broad compatibility for IoT environments.
Q2: Can the device be powered by batteries?
Yes, it is specifically designed for ultra-low power consumption and can be powered by 4 standard batteries (3V) or via a USB interface.
Q3: Which RFID technologies is the CM3 compatible with?
It supports a wide range of 13.56MHz technologies, including Mifare Classic, DESFire EV1/EV2/EV3, NFC tags, and HID iCLASS CSN.
Q4: How does the CM3 ensure high-level security?
Security is integrated through Arm® TrustZone® technology, optional SAM slot support, and a Secure IC for MCU communication protection at the EAL5+ Level.
Q5: Is there local data storage available on the device?
Yes, the CM3 includes 4M Bytes of onboard memory, allowing for local data storage and offline operation when necessary.
Q6: What environment is the CM3 suitable for?
With an operating temperature range of -20ºC to 60ºC and various I/O ports, it is ideal for household door locks, bedroom doors, and commercial access control systems.
