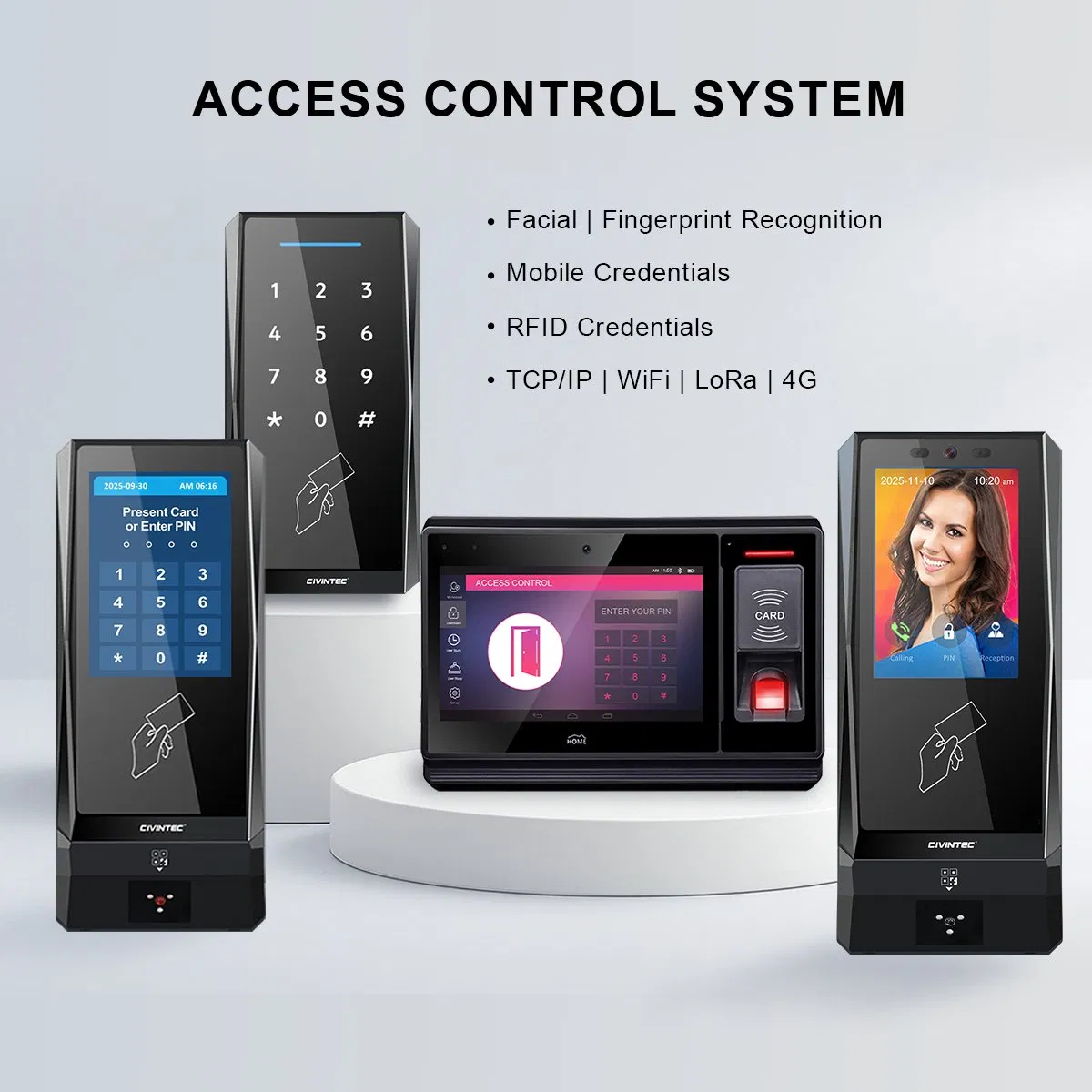

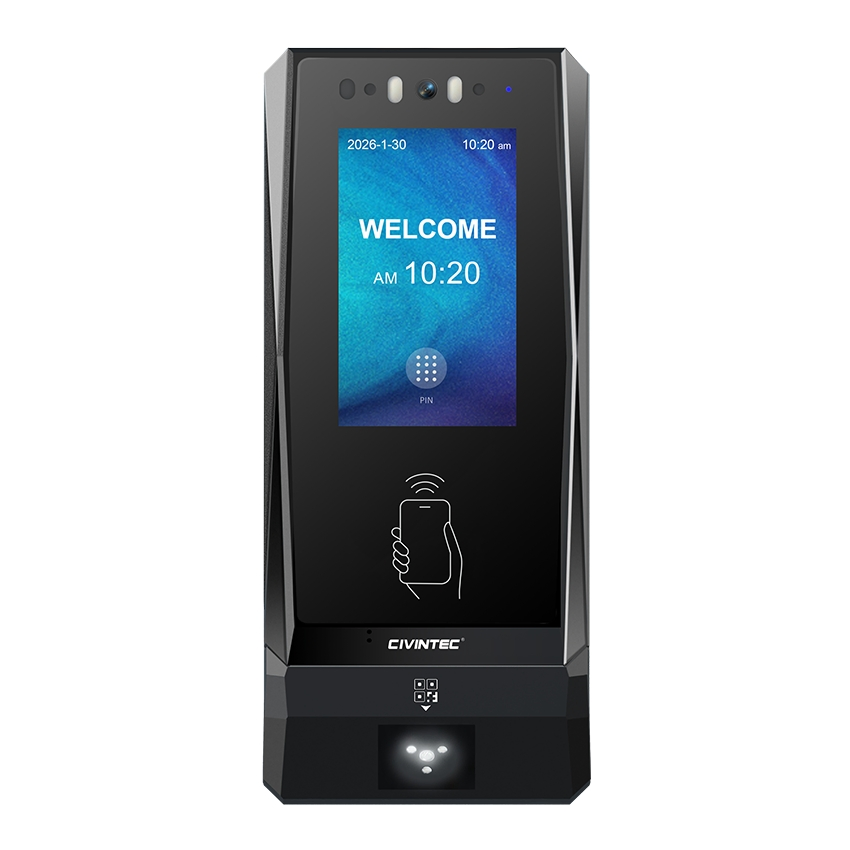

CT10 is an advanced access control terminal with a camera and four authentication methods: mobile credentials (BLE/NFC), RFID cards, QR scanning, and keypad input. It supports flexible connectivity via Ethernet, 4G, WiFi, and LoRaWAN for real-time or standalone operation. With an open SDK and customizable 3.5-inch touch interface, it enables tailored integration across corporate and smart building applications.
HTTP Server Centralized Access Control System with RFID/QR Code/Mobile Credential Reader
| IDENTIFICATION & GENERAL | |
|---|---|
| RFID | 125KHz (HID® PROX™, EM), 13.56MHz (Mifare® Classic, Ultralight®, Plus, DESFire® EV1/EV2/EV3), NFC tags |
| Mobile Credential | BLE, NFC, QR Code |
| Operating System | LINUX OS |
| Display | 3.5" UV-resistant touch screen |
| Camera | Autofocus and LED Flash |
| Communication | TCP/IP(RJ45), WiFi, LoRaWAN, 4G, RS485, Wiegand |
| User Capacity | Local: 100,000 users / Online: Unlimited |
| Protection | IP65 electric epoxy potted, UV resistant |
| Dimensions | 46mm(D) * 198mm(H) * 82.6mm(W) |

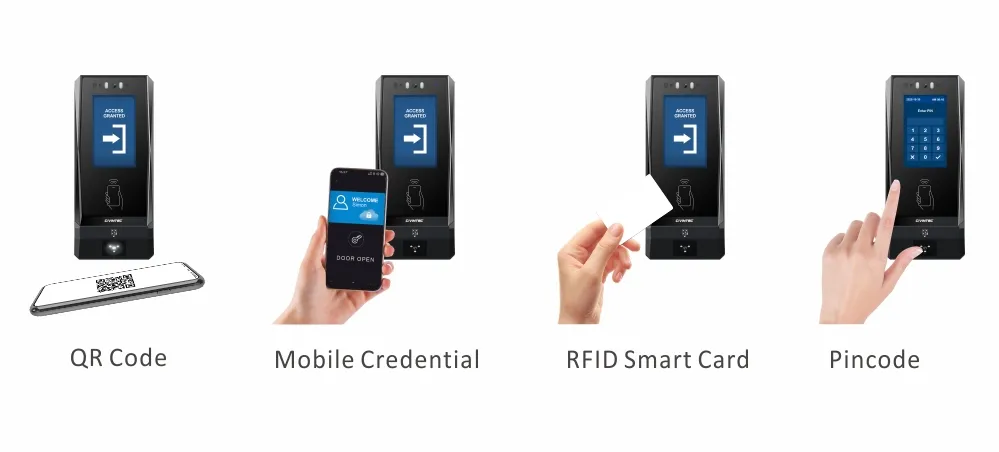

Support Multiple Authentication Technologies: Secured by advanced encryption, security can be further enhanced with 4-factor authentication combining mobile App with digital credentials.
Real-Time Cloud Management: Bi-directional encrypted HTTP/HTTPS requests via WiFi, LoRaWAN, 4G, and TCP/IP.

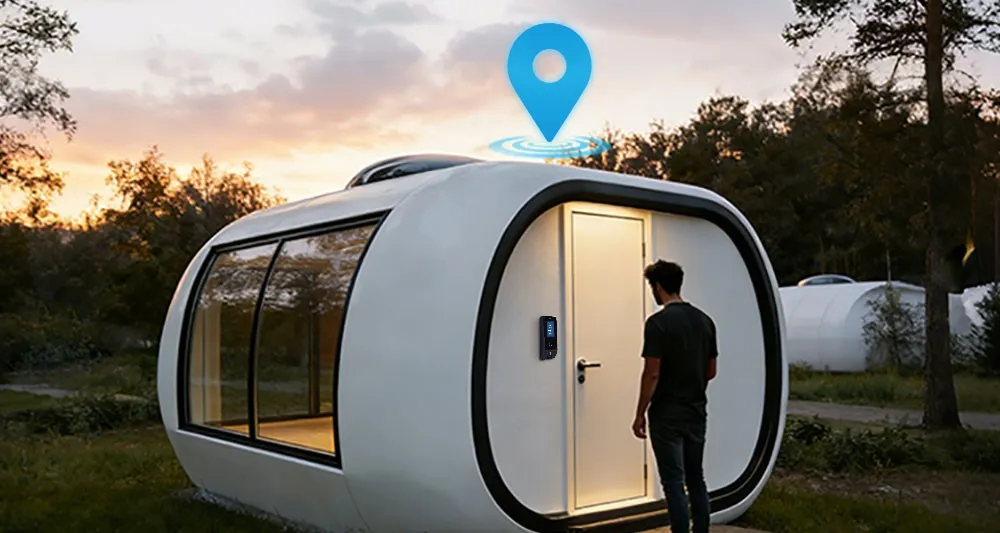

4G + GPS Reliability: Designed for outdoor and mobile applications, ensuring connectivity without dependency on local wiring.
Advanced Secure Protection: Implementation of AES encryption for digital credentials and personal info.

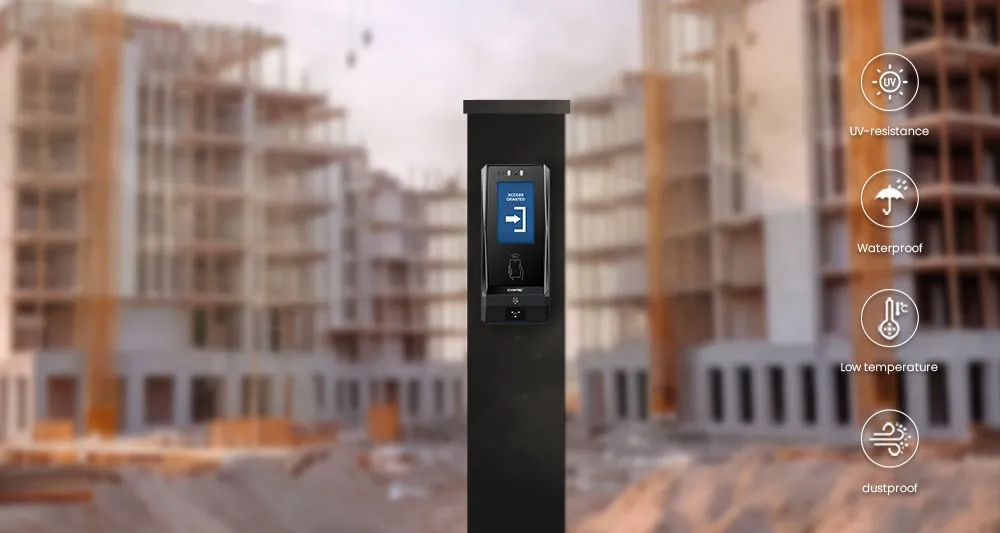

Weather-Resistant: Mullion compact design with IP65 rating against rain, dust, and strong sunlight.

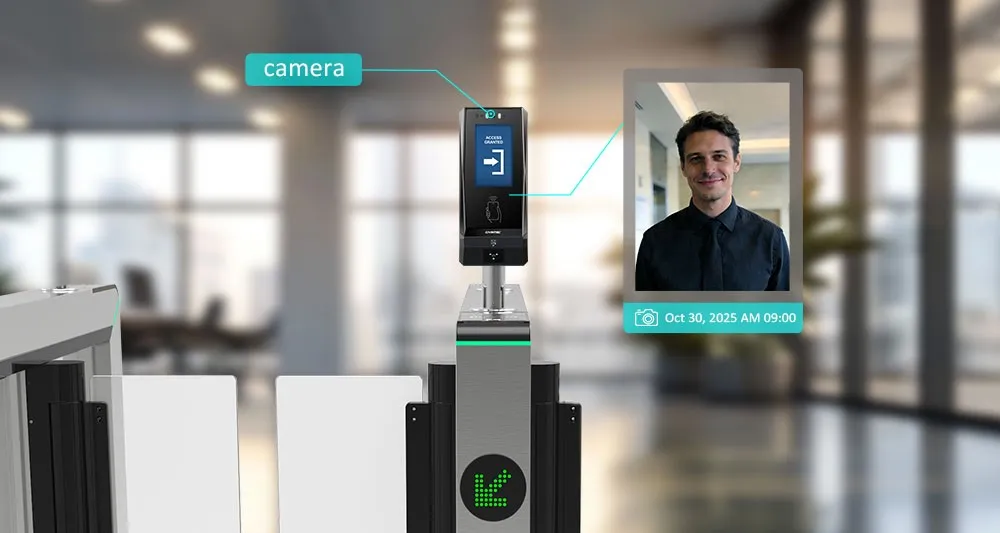

Auto Image Record: Automatically takes snapshots upon access for a clear audit trail synced to the server.

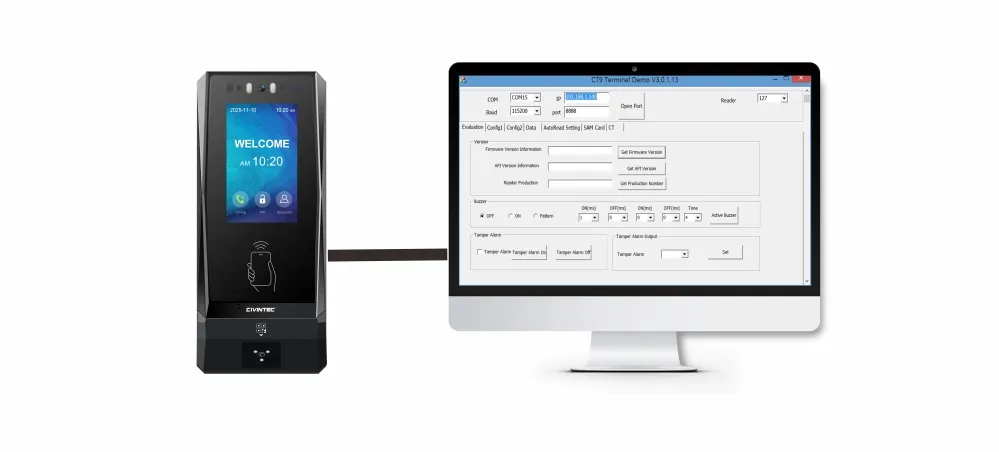

Robust SDK with demo software is offered for third-party server software integration. The plug-and-play hardware testing package includes all necessary accessories and software tools for easy configuration, fast development, and firmware upgrades.
We offer ODM customization on hardware, reader housing, firmware, and software design services to meet specific project requirements.
