Overview

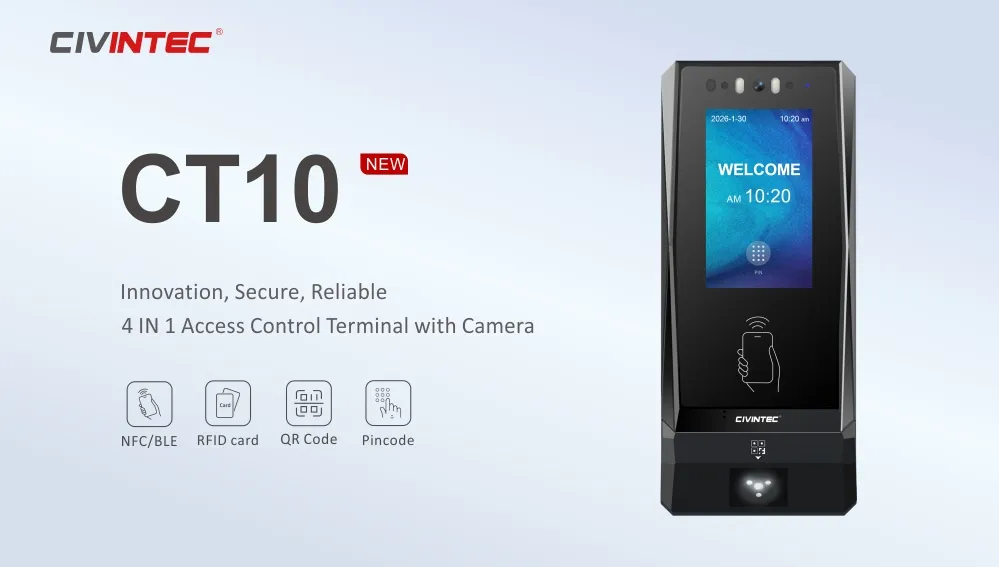

CT10 is an advanced access control terminal featuring a camera and four authentication methods, including mobile credentials (BLE/NFC), RFID cards, QR scanning, and keypad input. It supports flexible connectivity via Ethernet, 4G, WiFi, and LoRaWAN for real-time or standalone operation. With an open SDK and customizable 3.5-inch touch interface, it enables tailored integration across corporate, industrial, and smart building applications.
HTTP Server Centralized Access Control System
3.5" Touch Screen Terminal with Embedded Linux OS & SDK
Supports 4G, WiFi, LoRaWAN, TCP/IP | HTTP/HTTPs Protocols
Basic Specifications
Interface
TCP/IP WiFi Lorawan 4G
Product OS
Linux OS with 3.5 Inch Touch Screen
Mobile ID
BLE, NFC, Optional QR Code
Capacity
100,000 Users / 200,000 Logs
Power Supply
DC 12~24V, PoE IEEE802.3af
Detailed Specifications
| IDENTIFICATION & HARDWARE |
| RFID Support |
125KHz HID® PROX™, EM; 13.56MHz Mifare® Classic, Ultralight®, Plus, DESFire® EV1/EV2/EV3, NFC tags |
| Mobile Credential |
BLE, NFC, QR Code |
| Operating System |
LINUX OS |
| Display |
3.5" touch screen (Resistant to UV ray) |
| Camera |
Camera with Autofocus and LED Flash |
| Communication |
TCP/IP(RJ45), optional WiFi, LoRaWAN, 4G, RS485, Wiegand |
| Protection Rating |
IP65 electric epoxy potted, Resistant to UV ray |
Key Features

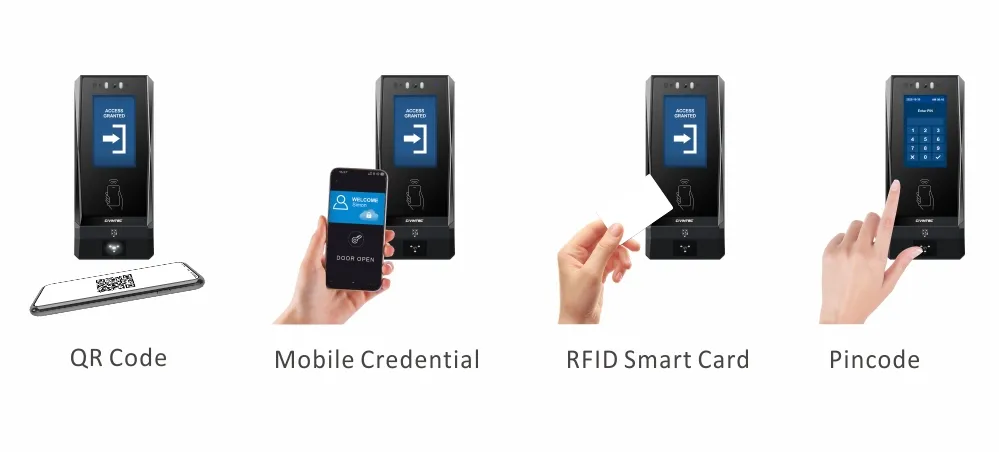

Multiple Authentication Technologies
CT10 supports multiple access control credential options secured by advanced encryption. Security can be further enhanced with 4-factor authentication by combining mobile apps with digital credentials.

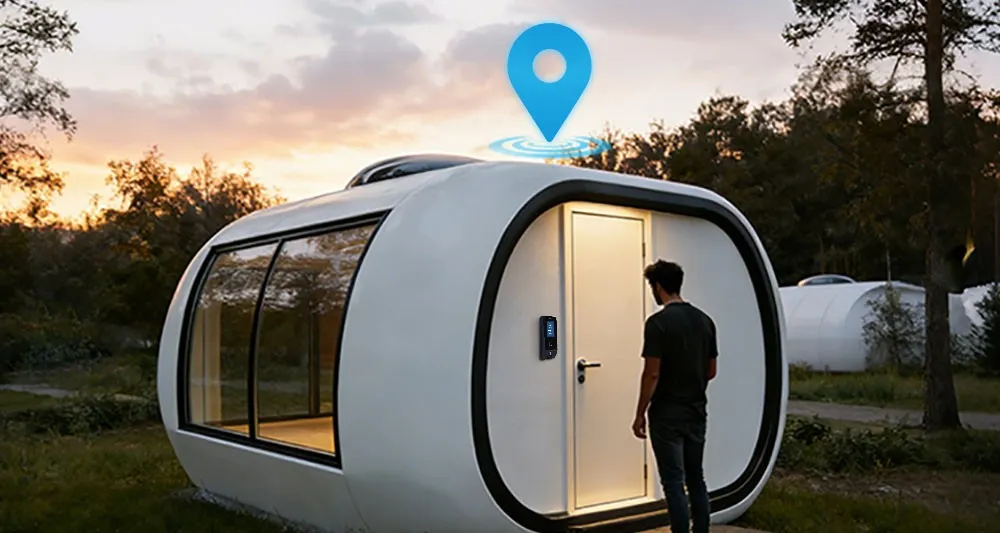

Real-Time Cloud Access & 4G Reliability
Enables real-time online remote control of door locks and turnstiles via a centralized cloud platform. Embedded 4G LTE and GPS ensure continuous connectivity in outdoor environments without dependency on local network cables.

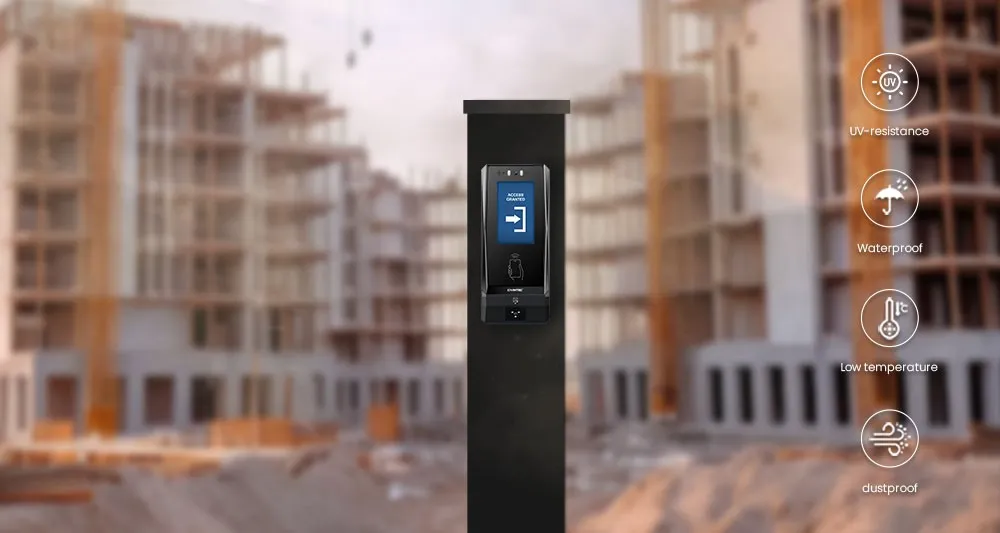

Secure Encryption & Weather Resistance
Implements AES encryption for credentials and personal information. Its mullion, compact design with IP65 rating is built for durability against rain, dust, and strong sunlight.

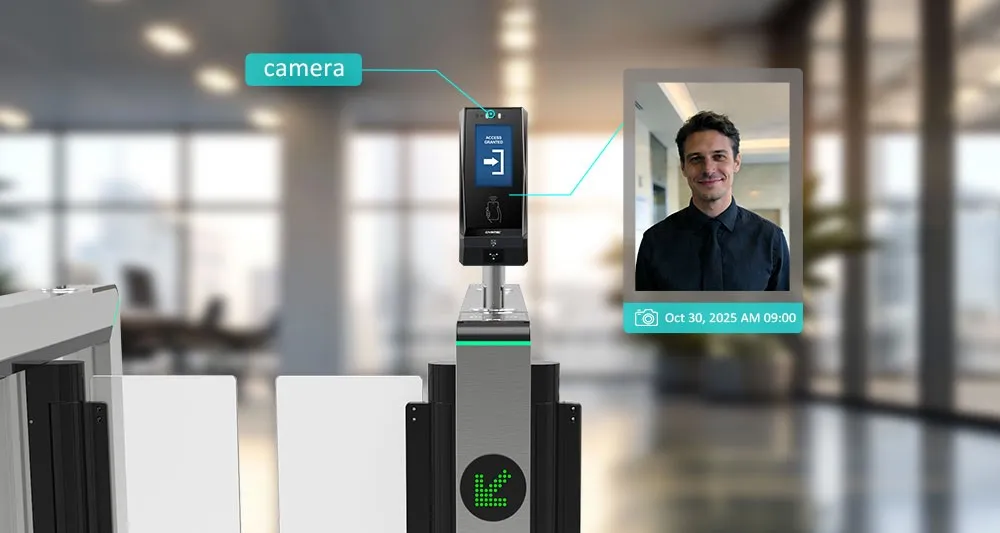

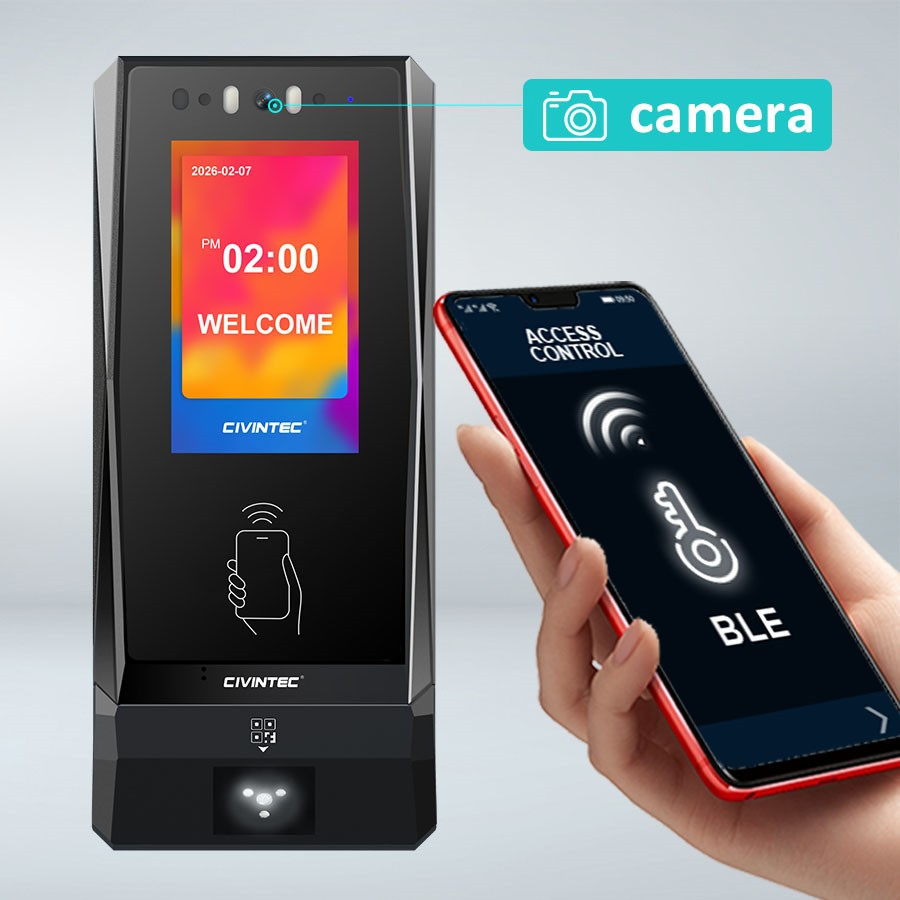

Auto Image Record Notifications
The device automatically takes a snapshot upon access. This visual record is synced to the server in real-time or saved locally, providing a clear audit trail for enhanced security.

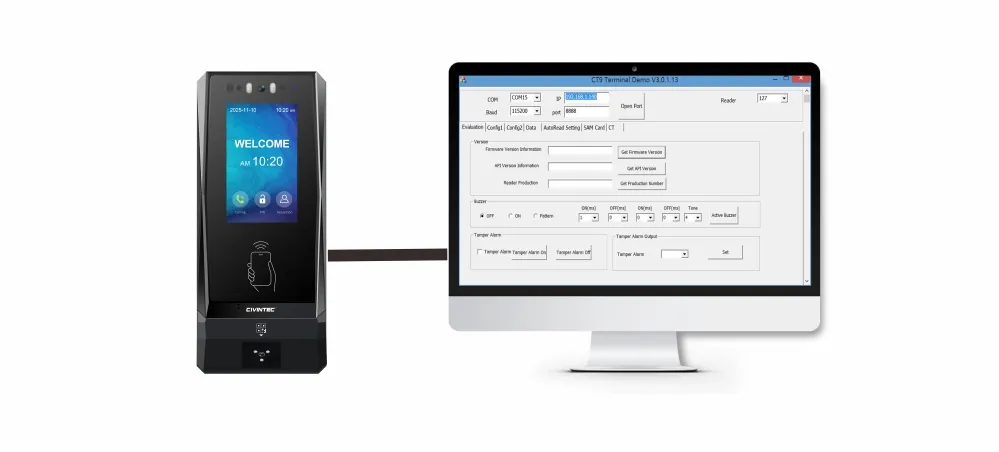

Developer & Customization
A robust SDK with demo software is offered for third-party server integration. We provide ODM customization services for hardware, housing, firmware, and software design to meet specific project needs.
Manufacturing & Production
Frequently Asked Questions
What identification methods does the CT10 support?
The CT10 supports multiple methods including RFID cards (125kHz and 13.56MHz), Mobile credentials via BLE and NFC, QR Codes, and a digital keypad via the touch screen.
Can this device work in areas without a wired internet connection?
Yes, it features embedded 4G LTE, WiFi, and LoRaWAN connectivity, allowing it to operate reliably in remote locations or mobile sites without Ethernet cables.
Is the CT10 suitable for outdoor installation?
Absolutely. It has an IP65 protection rating, is electric epoxy potted, and uses UV-resistant materials to withstand rain, dust, and intense sunlight.
How many users and logs can the device handle?
In local mode, it can store up to 100,000 users and 200,000 event logs. In online mode, the capacity is virtually unlimited as data is managed by the server.
Does the device provide any visual audit trail for security?
Yes, the CT10 includes an autofocus camera with an LED flash that automatically takes snapshots during access events, which are then synced to the server for security monitoring.
Is there support for third-party software integration?
Yes, we provide an open SDK and demo software for Linux OS to facilitate easy integration with third-party management platforms and custom software development.
