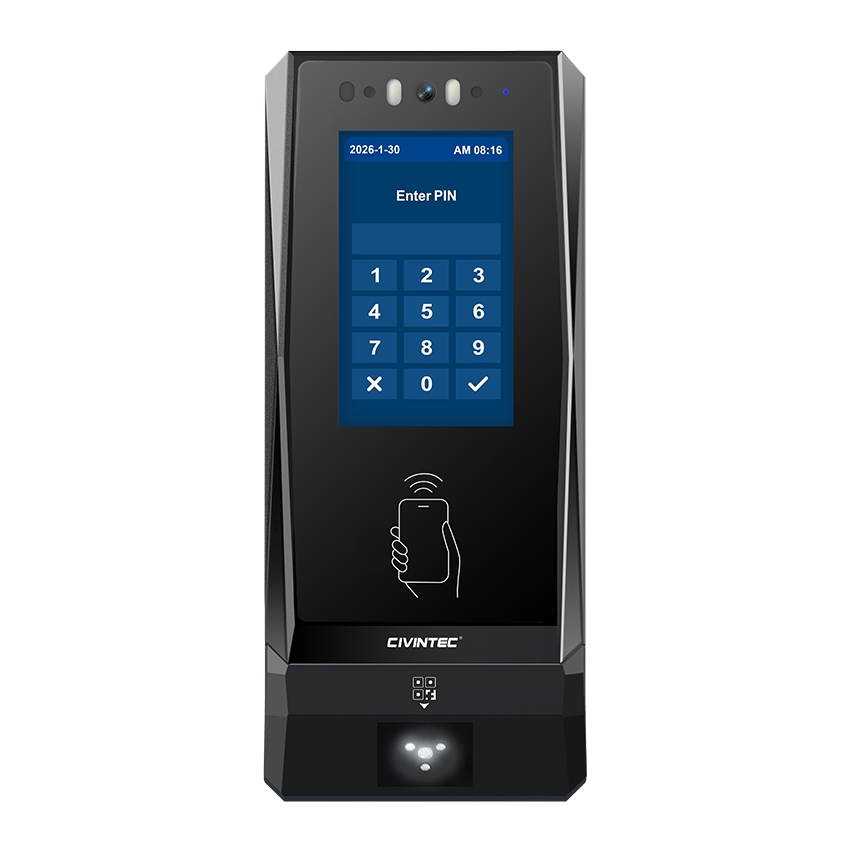

CT10 is an advanced access control terminal with a camera and four authentication methods, including mobile credentials (BLE/NFC), RFID cards, QR scanning, and keypad input. It supports flexible connectivity via Ethernet, 4G, WiFi, and LoRaWAN for real-time or standalone operation. With an open SDK and customizable 3.5-inch touch interface, it enables tailored integration across corporate, industrial, and smart building applications.
Supports RFID / QR Code / Mobile Credential Readers
Embedded Linux OS & SDK with 4G, WiFi, LoRaWAN, TCP/IP Connectivity
| Identification | |
| RFID | 125KHz (HID® PROX™, EM); 13.56MHz (Mifare® Classic, Ultralight®, Plus, DESFire® EV1/EV2/EV3, NFC tags) |
| Mobile Credential | BLE, NFC, QR Code |
| Keypad | Supported |
| General | |
| Operating System | LINUX OS |
| Display | 3.5" touch screen (Resistant to UV ray) |
| Camera | Camera with Autofocus and LED Flash |
| Interface | |
| Communication | TCP/IP(RJ45), WiFi, LoRaWAN, 4G, RS485, Wiegand |
| I/O Port | Door contact, Door exit, Buzzer control, Tamper alarm switch |
| Capacity | |
| Max. Card Users | Local: 100,000 users / Online: Unlimited |
| Max. Event Logs | Local: 200,000 logs / Online: Unlimited |
| Max. Image Logs | 7,000 Snapshots |
| Installation | |
| Protection Rating | IP65 electric epoxy potted (UV Resistant) |
| Dimensions | 46mm(D) * 198mm(H) * 82.6mm(W) |

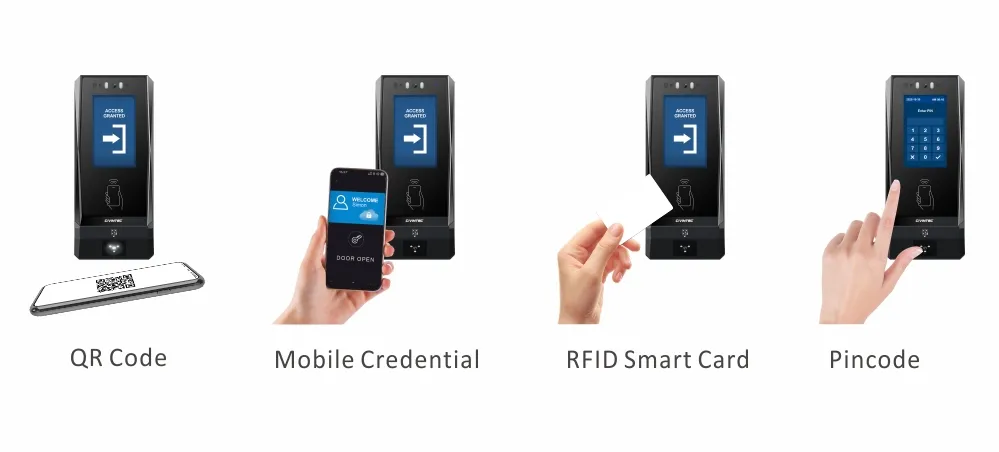

CT10 supports multiple access control credential options secured by advanced encryption. Security can be further enhanced with 4-factor authentication by combining mobile Apps with digital credentials.
Enables real-time online remote control of door locks, turnstiles, and various facilities via a centralized platform. Communications are secured through bi-directional encrypted HTTP/HTTPS requests.
Designed for reliable outdoor and mobile applications, ensuring continuous connectivity without WiFi dependency. IP65 rating and GPS capability provide location verification for remote facilities.

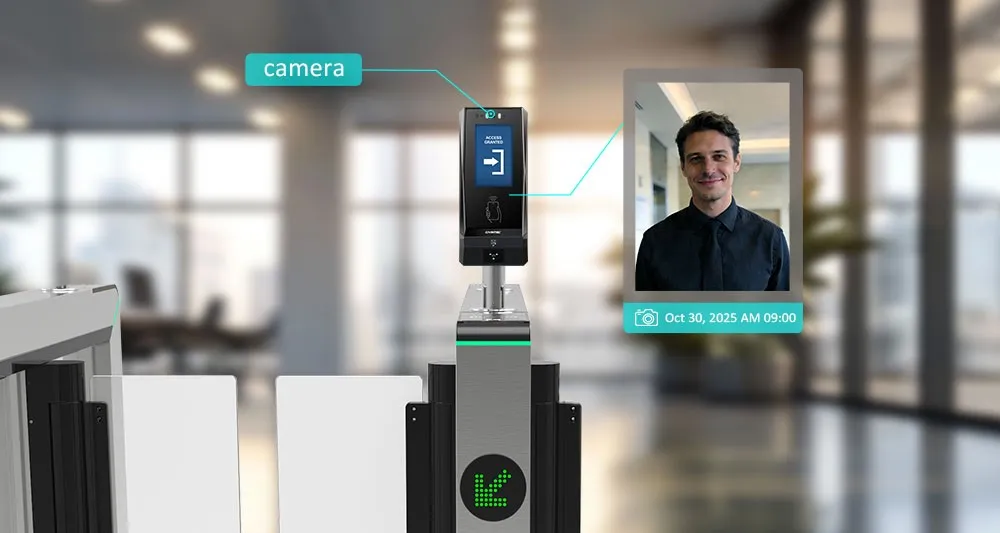

Implements AES encryption for digital credentials and HTTPS protocols for data security. The terminal automatically takes a snapshot upon access to provide a clear audit trail.

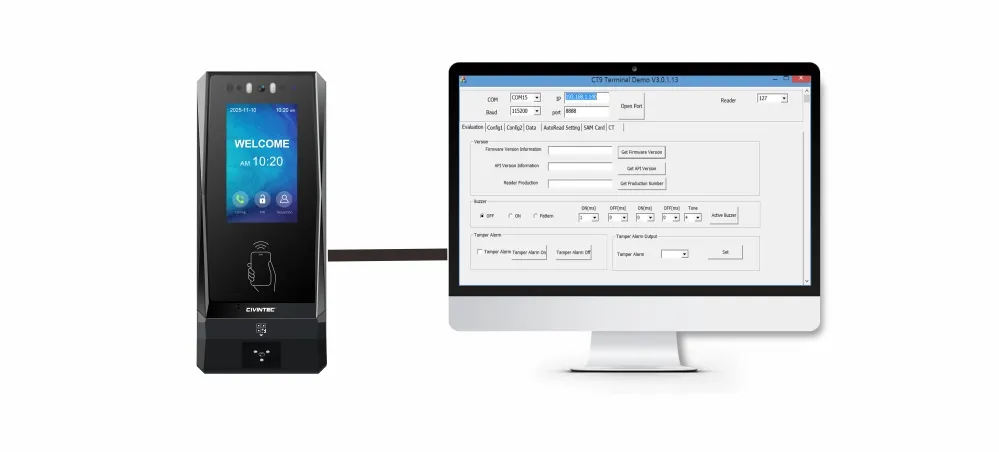

A robust SDK with demo software is offered for third-party server software integration. We provide an HTP plug-and-play hardware testing package with all necessary accessories to establish a full testing environment.
