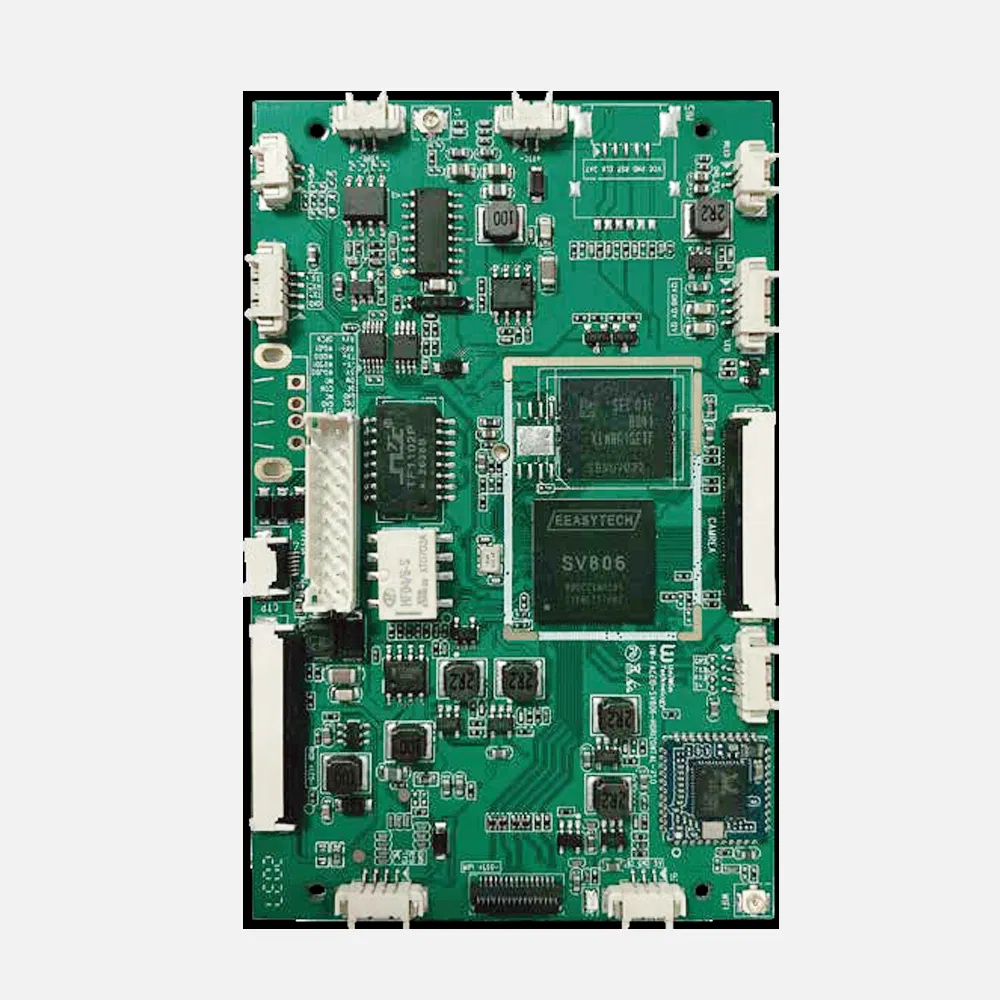

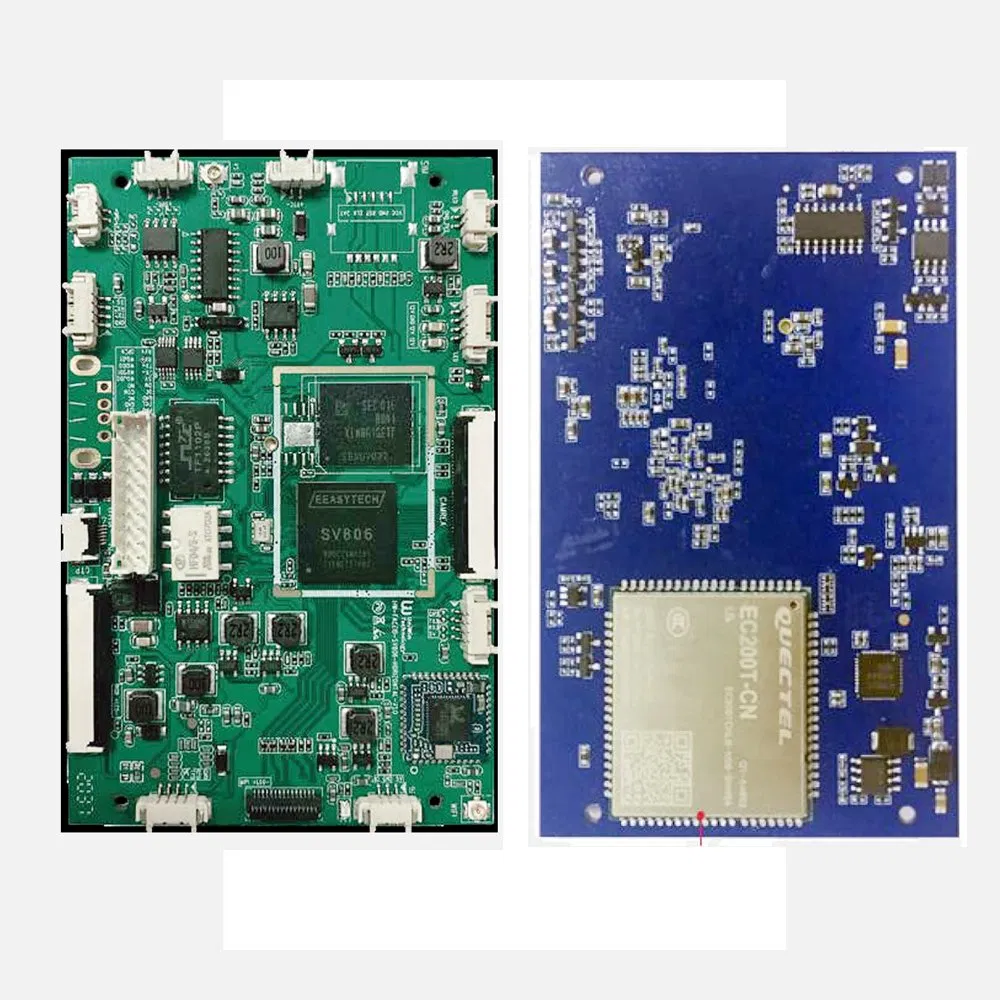

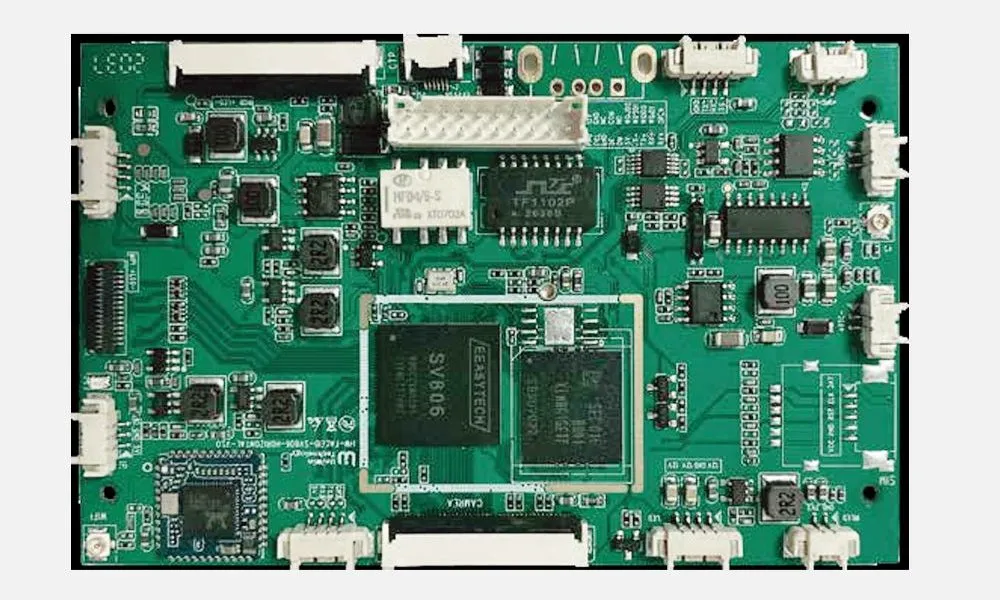

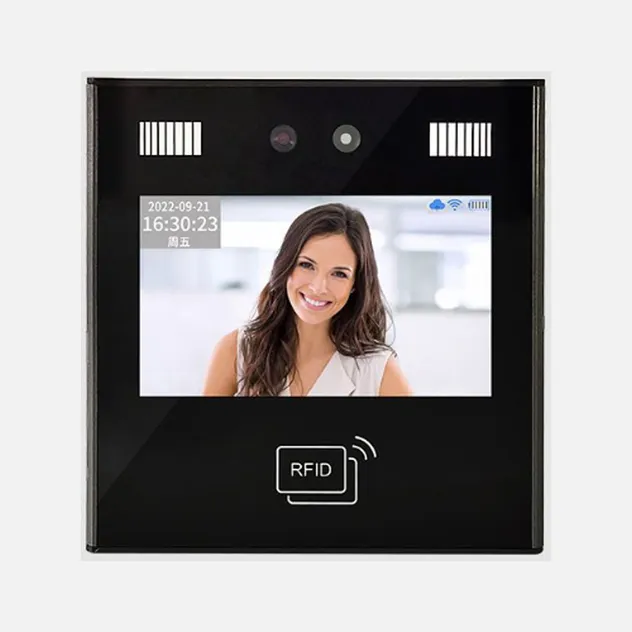

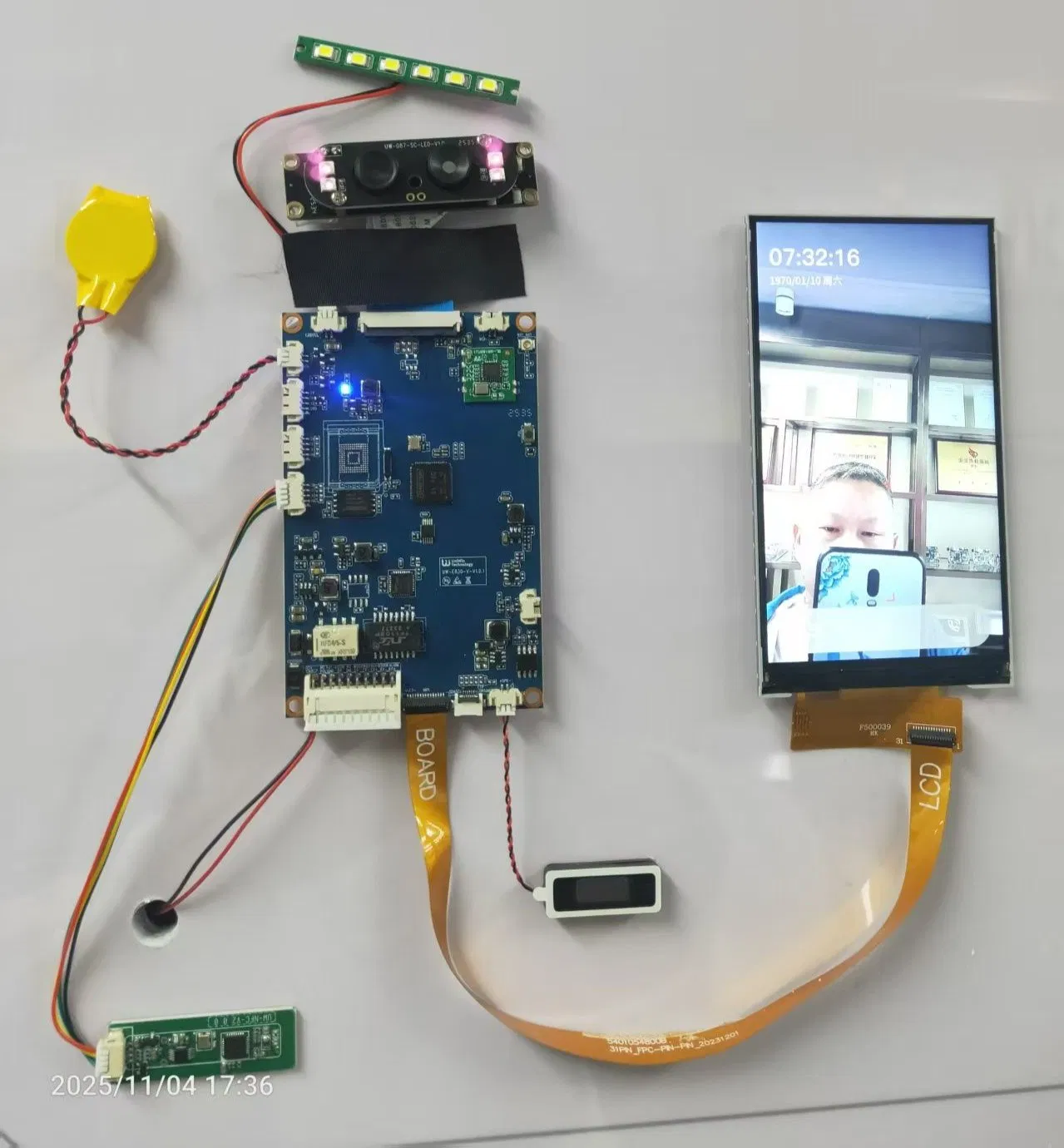

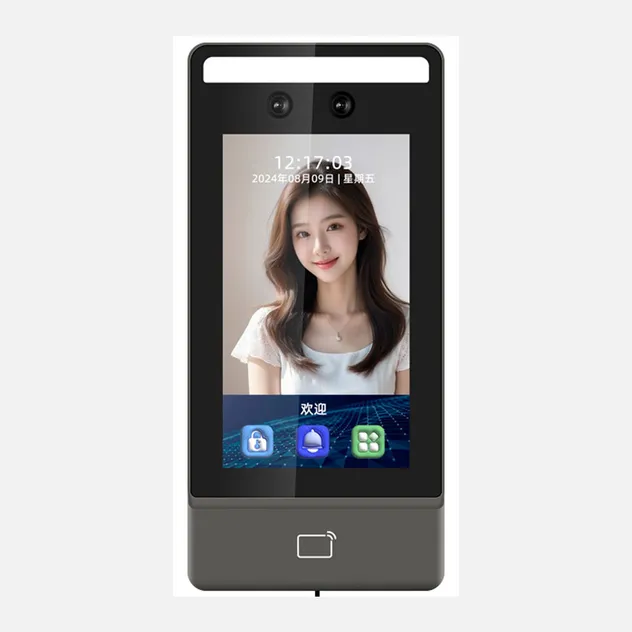

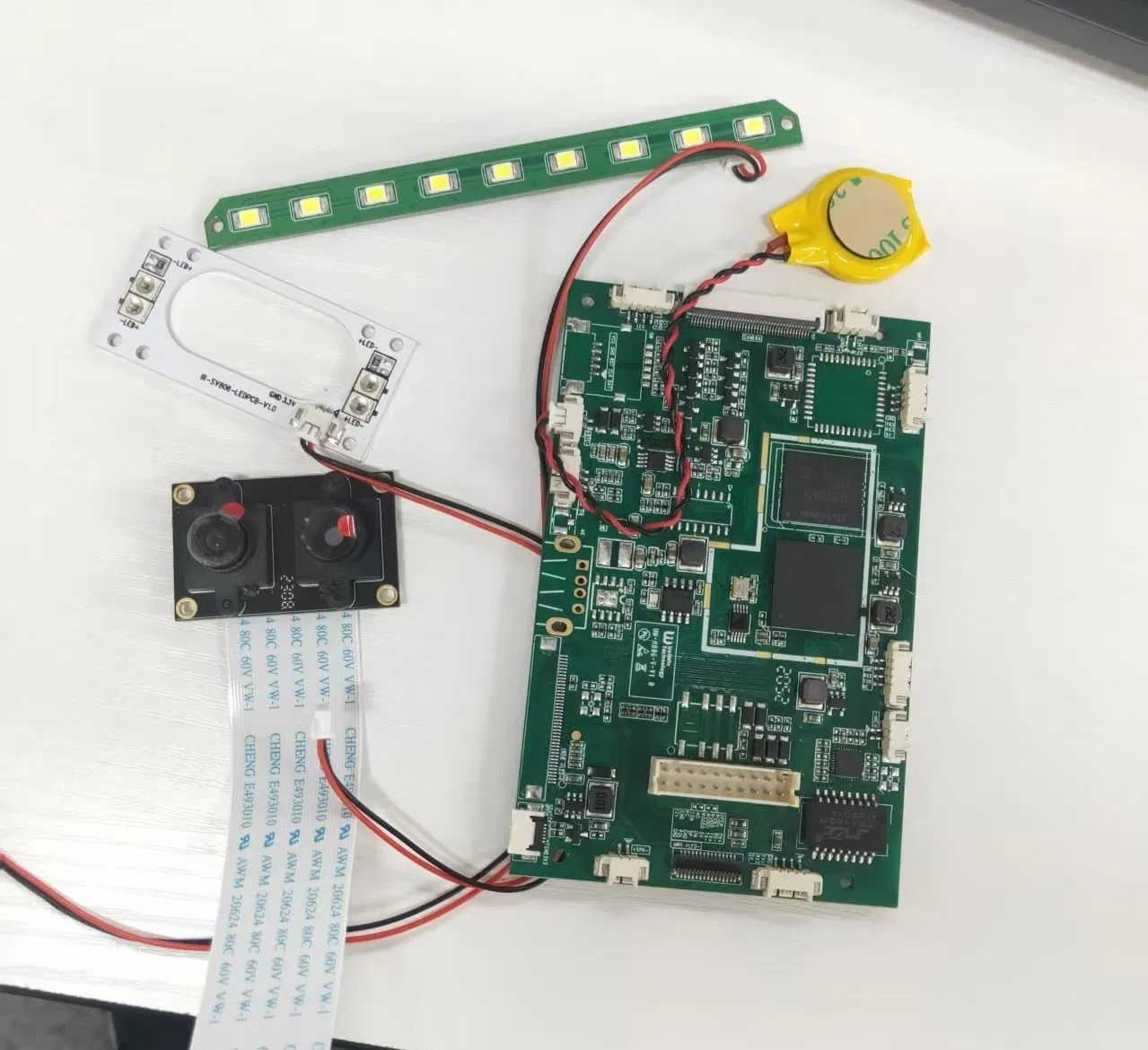

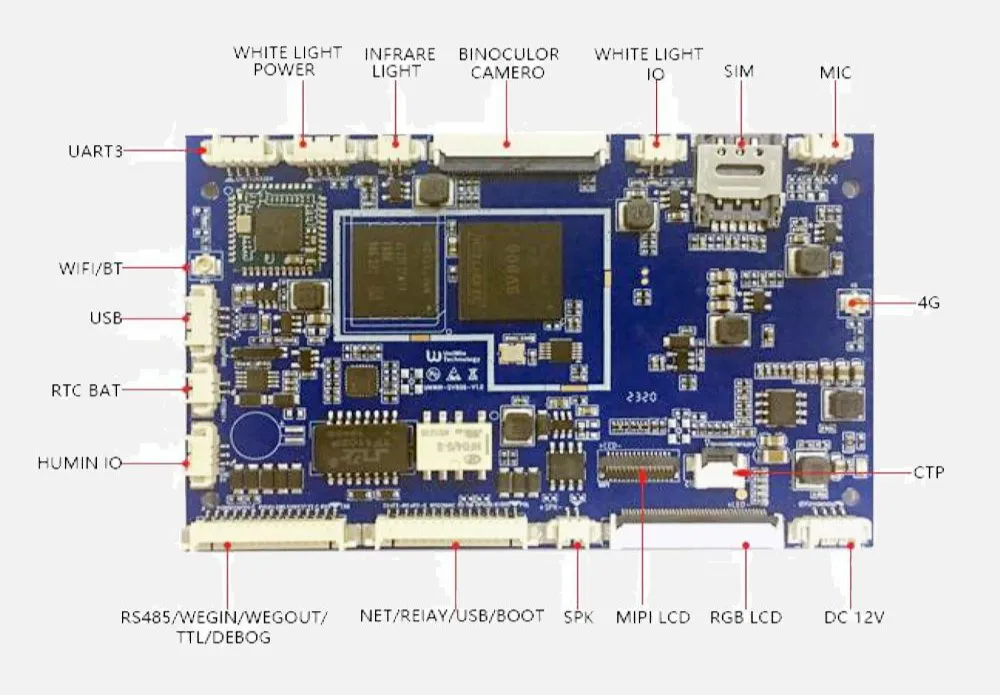

TRC-GYZB-ZXM806 is an entry-level facial recognition access control motherboard developed based on the EEASYTECH SV806 main chip. This motherboard is equipped with built-in 128MB DDR3L + 4GB eMMC (8GB/16GB optional), and supports basic screen driving (RGB interface) and single MIPI camera connection, which is cost-effective and suitable for simple access control and attendance scenarios.

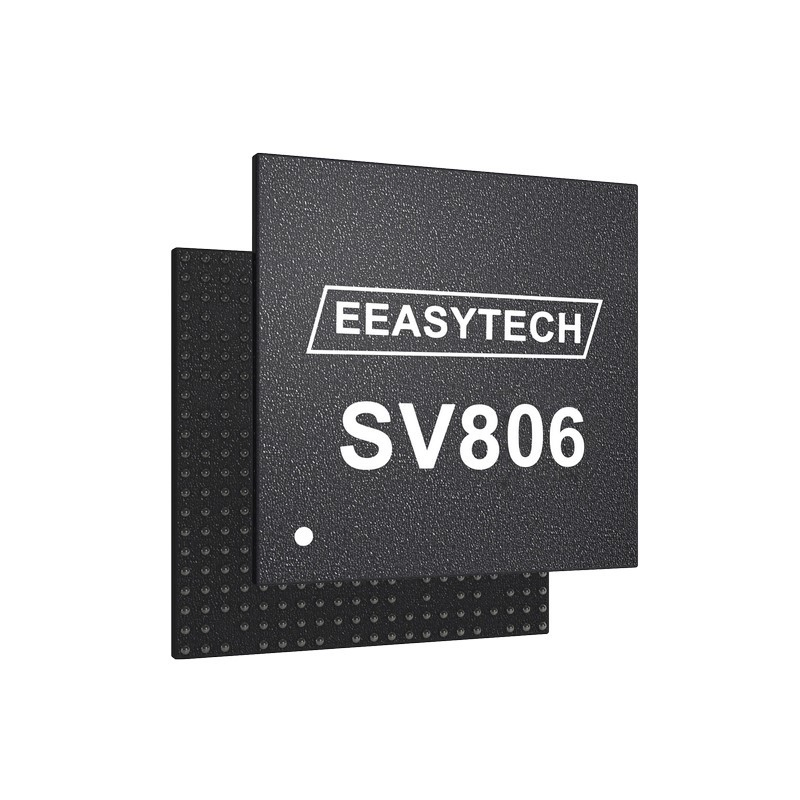

EEASYTECH SV806 is a cost-efficient AI SoC with an integrated lightweight neural network acceleration engine. The integrated neural network processor supports a maximum deep neural network computing capacity of 0.5 TOPS, which can meet the basic needs of face recognition and liveness detection.

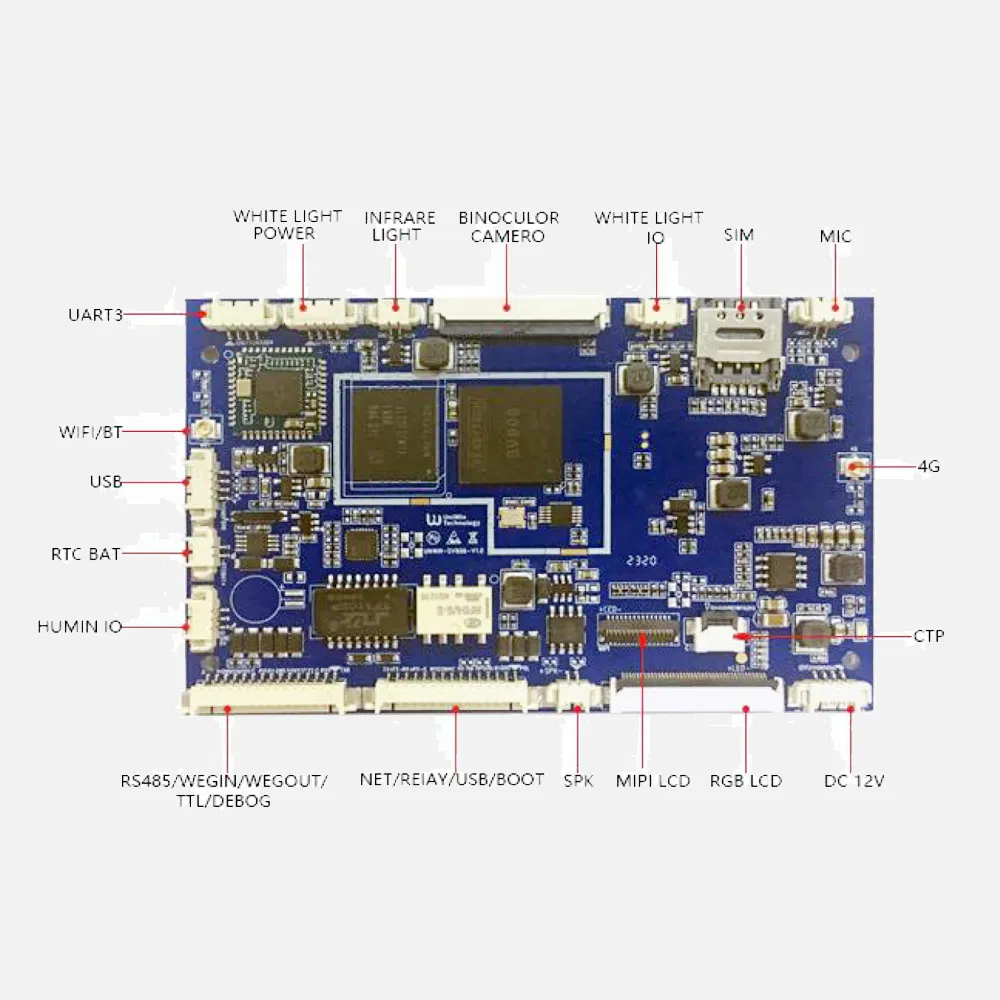

| Parameter | Specification |
|---|---|
| CPU | EEASYTECH SV806, Dual-core CPU |
| NPU | Built-in accelerator with 0.5 TOPS computing power |
| Memory | Built-in 128MB DDR3L |
| Storage | EMMC (4GB standard, 8GB/16GB optional) |
| Display | RGB interface (max 800×480@60Hz) |

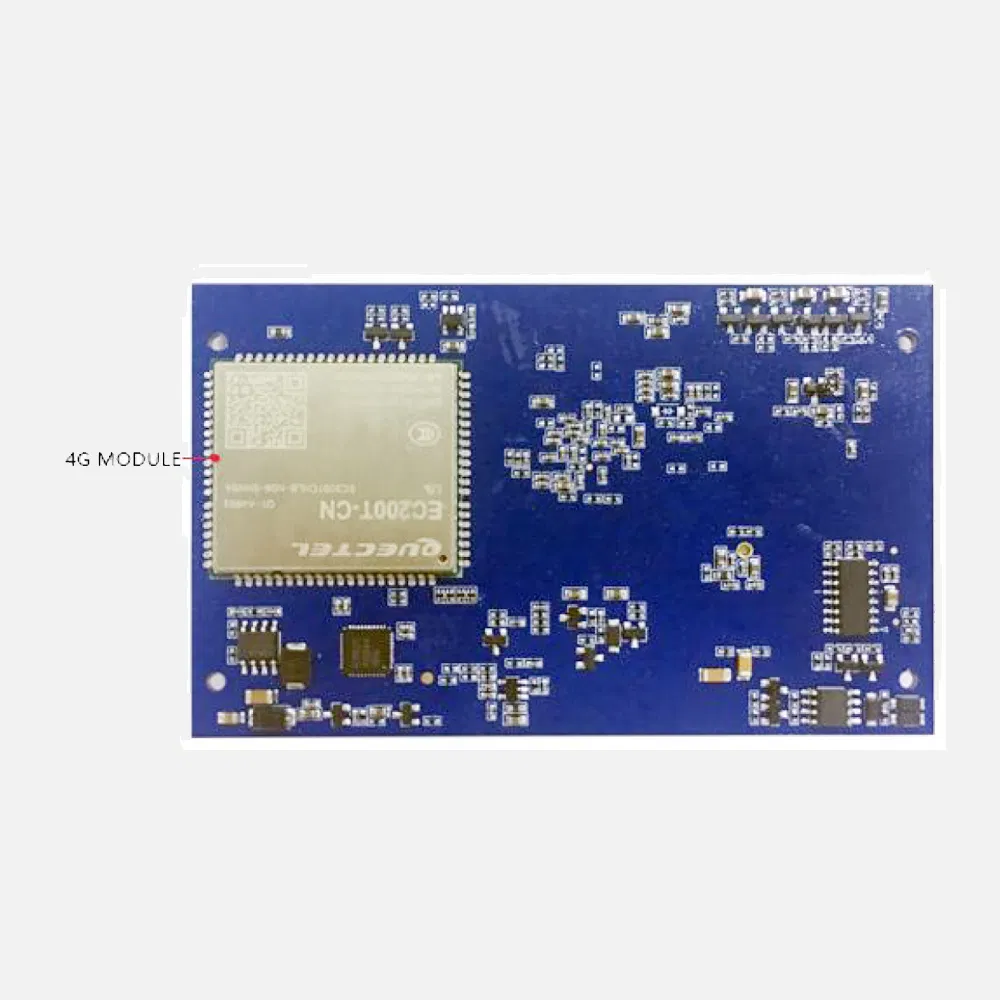

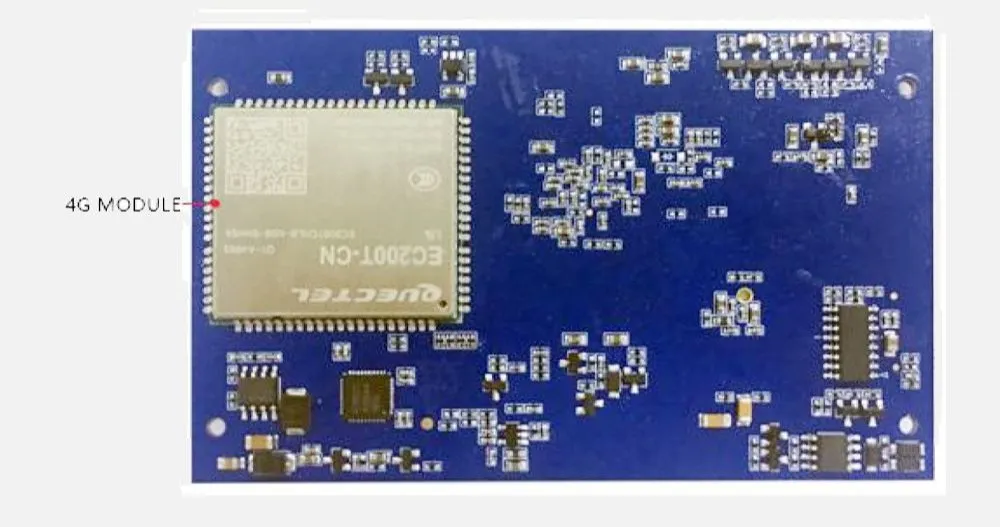

| Network | RJ45 100M, 2.4G Wi-Fi, Optional 4G CAT1, Bluetooth 4.0 |
| Peripheral | MIPI camera, USB 2.0 OTG, 2x TTL, Wiegand IN, 1x Relay |
| Audio | Built-in 2W 8Ω power amplifier, 1 MIC interface |
| OS | Lightweight Linux operating system |
| Algorithm | 5,000 face capacity, 2D liveness detection, 95% pass rate |
We are a professional enterprise specializing in the field of access control verification equipment, with 12 years of in-depth experience. Our business covers the full-link process from independent R&D and production of underlying control boards to complete machine assembly and delivery.
