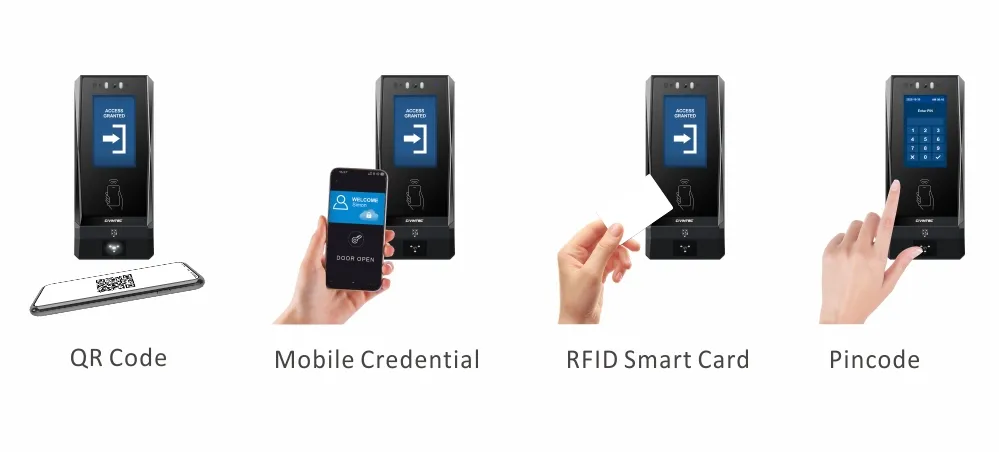

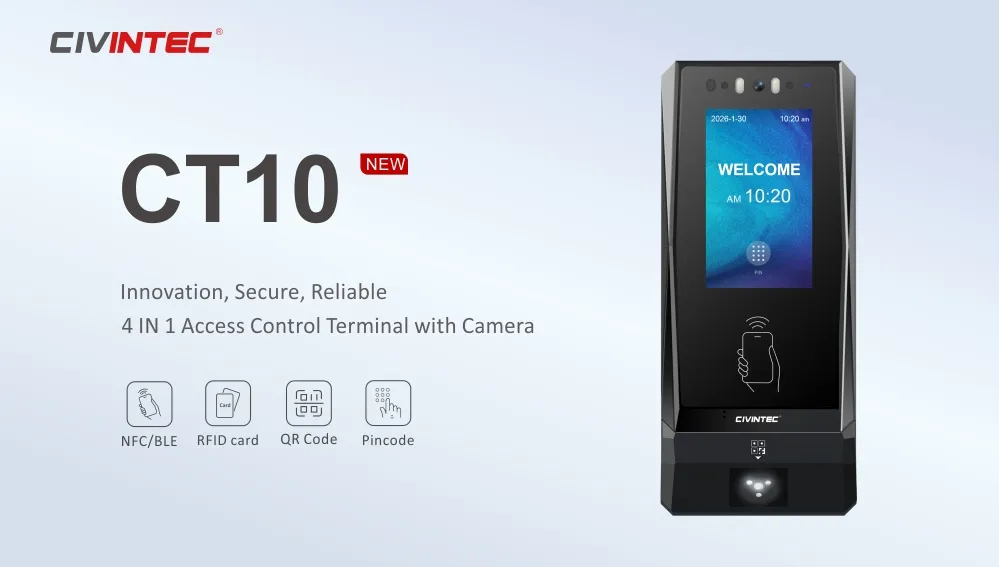

CT10 is an advanced access control terminal featuring a camera and four authentication methods: mobile credentials (BLE/NFC), RFID cards, QR scanning, and keypad input.
| Technical Data | |
|---|---|
| RFID Support | 125KHz (HID Prox, EM), 13.56MHz (Mifare Classic, DESFire EV1/2/3, NFC) |
| Mobile Credentials | BLE, NFC, QR Code |
| Display | 3.5" UV-resistant touch screen |
| Camera | Autofocus with LED Flash |
| Communication | TCP/IP (RJ45), WiFi, LoRaWAN, 4G, RS485, Wiegand |
| I/O Ports | Door contact, Exit button, Tamper switch, Relay control |
| Protection | IP65 Rated, Epoxy potted |
| Dimensions | 198mm(H) x 82.6mm(W) x 46mm(D) |
Supports advanced encryption for mobile apps, digital credentials, RFID cards, and QR codes to ensure maximum security.
Enables remote control of door locks and turnstiles via a centralized cloud platform using encrypted HTTP/HTTPS protocols.

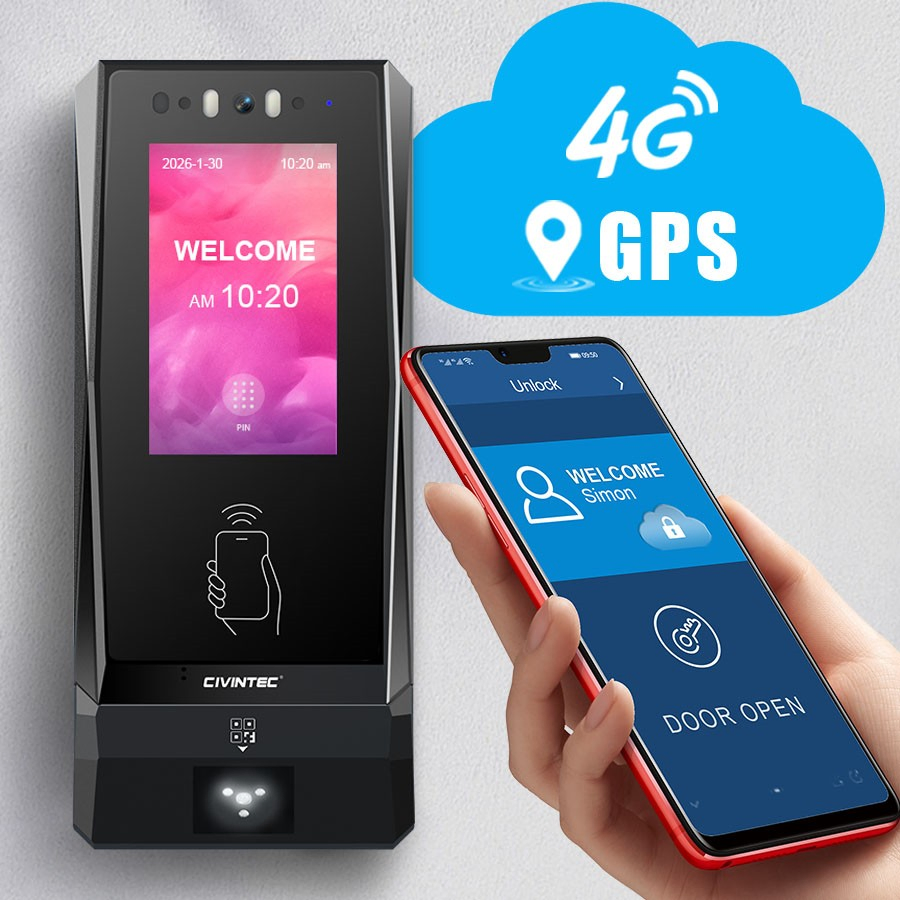

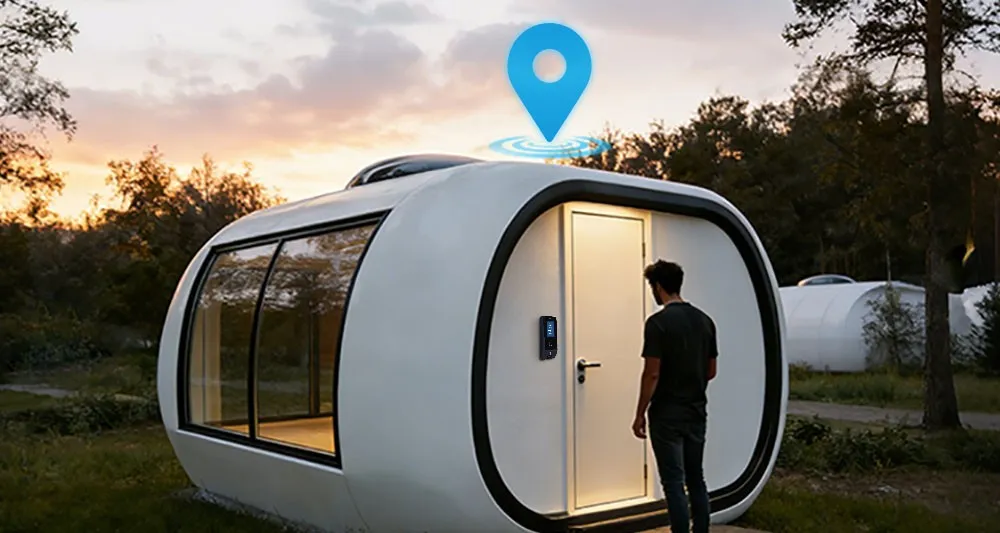

Designed for construction sites and remote facilities with embedded 4G LTE and GPS for location verification.

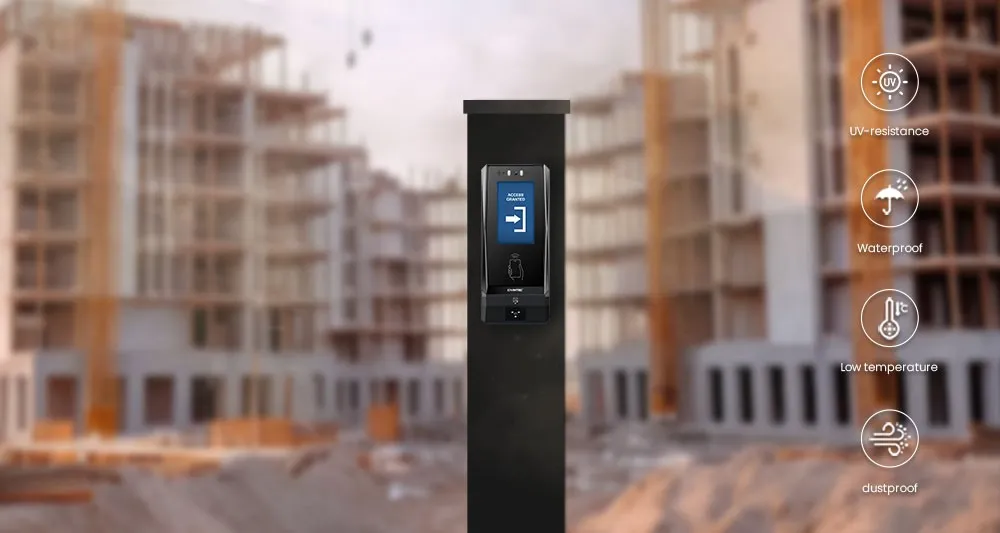

Robust IP65 housing protects against rain, dust, and strong sunlight, ensuring performance in rugged environments.

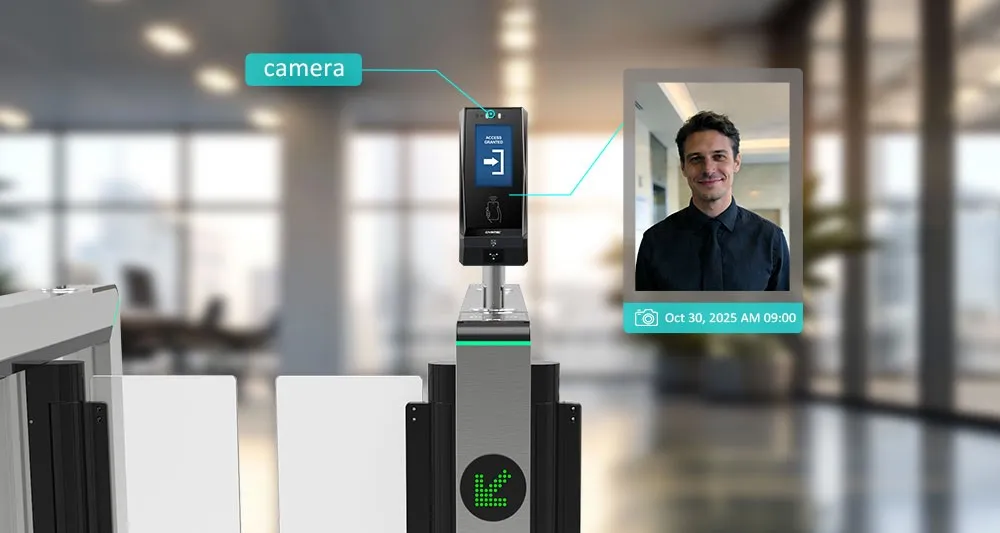

Automatically captures snapshots upon access for a clear audit trail synced to the server in real-time.

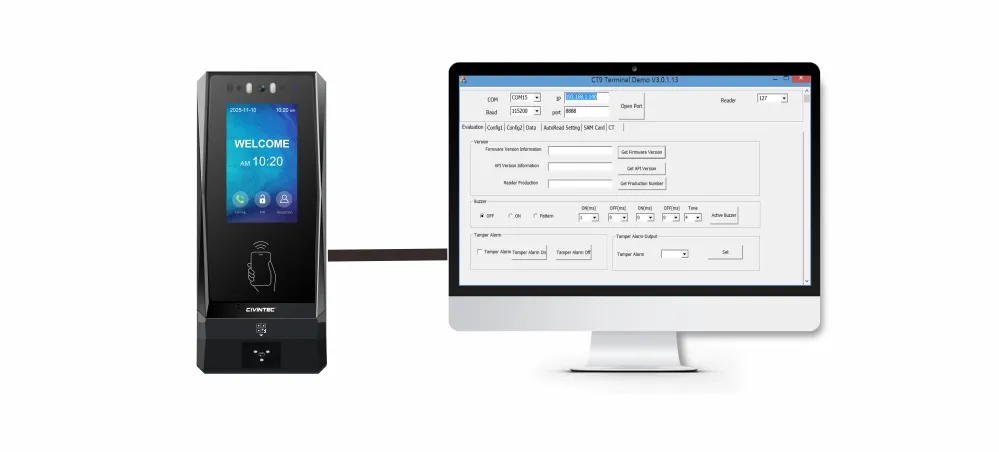

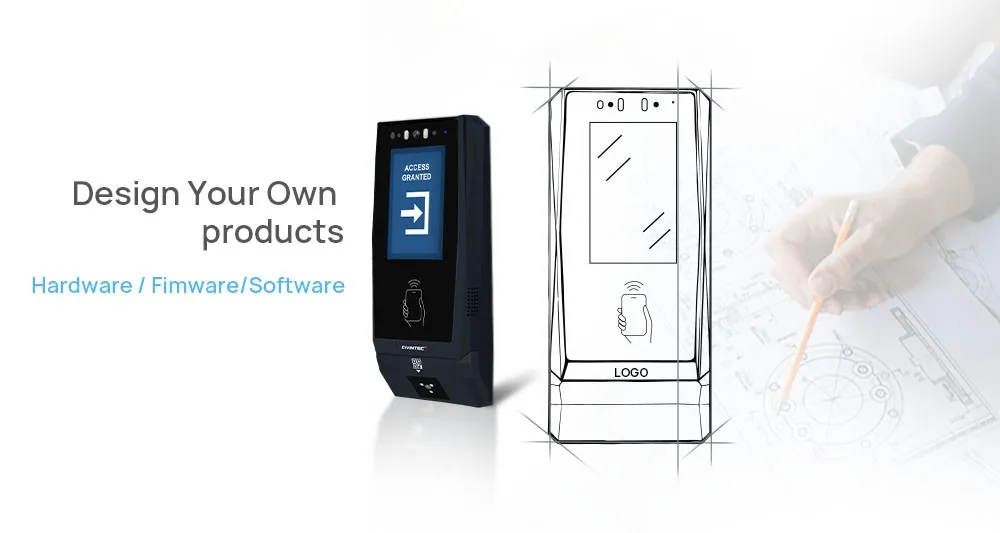

A robust SDK with demo software is provided for third-party integration. We offer ODM customization services for hardware, housing, and firmware design.
